ISUZU
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
03/2021 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R0
SWC resis ve interface�
INSTALLATION MANUAL
Model:
Kit content:
Customer code:
03/2021 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
wiring harness
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
Steering wheel control interface installa on kit for:�
D-MAX
Year: 2020>
radio adapter (*) if included
(*)
1- Volume +
2- Volume -
3- Seek up
4- Seek Down
5- Source (Short press) /Mute (long press)
6- Accept incoming call
7- Voice
8- Reject incoming call
CA-R-ISU.002AE
1
43
2
678
5
7
8
7B
8B
In order to prevent ESD damage, the WHEEL REMOTE JACK must be
connected before plugging in the connectors on car side.
Connect cables to the radio side as follow:
1- to ISO CONNECTOR (red and black housings)
2- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)
3- to SERVICE (if required); func on is marked on wire:�
Green - Brake
Pink - Speed
Violet/White - Reverse
4- to FM/AM Radio Connector
5- to DAB Radio Connector

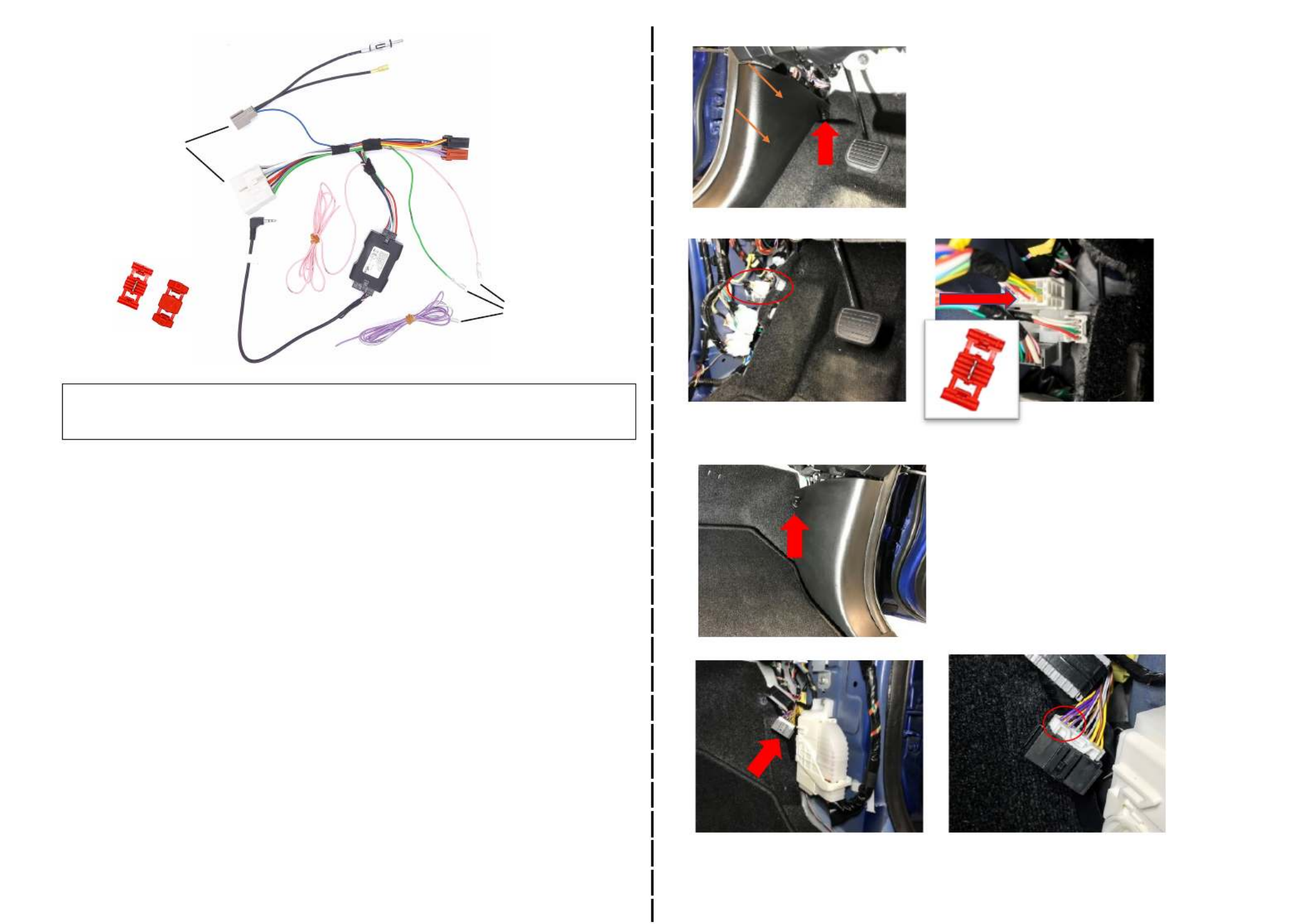

Connect cables to the car side as follow:
6- to CAR Connectors
7- to Red wire by using 8B (see next page)
8- to Violet wires by using 7B (see next page)
2
1
ATTENTION!
4
6
3
5C
5
7.2
8.1
7.1
8.2
8.2 By using the current-breaker (8B) connect the Pink wire (8) with one of th 3
violet wires circled in Red in the picture above.
8.1 Unscrew the screw indicated with the Red arrow
located near the passenger seat nd remove the
plas c panel.�
7.2 By using the current-breaker (7B) connect the Red wire indicated by th Red arrow.
7.1 Unscrew the scre indicated with the Red arrow
and remove the plas�c panel.
