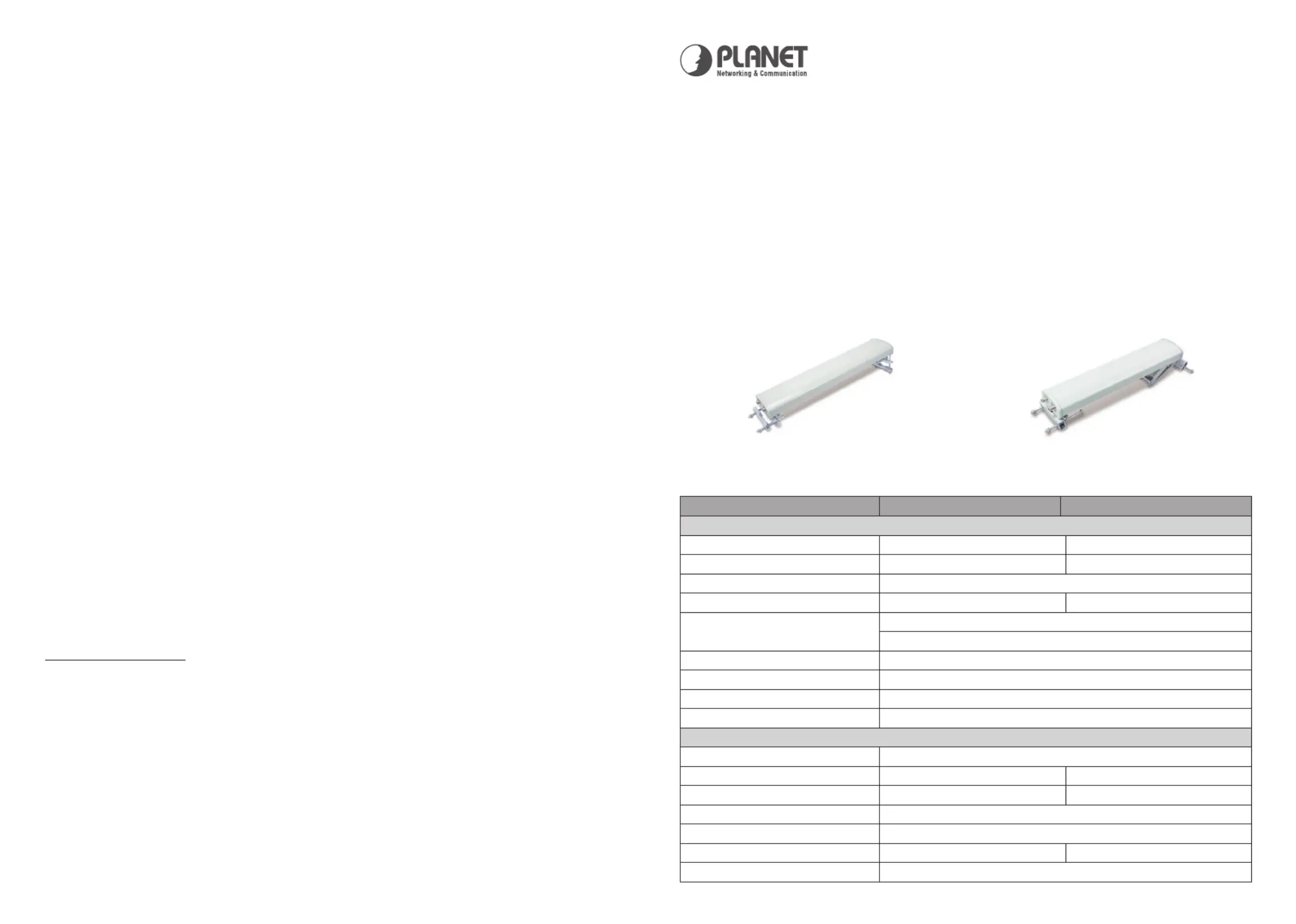

ANT-SE17D/ANT-SE17AD

2.4GHz/5GHz 2x2 MIMO 17dBi Sector Antenna

1. Package Contents:

Thank you for purchasing PLANET ANT-SE17D/ANT-SE17AD 2.4GHz/5GHz 2x2 MIMO 17dBi

Sector Antenna.

Before installing, please check the contents inside the box.

 2x2 MIMO 17dBi Sector Antenna x 1

ANT-SE17D ANT-SE17AD

2.ProductSpecications:

ANT-SE17D ANT-SE17AD

Electrical Specications

Frequency Range 2400-2500MHz 5150-5850MHz

Antenna Gain 2 x 16.5 2 x 17

Antenna Type Dual-polarity Sector Antenna

V.S.W.R. ≤1.5 ≤2

Beamwidth Angle

Horizontal 90 degrees

Vertical 7 degrees

Maximum Input Power 200W

Front-to-back Ratio (dB) ≥23

Input Impedance (Ω) 50

Operating Temperature -40 ~ 60 degrees C

Mechanical Specications

Connector Type 2 N-type female

Dimensions (H x W x D) 1000x114x54 mm 580x114x54 mm

Weight 6 kg 3 kg

Mechanical Tilt Angle 0 ~10 degrees

Radome Material UPVC

Mounting Hardware

35 ~

75 mm

35 ~

90 mm

Rated Wind Velocity 60 m/s

TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE

GROUND

Select equipment locations that will allow safe, simple equipment installation.

Don’t work alone. A friend or co-worker can save your life if an accident happens.

Use approved non-conducting lasers and other safety equipment. Make sure all equipment

is in good repair.

If a tower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.

If anything such as a wire or mast does come in contact with a power line, DON’T TOUCH

IT OR ATTEMPT TO MOVE IT. Instead, save your life by calling the power company.

Don’t attempt to erect antennas or towers on windy days.

MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL

CABLES CONNECTED TO ANTENNAS HAVE LIGHTNING ARRESTORS. This will help

prevent re damage or human injury in case of lightning, static build-up, or short circuit

within equipment connected to the antenna.

The base of the antenna mast or tower must be connected directly to the building protec-

tive ground or to one or more approved grounding rods, using 1 OAWG ground wire and

corrosion-resistant connectors.

Refer to the National Electrical Code for grounding details.

IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:

DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.

Use a non-conductive dry board, stick or rope to push or drag them so they no longer are

in contact with electrical power.

Once they are no longer contacting electrical power, administer CPR if you are certied, and

make sure that emergency medical aid has been requested.

6. Customer Support

You can browse our online FAQ resource on PLANET web site rst to check if it could solve

your issue. If you need more support information, please contact PLANET support team.

Support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

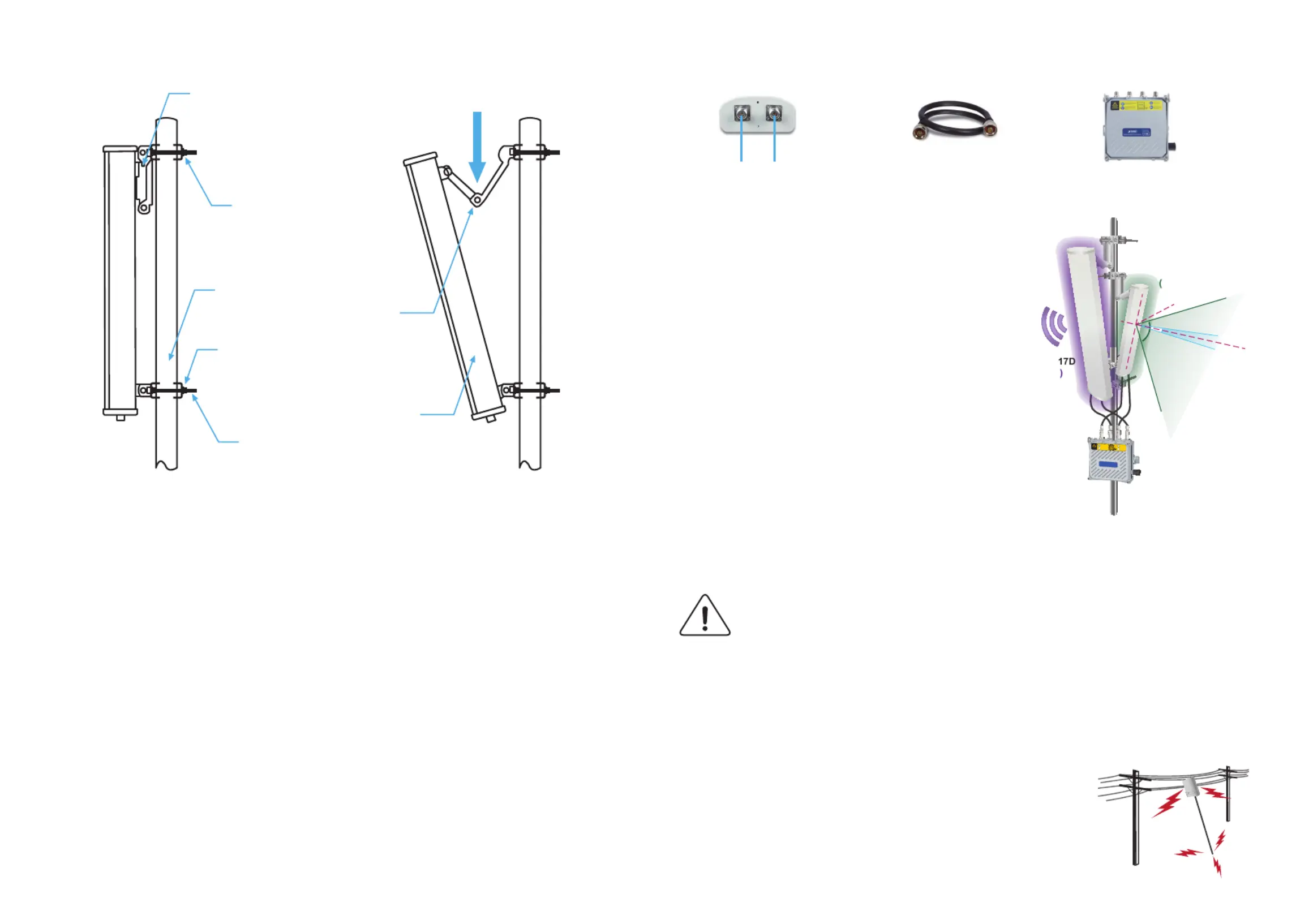

3. Antenna Installation Guide:

Assembly parts

Screw nut with

spring washer, and

flat washer

Pole

Sawtooth clamp

Screw

Antenna

Connecting arm

Angle adjustment

Please follow the steps below:

1. Place the antenna on the pole, adjust the inclination of the antenna, and then fasten the

sawtooth clamps with the screw nuts that come with spring washers and at washers. The

nal structure should look like the diagram on the right above.

2. Make sure to tightly fasten the upper and lower sides of the antenna to the pole with the

clamps. The diameter of the pole is 35~75 mm. To tighten it, place the M8 screws through

the sawtooth clamps.

3. Take down the connector cover of the antenna, connect the antenna connectors and make

sure that you have sealed the connections well.

4. Loosen the bolts that connect the two struts and adjust the inclination of the antenna to

the proper position to receive the best signal. Lastly, screw all the nuts tightly.

4. Antenna Connection Guide:

Vertical Horizontal

Antenna Cable

Outdoor AP

1. Install sector antenna and antenna cable on the

pole.

2. Use antenna cable to lock on the outdoor AP

2.4G/5G N-type female connectors and make sure

that the connection is tight.

5. OUTDOOR INSTALLATION WARNING

IMPORTANT SAFETY PRECAUTIONS:

LIVES MAY BE AT RISK! Carefully observe these instructions and any special

instructions that are included with the equipment you are installing.

CONTACTING POWER LINES CAN BE LETHAL

Make sure no power lines are anywhere where possible contact can be made. Avoid contact

with antennas, masts, towers, guy wires or cables that may lean or fall. You may be injured

or killed if you are touching or holding any part of equipment that comes in contact with

electrical lines. Make sure that equipment or personnel must not come in contact directly or

indirectly with power lines.

Assuming all overhead lines are power lines:

The horizontal distance from a tower, mast or antenna to the

nearest power line should be at least twice the total length of the

mast/antenna combination. This will ensure that the mast will not

contact power if it falls either during installation or later.

WDAP-802AC

WL-N-0.6 x4

ANT-SE

(2.4G

ANT-SE17AD

5G)

Caution

Equipment must

be grounded

PoE In: 802.3at PoE

Don’t turn when “A”

attaching “B”

Surge arrester is required and

must be grounded

The proper antenna must be

connected before powering

the AP on

H: 90º

V: 7º

Produkt Specifikationer

Mærke:	Planet
Kategori:	Ikke kategoriseret
Model:	ANT-SE17D
Kode for international beskyttelse (IP):	IP65, IP67
Bredde:	114 mm
Dybde:	54 mm
Højde:	1000 mm
Vægt:	6000 g
Driftstemperatur (T-T):	-40 - 60 °C
Impedens:	50 ohm (Ω)
Strømforbrug (maks.):	200 W
Frekvensbånd:	2.4 - 2.5 GHz
Antenne type:	MIMO retningsbestemt antenne
Maksimal driftstilstand:	8000 m
Isolering:	28 dB
Niveau for antennestyrke (maks.):	16.5 dBi
Stik køn:	Hunstik
Antennestik type:	N-type
Horisontal strålebredde:	90 °
Vertikal strålebredde:	7 °
Polarisering:	Dobbelt polarisering
Strålingsforhold fremad/bagud:	23 dB
Downtilt:	10 °
Overlevelses vindhastighed:	216 km/t
Sideløkke niveau:	1.5 dB
