1. Package Contents

Thank you for purchasing PLANET industrial Gigabit Media Converter,

IGT-805AT. In the following sections, the term “Industrial Gigabit

Media Converter” mentioned in this user’s manual also means the

IGT-805AT.

Open the box of the Industrial Gigabit Media Converter and

carefully unpack it. The box should contain the following items:

Industrial Gigabit

Media Converter x 1

User's Manual x 1

Wall-mount Plate w/

Screws x 1

DIN-rail Bracket

w/Screws x 1

RJ45 Dust Cap x 1 SFP Dust Cap x 1

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original

packing material, and use them again to repack the product in case

there is a need to return it to us for repair.

Weight 395g

Power Requirements

DC 12~48V, redundant power with reverse

polarity protection function.

AC 24V power adapter

Power

Consumption/

Dissipation

2.6 watts/8.8BTU (DC 48V)

Converter Specications

Flow Control

Back pressure for half duplex.

IEEE 802.3x pause frame for full duplex

Fabric 4Gbps

Throughput

(packet per second)

2.97Mpps@64bytes

Maximum

Transmission Unit

9216 bytes

Network Cables

10/100/1000BASE-T:

Cat3, 4, 5, 5e, 6 UTP cable

(100 meters, max.)

EIA/TIA-568 100-ohm STP

(100 meters, max.)

1000BASE-SX:

50/125μm or 62.5/125μm multi-mode

ber optic cable, up to 550m

(varying on SFP module)

1000BASE-LX:

9/125μm single-mode ber optic cable,

up to 10/20/40/60/80/120 kilometers

(varying on SFP module)

3.2 LED Indicators

 System

LED Color Function

P1 Green Lit: indicates power 1 has power.

P2 Green Lit: indicates power 2 has power.

Alarm Red

Lit: indicates either power 1 or power 2 has no

power.

 Per 100/1000BASE-X SFP Port

LED Color Function

LNK/

ACT

Green

Lit: indicates the link through that port is

successfully established at 100Mbps or 1000Mbps.

Blinking: indicates that the Converter is actively

sending or receiving data over that port.

 Per 10/100/1000BASE-T Port

LED Color Function

LNK/

ACT

Green

Lit: indicates that the Gigabit Ethernet Port

is successfully connecting to the network at

10/100/1000Mbps.

Blinking: indicates that the Gigabit Ethernet Port

is actively sending or receiving data over that port.

1000

LNK/

ACT

Green

Lit: indicates the link through that port is

successfully established at 1000Mbps.

Blinking: indicates that the Gigabit Ethernet Port

is actively sending or receiving data over that port.

O: indicates the link through that port is

successfully established at 10/100Mbps.

3. Hardware Introduction

3.1 Three-View Diagram

The three-view diagram of the Industrial Gigabit Media Converter

consists of Ethernet interfaces and one removable 6-pin terminal

block. The LED indicators are also located on the front panel.

 IGT-805AT:

32.00

135.00

87.80

97.10

48.8046.50 39.70

28.00

48.80

53.50 53.50

18.00

15.20

30.00

9.20

40.00

28.0018.00

28.00

18.0028.00

28.00

40.00

163.00

Top View

Side View Front View

Mounting Kit

DIN-Rail Kit

Side View Rear View

Unit: mm

Bottom View

P1 P2

LNK/

ACT

LNK/ACT

1000

Alarm

IGT-805AT

100/1000X

10/100/1000T

Max. Fault Ala rm Loa ding: 24V , 1A

DC In put: 12-48 V

, 1A max.

AC In put: 24V

, 0.6 A max.

V1+ V2+

PWR1 PW R2Alarm

2.ProductSpecications

Model IGT-805AT

Hardware Specications

Copper Interface

1 x 10/100/1000BASE-T RJ45 TP

Auto-MDI/MDI-X, auto-negotiation

Fiber Optic

Interface

1 1000BASE-SX/LX/BX SFP interface.

Compatible with 100BASE-FX SFP

Connector

Removable 6-pin terminal block

Pin 1/2 for Power 1, Pin 3/4 for fault alarm,

Pin 5/6 for Power 2

Alarm

Provides one relay output for power failure

Alarm relay current carry ability: 1A @ DC

24V

LED

3 x LED for System and Power:

 Green: DC Power 1

 Green: DC Power 2

 Red: Power Alarm

2 x LED for Per Copper Port:

 Green: LNK/ACT

 Green:1000 LNK/ACT

1 x LED for Per SFP Interface

 Green: LNK/ACT

ESD Protection 6KV DC

Enclosure IP30 type metal case

Installation DIN rail kit and wall mount ear

Dimensions

(W x D x H)

32 x 87 x 135 mm

Network Cables

100BASE-FX:

50/125μm or 62.5/125μm multi-mode

ber optic cable, up to 2 kilometers

(varying on SFP module)

9/125μm single-mode ber optic cable, up

to 20/40/60 kilometers

(varying on SFP module)

Standards Conformance

Standards

Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet

IEEE 802.3x full-duplex ow control

Regulatory

Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall)

IEC 60068-2-27 (shock)

IEC 60068-2-6 (vibration)

Environment

Temperature

Operating: -40~75 degrees C

Storage: -40~75 degrees C

Humidity

Operating: 5~95% (non-condensing)

Storage: 5~95% (non-condensing)

 Front Panel

P1 P2

LNK/

ACT

LNK/

ACT

1000

Alarm

IGT-805AT

100/1000X

10/100/1000T

SFP Port

100/1000BASE-X SFP port

for transceiver module,

enabling to have a networking

distance of 550 meters to 2km

(multi-mode ber) and up to

10/20/40/60/80/120 kilometers

(single-mode ber or WDM

ber).

Gigabit TP Interface

10/100/1000BASE-T

copper RJ45 twisted-pair

with up to 100 meters in

distance.

Figure 2: IGT-805AT Front Panel

3.3 Wiring the Power Inputs

The terminal block connector on the top panel of Industrial Gigabit

Media Converter is used for 12~48V DC power inputs. Please follow

the steps below to insert the power wire.

Caution

When performing any of the procedures like inserting

the wires or tightening the wire-clamp screws, make

sure the power is OFF to prevent from getting an

electric shock.

1. Insert positive/negative DC power wires into contacts 1 and 2 for

POWER 1, or 5 and 6 for POWER 2.

Max. Fault Alarm Loadin g: 24V, 1A

DC Input: 12-48V

, 1A max.

AC Input: 24V

, 0.6A max.

V1+ V2+

PWR1

PWR2Alarm

1 2 3 4 5 6

2. Tighten the wire-clamp screws for preventing the wires from

loosening.

1 2 3 4 5 6

Power 1 Power 2Alarm

+ - + -

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

Note

1. The wire gauge for the terminal block should be in

the range between 12 and 24 AWG.

2. The DC power input range is 12V ~ 48V DC and

supports 24V AC

3. Use one power input when using 24V AC

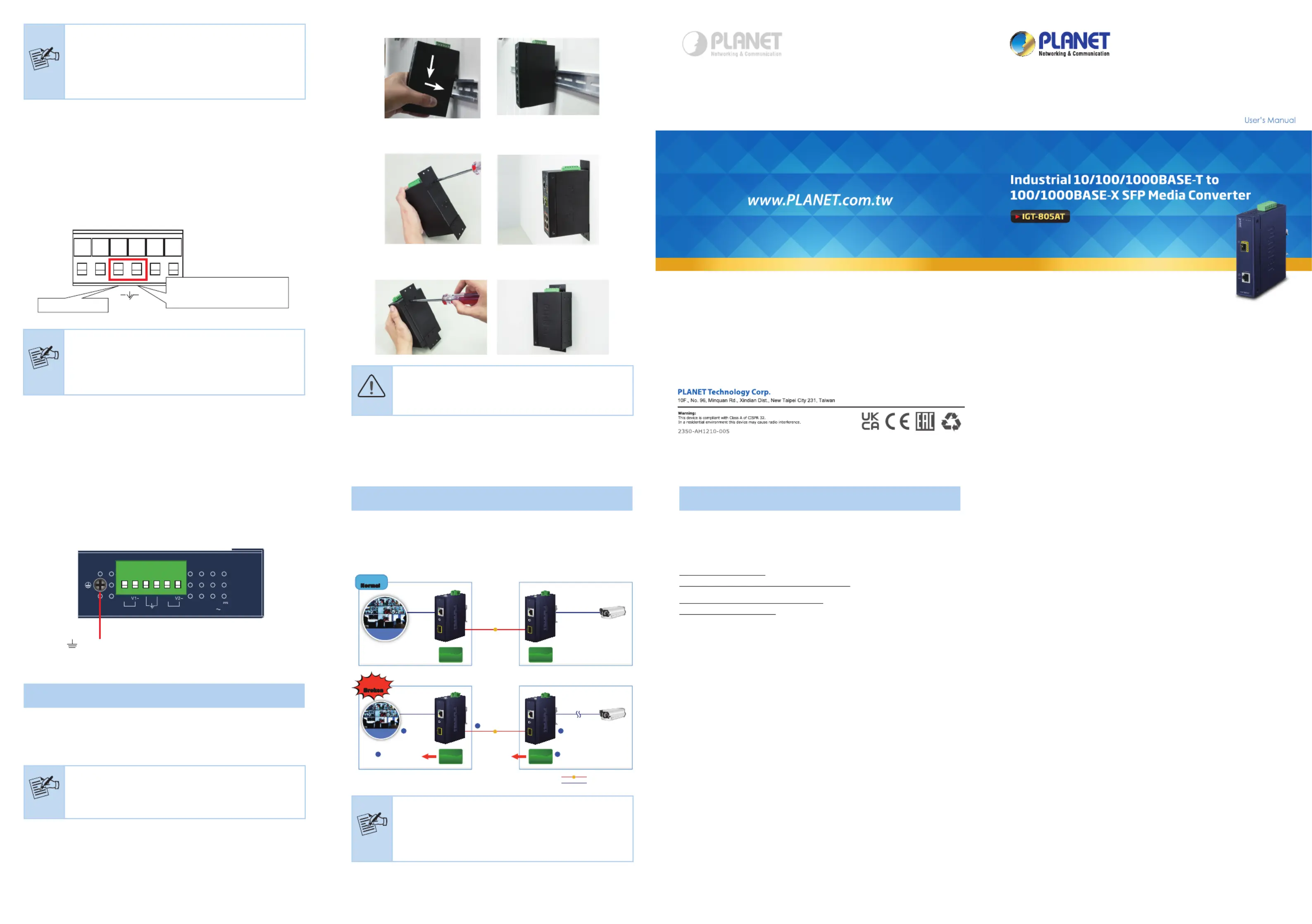

3.4 Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle of the terminal block

connector as the picture shows below. When inserting the wires,

the Industrial Gigabit Media Converter will detect the fault status

of the power failure and then forms an open circuit. The following

illustration shows an application example for wiring the fault alarm

contacts.

Fault Alarm Contacts

Alarm

1 2 3 4 5 6

The Fault Alarm Contacts are energized

(CLOSE) for normal operation and will

OPEN when failure occurs

Note

1. The wire gauge for the terminal block should be in

the range of 12 ~ 24 AWG.

2. Alarm relay circuit accepts up to 24V, max. 1A

currents.

4.1 DIN-rail Mounting Installation

4.2 Wall-mount Plate Mounting

4.3 Side Wall-mount Plate Mounting

Caution

You must use the screws supplied with the wall-

mounting brackets. Damage caused to the parts by

using incorrect screws would invalidate your warranty.

3.5 Grounding the Device

Users MUST complete grounding wired with the device; otherwise,

a sudden lightning could cause fatal damage to the device. EMD

(Lightning) DAMAGE IS NOT CONVERED UNDER WARRANTY.

Max. Fault A lar m Loading: 24V, 1A

DC Input: 12-48V

, 1A max.

AC Input: 24V

, 0.6A max.

V1+ V2+

PWR1

PWR2Alarm

1 2 3 4 5 6

Earth Ground

4. Installation

This section describes the functionalities of the Industrial Gigabit

Media Converter’s components and guides how to install it on

the DIN-rail and wall. Basic knowledge of networking is assumed.

Please read this chapter completely before continuing.

Note

This following pictures show the user how to install

the device, and the device is not IGT-805AT.

5. Link Fault Passthrough

The LFP function includes Link Loss Carry Forward (LLCF), Link Loss

Return (LLR) and turned on by chipset default. LLCF and LLR can

immediately alarm administrators the issue of the link media and

provide ecient solution to monitor the net.

IP Camera

LFP

Enabled

LFP

Enabled

Copper Cable Copper Cable

Monitoring Center

IP Camera

Fiber Cable

LFP

Enabled

LFP

Enabled

Copper Cable

Monitoring Center

Copper Link Broken

Copper

Link Down

LFP disconnects

Fiber Link

LFP disconnects

Copper Link

Fiber Link Down

1000

Fiber Cable

Remote Link

B r o k e n

Remote Link

N o r m a l

1000BASE-SX/LX Fiber-optic

1000

1000BASE-T UTP

Note

LFP function is turned on by chipset default and this

feature cannot be turned off. Please assure both TP

and Fiber port connections have established to enable

both TP and Fiber connections to link up.

Customer Support

Thank you for purchasing PLANET products. You can browse our

online FAQ resource on PLANET web site rst to check if it could

solve your issue. If you need more support information, please

contact PLANET switch support team.

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq

Switch support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.
