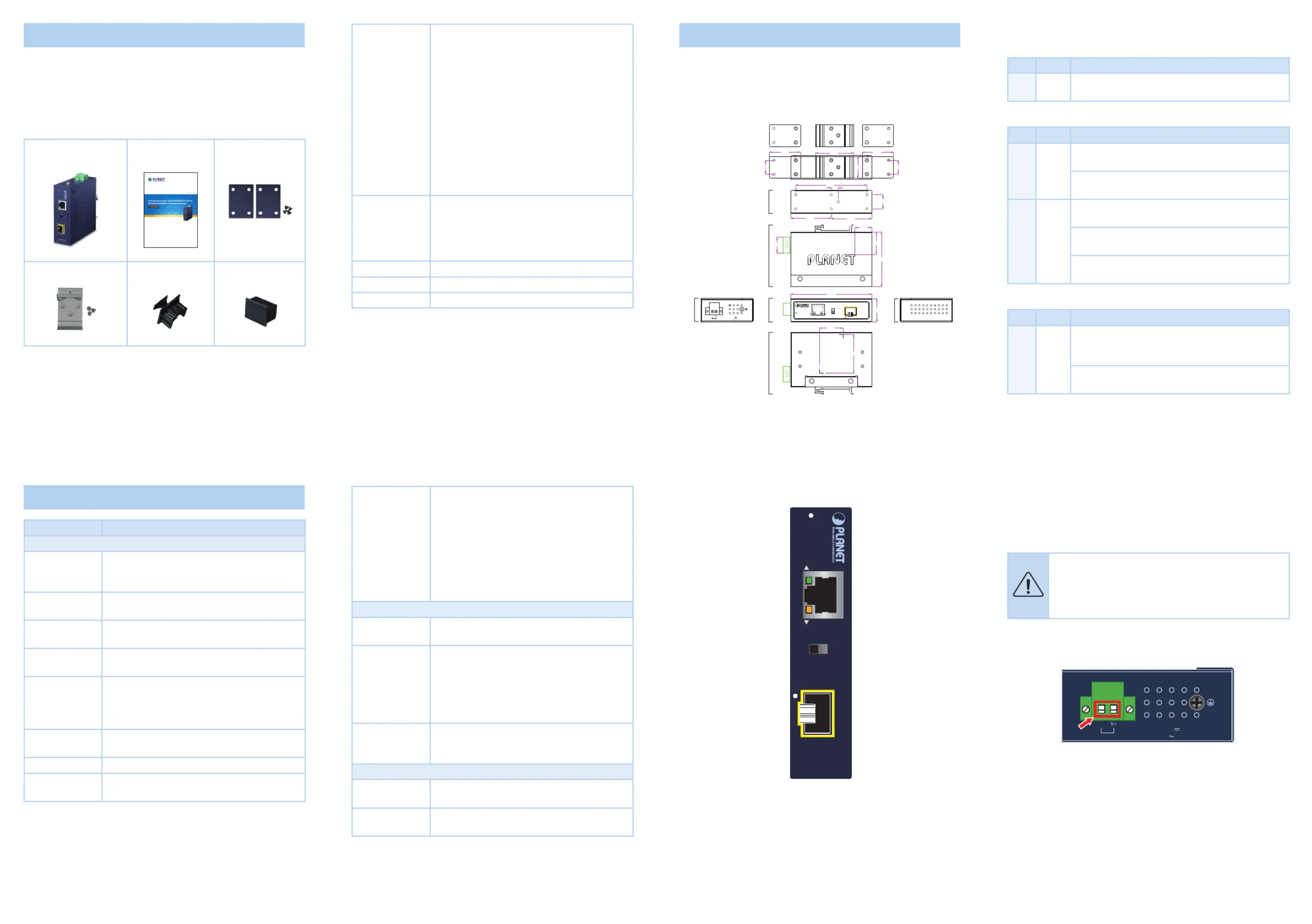

1. Package Contents

Thank you for purchasing PLANET compact industrial 100/1000X

to 10/100/1000T Media Converter, IGT-815AT. In the following

sections, the term means the “Industrial Media Converter”

IGT-815AT.

Open the box of the Industrial Media Converter and carefully

unpack it. The box should contain the following items:

Industrial Media

Converter x 1

User’s Manual x 1 Wall-mount Kit x 1

DIN-rail Kit RJ45 Dust Cap x 1 SFP Dust Cap x 1

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original

packing material, and use them again to repack the product in case

there is a need to return it to us for repair.

Power

Consumption

System ON without loading

DC 9V: 0.55W/1.87BTU

DC 12V: 0.54W/1.84BTU

DC 24V: 0.52W/1.77BTU

DC 36V: 0.5W/1.7BTU

DC 48V: 0.52W/1.77BTU

AC 24V: 0.5W/1.7BTU

Full loading

DC 9V: 1.76W/6BTU

DC 12V: 1.77W/6BTU

DC 24V: 1.63W/5.56BTU

DC 36V: 1.65W/5.62BTU

DC 48V: 1.68W/5.73BTU

AC 24V: 2.8W/9.5BTU

DIP Switch

O: LFP (Link Fault Passthrough) disable

On: LFP (Link Fault Passthrough) enable

FEF (Far End Fault) works with LFP to

prevent data loss

The DIP switch is turned o by default.

Enclosure IP30 metal case

Installation DIN-rail kit and wall-mount ear

ESD Protection 6KV DC

3.2 LEDDenition:

 System

LED Color Function

PWR Green

Lights to indicate the Industrial Media Converter

has power.

 Gigabit TP Interface

LED Color Function

LNK/

ACT

Green

Lit: Indicates that the Copper Port is successfully

connecting to the network at 10/100/1000Mbps.

Blinks: Indicates the Copper Port is receiving or

sending data.

1000

LNK/

ACT

Amber

Lit: Indicates that the Copper Port is successfully

connecting to the network at 1000Mbps.

Blinks: Indicates the Copper Port is receiving or

sending data.

O: Indicates the link through that port is

successfully established at 10/100Mbps.

 Gigabit Fiber Interface

LED Color Function

Fiber

LNK/

ACT

Green

Lit: Indicates that the ber optic port is

successfully connecting to the network at 100Mbps

or 1000Mbps.

Blinks: Indicates the ber optic port is receiving or

sending data.

3.HardwareIntroduction

3.1 Three-ViewDiagram

The three-view diagram of the Industrial Media Converter consists

of Ethernet interfaces and one removable 2-pin terminal block.

The LED indicators are also located on the front panel.

104.00

30.00

70.00

18.00

9.00

91.00

52.00

50.00

30.00

21.69

28.65

20.00

28.00

48.80

40.00

18.00

40.00

18.00

Mounting Kit

DIN-Rail Kit

Unit: mm

Rear ViewSide View Side View

Top View

Front View

Bottom View

1 2

PWR

IGT-815AT

LFP

100/1000X

ONOFF

LNK/ACT

LNK/

ACT

1000

V+

PWR

DC In put: 9-48 V

, 0.5 A max.

AC In put: 24V

, 0.2 A max.

Figure1: IGT-815AT Three-View Diagram

2.ProductSpecications

Model IGT-815AT

Hardware Specications

Copper Port

10/100/1000BASE-T Ethernet TP interface.

Maximum 100m distance.

Auto-negotiation, auto MDI/MDI-X

SFP Port

1000BASE-SX/LX/BX SFP interface

Compatible with 100BASE-FX SFP

Flow Control

Back pressure for half duplex mode

IEEE 802.3x pause frame for full duplex mode

Maximum Frame

Size

LED

System: Power (green)

Fiber 100/1000BASE-X: LNK/ACT (green)

TP 10/100/1000BASE-T: LNK/ACT (green),

1000 LNK/ACT (amber)

Dimensions

(W x D x H)

30 x 70 x 104 mm

Weight 221g

Power

Requirements

DC 9~48V, supports reverse polarity protection

AC 24V

Cables

10/100/1000BASE-T:

2-pair UTP Cat. 3, 4, 5, 5e, 6

(maximum 100 meters)

EIA/TIA-568 100-ohm STP

(maximum 100 meters)

100BASE-FX/1000BASE-SX/LX:

Multi-mode: 50/125μm or 62.5/125μm

optical ber

Single-mode: 9/125μm optical ber

Standards Conformance

Regulatory

Compliance

FCC Part 15 Class A, CE

Protocols and

Standards

Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x Flow Control

IEEE 802.3az Energy Ecient Ethernet (EEE)

Stability Testing

IEC60068-2-32 (free fall)

IEC60068-2-27 (shock)

IEC60068-2-6 (vibration)

Environment

Temperature

Operating: -40~75 degrees C

Storage: -40~85 degrees C

Humidity

Operating: 5~90% (non-condensing)

Storage: 5~90% (non-condensing)

 Front View

PWR

IGT-815AT

LFP

100/1000X

ONOFF

LNK/ACT

LNK/

ACT

1000

Figure2: IGT-815AT Front View

3.3 WiringthePowerInputs

The 2-contact terminal block connector on the top panel of

Industrial Media Converter is used for 9~48V DC power inputs or

24V AC power inputs. Please follow the steps below to insert the

power wire.

When performing any of the procedures like inserting

the wires or tightening the wire-clamp screws, make

sure the power is OFF to prevent from getting an

electric shock.

1. Insert positive and negative DC power wires into contacts 1 and

2 for POWER.

V+

PWR

DC Input: 9-48V

, 0.5A max.

AC Input: 24V

, 0.2A max.

1 2

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

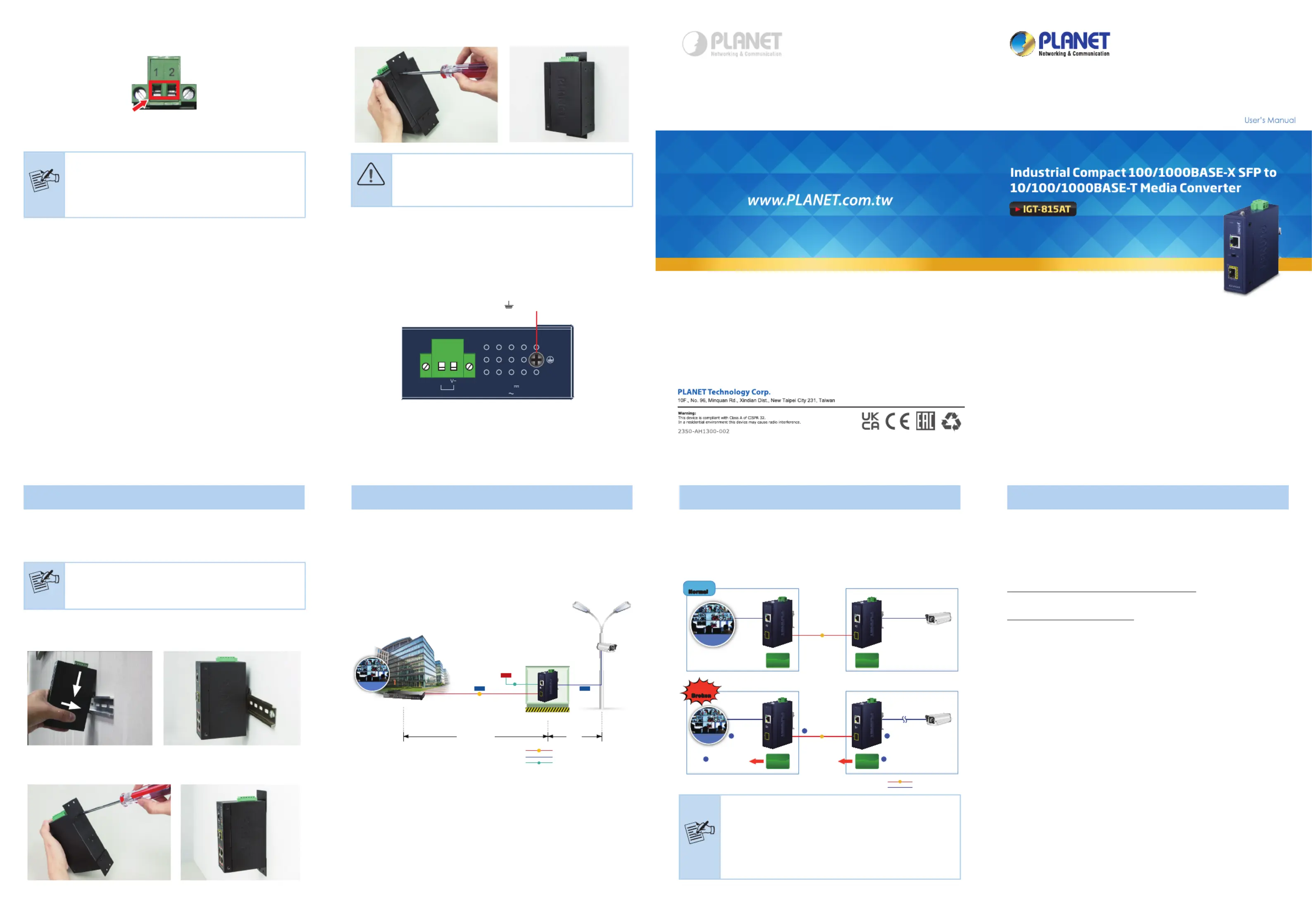

2. Tighten the wire-clamp screws for preventing the wires from

loosening.

1 2

Power

+ -

Note

1. The wire gauge for the terminal block should be in

the range between 12 and 24 AWG.

2. The DC power input range is 9V ~ 48V DC or 24V

AC.

4.3 SideWall-mountPlateMounting

Caution

You must use the screws supplied with the wall-

mounting brackets. Damage caused to the parts by

using incorrect screws would invalidate your warranty.

4.4 GroundingtheDevice

User MUST complete grounding wired with the device; otherwise,

a sudden lightning could cause fatal damage to the device. EMD

(Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY.

V+

PWR

DC Input: 9-48V

, 0.5A max.

AC Input: 24V

, 0.2A max.

1 2

Earth Ground

4.HardwareInstallation

This section describes the functionalities of the Industrial Media

Converter’s components and guides you to installing it on the DIN

rail and wall. Please read this chapter completely before continuing.

Note

This following pictures guide you to installing the

device, and the device is not IGT-815AT.

4.1 DIN-railMountingInstallation

4.2 Wall-mountPlateMounting

5.FiberandCopperInstallation

The IGT-815AT is exible enough to extend the distance from

220m to 120km. It depends on the 1000BASE-X or 100BASE-FX

SFP transceivers. The SFP transceivers are hot-pluggable and

hot-swappable. You can plug in and out the transceiver to/from

any SFP port without having to power down the Industrial Media

Converter.

Power Line (DC)

1000BASE-SX/LX Fiber-optic

1000

1000BASE-T UTP

550m / 20km 100m

DC 9~48V

IGT-815AT

Data

Power

Data

IP Camera

Monitoring

Center

1000

Fiber Switch

6.LinkFaultPassthrough

The LFP function includes Link Loss Carry Forward (LLCF), Link

Loss Return (LLR) and the DIP switch design. LLCF and LLR can

immediately alert administrators about the issue of the link media

and provide ecient solution to monitor the network. The DIP

switch provides the disabling or enabling of the LFP function.

IP Camera

LFP

Enabled

LFP

Enabled

Copper Cable Copper Cable

Monitoring Center

IP Camera

Fiber Cable

LFP

Enabled

LFP

Enabled

Copper Cable

Monitoring Center

Copper Link Broken

Copper

Link Down

LFP disconnects

Fiber Link

LFP disconnects

Copper Link

Fiber Link Down

1000

Fiber Cable

Remote Link

B r o k e n

Remote Link

N o r m a l

1000BASE-SX/LX Fiber-optic

1000

1000BASE-T UTP

Note

LFP function is turned off by default. This feature

can also be turned on via the DIP switch. If you are

not familiar with the network installation and for

diagnostic purpose (i.e. check which end is broken),

you can turn it on. Otherwise, please keep it in the

default position.

CustomerSupport

Thank you for purchasing PLANET products. You can browse our

online FAQ resource on PLANET web site rst to check if it could

solve your issue. If you need more support information, please

contact PLANET switch support team.

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq.php

Switch support team mail address:

support_switch@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.
