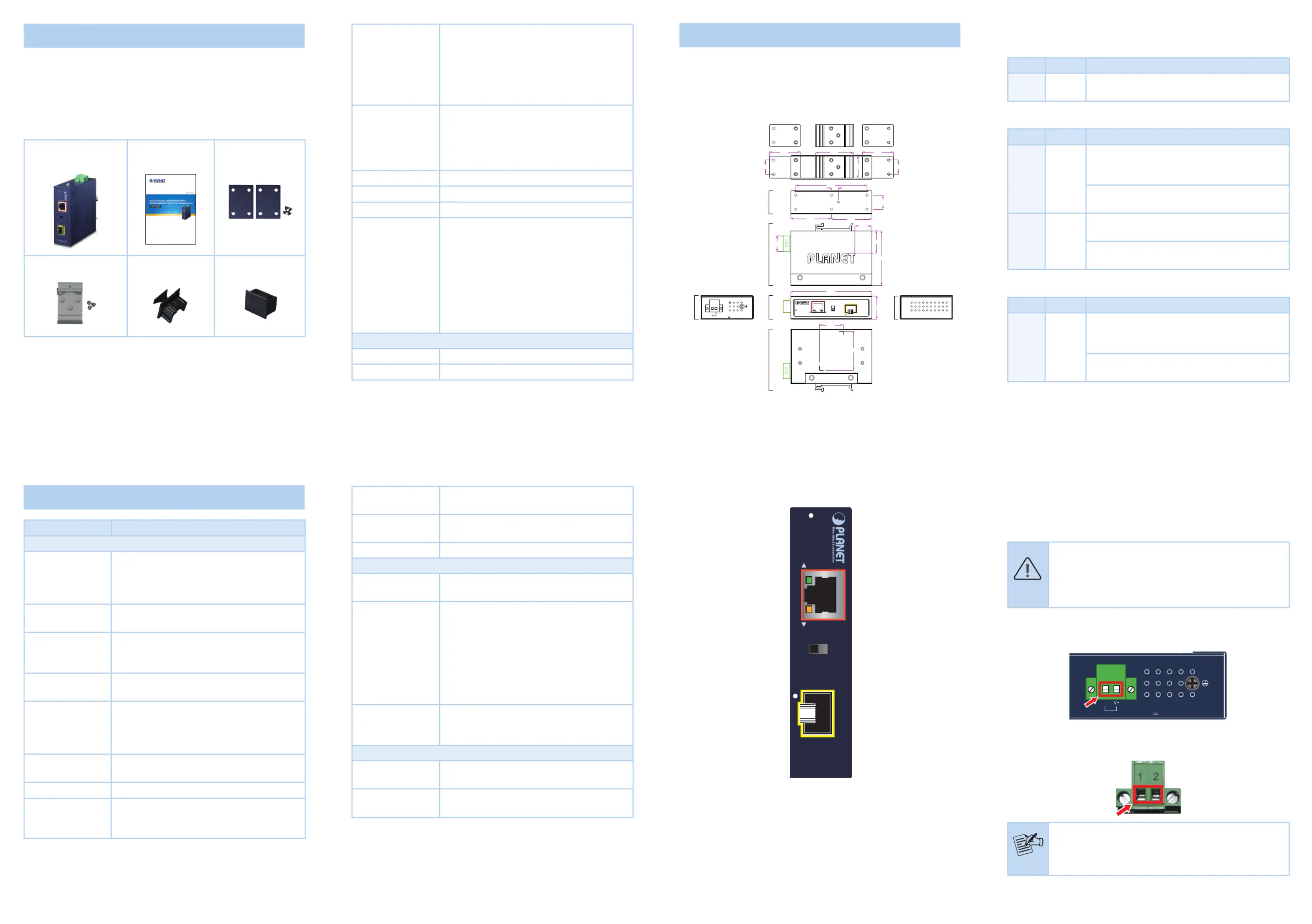

1. Package Contents

Thank you for purchasing PLANET compact industrial 100/1000X to

10/100/1000T 802.3at PoE+ Media Converter, IGTP-815AT. In the

following sections, the term “Industrial PoE+ Media Converter”

means the IGTP-815AT.

Open the box of the Industrial PoE+ Media Converter and carefully

unpack it. The box should contain the following items:

Industrial PoE+ Media

Converter x 1

User’s Manual x 1 Wall-mount Kit x 1

DIN-rail Kit RJ45 Dust Cap x 1 SFP Dust Cap x 1

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original

packing material, and use them again to repack the product in case

there is a need to return it to us for repair.

Power

Consumption

System ON without loading

DC 48V: 0.96W/3.27BTU

DC 56V: 1.12W/3.82BTU

Full loading with PoE

DC 48V: 35W/119BTU (PoE:30W)

DC 56V: 42W/143BTU (PoE:36W)

DIP Switch

O: LFP (Link Fault Passthrough) disable

On: LFP (Link Fault Passthrough) enable

FEF (Far End Fault) works with LFP to

prevent data loss

The DIP switch is turned o by default.

Enclosure IP30 metal case

Installation DIN-rail kit and wall-mount ear

ESD Protection 6KV DC

Cables

10/100/1000BASE-T:

2-pair UTP Cat. 3, 4, 5, 5e, 6

(maximum 100 meters)

EIA/TIA-568 100-ohm STP

(maximum 100 meters)

100BASE-FX/1000BASE-SX/LX:

Multi-mode: 50/125μm or 62.5/125μm

optical ber

Single-mode: 9/125μm optical ber

Power Over Ethernet

PoE Standard IEEE 802.3at Power over Ethernet Plus

PoE Power Output 48~56V DC: 36 watts max.

3.2 LEDDenition:

 System

LED Color Function

PWR Green

Lights to indicate the Industrial PoE+ Media

Converter has power.

 Gigabit TP Interface

LED Color Function

LNK/

ACT

Green

Lit: Indicates that the Copper Port is

successfully connecting to the network at

10/100/1000Mbps.

Blinks: Indicates the Copper Port is receiving

or sending data.

PoE-in-

Use

Amber

Lit: Indicates that the port is providing PoE

power to remote powered device.

O: Indicates that the port is not providing

PoE power to remote powered device.

 Gigabit Fiber Interface

LED Color Function

Fiber

LNK/

ACT

Green

Lit: Indicates that the ber optic port is

successfully connecting to the network at

100Mbps or 1000Mbps.

Blinks: Indicates the ber optic port is

receiving or sending data.

3.HardwareIntroduction

3.1 Three-ViewDiagram

The three-view diagram of the Industrial Media Converter PoE+

consists of Ethernet interfaces and one removable 2-pin terminal

block. The LED indicators are also located on the front panel.

104.00

30.00

70.00

18.00

9.00

91.00

52.00

50.00

30.00

21.69

28.65

20.00

28.00

48.80

40.00

18.00

40.00

18.00

Mounting Kit

DIN-Rail Kit

Unit: mm

Rear ViewSide View Side View

Top View

Front View

Bottom View

1 2

PWR

IGTP-815AT

LFP

100/1000X

ONOFF

LNK/ACT

LNK/

ACT

PoE-in-Use

V+

PWR

DC In put:

48-56V

, 0.9 A max.

Figure1: IGTP-815AT Three-View Diagram

2.ProductSpecications

Model IGTP-815AT

Hardware Specications

Copper Port

10/100/1000BASE-T Ethernet TP interface.

Maximum 100m distance.

Auto-negotiation, auto MDI/MDI-X with PoE

injector function

SFP Port

1000BASE-SX/LX/BX SFP interface

Compatible with 100BASE-FX SFP

Flow Control

Back pressure for half duplex mode

IEEE 802.3x pause frame for full duplex

mode

Maximum Frame

Size

LED

System: Power (green)

Fiber 100/1000BASE-X: LNK/ACT (green)

TP 10/100/1000BASE-T: LNK/ACT (green)

PoE: Power-in-use (Amber)

Dimensions

(W x D x H)

30 x 70 x 104 mm

Weight 231g

Power

Requirements

DC 48~56V, supports reverse polarity

protection

(>51V DC for PoE+ output recommended)

PoE Power Supply

Type

End-span

Power Pin

Assignment

1/2(+), 3/6(-)

PoE Power Budget 36 watts

Standards Conformance

Regulatory

Compliance

FCC Part 15 Class A, CE

Protocols and

Standards

Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber

Optic

IEEE 802.3x Flow Control

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Stability Testing

IEC60068-2-32 (free fall)

IEC60068-2-27 (shock)

IEC60068-2-6 (vibration)

Environment

Temperature

Operating: -40~75 degrees C

Storage: -40~85 degrees C

Humidity

Operating: 5~9 % (non-condensing)5

Storage: 5~9 % (non-condensing)5

 Front View

PWR

IGTP-815AT

LFP

100/1000X

ONOFF

LNK/ACT

LNK/

ACT

PoE-in-Use

Figure2: IGTP-815AT Front View

3.3 WiringthePowerInputs

The 2-contact terminal block connector on the top panel of

Industrial PoE+ Media Converter is used for 48~56V DC power

inputs. Please follow the steps below to insert the power wire.

Caution

When performing any of the procedures like inserting

the wires or tightening the wire-clamp screws, make

sure the power is OFF to prevent from getting an

electric shock.

1. Insert positive and negative DC power wires into contacts 1 and

2 for POWER.

V+

PWR

DC Input:

48-56V

, 0.9A max.

1 2

2. Tighten the wire-clamp screws for preventing the wires from

loosening.

Note

1. The wire gauge for the terminal block should be in

the range between 12 and 24 AWG.

2. The DC power input range is 48V ~ 56V DC.

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

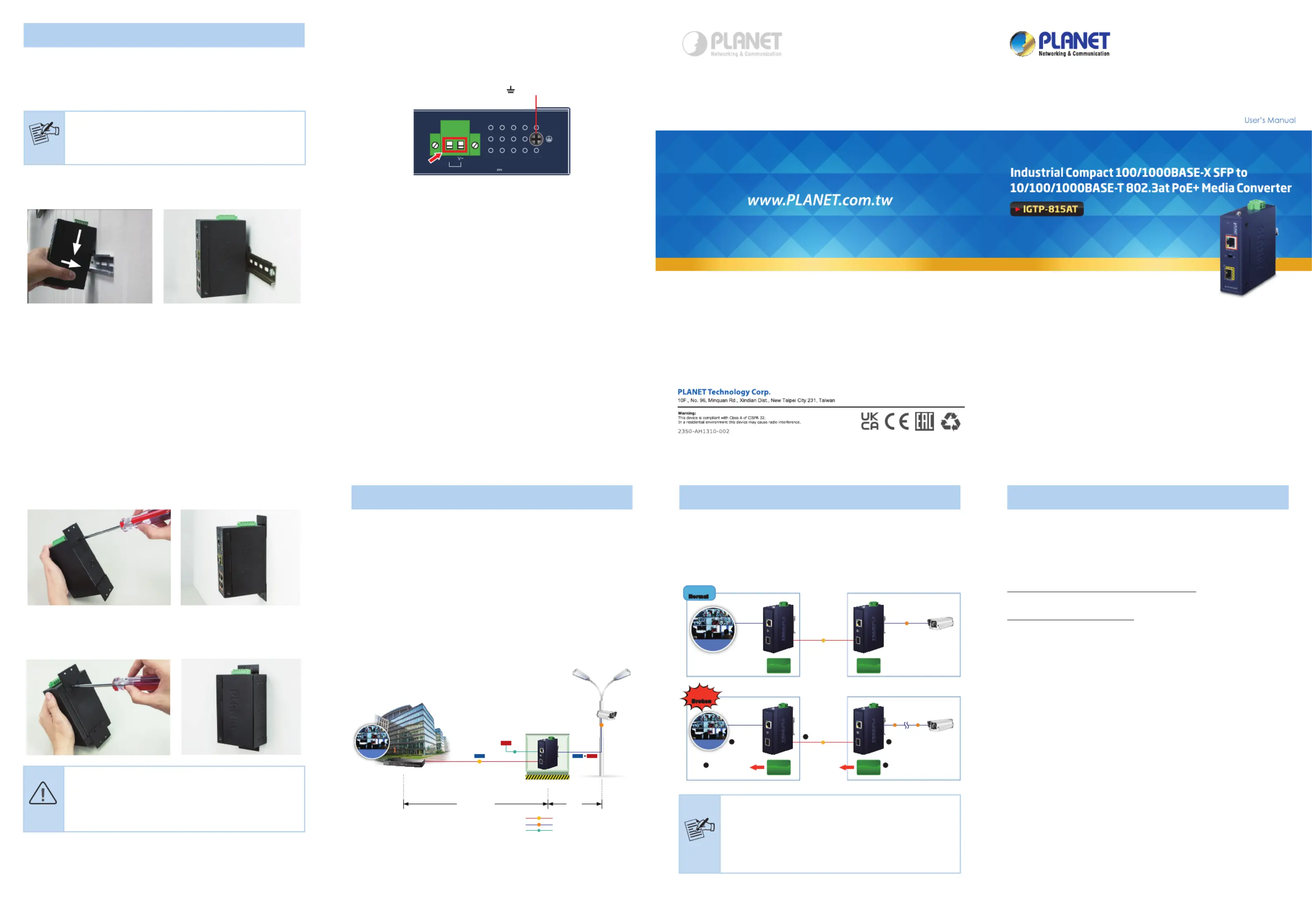

4.HardwareInstallation

This section describes the functionalities of the Industrial PoE+

Media Converter’s components and guides you to installing it on

the DIN rail and wall. Please read this chapter completely before

continuing.

Note

This following pictures guide you to installing the

device, and the device is not IGTP-815AT.

4.1 DIN-railMountingInstallation

4.4 GroundingtheDevice

User MUST complete grounding wired with the device; otherwise,

a sudden lightning could cause fatal damage to the device. EMD

(Lightning) DAMAGE IS NOT CONVERED UNDER WARRANTY.

V+

PWR

DC Input:

48-56V

, 0.9A max.

1 2

Earth Ground

4.2 Wall-mountPlateMounting

4.3 SideWall-mountPlateMounting

Caution

You must use the screws supplied with the wall-

mounting brackets. Damage caused to the parts by

using incorrect screws would invalidate your warranty.

5.FiberandPoEInstallation

The IGTP-815AT is exible enough to extend the distance from

220m to 120km. It depends on the 1000BASE-X or 100BASE-FX

SFP transceivers. The SFP transceivers are hot-pluggable and

hot-swappable. You can plug in and out the transceiver to/from any

SFP port without having to power down the Industrial 802.3at PoE+

Media Converter.

If there is any IEEE 802.3at/802.3af devices needed to power on,

the IGTP-815AT can provide you a way to supply power for this

Ethernet device conveniently and easily.

The IGTP-815AT needs DC 48-56V input and it injects the DC

power into the pin of the twisted pair cable (Pins 1, 2, 3 and 6).

Power Line (DC)

1000BASE-SX/LX Fiber-optic

1000

PoE

1000BASE-T UTP with PoE

550m / 20km 100m

DC 48~56V

IGTP-815AT

Power

Data

Power

Data

PoE

IP Camera

PoE

Monitoring

Center

1000

Fiber Switch

6.LinkFaultPassthrough

The LFP function includes Link Loss Carry Forward (LLCF), Link

Loss Return (LLR) and the DIP switch design. LLCF and LLR can

immediately alert administrators about the issue of the link media

and provide ecient solution to monitor the network. The DIP

switch provides the disabling or enabling of the LFP function.

PoE

IP Camera

LFP

Enabled

LFP

Enabled

Copper Cable

PoE

Copper Cable

Monitoring Center

PoE

IP Camera

Fiber Cable

LFP

Enabled

LFP

Enabled

Copper Cable

PoE PoE

Copper Cable

Monitoring Center

Copper Link Broken

Copper

Link Down

LFP disconnects

Fiber Link

LFP disconnects

Copper Link

Fiber Link Down

1000

Fiber Cable

Remote Link

B r o k e n

Remote Link

N o r m a l

Note

LFP function is turned off by default. This feature

can also be turned on via the DIP switch. If you are

not familiar with the network installation and for

diagnostic purpose (i.e. check which end is broken),

you can turn it on. Otherwise, please keep it in the

default position.

CustomerSupport

Thank you for purchasing PLANET products. You can browse our

online FAQ resource on PLANET web site rst to check if it could

solve your issue. If you need more support information, please

contact PLANET switch support team.

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq.php

Switch support team mail address:

support_switch@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.
