ISW-500T-E

Compact Size for More Practicability and Convenience

PLANET ISW-500T-E Compact Industrial 5-Port 10/100TX Ethernet Switch,

suitable for industrial use, features 5 100Mbps auto-negotiation ports, IP40-rated

rugged yet compact case and a wide-ranging redundant power system (12~55V

DC). The ISW-500T-E is able to operate in any harsh environment with operating

temperature ranging from -40 to 75 degrees C.

Physical Port

• 5-port 10/100BASE-TX RJ45 with auto-MDI/MDI-X function

Layer 2 Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u

100BASE-TX Ethernet standard

• Supports auto-negotiation and 10/100Mbps half/full duplex

mode

• Prevents packet loss with back pressure (half-duplex) and

IEEE802.3xpauseframeowcontrol(full-duplex)

• ComplieswithIEEE802.3azEnergyEfcientEthernet(EEE)

• Supports 1K MAC address

Industrial Case and Installation

• IP40 metal case

• DIN-rail and wall-mount designs

• 12 to 55V DC, redundant power with reverse polarity

protection

• Supports 6000 VDC Ethernet ESD protection

• -40 to 75 degrees C operating temperature

• Operate reliably at an altitude of 3,000 meters

• Free fall, shock-proof and vibration-proof for industries

Compact Industrial 5-Port 10/100TX Ethernet Switch

As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to

grow, the ISW-500T-E is designed to simplify industrial network deployment with

its Plug and Play feature. Beyond offering stable and reliable fast data, it also

aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless

integration of intelligent systems. This allows the collection and analysis of valuable

data, empowering real-time decision-making and enhancing operational efficiency

across various industrial applications.

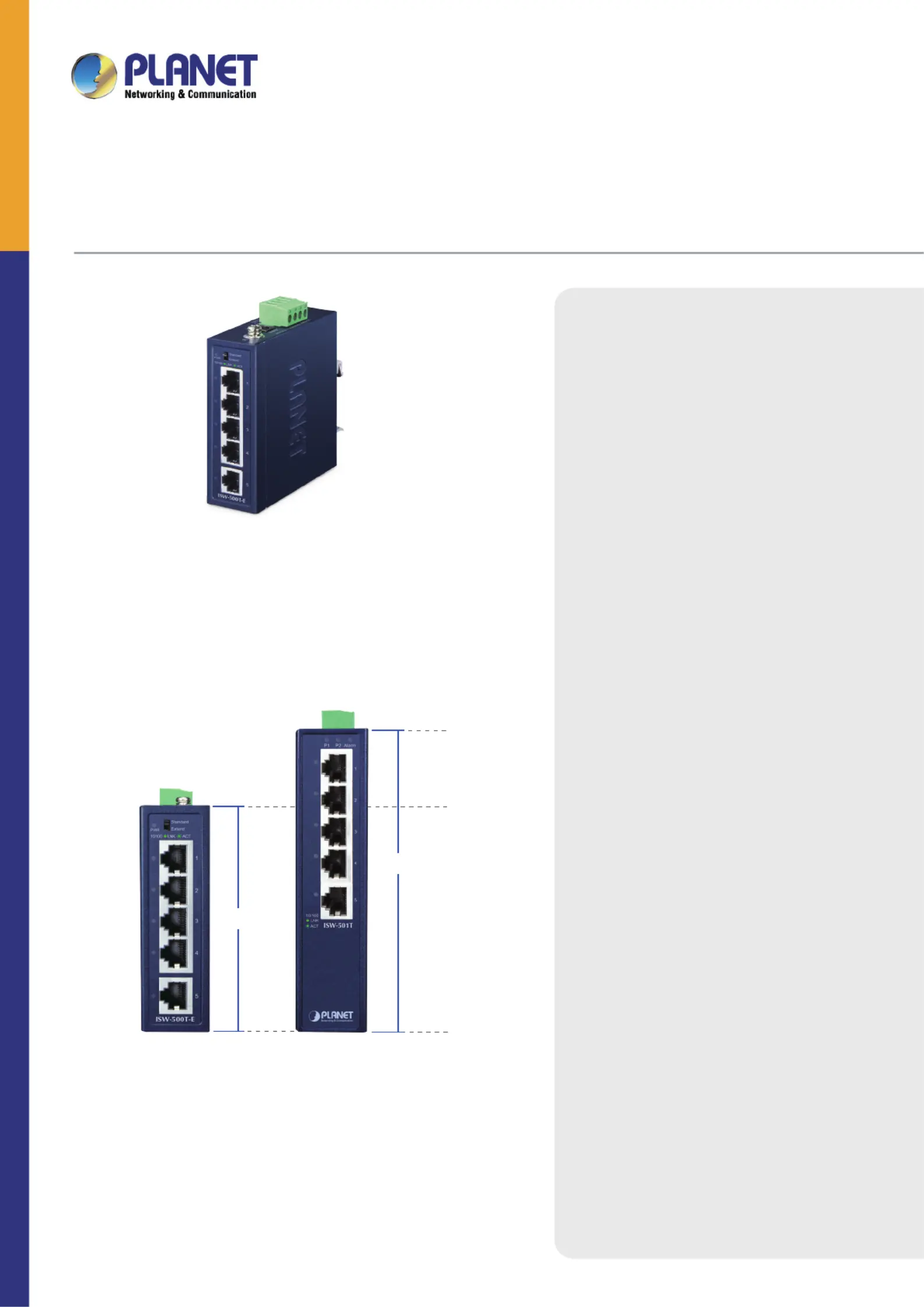

Compact Industrial 5-Port Switch

ISW-500T-E ISW-501T

100mm

135mm

ISW-500T-E

Distance Extended for Transmission of Data

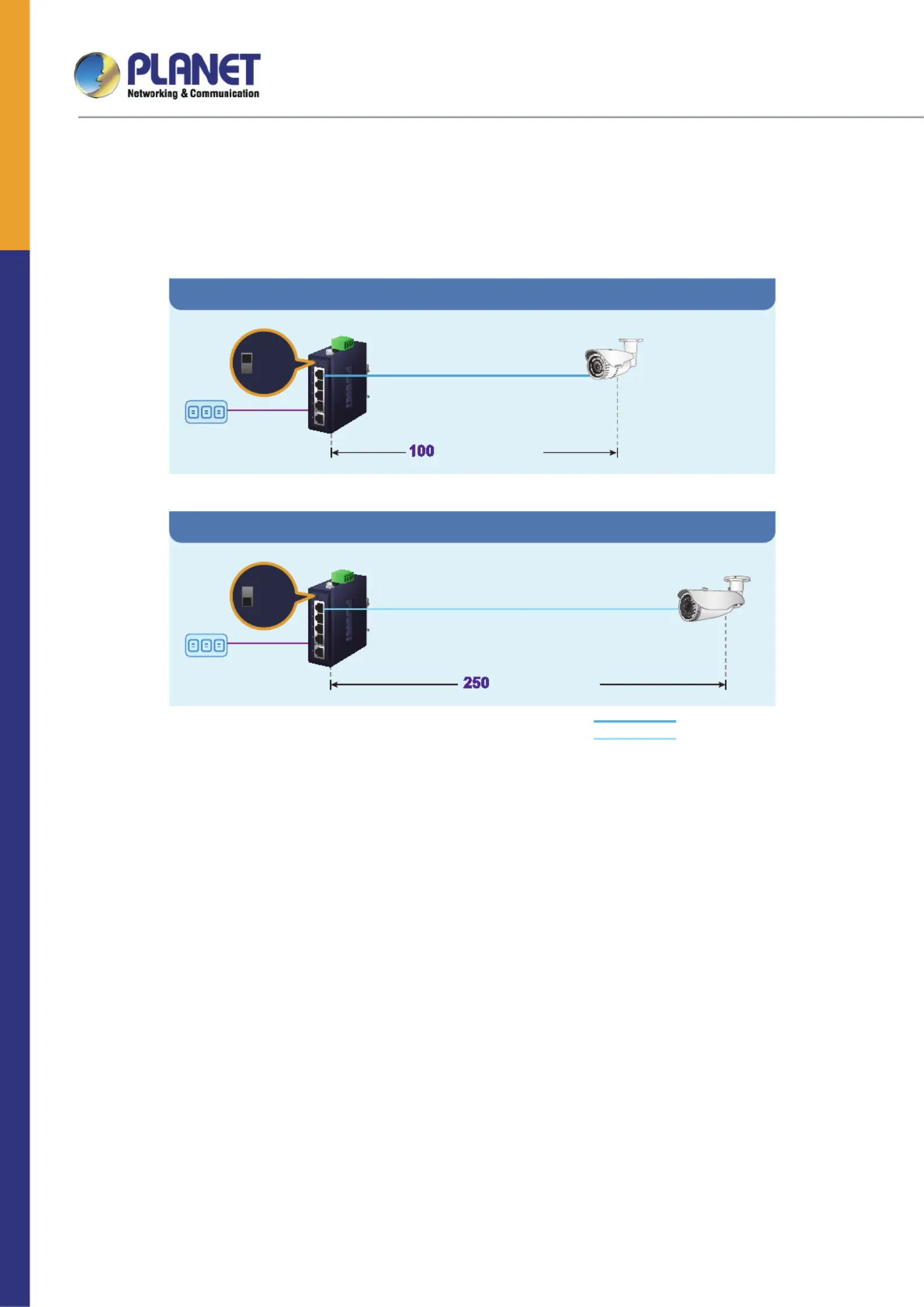

The built-in solid DIP switch provides "Standard" and "Extend" operation modes. The ISW-500T-E operates as a regular Ethernet switch in the "Standard"

mode. In the "Extend" operation mode, the ISW-500T-E operates on a per-port basis in 10Mbps duplex mode, supporting data transmission over a distance

of up to 250 meters, overcoming the typical 100-meter limitation of Ethernet UTP cable. This feature offers a cost-effective solution for extending Ethernet

transmission distance without additional equipment.

Low Power Consumption for ESG Principles

The ISW-500T-E adopts advanced green networking technology that aligns with principles, offering link-on Environmental Social, , and Governance (ESG)

cable length power-saving and link-down power-saving features. These capabilities enable the ISW-500T-E to maintain exceptionally low power consumption

even under full-load operation, effectively conserving energy while delivering outstanding performance. Compared to the ISW-500T, the ISW-500T-E can

reduce energy consumption by over 50%.

With Auto Power Savings IEEE 802.3az Energy-Efficient Ethernet (EEE) and the protocol, the ISW-500T-E can automatically detect cable link status

and network traffic, adjusting its power consumption accordingly. When device activity is lower, the switch consumes less power, achieving greater energy

efciency.

Triple Power Input for High Availability Network System

The ISW-500T-E features a robust triple power input system with wide-ranging voltages (12V~55V DC) incorporated into the customer’s automation network

to enhance system reliability and uptime. In the example below, if one power supply fails, the hardware failover function will be activated automatically to keep
