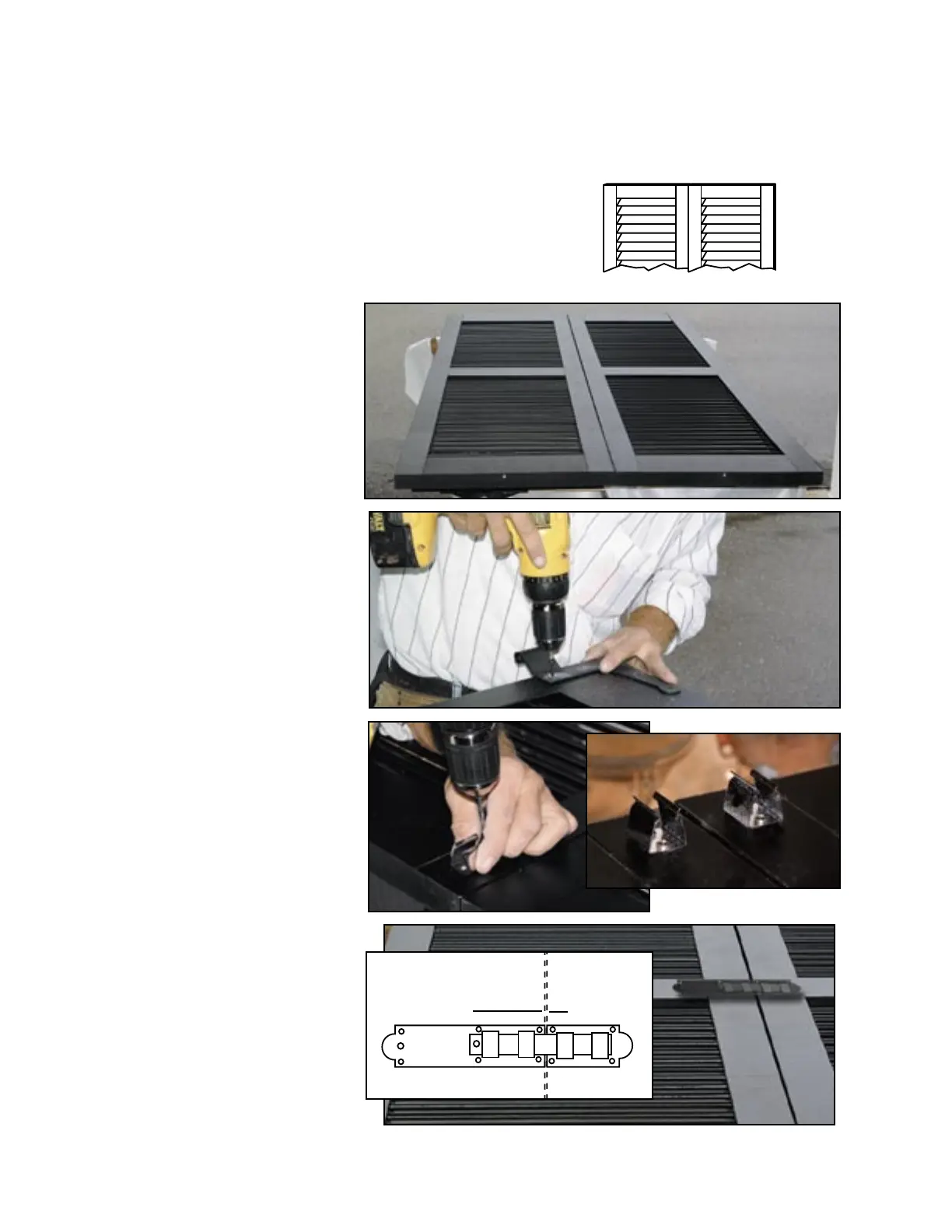

General Guidelines for Installing

Traditional Shutters

To deﬂect rain away from the structure, Louvered shutters

should be installed so the louvers face AWAY from the

structure when shutters are closed. (see diagram at right)

Shutters in closed position

Pick shutters to ﬁt window & put

next to each window on top of

saw horses to make sure shutters

are paired properly. Lay two

shutters face down next to each

and prepare to install hinges.

Position & install upper holdback

clips 1" from top & center edge

of stile. Shutters over 58" require

2 sets of acorns; install similarly

at top.

Install hinges after determining

offset. Hinges are to be set at

top & bottom even with outside.

Drill holes with 1/8th pilot bit.

Be careful not to drill all the way

through shutter.

Install slide bolt. Turn shutters

over & line-up slide bolt edge

with shutter edge (see diagram

at right). Pre-drill 1/8 slot hole

(careful not to drill all the way

through). Install slide bolt with

screws. Shutters are now ready

for installation.

Shutter A Edge Shutter B Edge

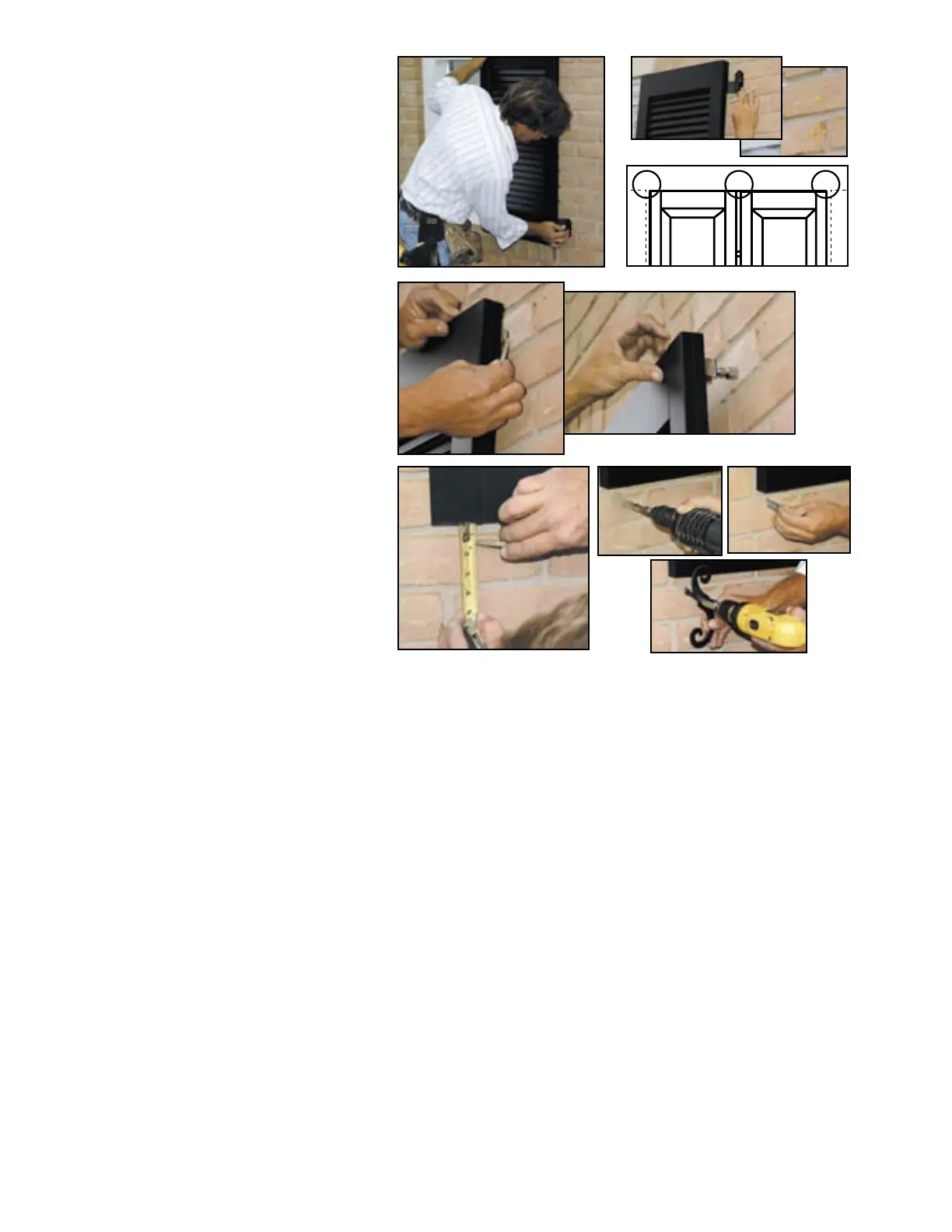

Install “S” Holdback*. Shutter is now

held open by acorn anchor. Position

shutter dog in correct location & mark

for screws & fasten to wall—1½" down

from shutter & 1¾" from outside edge.

*The acorn clip is better suited for holding the

shutters in place, and as such, the “S” Holdback

is recommended more for a decorative use as

opposed to a functional one.

Install acorn clip. Swing shutter open

& mark center of holdback clip &

install acorn clip into brick.

Beaded A beaded detail that is molded into the inside edge of the face of each stile.

Board Traditionally used on barns but ideal for more rustic homes. Authentic tongue & groove look with the front

and Batten & back of the shutter featuring the same beveled look as if the shutter were made of individual boards.

Flat Panel A solid shutter where the center portion of the shutter is recessed from the stiles

Shutter (i.e. Memphis style shutter).

Fixed Louvered Positioned the historically accurate way, the louvers are tilted in towards the wall when the shutter

Shutter is in the open position.

Leaf A single shutter or 1/2 pair.

Mousehole A notched hole in the rails that accommodated the ends of the tilt rod when the louvers were in

the closed position. Now it just adds to the authentic appearance.

Mullions The vertical element between the stiles that acts as a divider. Found in Bahama shutters.

Rabbeting Also called “shiplap", used on many functional shutters so that when closed the individual shutter leaves

ﬁt into one another.

Radius or A shutter which has a curved top.

Arched Top

Rails The horizontal crosspieces of a shutter (i.e. top rail, bottom rail, center rail).

Raised Panel A solid shutter where the center portion of the shutter panel protrudes outward from the surrounding

Shutter routed bevel.

Shutter Capping A metal (most usually copper) capping that was placed over the top edge of the shutter to prevent

water intrusion and the resulting wood rot. This capping is not necessary with Atlantic shutters as, due

to materials used, they are impervious to both water intrusion and rot.

Stiles The upright vertical sections of a shutter, which may be beaded or non-beaded.

Tilt Rod Working louvered shutters had a rod, or tilt-rod, to move the louvers into the open or closed position.

These are now purely decorative for those who truly desire the more authentic look.

Shutter Terminology

Position shutter in opening allowing

equal amounts of space between shutter

& wall (A & B), and between shutters

[see diagram at right]. When attaching

the pintel to the structure you may

have to drill into mortar & brick—use

appropriate molly’s in mortar & brick.

A C B
