Side 1/70

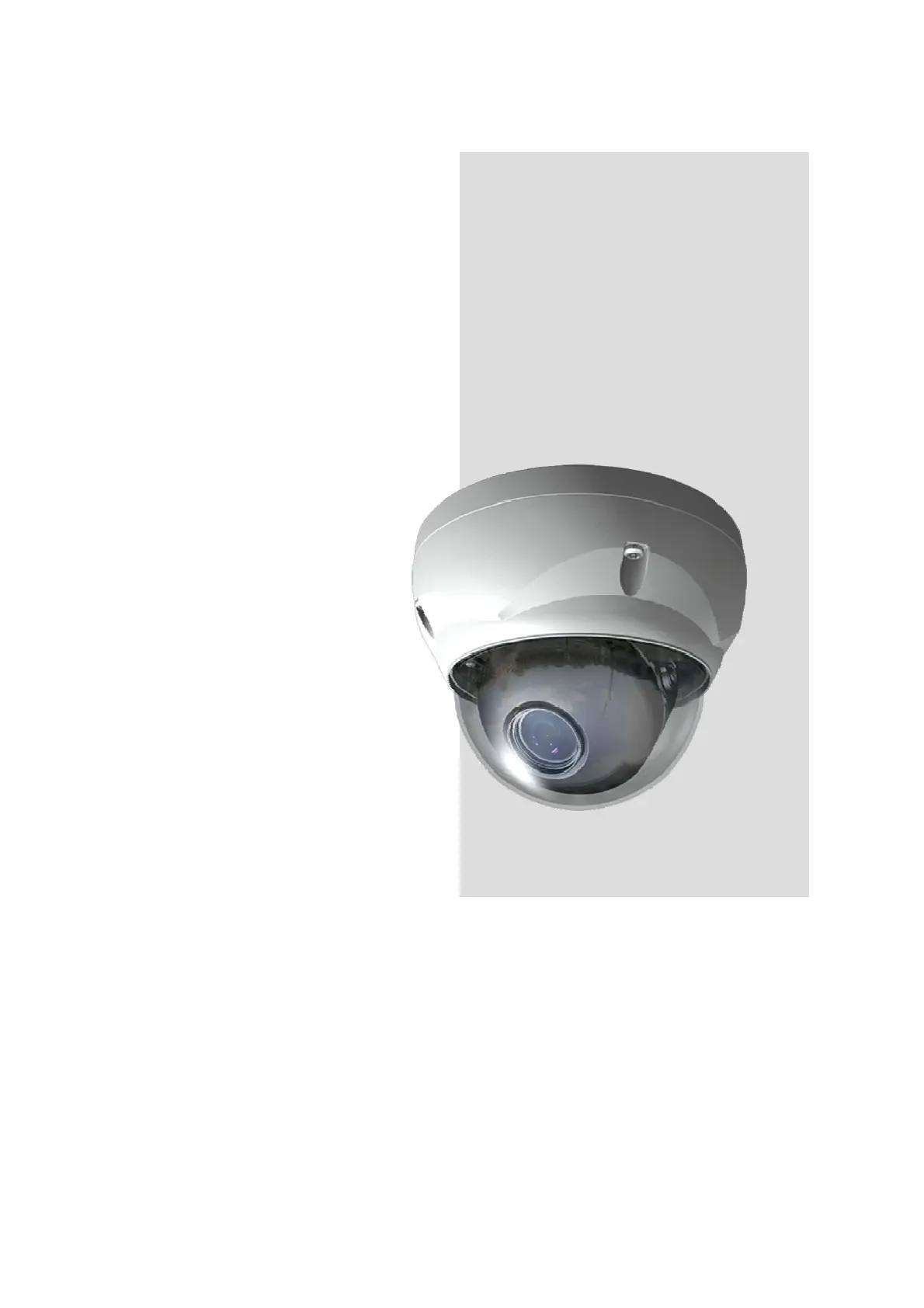

INSTRUCTION MANUAL

REHVD0309-1

REVO ELITE HD

P DOME

NETWORK CAMERA

www.hitron.co.kr

Please read this manual thoroughly before use, and keep it handy for future reference.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO

RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION

GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

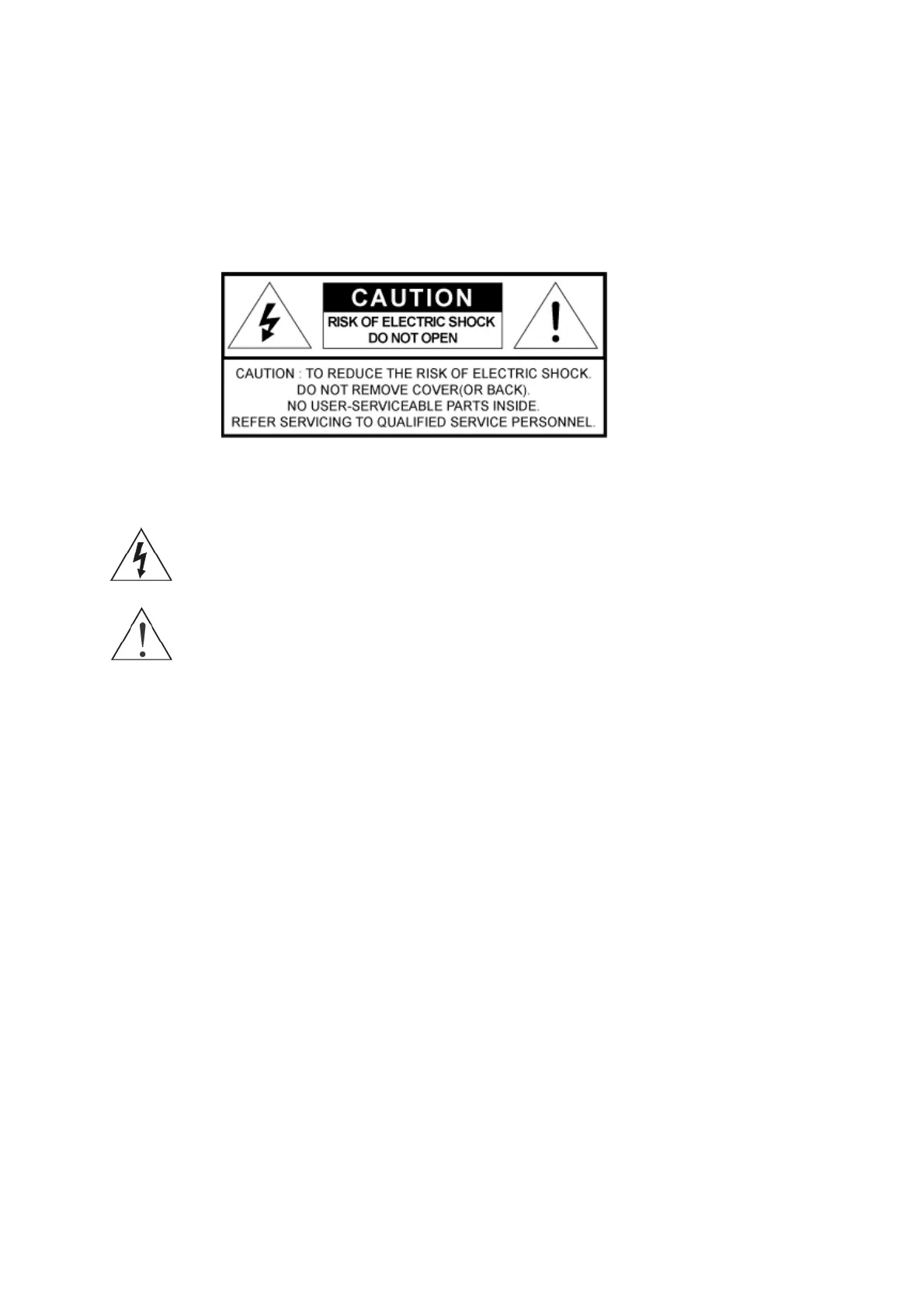

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock.

he exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the

appliance.

PRECAUTIONS

Safety -------------------------------------- Installation -------------------------------

Should any liquid or solid object fall into the cabinet,

unplug the unit and have it checked by the qualified

personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to

be used for several days or more. To disconnect the

cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat

build-up. Do not place the unit on surfaces (rugs,

blankets, etc.) or near materials (curtains, draperies)

that may block the ventilation holes.

Height and vertical linearity controls located at the rear

panel are for special adjustments by qualified

personnel only.

Do not install the unit in an extremely hot or humid

place or in a place subject to excessive dust,

mechanical vibration.

The unit is not designed to be waterproof.

Exposure to rain or water may damage the unit.

Cleaning ---------------------------------

Clean the unit only with dry cloth.

Use a mild household detergent. Never use strong

solvents such as thinner or benzene as they might

damage the finish of the unit.

Retain the original carton and packing materials for

safe transport of this unit in the future.

Produkt Specifikationer

Mærke:	REVO
Kategori:	Overvågningskamera
Model:	REHVD0309-1
Type:	IP-sikkerhedskamera
Bredde:	150 mm
Dybde:	150 mm
Højde:	125 mm
Vægt:	980 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Kompatible hukommelseskort:	SD
Formfaktor:	Kuppel
Understøttede videotilstande:	1080p
Opbevaringstemperatur (T-T):	0 - 50 °C
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Understøttede videoformater:	H.264, M-JPEG, MPEG4
Driftstemperatur (T-T):	-10 - 50 °C
Maksimal opløsning:	1920 x 1080 pixel
Sikkerhedsalgoritmer:	HTTPS
Kabler inkluderet:	LAN (RJ-45)
Understøttede grafikopløsninger:	320 x 240,1920 x 1080 (HD 1080)
Forbindelsesteknologi:	Ledningsført
Certificering:	FCC, CE, UL, MIC
Kabelteknologi:	10/100Base-T(X)
DC-in-stik:	Ja
Understøttede netværksprotokoller:	TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
IP-adresse filtrering:	Ja
Strømkilde type:	PoE
Monteringstype:	Loft
Diameter:	150 mm
Understøttet placering:	Indendørs
GPS (satellit):	Ingen
Hvidbalance:	Automatisk
Sensortype:	CMOS
Lydsystem:	2-vejs
Optisk zoom:	- x
Grænseflade:	RJ-45
Strømforbrug:	330 mA
Hældningsvinkelområde:	0 - 180 °
Progressiv scanning:	Ja
Strøm over Ethernet (PoE):	Ja
Dag/nat funktion:	Ja
Minimumsbelysning:	0.52 Lux
Panoreringsområde:	0 - 360 °
Rotationsvinkel:	360 °
Optisk sensorstørrelse:	1/2.7 "
Nattesyn:	Ja
LED type:	IR
Billedhastighed:	30 fps
Bevægelsessensor (video):	Ja
HTTPS -kryptering:	Ja
DC udgangsspænding:	+12V
Synsfelt vinkel (FOV):	93 °
Brændviddeområde:	3 - 9 mm
Kameraets lukkerhastighed:	1/20000 sek./side
F-number (relativ aperture):	1.2
Kamera lukker type:	Elektronisk
Antal lysende LED:	50
PTZ-kontrol:	Ja
Alarmindgang/-udgang:	Ja
