Features
Type-C Female X1(For power supply) DisplayPort Male X1

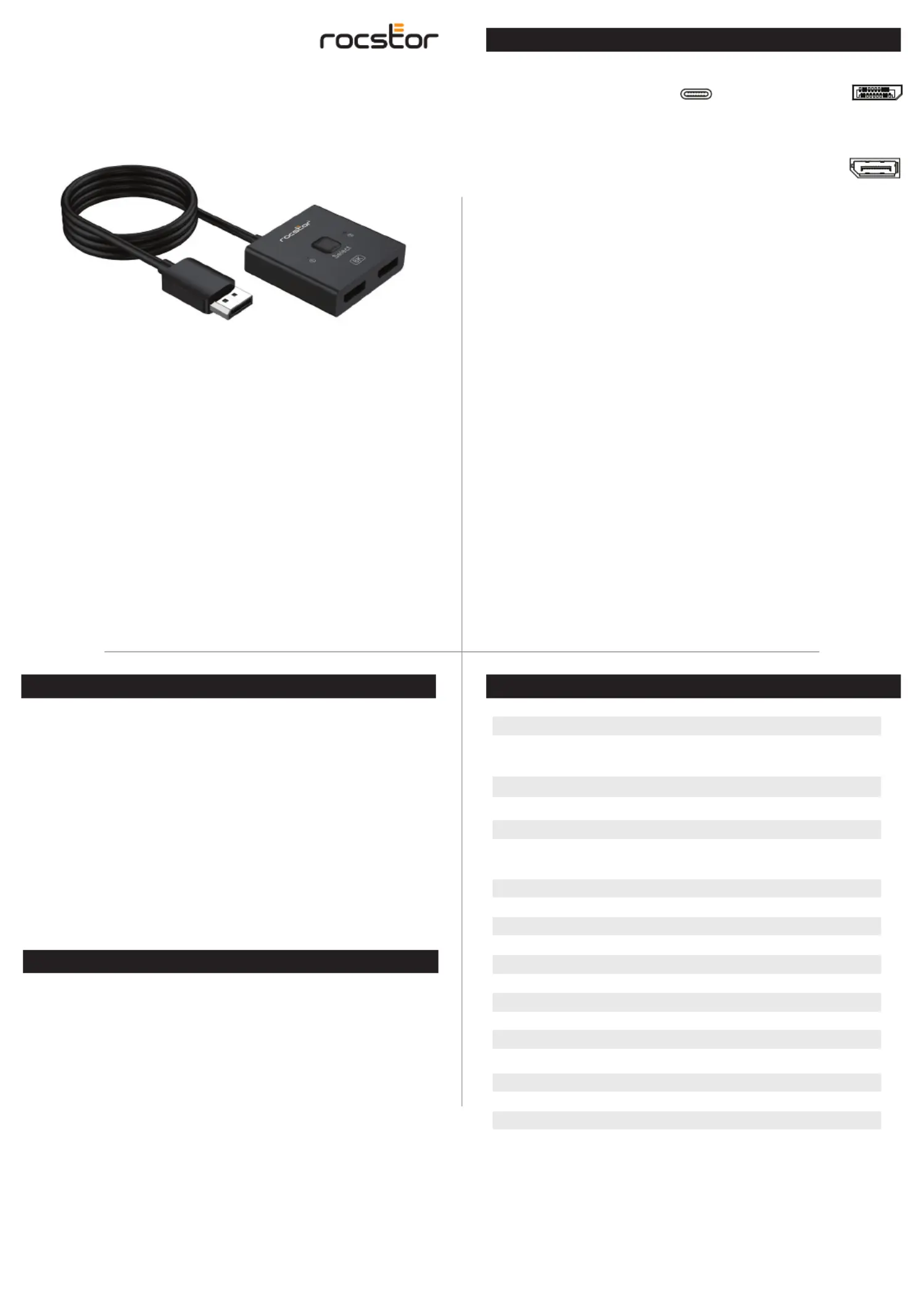

Rocstor introduces the DisplayPort1.4 2-in-1 Bi-directional Switcher tailored for 8K
resolution. This versatile device allows seamless switching between two sources to one
display or one source to two displays. Simply press the switch button to toggle
between channel 1 or channel 2. Equipped with a 50cm xed DP cable (pigtail), this
Switcher not only cuts costs but also streamlines setup time for customers. Designed
to handle high-denition video across various resolutions, including up to 8K, and
digital audio, this DP Switcher eciently routes content from sources to display units.
serves as a backup power supply option, delivering 5V power when needed.
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit p1-x1
• User Manual
• DisplayPort1.4 2-in-1 Bi-directional Switcher for 8K, it can switch either of two
sources to one display or switch one source to either of two displays
• Supports DP1.4 specication
• Power can be drawn through the DP male from the connected device. If some
o-specication devices cannot support power via DP male, power can be supplied
to the switch via the Type-C female port.
• Supports video resolution up to 8K/30Hz or 4K/120Hz, but the exact resolution is
determined by the computer and monitor.
• Supports HDR
• HDCP pass-through
• Supports uncompressed audio
• Supports compressed audio
• The toggle button can quickly switch between 2 video sources or 2 monitors, and the
blue LED indicators on both sides indicate which port is chosen to work.
• It’s suggested to match a DP1.4 cable within 2m for the DP female port, over this
length the signal may be aected
DisplayPort Female X2
Upstream:
Downstream:
Package Contents
Specication
Input
Output DP Female x2
DP Male x1(SR/SR 50CM)
Type-C Female x1(For power supply)
2 Years
Operating Temperature
Storage Humidity
Storage Temperature
Operating Humidity
0°C to 45°C (32°F to 113°F)
10% to 90 % RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90% RH (no condensation)
Introduction
Environmental
Input / Output Connector
Certications FCC, CE
Regulatory Approvals
User Manual English Version
Accessory Adapter
Warranty
Limited Warranty
Operating Temperature
Size
Main Unit 2.1x2x1.5in (55x55x15mm)
Fixed DP Cable: 19in (50cm) - SR/SR
Physical
Weight 2.2lbs - (63g)
Power Supply
Main from DP source DP Male x1
5V power supply for backupType-C Female x1
®
DisplayPort1.4 Bi-directional Switcher for 8K
User Manual
Y10A336-B1
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Technical Support / RMA
Hours: 9:00 am - 5:00 pm PST
Monday to Friday (except holidays)
Tell: +1 (818) 727-7000
( )National and international
Fax: +1 (818) 875-0002
Email: support@rocstor.com
WARNING:
Please follow these safety instructions. Failure to do so may result damages or injury.
It is normal that the device becomes very warm during use.
Please note that:
Continuous contact with warm surfaces for extended time may cause discomfort or injury. In order to
reduce the possibility of overheating or heat-related injuries, always allow needed ventilation around
the device and use care when handling it. Avoid instances where your skin is in extended contact
with the device when plugged into the host computer. It is not recommended to sleep with the
device when plugged into a host computer. Avoid placing the device under a pillow, blanket, or your
body when connected to a host computer. If you have a medical condition that aects your ability to
detect heat against the body, extra care should be used. Never use the device in locations with water,
such as a sink, bathtub, or shower stall. Never connect or disconnect the device with wet hands.
Limitation of Liability
In no event shall the liability of Rocstor, Inc. and Rocstor (or their ocers, directors, employees or
agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of
the product exceed the actual price paid for the product. Some states do not allow the exclusion or
limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Warranty Information
This product is backed by a (2) two-year warranty. Rocstor warrants its products against defects in
materials and workmanship for the periods noted, following the initial date of purchase. During this
period, the products may be returned for repair, or replacement with equivalent products at our
discretion. The warranty covers parts and labor costs only. Rocstor does not warrant its products from
defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Support
Warranty Information
Technical support is available to all the registered users of Rocstor products.

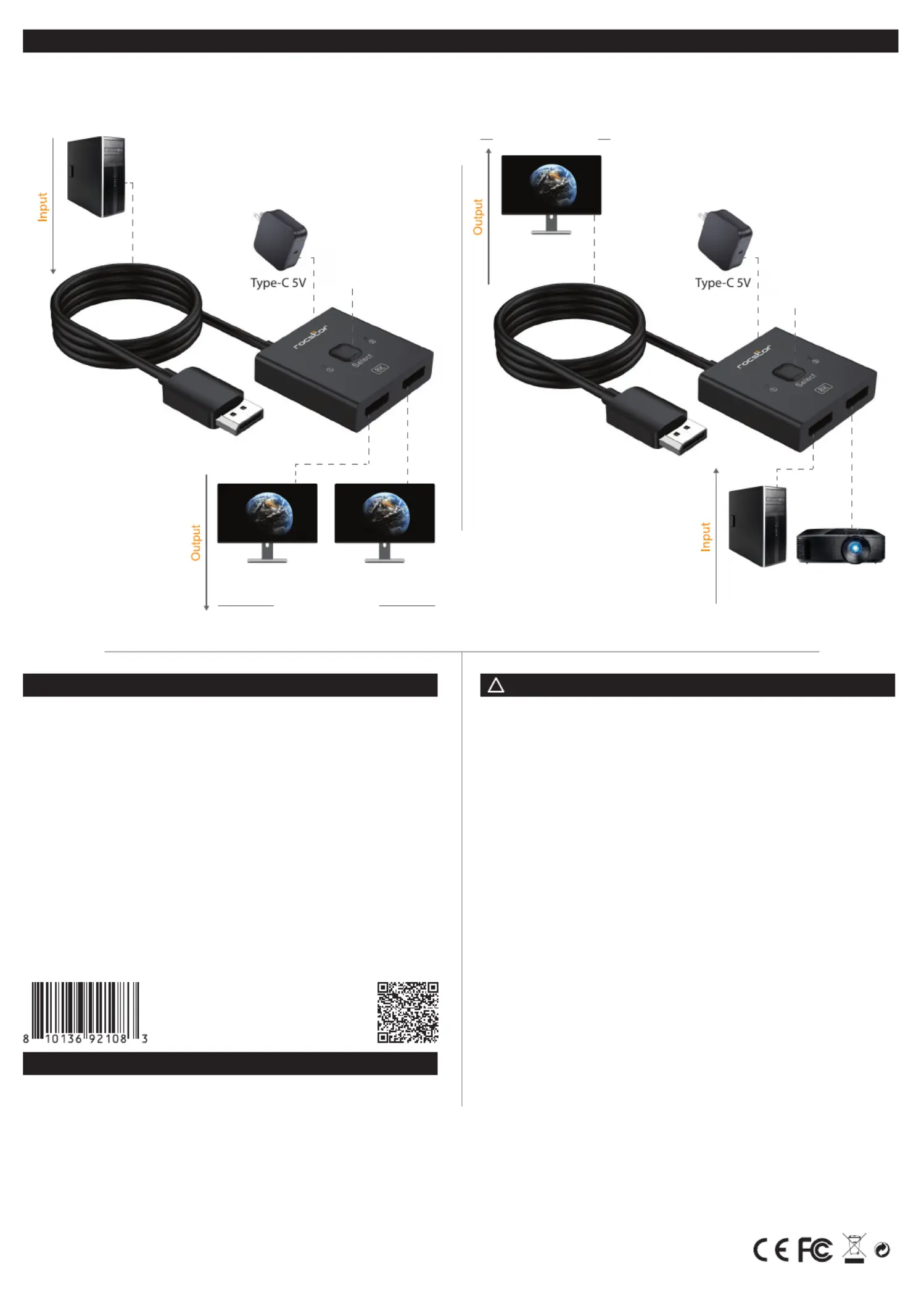

Connection Diagram
Safety Information:
!
Option B: 2 Inputs, 1 Output
DisplayPort
Display
DisplayPort
Source 1
DisplayPort
Source 2
Toggle Button
*Support 8K Video Output
Option A: 1 Input, 2 Outputs
DisplayPort
Display 1
DisplayPort
Source
DisplayPort
Display 2
Toggle Button
*Support 8K Video Output
Power Supply
Power Supply
