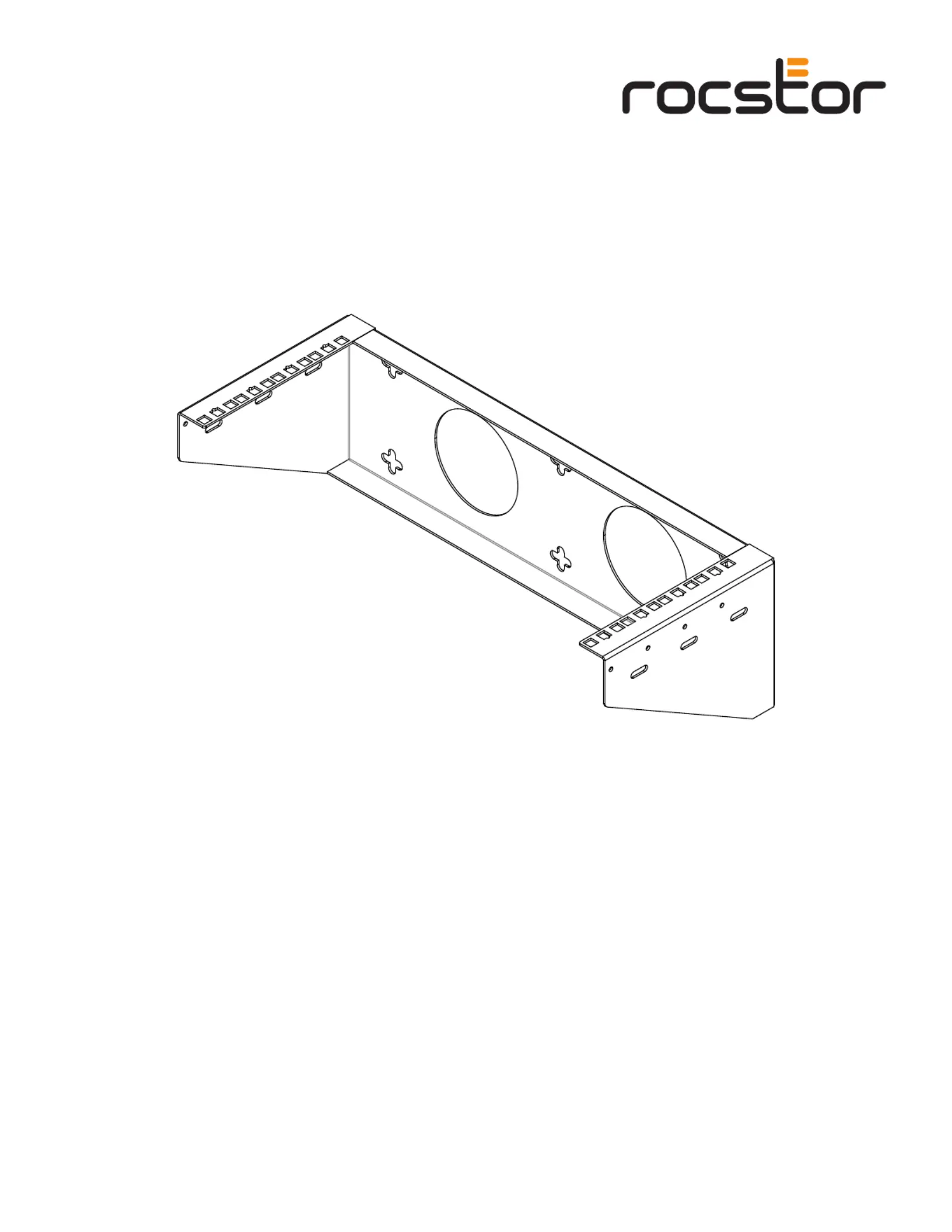

4U 19in Steel Vertical Wall Mount Rack Bracket - Black

User Manual

Y10E033-B1

Introduction & Installation

Page 1

Wall Mounting Hole

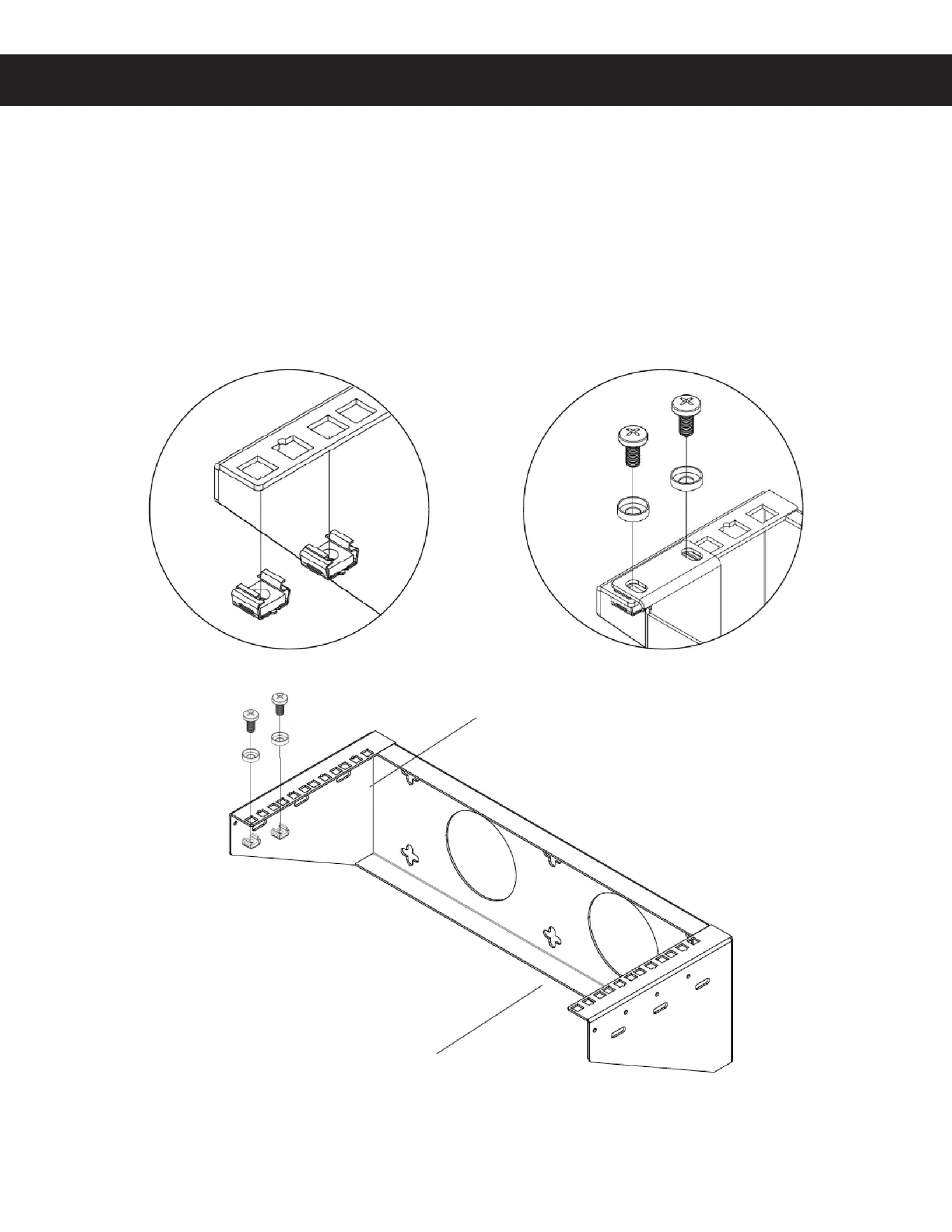

1- Installation of M6 Cage Nuts provides an attachment point into the square opening to the M6 Mounting Screws. Note: Check

your user manual to see how many cage nuts will be needed and where they need to be installed.

A- Insert one of the anges of the cage nut through the square opening from the inside of the mounting rails and press it against

the side of the square opening.

B- You may have to apply some slight compression to the sides so the remaining ange will be able to t through the square

opening. If the cage nut has been installed correctly, then both anges will jut out through the square opening and will be

noticeable on the outer surface of the mounting rail. Repeat steps 1a and 1b until all required cage nuts are installed.

2- Once the required cage nuts have been installed, you can use the included M6 Mounting Screws and M6 Washers to secure your

equipment into the installed M6 Cage Nuts.

Produkt Specifikationer

Mærke:	Rocstor
Kategori:	Ikke kategoriseret
Model:	Y10E033-B1
Type:	Monteringsbeslag
Bredde:	514 mm
Dybde:	152.4 mm
Højde:	205.7 mm
Vægt:	2000 g
Produktfarve:	Sort
Pakkevægt:	2700 g
Pakkedybde:	180 mm
Pakkebredde:	540 mm
Pakkehøjde:	220 mm
Husmateriale:	Stål
Certificering:	EIA/ECA-310-E
Bæredygtighedscertifikater:	RoHS
Maksimal vægtkapacitet:	56.7 kg
Rackkapacitet:	4U
Dybde (maks.):	220 mm
