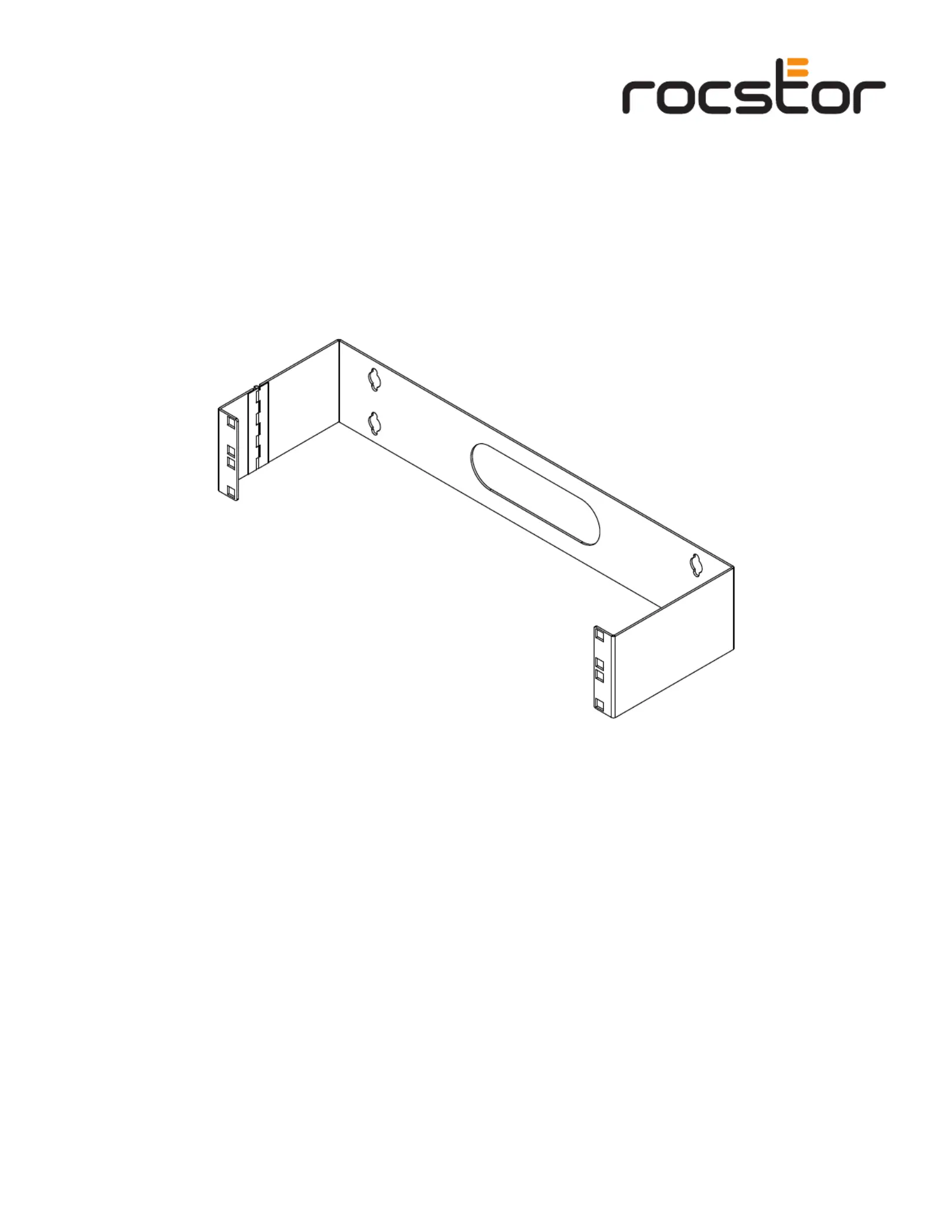

4U 19in Wall Mount Bracket for Patch Panels - Hinged - Black

User Manual

Y10E036-B1

Introduction & Installation

Page 1

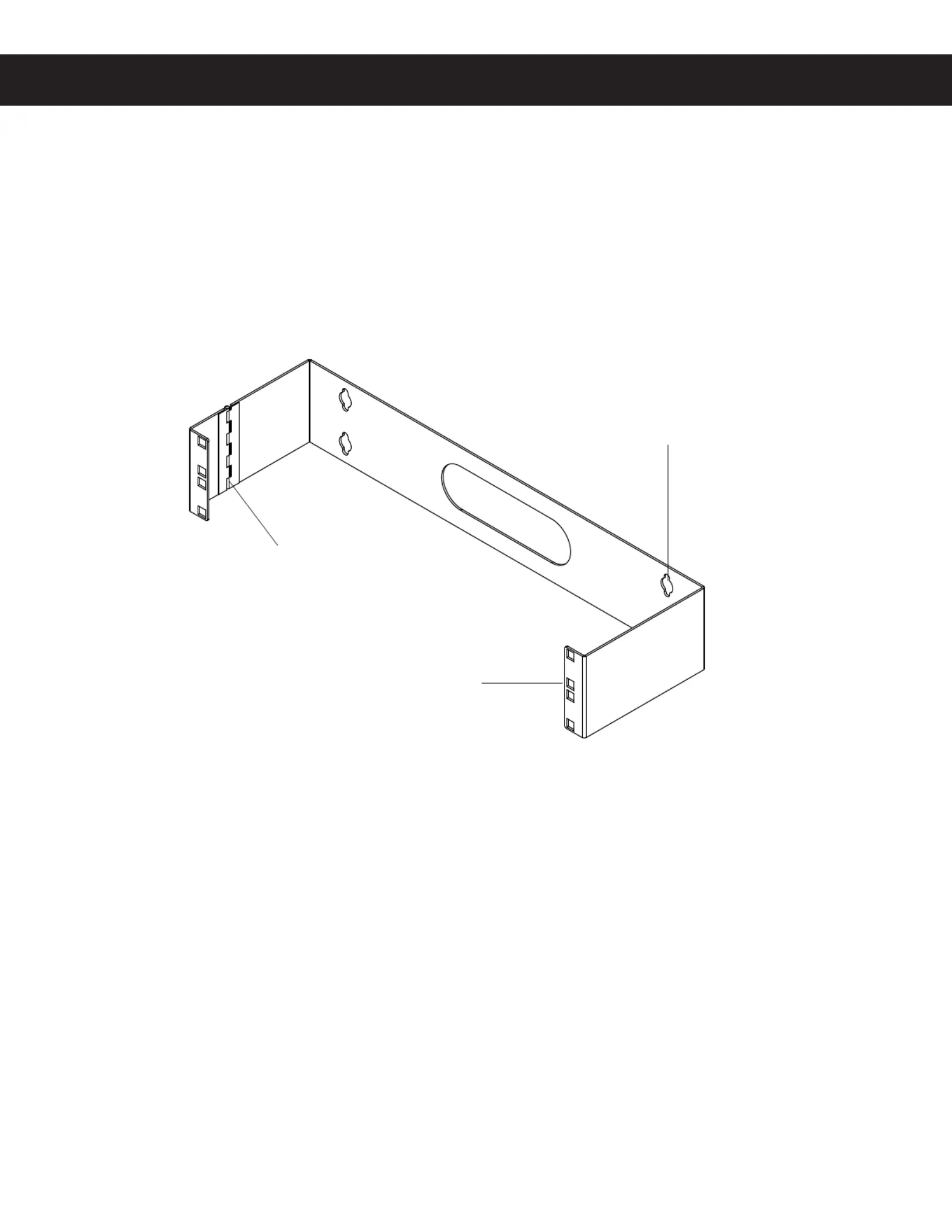

Mounting Holes(4)

Hinged Side Panel

Cage Nut Holes

Equipment Installation to the Wall-Mount Bracket

Included in this mounting bracket, you will nd M6 Cage Nuts, Screws, and Plastic Washers. Use

these to install equipment into the Wall-Mount Bracket.

1. Use the Wing (side) of an M6 Cage and insert it into the back of the Cage Nut hole.

2. Use a Cage Nut Tool or hand to apply pressure to insert a 2nd Wing of the M6 Cage Nut into a

designated Cage Nut Hole. Please repeat steps 1 and 2 by inserting the remainder of the Cage Nuts

for your application.

3. Make sure you use the Threaded Plastic Washer over the M6 Screw.

4. At this time use the M6 Cage Nuts and align the Mounting Holes in the equipment and apply

the Cage Nuts in step 2.

5. Now please insert the assembled Screws through the Mounting Holes in the Equipment and

into the M6 Cage Nuts.

6. Make sure the Screws are Tightened by using a Phillips Screwdriver.

Wall-Mount Bracket Installation

Warnings:

Rocstor recommends viewing your wall structure rst before installing the bracket. You may want to

consult or have a professional installer to mount the bracket to your wall structure. The bracket must

be installed on a wall structure that is able to support the mounted equipment properly. The wall

structure should be able to support at least four times the weight of the installed mounted

equipment. Make sure the wall-mount bracket is securely installed before you mount any

equipment. Failure to mount the bracket securely, it may result in personal and/or equipment

damages.
