Side 1/6

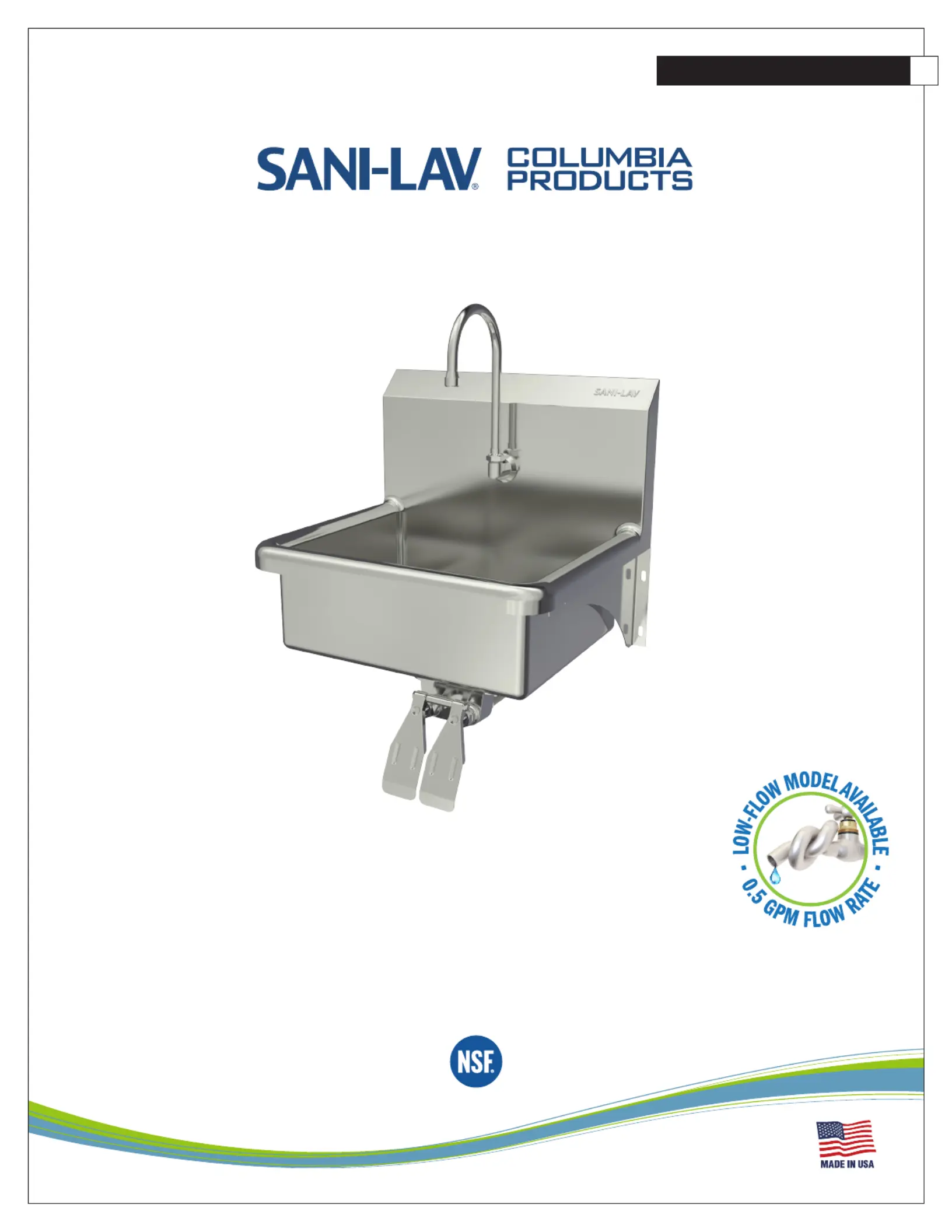

HANDS-FREE WALL MOUNT SINK

Operating Manual for Hands-Free Wall Mount Stainless Steel Sink

Models 705 and 705.5

of Domestic and Foreign Parts

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead

800.626.2117 columbiasinks.com info@columbiasinks.com

COLUMBIA SPECIFIC ATIONS

HANDS-FREE WALL MOUNT SINK

Installation Instructions

Step 1

1. Establish sink location on the wall.

2. Determine desired height for the top of the backsplash from finished floor and draw a level

line which will be the top edge of the wall mounting bracket.

3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill

holes and secure bracket to the wall as shown in illustration A. Screws are not provided.

4. Position the sink onto wall bracket.

5. Mark holes for fastening side mounting brackets as shown in illustration B.

6. Remove sink from the wall bracket.

7. Drill holes in wall for securing sink to wall. Screws are not provided.

Step 2

1. Install strainer assembly at the drain hole.

2. Install spout assembly using mounting nut provided.

3. Attach the elbow fitting to the back of spout.

4. Attach the connecting tube to spout.

5. Secure sink to wall.

Step 3

1. Connect waste line or drain pipe to the strainer assembly.

2. Mount valve under sink using mounting nuts provided.

3. Attach the elbow fitting to the bottom of the valve.

4. Attach the connecting tube from spout to valve.

5. Connect hot and cold water supply to valve.

Step 4

1. Remove aerator from the spout and flush water system.

2. Check connections for leaks.

3. Replace aerator onto the spout.

4. We recommend sealing top of backsplash to wall as shown in illustration C.

Parts List

(1) Wall mount sink

(1) Double knee pedal valve

(2) Valve mounting nuts

(1) Swivel gooseneck spout with aerator

(1) Connecting tube for valve to spout connection

(2) Fittings, brass, 0.375” male compression and 0.375” male NPT

(1) Wall-mounting bracket

(2) Support brackets

(4) Support bracket mounting bolts and washers

(1) Strainer assembly with basket

Tools Required

Tape measure

Adjustable wrench

Drill motor and drill bits

Pipe wrench

Level

Safety glasses

Screw drivers: phillips and standard

Pencil

Socket wrench

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),

Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects

or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certied under

NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

Notice for California Consumers

Go to for more information on replacement parts and installation videos.columbiasinks.com

Illustration A

Illustration B

Illustration C
