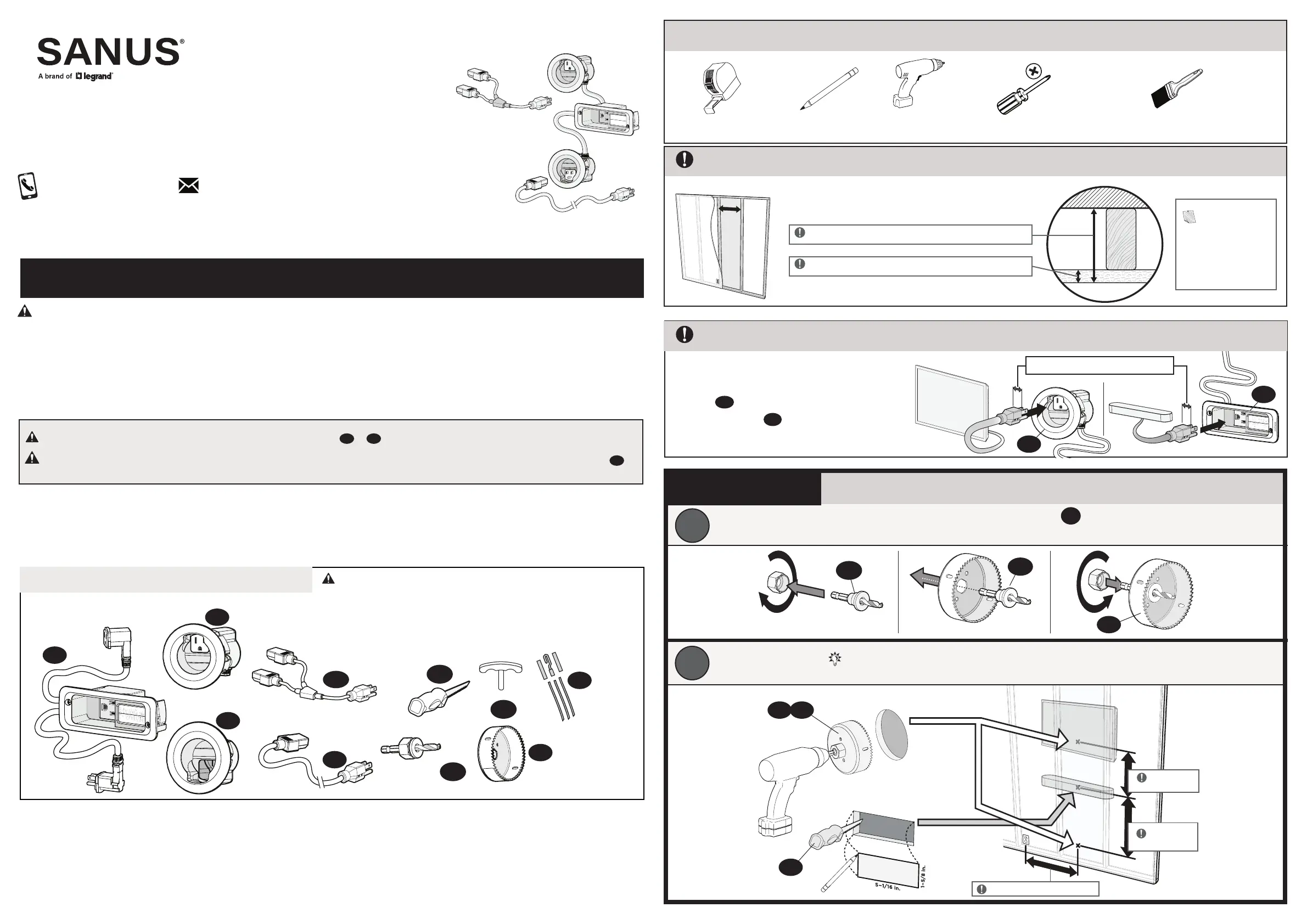

Side 1/2

Verify TV Plug Fit

Tools Needed

BEFORE DRILLING ANY HOLES:

Make sure your TV plug ﬁts in the upper

module

and your soundbar ﬁts in

soundbar module

Verify Wall Compatibility

CUTTING

TEMPLATE

STEP 1

Upper Module

Driver Bit

(hole saw)

Hole Saw

3 in.

Lower Module

Soundbar

Module

Power Cord

Splitter Cord

Drywall Saw

Assemble Hole Saw

Cut Holes

Drill Holes

Maximum Distance: 6 feet

Maximum:

3 feet

Maximum:

4 ½ feet

TIP: Drill the top hole BEHIND your TV and the soundbar hole BEHIND your

soundbar.

This Cable Kit is designed to ﬁt into both

interior and exterior walls constructed with:

Minimum Space into Wall: 3 in.

Minimum Drywall Thickness: 1/2 in.

NOTE: Walls

with blown-in type

insulation may

require removal

of some insulation

inside the cavity.

Drywall

Stud

Back Wall

MAX: 1 ⅛ in. (29 mm)

07 08

Model BSA-IWP801

OWNERS GUIDE

Cable Concealer TV &

Soundbar Power

Thank you for choosing SANUS!

Please take a moment to let us know how we did:

1-800-359-5520

info@sanus.com

6436 City West Parkway, Eden Prairie, MN 55344

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

● Please read through these instructions completely to be sure you’re comfortable with this easy install process.

● Do not use this product for any purpose not explicitly specified by manufacturer.

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

● If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

customer service at 1-800-359-5520.

This product conforms to and should be properly grounded in compliance with requirements of the current National Electrical Code or

codes administered by local authorities.

All electrical products may present a possible shock or ﬁre hazard if improperly installed or used. This product may bear the mark of a

Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the National Electrical Code.

WARNING: RISK OF FIRE AND SHOCK. Do not connect the modules

to any other circuits or outlets.

CAUTION: RISK OF FIRE AND SHOCK. ONLY intended for use on 15 ampere branch circuits. Do not install power supply cord

within wall cavity.

WARNING: This product contains small items that could be a choking

hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are

missing or damaged, do not return the damaged item to your dealer; contact Customer

Service. Never use damaged parts!

Supplied Parts and Hardware

Legrand AV Inc. and its aliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the

information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The

information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the

information contained herein. Legrand assumes no responsibility for accuracy, completeness or suciency of the information contained in this document.

Legrand AV Inc. 6436 City West Parkway; Eden Prairie, MN 55344 USA

6901-603104

Tape Measure Pencil Phillips Screwdriver

Paint (optional)

Surfaces are paintable

to match your decor

Electric Drill

Fish Tape

Hole Saw Handle

Note: Attach and use hole saw handle

provided to manually drill holes if an

electric drill isn’t available.
