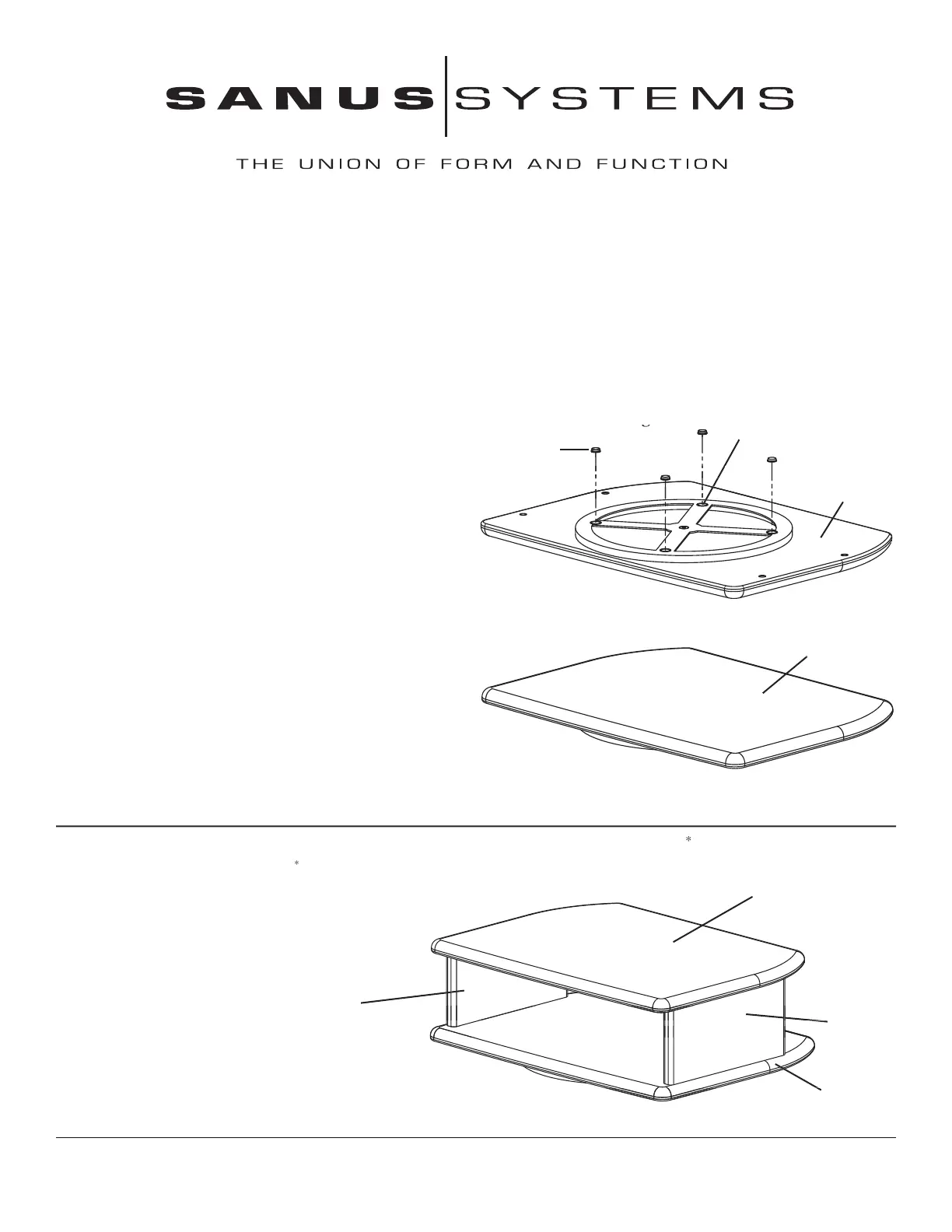

Assembly Instructions for Television Turntables
TM
TV13, TV20, TV27, TV32
Congratulations on your purchase! Sanus Systems Television Turntables
TM
are functional, attractive, and inexpensive. They
are fi nished with a black powder that is both durable and beautiful. Please check carefully to make sure there are no miss-
ing or defective parts. Never use defective parts. Improper assembly may cause damage or injury. If you do not understand
these directions, or have any questions about this assembly please contact Sanus at 800.359.5520 or www.sanus.com. We
Supplied Parts:
(1) Television Turntable
Supplied Parts:
(1) Self Adhesive Protective Feet (pad of 4)
Diagram 1
Step 1:
Position the Turntable so the black nylon swivel is facing
up. Locate the circles at the end of each spoke. Next, place a
Adhesive Foot inside each circle, as shown in Diagram 1.
NOTE: If you are going to use the optional TV-VCR Kit,
Proceed to the instructions for those at the bottom of the
page, otherwise, proceed to Step 2.
Step 2:
Flip the Turntable over and place it in the desired position
on a shelf or cabinet so the Adhesive Feet are facing down
and are in direct contact with the shelf or cabinet as shown
in Diagram 2.
Assembly Instructions for Optional TV-VCR Kit
TV-VCR Kit will not work with the TV13 Turntable
Circle
Adhesive
Bottom of
Foot
Turntable
Diagram 2
Top of Turntable
Contents:
(1) Base
Contents:
(2) Support Pillars
Contents:
(4) Plastic Dowels
Contents:
(4) Allen bolts
Contents:
(1) Allen Wrench
Sanus Systems 2221 Highway 36 W. St. Paul, MN 55113
800.359.5520 www.sanus.com 7.6.04
TV Turntable (sold separate)
Support
Pillar Support
Pillar
Base
Step 1:
Remove the swivel from the TV Turntable by removing the
Phillips Screw in the center of the swivel as shown in the Dia-
gram to the right.
Step 2:
Use the same Phillips Screw removed from Step 1 to fasten the
swivel to the base of the TV-VCR Kit. Insert the Phillips screw
through the center hole of the swivel and proceed to thread it
into the appropriate pilot hole in the center of the TV-VCR
Kit as shown in the Diagram on the right. Tighten the Phillips
Screw with a phillips screw driver until tight.
NOTE: When using the TV20 use the front Pilot Hole. When
Using the TV27 or TV32 use the rear Pilot Hole.
Step 3:
Insert the Plastic Dowels into the larger holes in the Support
Pillar as shown in the Diagram on the right. Gently tap the Plas-
tic Dowels in with a hammer if needed. Repeat step for the
other Support Pillar.
Step 4:
Thread the Allen Bolts up through the Base of the TV-VCR Kit,
and into the corresponding holes in the Support Pillar. Tighten
Allen Bolts with the provided Allen Key until they are tight.
Step 5:
Add the TV Turntable to the TV-VCR Kit by setting the Turn-
table on top of the Support Pillars so the dowels in the Support
Pillars line up with the holes in the bottom side of the turntable.
Press the Turntable down fi rmly until the bottom of the Turn-
table is fl ush with the top of the Support Pillars.
Phillips Screw
Bottom of
Turntable
Phillips Screw
TV-VCR Kit Base
Front Pilot Hole Rear Pilot Hole
Plastic Dowels
Larger Hole
Support Pillar
Top of TV-VCR Base
Nylon Swivel is
Allen Bolts Located on the Bottom
Top of TV Turntable
Plastic
Dowel
Top of TV-VCR Kit
Front of Assembly
Sanus Systems 2221 Highway 36 W. St. Paul, MN 55113
800.359.5520 www.sanus.com 7.6.04
