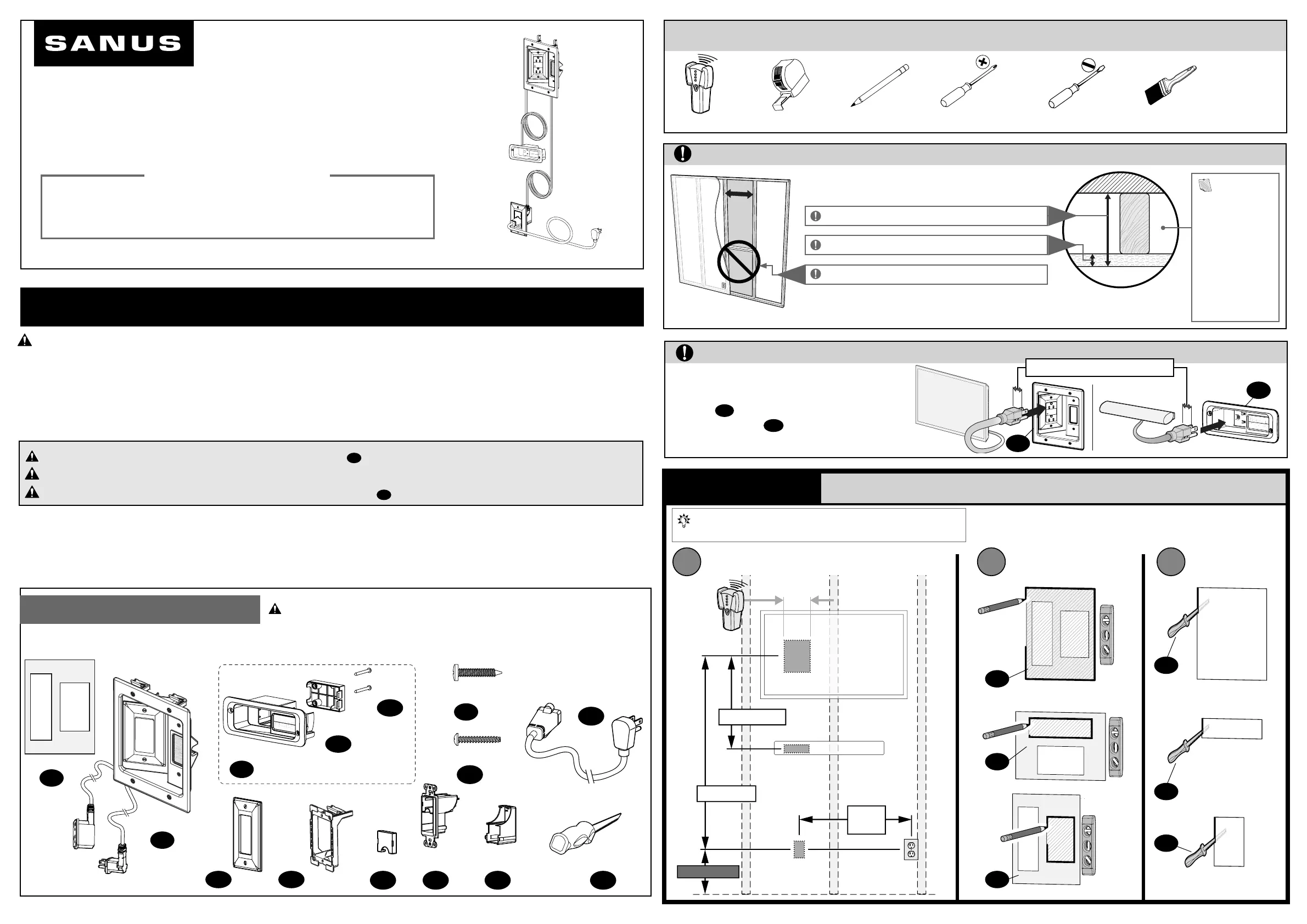

Side 1/5

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

●Please read through these instructions completely to be sure you’re comfortable with this easy install process.

●Do not use this product for any purpose not explicitly specified by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

●If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

customer service.

Tools Required

Tape MeasureStud Finder

This product conforms to and should be properly grounded in compliance with requirements of the current National Electrical Code or

codes administered by local authorities.

All electrical products may present a possible shock or ﬁre hazard if improperly installed or used. This product may bear the mark of a

Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the National Electrical Code.

Pencil Phillips Screwdriver Slotted Screwdriver

Paint (optional)

Surfaces are paintable

to match your decor

WARNING: This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are

missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never

use damaged parts!

BEFORE DRILLING ANY HOLES:

Make sure your TV plug ﬁts in the upper

module 02 and your soundbar ﬁts in

soundbar module 03 .

STEP 1

Upper

Module

Lower

Module

Soundbar

Module

Cutting Template

Power Cord

Soundbar

Housing

Soundbar

Housing

Screw

Cover

Plate

Front Housing

Screw

Back Housing Screw

Cap Front Plug

Housing

Back Plug

Housing Drywall Saw

06 07

08 09 10

Cut Holes

Supplied Parts

TIP: Drill the upper hole BEHIND your TV and the

middle hole BEHIND your soundbar.

MAX: 1 ⅛ in. (29 mm)

Outlet Height

Soundbar

Up to 8 ft.

Up to 3 ½ ft.

Up to

6 ft.

1 2 3

LOCATE TRACE CUT

UPPER

(TV)

MODULE

LOWER

MODULE

MIDDLE (SOUNDBAR) MODULE

Model WSIWPSB1-W1

OWNERS GUIDE

IN-WALL POWER KIT

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

800-359-5520 or, chat at SANUS.com/chatSP

We’re ready to help!

This Cable Kit is designed to ﬁt into both interior

and exterior walls constructed with:

Minimum Space into Wall: 3 in.

Minimum Drywall Thickness: 1/2 in. (MAX: 1 in.)

No Fire Block Stud in the cavity *

NOTE:

The cable Pass-

Through Width is

1.75 inch.

Walls with blown-

in type insulation

may require

removal of some

insulation inside

the cavity.

Drywall

Stud

Back Wall

* A horizontal ﬁre block stud requires a 1.75 inch hole to pass the power cord.

This requires removal, then repair of drywall, to gain access to that stud.

We recommend you consult a professional.

Verify Wall Compatibility

Verify TV Plug Fit

WARNING: RISK OF FIRE AND SHOCK. Do not connect the module 02 to any other circuits or outlets.

CAUTION: RISK OF FIRE AND SHOCK. ONLY intended for use on 15 ampere branch circuits.

CAUTION: RISK OF FIRE AND SHOCK. Do not install power supply cord 13 within wall cavity.

Doc. #1507331 08/20 Rev A

Route Power Cords

and Any Low Voltage Cables

Assemble Modules Secure Modules

Secure Lower Module

Install Cables

STEP 2 STEP 3 STEP 4

STEP 5

STEP 6

Removal

abTurn screws to remove modules

Loosen ONLY enough to remove module.

Unplug

power

Soundbar

Power Cord

DO NOT over

tighten screws

TIP: Use a ﬁsh

tape, to pull the cables

through the wall.

09 10

DO NOT over

tighten screws

Legrand AV Inc.

6436 City West Parkway;

Eden Prairie, MN 55344 USA

SANUS.com | 800-359-5520

Legrand AV Inc. and its aliated corporations and subsidiaries (collectively, “Legrand”), intend to make

this manual accurate and complete. However, Legrand makes no claim that the information contained

herein covers all details, conditions, or variations. Nor does it provide for every possible contingency

in connection with the installation or use of this product. The information contained in this document

is subject to change without notice or obligation of any kind. Legrand makes no representation of

warranty, expressed or implied, regarding the information contained herein. Legrand assumes no

responsibility for accuracy, completeness or suciency of the information contained in this document.

logo are trademarks of Legrand.

6901-602483 00

0402
