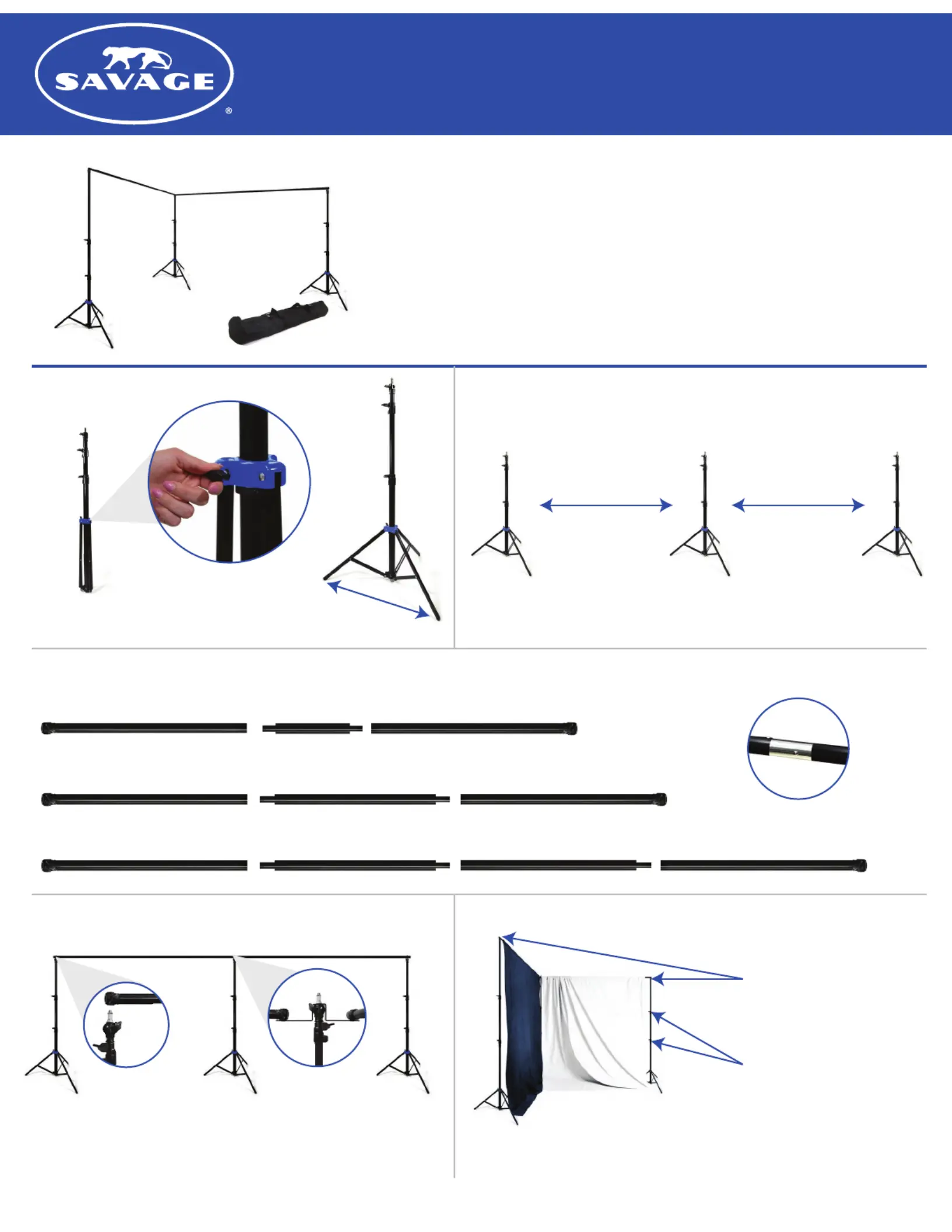

(1) Crossbar pivoting center bracket
(2) Crossbar male-male adapter
(3) Reversible 1/4”-20 - 3/8” studs
Place stands proper distance apart in desired configuration (straight or
corner usage). Refer to Step 3 for crossbar configuration.
Assemble crossbar sections for each side of the stand as depicted below. Store unused sections in carry bag.
Unpack each stand upright, and loosen leg locks.
Pull the upright section upwards while pushing the
leg bracket down to extend the tripod legs.
2) POSITIONING UPRIGHT STANDS
Push crossbar sections together
until the silver pin snaps into hole.
Lift crossbar off upright stud, and slide
backdrop across the full width of the
crossbar. (You may need to fully remove
the wingnut from the crossbar to slide
backdrop over end of crossbar. Once
backdrop is in position, reattach wingnut).
Repeat for 2nd backdrop if needed.
Loosen upright knobs when backdrop
is in place and carefully raise each
section equally on both sides until
the backdrop is at the proper height
4) ATTACH CROSSBARS TO UPRIGHTS
FOR 12’ WIDE APPLICATIONS
MALE - MALE ADAPTERROTATING COLLAR NON-ROTATING COLLARFEMALE END FEMALE END
FEMALE ENDROTATING COLLAR NON-ROTATING COLLARFEMALE END MALE ENDMALE END
FEMALE ENDROTATING COLLAR NON-ROTATING COLLARFEMALE END MALE END FEMALE ENDMALE ENDMALE END
5) HANG BACKDROP AND RAISE UPRIGHTS
Unscrew the wingnuts on the sides of the end crossbar sections.
Place the assembled crossbar over the reversible 1/4”-20 / 3/8”
studs on top of the two outer uprights. If using a full width
configuration, place pivoting connector bracket on top of middle
upright and attach crossbars ro each reversible stud.
If using a backdrop with rod pockets or inner core, lift one end of the crossbar
off of the top stud and carefully slide your backdrop onto the crossbar. If using
a backdrop without a rod pocket or inner core, use clamps to attach the
material to the crossbar at several even points along the crossbar. Tighten
wingnuts on each end before use. Repeat for both backdrops. If using corner
configuration, carefully move & place uprights in corner.
