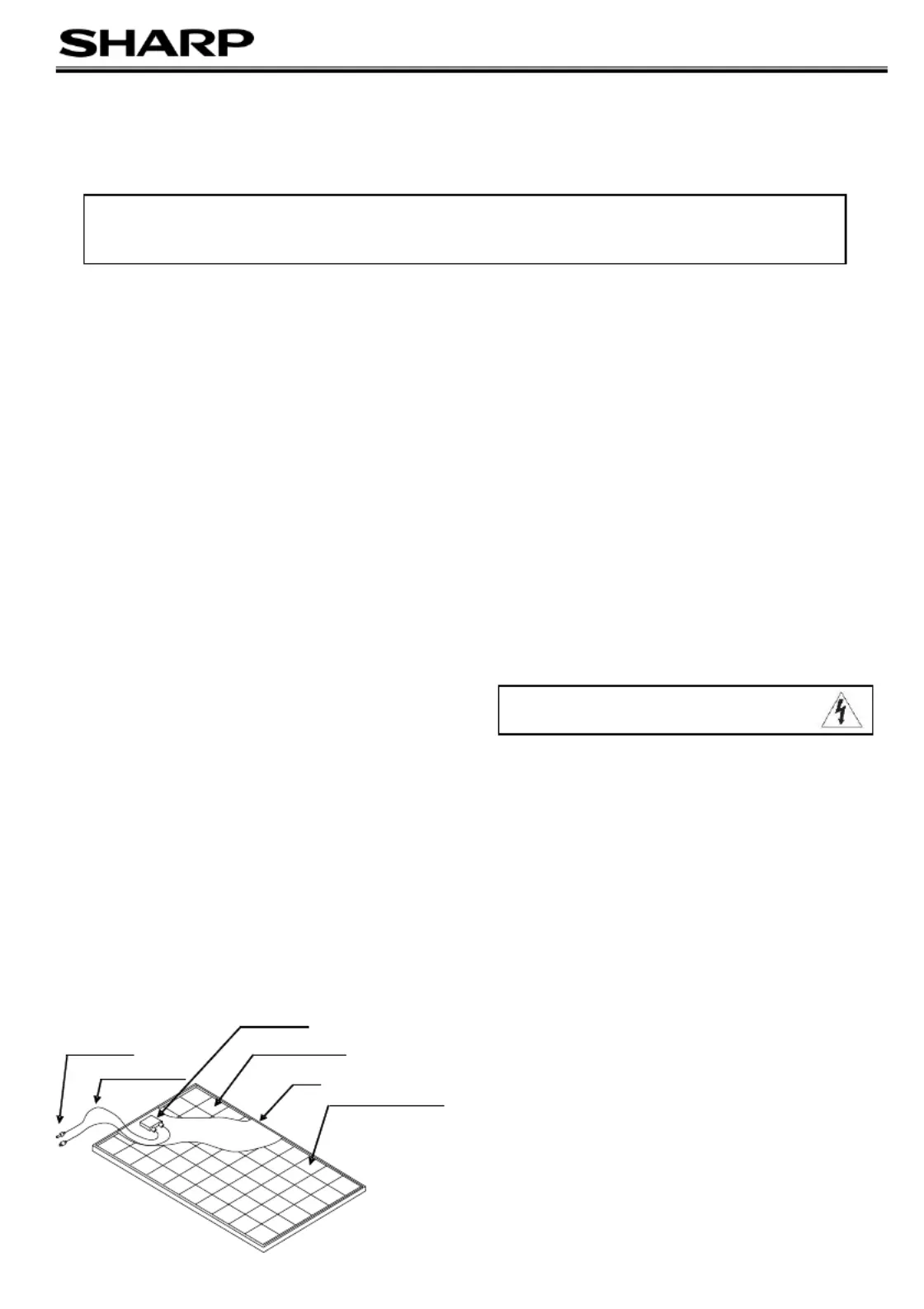

PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE MODULES.
PLEASE PASS ALONG THE ATTACHED USER MANUAL TO YOUR CUSTOMER.
INSTALLATION MANUAL
– – Crystalline Photovoltaic Module
# IMPORTANT SAFETY INSTRUCTIONS p.1
# GENERAL INSTRUCTIONS 1 ~ p.3 p.
# INSTALLATION MANUAL -PHOTOVOLTAIC MODULES- 4 p.
# ELECTRICAL OUTPUT AND THERMAL CHARACTERISTICS 4 p.
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important safety instructions for the PV module
that must be followed during the maintenance of PV modules.
To reduce the risk of electric shock, do not perform any servicing
unless you are qualied to do so.
1. The installation must be performed by a certied installer
/servicer to ensure system integrity and safety.
2. The installation is only allowed after referring and
understanding of GENERAL INSTALLATION MANUAL and
INSTALLATION MANUAL -PHOTOVOLTAIC MODULE-. If you
don’t have your personal copy, please contact your installer or
local Sharp oce listed in Sharp Solar web site : URL :
http://www.sharp-world.com/solar
3. Do not pull the PV cables.
4. Do not touch any surface of module.
5. Do not place/drop objects onto the PV modules.
6. Do not disassemble or attempt to repair the PV module by
yourself.
7. Do not drop the PV module.
8. Do not damage, pull, bend, or place heavy material on cables.
9. Upon completion of any service or repairs, ask the
installer/servicer to perform routine checks to determine that
the PV modules are in safe and proper operating condition.
10. When replacement parts are required, be sure the
installer/servicer uses parts specied by the manufacturer with
same characteristics as the original parts. Unauthorized
substitutions may result in re, electric shock, or other hazard.
11. Consult your local building and safety department for required
permits and applicable regulations.
12. In regions with snow, the module can sustain a snow load of up
to 50cm (when the module is mounted in the portrait orientation
/ short frame side facing down) or 100cm (when the module is
mounted in the landscape orientation / long frame side facing
down).
13. As a result of sliding snow, the mechanical load increases when
the number of module rows in the matrix of a PV installation
increases. When mounting the module in the portrait orientation
for more than 3 rows, the accumulated snow load may cause
the lower edge of the module frame to deform. Take necessary
measures (e.g. snow stopper) to avoid possible damage.
14. Periodically remove any overhanging snow and/or ice from the
module framework as it may cause deformation of the module
frame.
GENERAL INSTRUCTIONS
1. INTRODUCTION
This Installation Manual contains essential information for the electrical and mechanical installation that you must know before
installing SHARP PV modules. This also contains safety information you need to be familiar with. All the information described in
this manual are the intellectual property of SHARP and based on the technologies and experiences that have been acquired and
accumulated in the long history of SHARP. This document does not constitute a guaranty, expressed or implied. SHARP does not
assume responsibility and expressly disclaims liability for loss, damage, or expense arising out of or in any way connected with
installation, operation, use or maintenance of the PV modules. No responsibility is assumed by SHARP for any infringement of
patents or other rights of third parties that may result from use of PV module. SHARP reserves the right to make changes to the
product, specications or installation manual without prior notice.
2. COMPONENTS
3. GENERAL INFORMATION
(INCLUDING WARNING AND SAFETY)
The installation of PV modules requires a great degree of skill
and should only be performed by a qualied licensed
professional, including licensed contractors and licensed
electricians. Please be aware that there is a serious risk of
various types of injury occurring during the installation including
the risk of electric shock. All SHARP PV modules are equipped
with a permanently attached junction box that will accept variety
of wiring applications or with a special cable assembly for ease
of installation, and they do not require special assembly.
GENERAL WARNING
1. PV modules are heavy. Handle with care.
2. Before you attempt to install, wire, operate and maintain
the PV module, please make sure that you completely
understand the information described in this installation
manual.
3. Contact with electrically active parts of a PV module such
as terminals can result in burns, sparks and lethal shock
MODEL
NU NU- ,AC*** -AC***B,ND-AC series ***
CAUTION: HIGH VOLTAGE
To reduce the risk of electric shock, do not touch.
Superstrate Glass
Junction box
Frame
Solar Photovoltaic Cell
Electriclal Cable
SIM01E- 2 00
2
whether the PV modules connected or not. are
4. PV modules produce electricity when the sucient sunlight
or other sources illuminate the module surface. When the
modules are connected in series, voltage is cumulative.
When the modules are connected in parallel, current is
cumulative. As a result, a large-scale PV system can
produce high voltage and current which could present an
increased hazard and may cause serious injury or death.
5. Do not connect the PV modules directly to the loads such
as motor since the variation of the output power depending
on the solar irradiation causes damage for the connected
motor.
1: In the case of a brushless motor, the lock function
becomes active and the hall IC is most likely to be
damaged.
2: In the case of a brush type motor, the coil is most likely
to be damaged.
6. In case of snow build-up, snow would slide easier on the
smooth surface of the module than other parts of the roof.
Snow may suddenly slide, fall o the roof and hit nearby
objects/areas. Take preventive measures (e.g. snow
stopper) when there is possible risk such case would
cause an injury or a damage.
GENERAL SAFETY
1. Consult local codes and other applicable laws concerning
required permits on regulations installation and for
inspection requirements.
2. Before installing a PV module, contact appropriate
authorities to determine permit, installation and inspection
requirements that should be followed.
3. Install PV modules and ground frames in accordance with
applicable rules and regulations.
4. PV modules should be installed and maintained by
qualied personnel. Only installer/servicer personnel
should have access to the PV module installation site.
5. No matter where the PV modules are installed, either roof
mounted construction or any other type of structures above
the ground, appropriate safety practices should be
followed and required safety equipment should be used in
order to avoid possible safety hazards. Note that the
installation of some PV modules on roofs may require the
addition of reproong, depending on local building/re
codes.
6. In the case that the PV modules are non-integral type, the
module is to be mounted over are resistant roof.
7. e PV modules with Us the same cell size within series.
8. Follow all safety precautions of other components that are
used in the system.
9. In order to avoid a risk of injury or electrical shock, do not
allow anyone to approach the PV module if the person has
little knowledge on PV module or on the measures that
should be taken when PV modules are damaged.
10. Do not shade portions of the PV module surface from the
sunlight for a long time. The shaded cell may become hot
(hot spot phenomenon) which results in solder joints
peeling o. Shading causes drop in generated power
and/or operation failure of the PV modules.
11. Do not clean the glass surface with chemicals. Do not let
water collect on the glass surface for a long time. This
creates a risk of white eorescence (glass disease) which
may result in the deterioration of energy generation.
12. Do not install the PV module horizontally. It may cause dirt
or white eorescence (glass disease) due to water.
13. gap Do not cover the water drain of the frame. There is a
risk of frost damage when the frame is lled with water
cumulation.
14. If there is a risk of sliding snow, an appropriate measure
has to be taken so that PV module frames on lower edge
of PV modules will not be damaged.
15. Do not expose PV module to sunlight concentrated with
mirrors, lenses or similar means.
16. Turn o inverters and circuit breakers immediately, should
a problem occur.
17. In case the glass surface of a PV module is broken, wear
goggles and tape the glass to keep the broken pieces in
place.
18. A defective PV module may generate power even if it is
removed from the system. It may be dangerous to handle
the PV module while exposed to sunlight. Place a defective
PV module in a carton so PV cells are completely shaded.
19. In case of series connection, the maximum open circuit
voltage must not be greater than the specied maximum
system voltage. The voltage is proportional to the number
of series. In case of parallel connection, please be sure to
take proper measure (e.g. fuse for protection of module
and cable from over current, and/or blocking diode for
prevention of unbalanced strings voltage) to block the
reverse current flow. The current may easily flow in a
reverse direction.
20. p modules away from children. Kee
HANDLING SAFETY
1. Do not cause an excessive load on the surface of PV
module or twist the frame. The glass surface can easily
break.
2. Do not stand or step on the PV module. The surface glass
of PV module is slippery.
3. Do not hit or put excessive load on the glass or back sheet.
The PV cell is very thin and can be easily broken.
4. Do not scratch or hit at the back sheet. The back sheet is
vulnerable.
5. damage Do not the junction box or do not pull the cables.
The junction box can crack and break.
6. Never touch junction box or the end of output cables with
bare hands when the PV module is irradiated. Cover the
surface of PV module with cloth or other suitable
suciently opaque material to isolate the PV module from
incident light and wear rubber gloves when handling the
wires to avoid electric shock.
7. Do not scratch the output cable or bend it with force. The
insulation of output cable can break and may result in
electricity leakage or shock.
8. Do not pull the output cable excessively. The output cable
may unplug and cause electricity leakage or shock.
9. Do not drill holes in the frame. It may compromise the
frame strength and cause corrosion.
10. Do not scratch the insulation coating of the frame (except
for grounding connection). It may cause corrosion of the
frame or compromise the framework strength.
11. Do not touch the PV module with bare hands. The frame
of PV module has sharp edges and may cause injury.
12. Do not drop PV module or allow objects to fall down on the
PV module.
13. the PV module. Do not concentrate sunlight artificially on
14. Do not hold the PV module one side. The frame may on
bend or twist Hold the PV module at opposite sides. .
INSTALLATION SAFETY
1. Always wear protective head gear, insulating gloves and
safety shoes (with rubber soles). Do not wear metallic
jewellery to prevent electric shock during installation.
2. Keep the PV module packed in the carton until installation.
3. Do not touch the PV module unnecessarily during
installation. The glass surface and the frames get hot.
There is a risk of burn, or electric shock.
4. Do not work under rain, snow or windy conditions.
5. Use dry insulated tools.
6. Do not drop tools or hard objects on PV modules
7. When working at heights, wear a safety belt and take care
not to drop any items (e.g., PV module or tools).
8. Make sure ammable gases are not generated near the
installation site.
9. Completely cover the PV module surface with an opaque
material during PV module installation and wiring.
10. Plug in the connector tight and ensure the wiring work.
Make sure that the connectors have been locked by a
snap-in latch. Any treatments over the connectors which
may allow to unlock the snap-in latch shall not be done.
11. Due to the risk of electrical shock, do not perform any work
if the terminals of PV module are wet.
12. Do not touch the junction box and the end of output cables,
the cable ends (connectors) with bare hands during ,
installation or under sunlight, regardless of whether the PV
module is connected to or disconnected from the system.
13. Do not unplug the connector if the system circuit is
connected to a load.
14. Do not stomp on the glass at work. There is a risk of injury
or electric shock if glass is broken.
15. Do not work alone (always work as a team of 2 or more
people).
16. Do not damage the back sheet of PV modules when setting
the equipotential bonding by bolts.
17. Do not damage the surrounding PV modules or mounting
structure when replacing a PV module.
18. Bind cables by the insulation locks. Drooping down of
cables from the junction box could possibly cause various
problems such as animal biting, electricity leakage in
puddle.
19. Take proper measures for preventing the laminate
(consisted of resin, cells, glass, back sheet, etc.) from
dropping out of the frame in case the glass is broken.
20. e Plastic components such as cables or connectors shall b
located so that they will not be exposed to direct sunlight
after installation to prevent degradation of them.

Produkt Specifikationer

Mærke: Sharp
Kategori: Ikke kategoriseret
Model: NU-AC300B

Har du brug for hjælp?

Hvis du har brug for hjælp til Sharp NU-AC300B stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Sharp Manualer

Sharp

Sharp NQ-R256A Manual

30 Marts 2025
Sharp

Sharp PN-60TW3 Manual

5 Januar 2025
Sharp

Sharp NU-RJ285 Manual

5 Januar 2025
Sharp

Sharp NU-RJ280 Manual

5 Januar 2025
Sharp

Sharp NU-AK310 Manual

5 Januar 2025
Sharp

Sharp NU-AF370 Manual

5 Januar 2025
Sharp

Sharp NQ-R258H Manual

5 Januar 2025
Sharp

Sharp NU-RD300 Manual

5 Januar 2025
Sharp

Sharp NU-AH370 Manual

5 Januar 2025
Sharp

Sharp NU-AH360 Manual

5 Januar 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

AmpliVox

AmpliVox Airvox SW695 Manual

15 Juni 2025
Stiga

Stiga SBC 635 KD Manual

15 Juni 2025
Cleveland

Cleveland 36CGM300 Manual

15 Juni 2025
Gourmia

Gourmia GTF7970 Manual

15 Juni 2025
Planet Audio

Planet Audio P9630B Manual

15 Juni 2025
ORNO

ORNO OR-DOM-YR-934UD Manual

15 Juni 2025
Lavex

Lavex 842CD12VST12 Manual

15 Juni 2025
Marshall

Marshall RCP-PLUS Manual

15 Juni 2025
Hughes & Kettner

Hughes & Kettner BassForce XL Manual

15 Juni 2025
Hughes & Kettner

Hughes & Kettner Red Box Mk III Manual

15 Juni 2025
