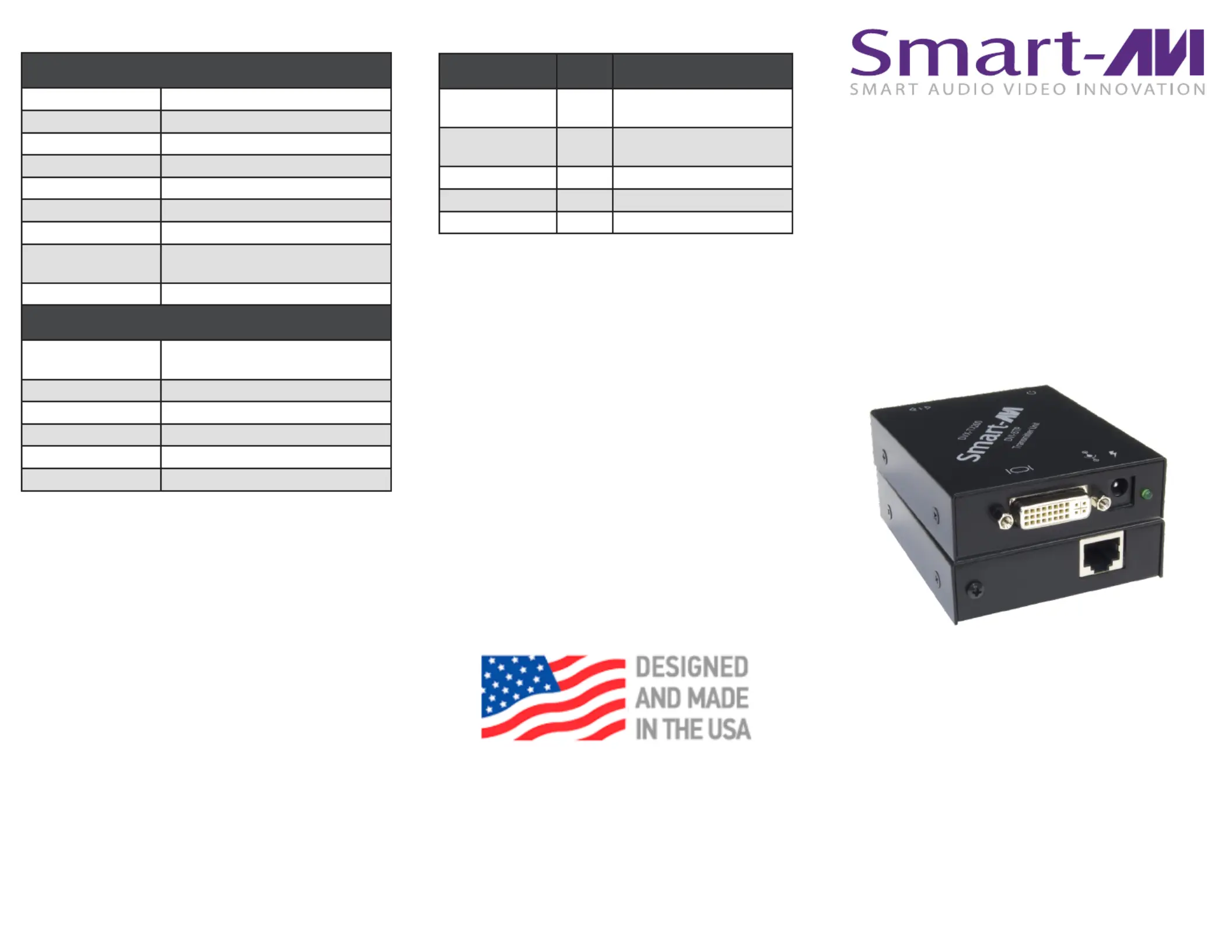

DVI-D Extender
EXTENDS DVI-D
UP TO 225 FEET
OVER A CAT6 CABLE
Quick Start Guide
VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input/Output Cable
Length
Up to 20 ft.
Extension over Cat6 Up to 225 ft.
OTHER
Power
External 100-240 VAC/5VDC2A
@10W
Dimensions 2.75” W x 0.8” H x 3.4” D
Weight 0.2 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
DVX-200
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
DVX-RX200 1
DVX-200 Receiver. DVI
Receiver over CAT6 STP
DVX-TX200 1
DVX-200 Transmitter. DVI
Transmitter over CAT6 STP
DVI-D Cable 1 6ft MM DVI-D
Power Supply 2 PS5VDC2A
Quick Start Guide 1
OVEVIEW
The DVX-200 is the perfect solution for extending DVI-D
signals to a remote location up to 225 feet away over
Cat6 23 AWG STP cabling. It is the ideal way to isolate a
workstation computer into one location and a console in
another. It is fully compatible with MAC, PC and LINUX
DVI-D single link standards.
FEATURES
• Supports DVI-D single-link sources
• Supports High Resoluon 1920x1200 60Hz
WUXGA
• Supports Mac, PC, and Linux DVI
• Distance: 225 feet with Cat6 STP cabling
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correcon
• DDC from internal table for Mac/PC
• Compable with all operang systems
• Compable with all major KVM switches
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
• Plug-and-play
APPLICATIONS
• Medical Applicaons
• Industrial Work Areas
• Home Theater Integraon
• Digital Signage Deployment
• Informaon Kiosks/Displays
• Film/Recording Studios
1. Power off all devices.
2. Connect a DVI-D source (computer) to the DVI-D port on the rear of the DVX-TX200.
3. Connect the DVX-200-TX to the the DVX-RX200 with one STP (Sheilded Twisted Pair) cable.
4. Connect a DVI-D compatible display to the DVI-D port on the rear of the DVX-RX200.
5. Connect the power to the DVX-RX200 and the DVX-TX200.
6. Power on the display and then the computer.
HARDWARE INSTALLATION

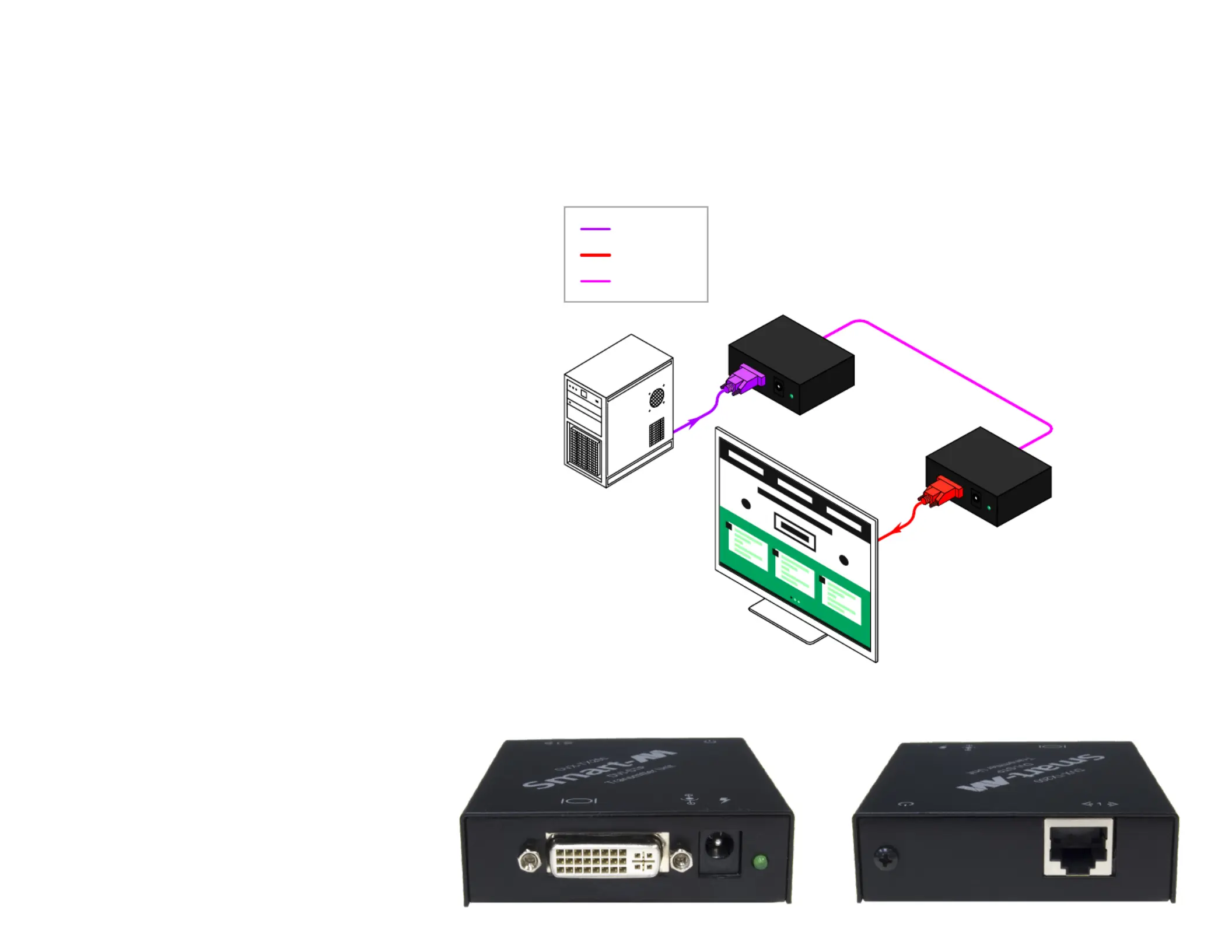

DVX-200 FRONT DVX-200 BACK
DVI IN
DVI OUT
CAT5/6
220 ft
DVX200-TX DVX200-TX
