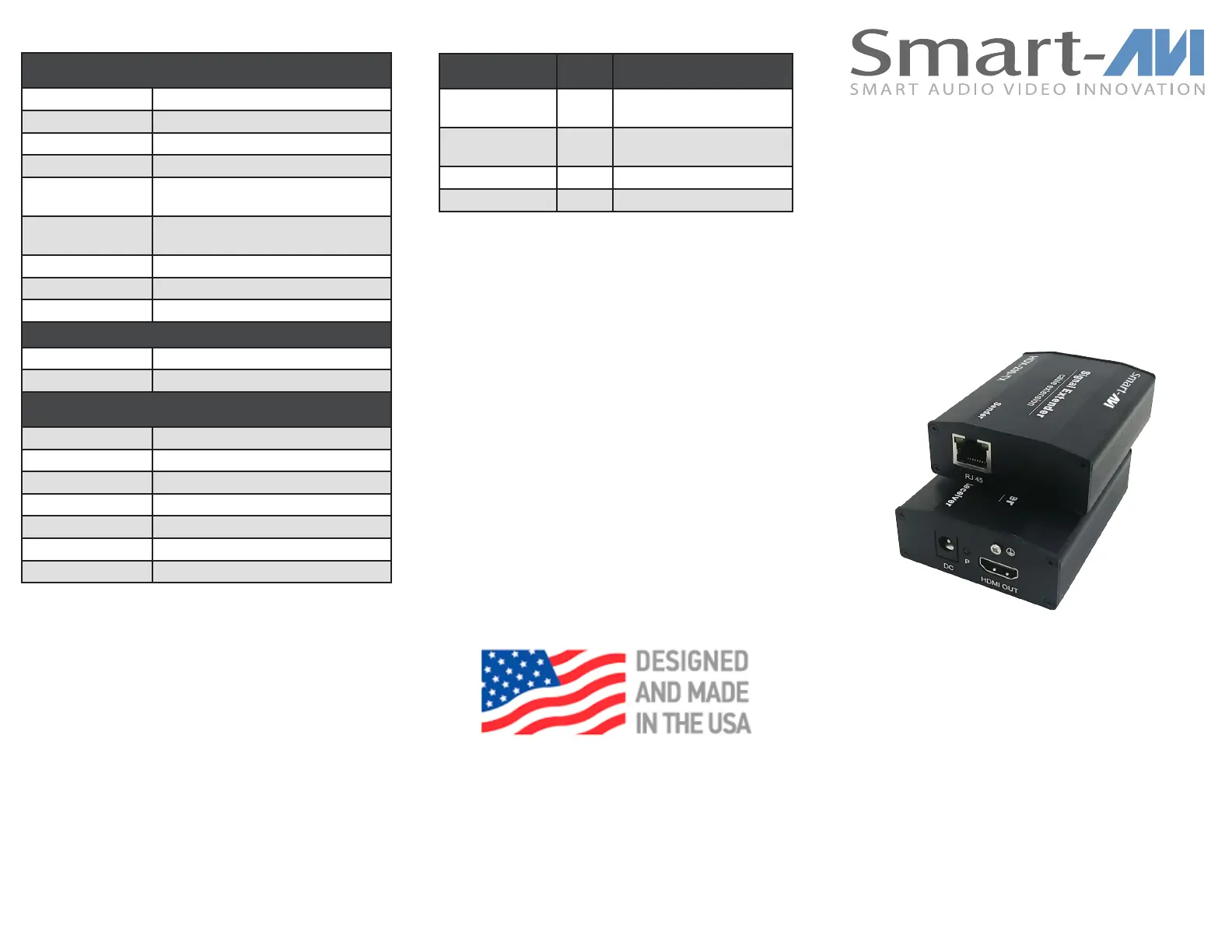

Side 1/2
HDMI IP Extender/Splitter
Over CAT5
EXTEND FHD HDMI
UP TO 500 FEET TO ONE
OR MULTIPLE LOCATIONS
USING STANDARD CAT5 CABLING
WITH AN ETHERNET SWITCH
Quick Start Guide
VIDEO & AUDIO
Format HDMI1.3
Input Interface (1) HDMI Type A 19 pin (female)
Output Interface (1) HDMI Type A 19 pin (female)
Resolution Up to 1080p
Color Depth 24-bit/30-bit deep color/
36-bit deep color
Audio formats DTS/HD/Dolby-tureHD/LPCM7.1/
DTS/Dolby-AC3/DSD
TMDS 0.5-1.5Vp-p(TTL)
DDC 5Vp-p(TTL)
Distance Up to 500 ft (point to point)
SYSTEM
Input Interface (1) RJ-45
Output Interface (1) RJ-45
OTHER
Power 5V 2A
Dimensions 3.2”W x 2.5”L x 1”H
Weight 0.6 lbs
Approvals UL, CE. ROHS Complaint
Operating Temp. 5-131°F (-15-55 °C)
Storage Temp. -40-176°F (-40-80 °C)
Humidity Up to 95%
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
888.994.7427, 702.800.0005
2917 E Alexander Rd.
North Las Vegas, NV 89030
SmartAVI.com
TECHNICAL SPECIFICATION
HDX-200
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
HDX-200-TX 1 HDMI Transmitter over
CAT5 up to 500 feet
HDX-200-RX 1 HDMI Receiver over
CAT5 up to 500 feet
Power Supply 2 PS5VDC2A
Quick Start Guide 1
OVEVIEW
Efcient and Flexible A/V Solutions
The HDX-200 HDMI Extender/Splitter revolutionizes your
audiovisual setups, extending pristine HDMI signals up
to 500 ft through economical CAT5 cabling. Its compact
design ensures it can be conveniently placed anywhere,
preserving the aesthetics of your space while delivering
unmatched performance.
Scalable and High-Performance
Whether operating in a point-to-point setup or through
an ethernet switch, the HDX-200 is designed to split and
extend your HDMI signals to up to 8 receivers without any
loss in signal quality. This exibility makes it perfect for a
variety of professional and commercial environments.
Streamlined Connectivity
This plug-and-play solution is ready to deploy with
automatic settings adjustment for various display
resolutions and compatibility across all operating systems.
Keep your primary equipment out of sight by utilizing
the HDX-200 to reliably manage your HDMI connections
remotely.
FEATURES
• Extends HDMI Over CAT5 up to 500 ft: Ensures high-
quality image transmission over distances up to 500 ft
using cost-effective CAT5 cabling.
• Multi-Point Distribution: Splits and extends HDMI
signals to up to 8 receivers, increasing the extension
range by an additional 500 feet with an ethernet
switch.
• High-Performance Video: Supports resolutions up
to 1920×1080 at 60Hz, ensuring clear and vibrant
image quality.
• Advanced Compression: Utilizes H.265 compression
technology to deliver high-quality images with minimal
latency.
• Flexible Connectivity: Operates in a direct 1-to-1
setup or a 1-to-many conguration using a standard
ethernet switch.
• Automatic DDC Learning: Automatically congures
itself by learning display data from the connected
monitor for optimal resolution settings.
• Universal Compatibility: Functions seamlessly with all
operating systems.
• Compact Design: Small footprint allows for easy
integration into any setup without spatial constraints.
• Plug-and-Play Installation: Ready to use out of the
box, requiring no complicated setup.
1. Connect the HDX-200-TX to the Component/TV/Monitor with HDMI cable.
2. Connect HDX-200-TX to HDX-200-RX via CAT5 STP.
3. Connect HDX-200-RX to display.
4. Connect the power.
HARDWARE INSTALLATION
HDX-200-TX
HDX-200-RX
HDMI IN
HDMI OUT
CAT5
500 ft
HDX-200-TX
ETHERNET SWITCH
500 ft
HDX-200-RX
HDX-200-RX
HDX-200-RX
HDMI IN
HDMI OUT
CAT5
500 ft
Point-to-point Extension
HDX-100-TX Front
HDX-100-RX Front
HDX-100-TX Back
HDX-100-RX Back
Splitter via Network Switch
Up to 8 HDX-200-RX
(Receiver)
