HKM-PRO
Quick
Quick
Quick
QuickQuick Star
Star
Star
Star Start Guide
t Guide
t Guide
t Guidet Guide
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
|
|
|
||
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20170328
The Next Generation HDMI KVM
switch, Complete with 2 USB
3.0 ports and 1 MHL port
HDMI KVM SWITCH with
USB 3.0 HUB
WHAT’S IN THE BOX?
PART NO. QTY DESCRIPTION
HKM-PRO-S 1 HDMI/USB3.0 Switch
PS5VDC4A 1 Power Adapter
1 Quick Start Guide
TECHNICAL SPECIFICATIONS
SUPPORT
Monitor Support DDC2B, max resolution up to
1920x1200
OS Support
Win 98/98SE/ME/2000/XP/
Vista/2003/7/8, Mac OS9/X, Linux,
Sun Micro OS
USB USB1.0 / USB1.1 / USB2.0 / USB
3.0
I/O CONNECTORS
Input
(4) HDMI Female
(3) USB Type B Female
(3) Microphone Jack Female
(4) Audio Jack Female
Output
(1) HDMI female
(1) USB Type A Female, Mouse
(1) USB Type A Female, Keyboard
(1) Audio Jack Female
(1) Microphone Jack Female
(2) USB 3.0 Type A Female In/Out
OTHER
Switching Push Button and Hotkey Commands
LEDs
Host Selected LED (Red)
HUB Selected LED (Green)
Auto Switch & Auto Scan LED
(Green)
Power Adapter 5 VDC 4 A
Weight 1.55 lbs.
Dimensions 8.7”W X 3.2”D X 1.9”H
Working Temp. 32 to 122°F (0 to 50 °C )
Working Humidity Up to 85% RH (no condensation)
Storage Temp. -4 to 149 °F (-20 to 65 °C )
Storage Humidity Up to 90% RH (no condensation)
HOT KEYS
HARDWARE INSTALLATION

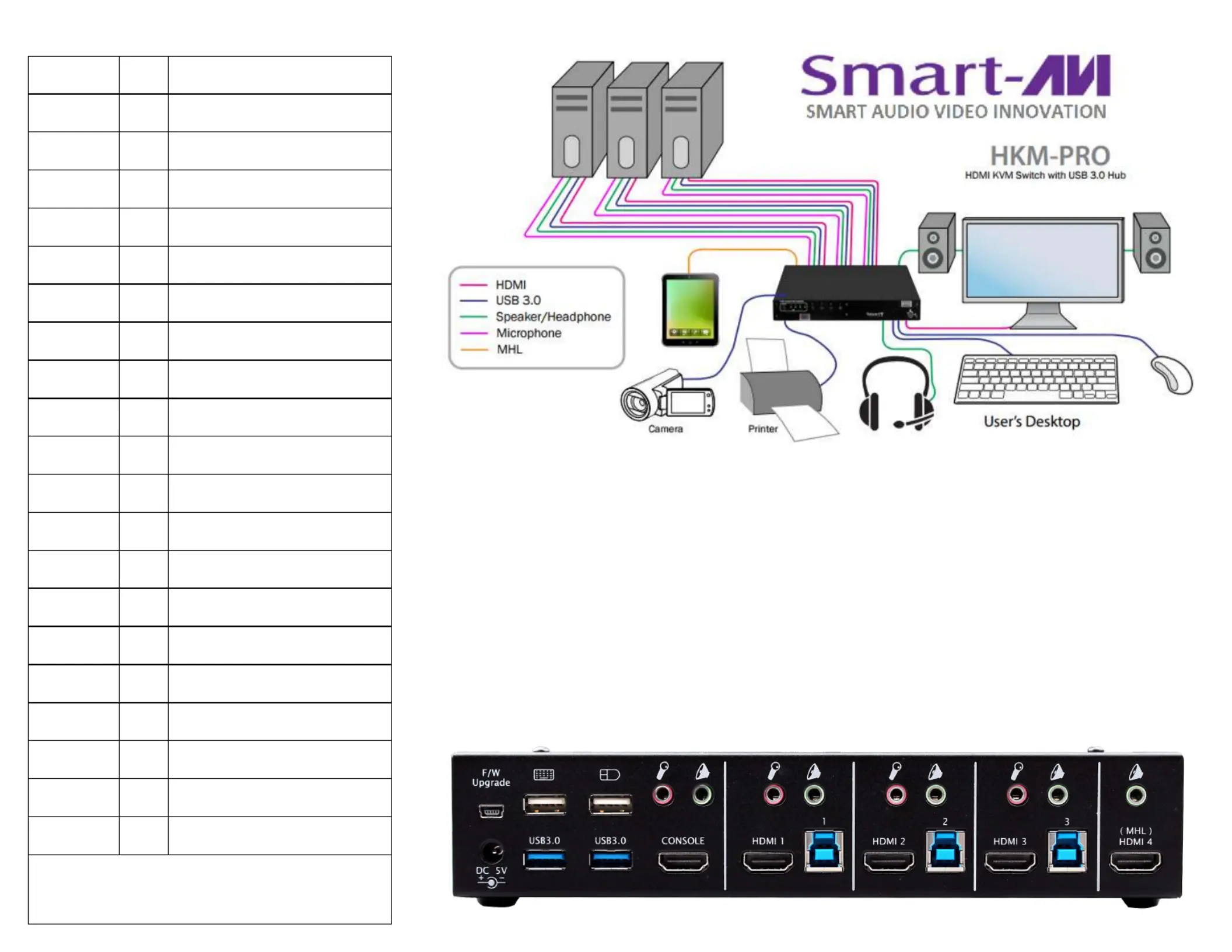

1. Connect a USB keyboard & USB mouse to the USB ports with keyboard and mouse symbols.
2. Connect an HDMI display to the HDMI port labeled CONSOLE.
3. Optionally connect speakers or headphones to the Audio port above the CONSOLE port.
4. Optionally connect a microphone to the microphone port above the CONSOLE port.
5. Optionally connect USB peripherals to the USB 3.0 ports.
6. Connect each computer’s HDMI output to the HKM-PRO HDMI input port.
7. Connect each computer’s USB output to the HKM-PRO USB input with a USB type A to type B cable.
8. Optionally connect each computers audio output to the HKM-Pro’s audio input.
9. Optionally connect each computers microphone output to the HKM-Pro’s microphone input.
10. Connect a Smartphone to the MHL HDMI port on the HKM-PRO.
11. Connect a Smartphone to the audio port on the HKM-PRO.
12. Power on the HKM-PRO and all connected devices.
Scroll Lock +
Scroll Lock
H
Enable/Disable USB HUB Auto-
Switch
Scroll Lock +
Scroll Lock
1
Switch to host 1
Scroll Lock +
Scroll Lock
2
Switch to host 2
Scroll Lock +
Scroll Lock
3
Switch to host 3
Scroll Lock +
Scroll Lock
4
Switch to host 4
Scroll Lock +
Scroll Lock ENTER Switch next host
Scroll Lock +
Scroll Lock UP Switch the upper one host
Scroll Lock +
Scroll Lock DOWN Switch the next one host
Scroll Lock +
Scroll Lock
A
Enable/Disable Audio Auto-Switch
Scroll Lock +
Scroll Lock
Z
Switch to the audio 1 *
Scroll Lock +
Scroll Lock
X
Switch to the audio 2 *
Scroll Lock +
Scroll Lock
C
Switch to the audio 3 *
Scroll Lock +
Scroll Lock
V
Switch to the audio 4 *
Scroll Lock +
Scroll Lock
Q
Switch to the HUB 1 **
Scroll Lock +
Scroll Lock
W
Switch to the HUB 2 **
Scroll Lock +
Scroll Lock E Switch to the HUB 3 **
Scroll Lock +
Scroll Lock
S
Start to Auto-Scan
No [Scroll
Lock] needed 1 Auto-Scan time interval is
5 seconds ***
No [Scroll
Lock] needed
2
Auto-Scan time interval is
10 seconds ***
No [Scroll
Lock] needed
3
Auto-Scan time interval is
15 seconds ***
No [Scroll
Lock] needed 4 Auto-Scan time interval is
20 seconds ***
* Available only when Audio Auto-Switch disabled
** Available only when USB Hub Auto-Switch disabled
*** Available only when Auto-Scan function is ON
