8-Input and Up to 12-Output
Video Wall Processor
and Matrix Switch
ALL-IN-ONE VIDEO WALL
AND MATRIX SOLUTION WITH
1080P FULL HD
RESOLUTION OUTPUT,
INTEGRATED CONVERTER &
SCALER
VIDEO
Video Amplier
Bandwidth
3.2 Gbps
Input Video Signal Video (TMDS) 0.5~1.0Vpp
Input DDC Signal 5 volts
Compliances HDMI 1.4, HDCP
Pixel Rates
Clock frequency beyond
165Mpix/second
Format 4:4:4 and 4:2:2 data input formats
Resolution 480p, 720p, 1080i, 1080p
Input Card Format 4-port HDMI card
Output Card Format 4-port HDMI card
Input Slots Up to 8 (1 card)
Output Slots Up to 12 (3 cards)
Video Type
RGB/YCBCR : 24/30/36-bits,
YCBCR: 8/10/12/16/20/24-bits
CONTROLS
RS-232
DB9 Female, 115200 BPS, N, 8, 1,
No ow control
TCP/IP RJ45, UDP
OTHER
Working Temperature 0°C~+55°C
Storage Humidity Up to 95%
Weight 20 lbs
Dimensions 17 in (W) x 3.5 in (H) x 15 in (D)
Power Supply 50/60Hz, 100~230 VAC
Consumption 300W
SOFTWARE
Operating System Windows 7-10, Android 7 and above
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

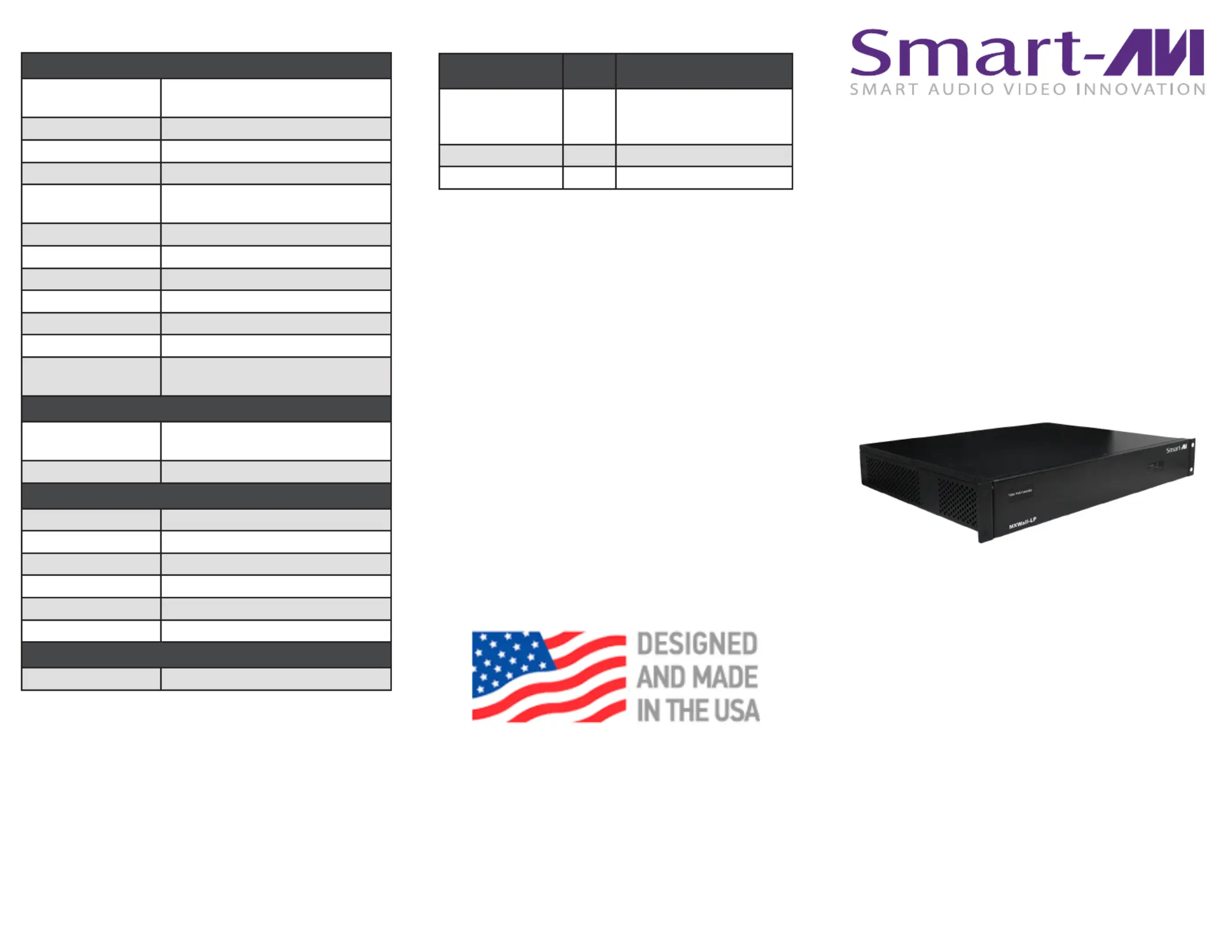

TECHNICAL SPECIFICATION
MXWALL-LP
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
MXWALL-LP 1
8-Input 12-Output Video
Wall Processor and Matrix
Switch
CCPWR06 1 Power supply cord
Quick Start Guide 1
ABOUT
The MXWall-LP is a video wall processor and matrix switch
with up to 12 HDMI outputs. Compact, plug-and-play, and
excellent for mid-sized video wall displays between 4-12
screens with resolutions up to 1080p (1920 x 1080 @
60 Hz) Full HD.
The MXWall-LP is simple to control, outtted with an easy-
to-use front-panel touchscreen controller and optional
RS-232 control. Better still, the MXWall-LP comes with
SmartAVI’s intuitive MXwall Manager software absolutely
free! MXwall Manager software lets users manually create
and adjust their ideal video wall displays using simple
click-and-drag operations: it’s fun and great for users of any
technical skill level! The MXWall-LP also features
TCP/IP web control and a tablet software manager that
works over WiFi, giving users more options and greater
exibility in controlling their video wall.
Its compact design and powerful processing power make
the MXWall-LP the perfect solution for any video wall
installation. Plug-and-play enabled, the MXWall-LP is
immediately ready for use as soon as it is connected to an
AV set-up: no additional drivers or installers are required.
Better still, its exceptional hardware makes for stunning
video wall displays in environments like retail spaces,
educational facilities, conference rooms, command centers,
event halls, entertainment venues, airports, and more!
FEATURES
• Complete hardware solution
• Plug-and-play ready
• 8 HDMI Inputs
• Up to 12 HDMI Outputs
• Supports DVI with adaptors
• 1080p (1920 x 1080 @ 60 Hz) Output Resolution
• Creative video wall display modes
• Easy control (front-panel, software, and RS-232)
• HDCP and HDMI 1.4 compliant
• User-Friendly MXwall Manager Software
• For 8x8, and 8x12 video wall setups
1. Position MXWall-LP conveniently and keep it unplugged.
2. Connect displays to the MXWall-LP and power on the displays.
3. Connect any video source to the MXWall-LP.
4. Optionally connect an RS-232 cable from a PC to the RS-232 port on the unit for additional control.
5. Optionally connect an Ethernet cable to the MXWall-LP for additional control.
6. Turn on the MXWall-LP and wait a few seconds for the unit to initialize.

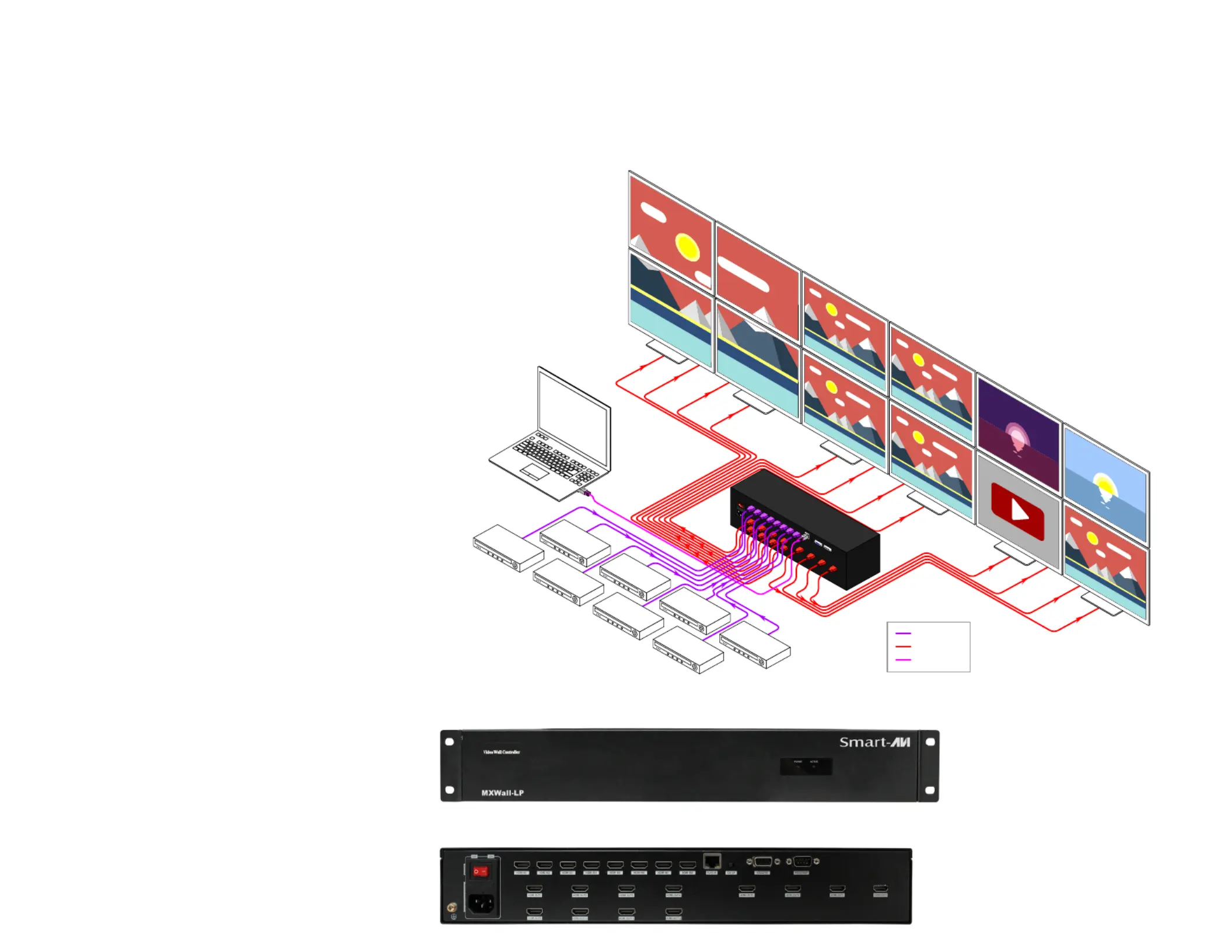

MXWALL-LP FRONT
MXWALL-LP BACK
HARDWARE INSTALLATION
SmartAVI WEB
Controller
HDMI IN
HDMI OUT
TCP/IP
MXWall-LP
45 IN RS232 OUT
RS232 IN
OK-UP
HDMI Source HDMI Source HDMI Source
HDMI Source
HDMI Source HDMI Source HDMI Source
HDMI Source
