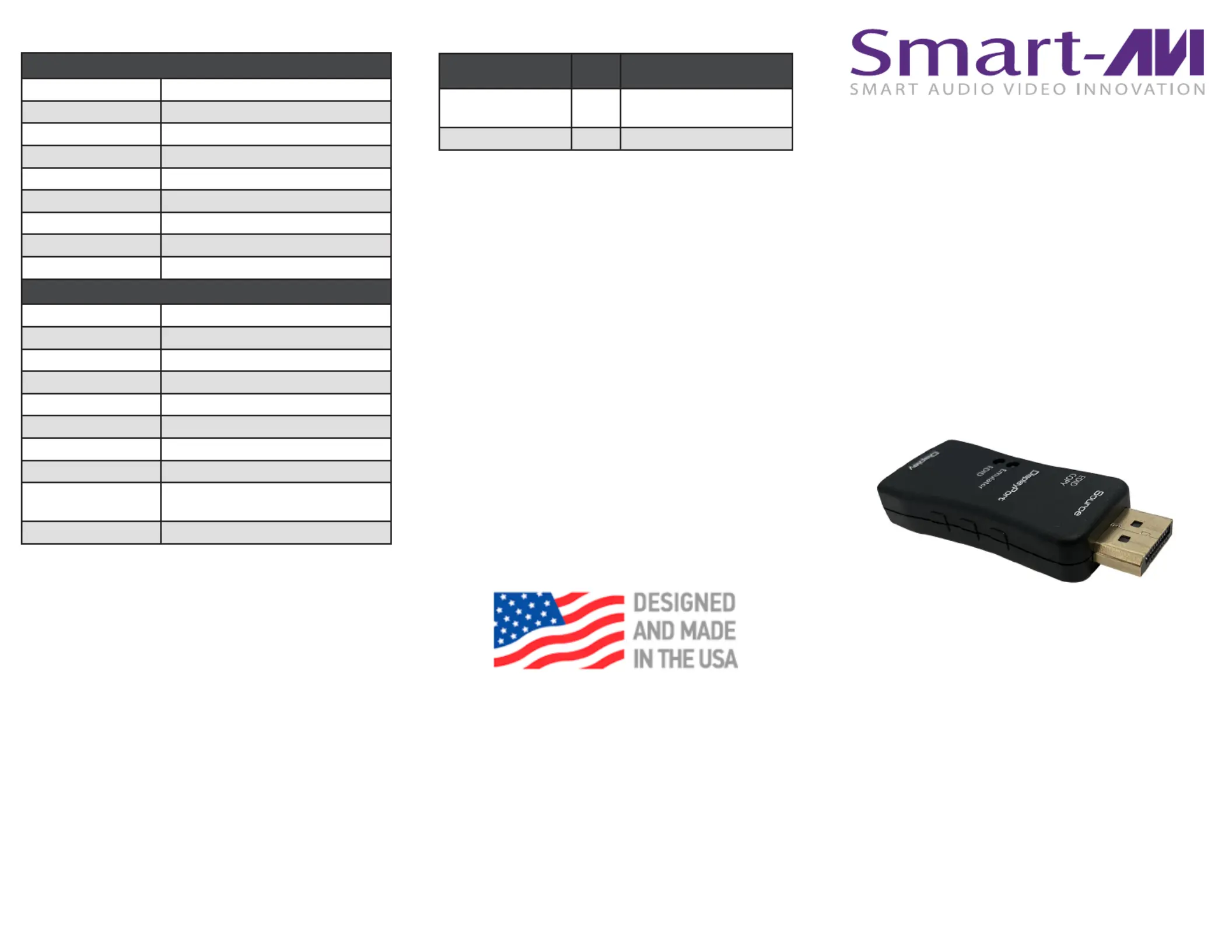

DisplayPort EDID Emulator
DESIGNED TO EMULATE AND
STORE THE EDID OF A VIDEO
DISPLAY
Quick Start Guide
VIDEO
Format DisplayPort 1.1 and 1.2
Maximum Pixel Clock 275 MHz
Input Interface DisplayPort (male)
Resolution Up to 3840 x 2160 @ 30 Hz
DDC via AUX
Input Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.
OTHER
Dimensions 2.8” x 1” x .33”
Weight .7 oz
Approvals UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Humidity 20% to 80% (non condensing)
Storage Temp. -4 to 140°F (-20 to +60°C)
Storage Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Environmental
Compliance
RoHS2 (CE)
Support Warranty 1-year
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
SM-EDP
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
SM-EDP-S 1
DP EDID Emulator.
Includes: [SM-EDP]
Quick Start Guide 1
OVERVIEW
FEATURES
The SM-EDP EDID Emulator is designed to help overcome
EDID related issues that occur when using ProAV devices
and KVM Switches, Extenders, and splitters.
• Designed to emulate and store the EDID of a video
display
• DisplayPort 1.1 / 1.2 Complient
• Supports HDTV resolution up to 4Kx2K@60Hz
• Supports Learning and Emulation mode
• Slide switch designed to select Default (EDID) or
Emulation (COPY)
• LEDs indicator built-in to easily identify the EDID mode
• Include default resolution at 1080p
• Powered from DisplayPort source device without
self-power required
Learning step:
1. First to have DP emulator plug connects PC/NB or DP source, then DP receptacle connects DP cable to display device.
2. Unplug with DP cable from emulator, then LED (blue) will ash.
3. Plug DP cable to DP emulator within 10 seconds, it will be on learning mode.
4. The Green and Blue LED solid light on simultaneously which means learning DP EDID is successful.
Note:
5. If the DP emulator EDID needs to return to default EDID (1080p).The learning step 3 DP cable plug in DP emulator over 10
seconds or not plug in DP cable, the DP emulator learning will be failed and LEDs turn off. The DP emulator needs unplug/
plug.
6. If DP emulator doesn’t need in learning mode, it is a must to unplug DP emulator from PC/NB or DP source at the same
time.
APPLICATION DIAGRAM
TAA Compliant
DP Source
SM-EDP
DP OUTPUT DISPLAY
DP CABLE
