HDMI EDID Emulator
DESIGNED TO EMULATE AND
STORE THE EDID OF A VIDEO
DISPLAY
Quick Start Guide
VIDEO
Format HDMI 2.0
Maximum Pixel Clock 275 MHz
Input Interface HDMI (male)
Output Interface HDMI (female)
Resolution Up to 3840 x 2160 @ 30 Hz
DDC via AUX
Input Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.
OTHER
Dimensions 1.5” x .75” x .33”
Weight .5 oz
Approvals UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Humidity 20% to 80% (non condensing)
Storage Temp. -4 to 140°F (-20 to +60°C)
Storage Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Environmental
Compliance RoHS2 (CE)
Support Warranty 1-year
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

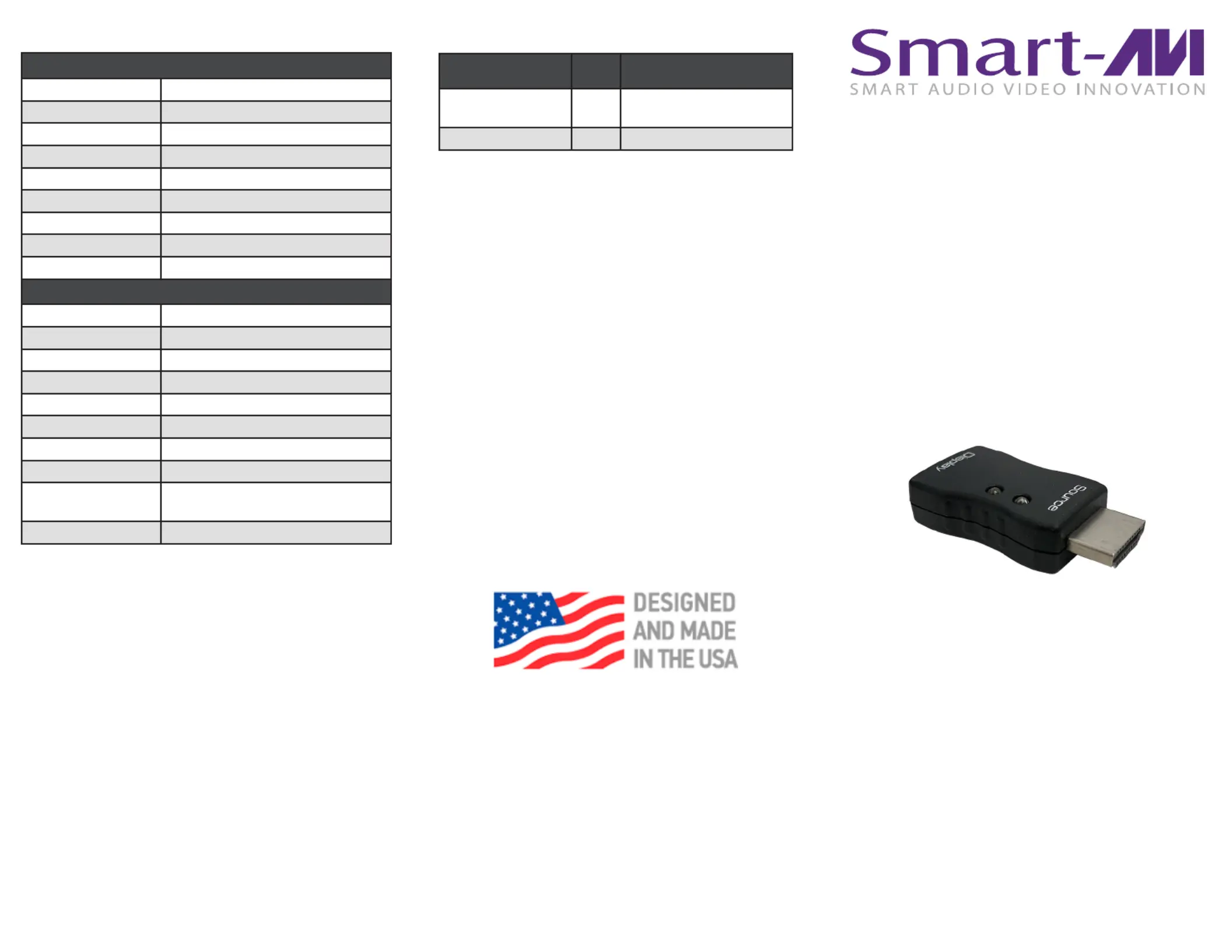

TECHNICAL SPECIFICATION
SM-EHD
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
SM-EHD-S 1 HDMI EDID Emulator.
Includes: [SM-EHD]
Quick Start Guide 1
OVERVIEW
FEATURES
The SM-EHD EDID Emulator is designed to help overcome
EDID related issues that occur when using ProAV devices
and KVM Switches, Extenders, and splitters.
• Designed to emulate and store the EDID of a video
display
• HDMI 1.3 / 1.4 / 2.0 Complient
• Supports HDTV resolution up to 4Kx2K@60Hz
• Supports Learning and Emulation mode
• HDMI (3D, Deep Color, CEC), HDCP compatible
• Supports Dolby, True HD and DTS HD Master Audio
• Built-in LEDs indicator to easily identify the EDID mode
• Include default resolution at 1080p
• Powered from HDMI source device without self-power
Learning step:
1. First to have HDMI emulator plug connects PC/NB or HDMI source, then HDMI receptacle connects HDMI cable to display
device.
2. Unplug with HDMI cable from emulator, then LED (blue) will ash.
3. Plug HDMI cable to HDMI emulator within 10 seconds, it will be on learning mode.
4. The Green and Blue LED solid light on simultaneously which means learning HDMI EDID is successful.
Note:
1. If the HDMI emulator EDID needs to return to default EDID (1080p).The learning step 3 HDMI cable plug in HDMI emulator
over 10 seconds or not plug in HDMI cable, the HDMI emulator learning will be failed and LEDs turn off. The HDMI
emulator needs unplug/plug.
2. If HDMI emulator doesn’t need in learning mode, it is a must to unplug HDMI emulator from PC/NB or HDMI source at the
same time.

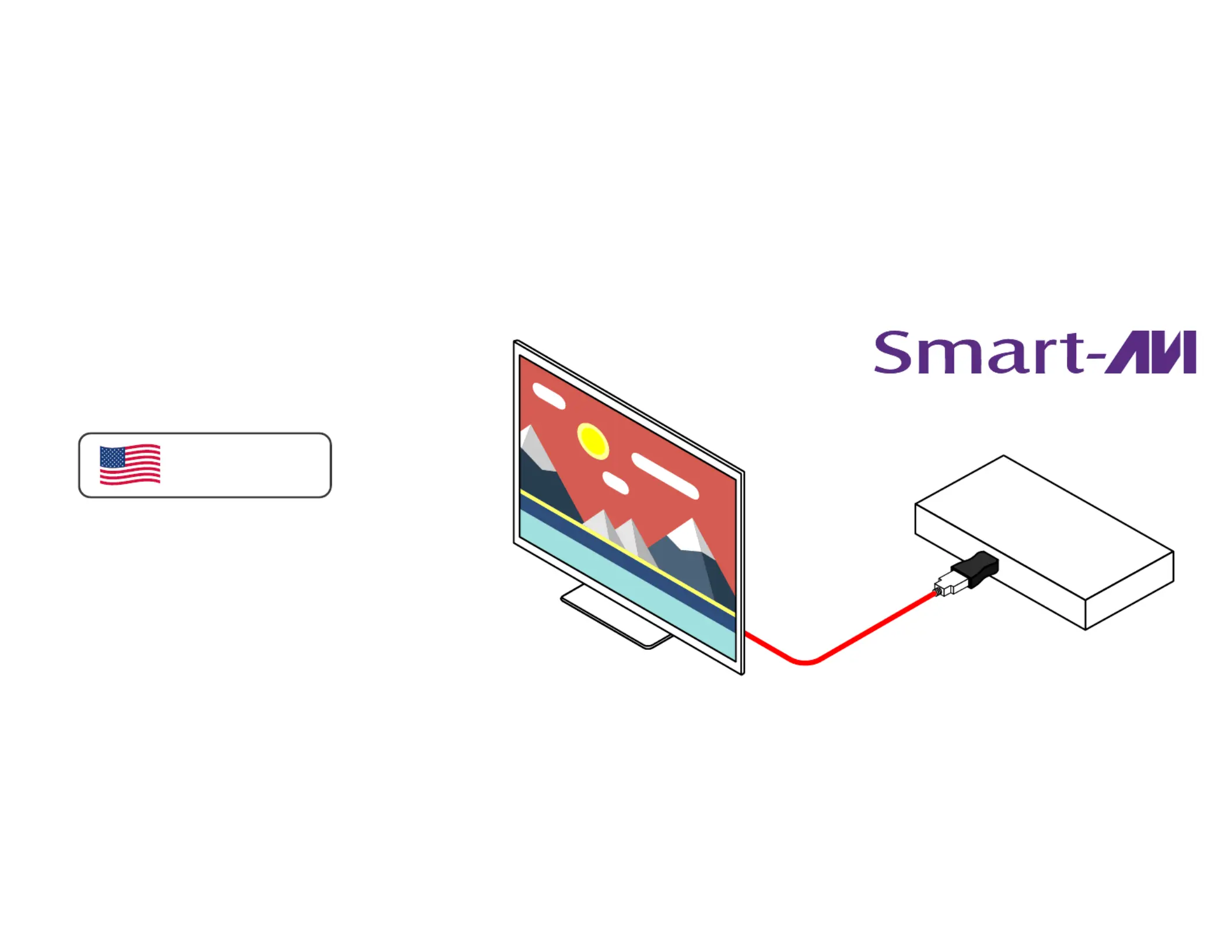

APPLICATION DIAGRAM
TAA Compliant
HDMI Source
SM-EHD
HDMI OUTPUT DISPLAY
HDMI CABLE
