Side 1/2

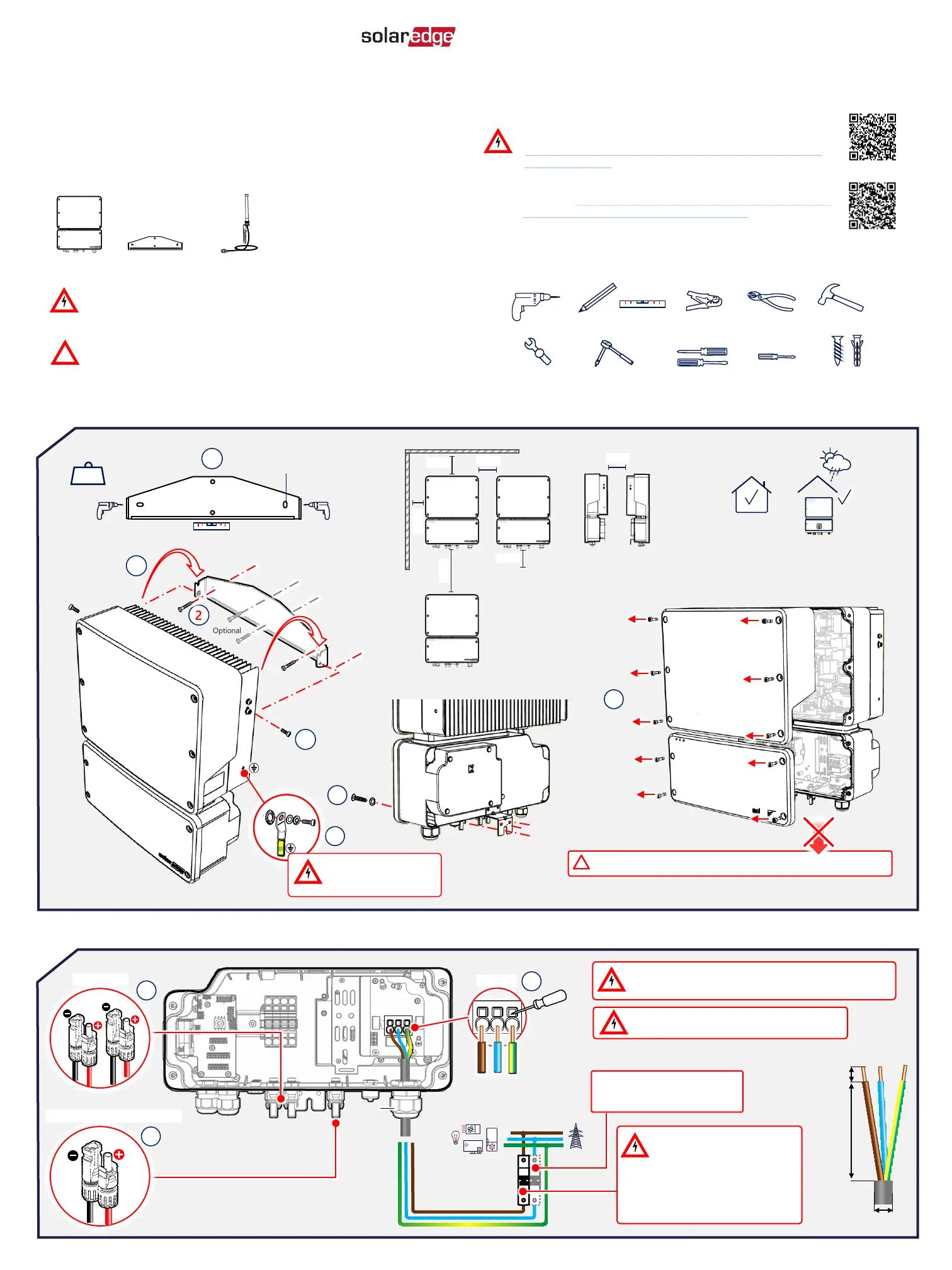

SolarEdge

Home Hub Inverter - Single Phase

Quick Installation Guide

For Europe

solaredge.com

SolarEdge Technologies GmbH, Werner- -Eckert Str. 6, 81829 Munich, Germany

Subject to change without notice.

Mounting

Drill Level

Phillips/Flat-

Blade

screwdriver set

Small Flat-Blade

(2mm)

Screwdriver

HammerPencil Wire Cutter

Mounting screws and

wall plugs - Mmax 10

min 2

Tools and Materials

What’s in the Package

CAUTION

CAUTIONCAUTION!

! ! Denotes a hazard. It calls attention to a procedure that, if not correctly

performed or adhered to, could result in damage or destruction of the product. Do not

proceed beyond a caution sign until the indicated conditions are fully understood and met.

WARNING!

WARNING!WARNING!

This symbol denotes a hazard. It calls attention to a procedure that if not correctly

performed or adhered to could result in injury or loss of life. Do not proceed beyond

a warning note until the indicated conditions are fully understood and met.

Inverter Wall mount bracket SolarEdge Home

Network Antenna

Torque wrench

with 4 mm Allen bit

Open end - 10mm

torque wrench

12.6 KG

Optional

Holes

Ø 9mm

CAUTION! DO NOT rest the inverter vertically on the connectors

4 N*m

40 cm

10 cm

20 cm

MC4 crimper

PV String(s)

WARNING! Connect the grounding wire first

WARNING! HAZARD OF ELECTRIC SHOCK.

DISCONNECT POWER BEFORE INSTALLATION OR SERVICE

BWiring

L N GND

AC Grid

SolarEdge Home Battery 400V

WARNING! Connect a

ground cable if required

by local regulation.

6 N*m

WARNING! To avoid danger, read the HANDLING AND SAFETY

INSTRUCTIONS provided with this product, or refer to:

https://www.solaredge.com/sites/default/files/se_handling_and_saf

ety_instructions.pdf

1-10 mm2

18 mm

60 mm

9-21 mm

Before installation, read the datasheet provided with this product,

or refer to: https://knowledge- -center.solaredge.com/sites/kc/files/se

home hub single inverter eu.pdf- - - -phase - -datasheet

WARNING! Do NOT connect

a protective device with a higher

rating than 50A. Make sure to

use a protective device with a

rating of 28A or higher for

maximal backup rating of 6kW

(applicable to all models)

NOTE: Use a protective device

according to regulation

4 N*m

1.5 N*m

Connecting to Backup Interface

LED Indications

•Red: fault

•Green: power production,

•Blinking Green: Grid connection ok

•Blue: communication ok

For more indications refer to:

https://www.solaredge.com/leds

Commissioning the Inverter

SetApp

Run and SetApp

follow the instructions

on the screen

4 N*m

For remote status, fault indications,

and system performance,

refer to Remote Monitoring at:

https://www.solaredge.com/products/pv-monitoring#/

IMPORTANT! The connection to units and accessories shown here is for reference only. For detailed information, refer to the specific product guide.

WARNING! Before installing or operating SolarEdge Home Battery 400V, read the safety and handling instructions provided with the battery.

P(Hold and release within 2 seconds)

P 1 0 5

Backup Interface

5.5 N*m

Connecting to SolarEdge Home Network

(SolarEdge home network module and antenna are included with this product)

1.1 N*m

Inline Meter

Smart Energy Hot Water

5.5 N*m

SolarEdge Home Battery 400V

Connecting Multiple Inverters

SolarEdge Home

Battery 400V

P(Hold and release

within 2 seconds)

Connecting to SolarEdge Home Battery 400V

(Optionally, connect battery communication wirelessly using SolarEdge Home Network)

Power Cables

Ground Cable

G A B

1.5 N*m

SolarEdge Home

Battery 400V

5.5 N*m

WARNING!

Connect a

ground cable

according to local

regulation

requirements. For

connection,

See section A.

Leader Inverter

Ethernet Cable

Router

5.5 N*m

1.1 N*m

Optional

Location

LAN

Wi Fi -

Wi-Fi Router

Optional

Location

Connecting to LAN or Wi-Fi

(In Leader- -Follower configuration, LAN or Wi Fi MUST connect to the Leader inverter)

RS485 Cable (CAT 5e/6)

Leader (first) Follower (last)

Follower

1.5 N*m

Communication

Board

SW2

5.5 N*m

HConnecting to Meter and External RSD Switch

1.5 N*m External RSD Switch

(Not included)

SD Switching

of Multiple

Inverters

G A B 12 12- +

NOTE: Wi-Fi antenna is optional

and may be purchased separately.

6-10 mm2

, as for the

number of batteries

SW2SW2

1.5 N*m

RSD

G En A B

12V

+ -G A B

RSD

-+RS485

G A B

1.5 N*m

RS485

B A G

Battery

This port is for SolarEdge or 3rd party

meters (Modbus protocol)

Important! Verify that all switches

are down.

RS485-1

RS485-1RS485-2

RS485-2

B A G

RS485

B A G

RS485

B A G

RS485

RS485-1

Meter Connection
