◈FEATURE

1. Long visible range at night.(50m Max. indoors,

40m Max. outdoors)

2. This camera uses split glass technology to preven

IR light reflection.

3. This camera has a vari-focal IR lens to prevent

focus drift under IR lighting.

4. The IR cut filter is removed at night to receive

maximum available light.

5. This product is weather resistant to resist rain,

snow and other environmental factors. (IP65)

6. This product is made of corrosion-free materials to

resist rust and corrosion for extended periods o

time.

7. The built-in sunshield helps the camera produce

clear pictures under a variety of lighting conditions.

8. Power & video cables are concealed for extra

security. (Cable through the mount).

9. Unique bracket allows the camera to be full

adjustable from both wall and ceiling mounting

positions.

10. Dual voltage operation. You can connect 24V AC

or 12V DC regardless of polarity. The Line-Loc

function is available when you use 24V AC power.

11. The IR output level is adjustable to suit any lighting

condition.

12. DNR (Digital Noise Reduction)

By using this DSP chip and associated technology,

the amount of low light noise has been significantl

reduced, and the signal-to-noise ratio (S/N) and

horizontal resolution has been improved resulting

in a clear and sharp image display even in low light

conditions.

13. Horizontal Resolution of 600 TV Lines

Clear image quality has been achieved by em-

ploying a 1/3" SONY Super HAD CCD Ⅱ with

410,000 pixels, which provides a horizontal res-

olution of 600 TV lines.

14. True day/night ICR exchange of 2 Filters

This camera has a function that automaticall

selects the mode that is appropriate for daytime o

night-time conditions. The COLOR mode operates

in daytime conditions to provide optimum colors,

and the BW mode operates in night-time condi-

tions to enhance the definition of the image.

15. PRIVACY function(12 programmable zones per screen))

The privacy zone function makes it possible to

mask specific areas of the scene from view.

16. Digital Zoom

This camera has a Digital Zoom (limit 16X)

◐DIMENSION

◈CONFIGURATION

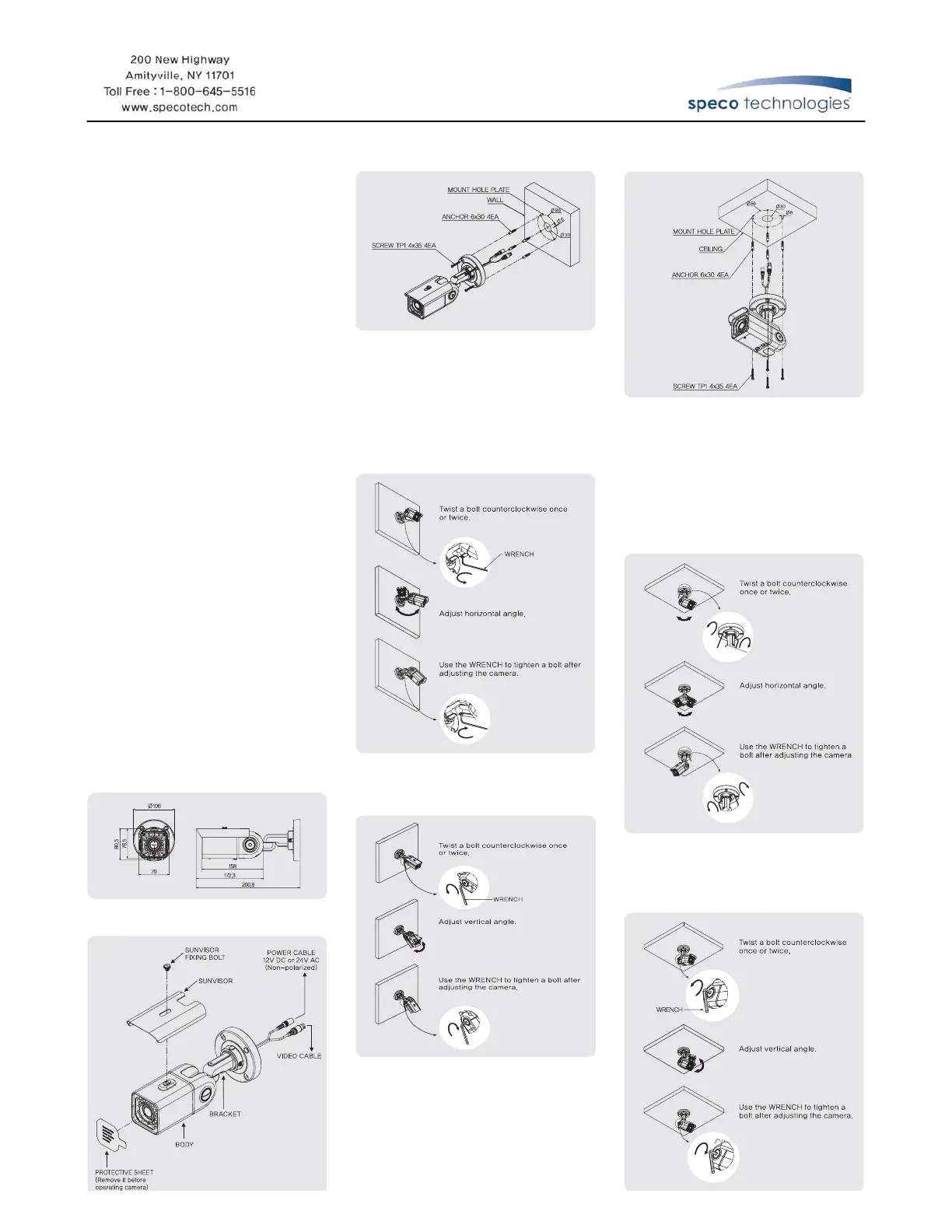

◈WALL MOUNT INSTALLATION #1

1. Make a hole Ø30mm in diameter for routing cable.

2. Using the mounting plate, drill four holes on the wall.

3. Insert the anchors.

4. Attach the screws.

◈WALL MOUNT INSTALLATION #2

1. Adjust horizontal angle.

1) Loosen the bolt to adjust the horizontal angle o

the camera.

2) Use the WRENCH to tighten the bolt after adjusting

the camera.

2. Adjust vertical angle

1) Loosen a bolt to adjust vertical angle of the camera.

2) Use the WRENCH to tighten a bolt after adjusting

the camera.

Speco Technologies is constantly developing product

improvements. We reserve the right to modify product design

and specifications without notice and without incurring any

obligation.

Rev. 7/7/10.

HTINTB4

◈CEILING MOUNT INSTALLATION #1

1. Make a hole Ø30mm in diameter for routing cable.

2. Using the mounting plate, drill four holes on the ceiling.

3. Insert the anchors.

4. Attach the screws.

◈CEILING MOUNT INSTALLATION #2

1. Adjust horizontal angle.

1) Loosen the bolt to adjust the horizontal angle o

the camera.

2) Use the WRENCH to tighten the bolt after adjusting

the camera.

2. Adjust vertical angle

1) Loosen the bolt to adjust the vertical angle of the

camera.

2) Use the WRENCH to tighten a bolt after adjusting

the camera.

◈SPECIFICATION

Model No. HTINTB4

Image Sensor

1/3" SONY SUPER HAD CCD

Ⅱ

Effective Pixel 768(H) X 494(V) PIXEL

Cell Size

6.35

㎛

(H) X 7.4

㎛

(V)

Scanning System 2 : 1 Interlace

Sync. Type Internal / Line lock(24V AC)

OSD Multi-language

WDR Set SSDR / BLC / HLC / OFF

Resolution Color : 600 TV-Line, B/W : 700 TV-Line

S/N Ratio 52dB(AGC OFF, Weight ON)

Min. Illumination

LED ON : 0 Lux(40M Range)

LED OFF : 0.0005 Lux(Color Sense-up),

0.0002 Lux(B/W Sense-up)

Color Temp.

ATW(1,700°K ~ 11,000°K) /

AWC / MANUAL / OUTDOOR / INDOOR

Shutter 1/60 ~ 1/120,000sec

Intensifier AUTO / FIXED / OFF(x2 ~ x512 selectable)

Gain Control LOW / HIGH / OFF

Speco DNR OFF / ON(1 ~ 32 Level adjustable)

V Motion ON / OFF(8 Zone, Alarm output)

Privacy ON / OFF(12 Zone)

Mirror H / V / BOTH / OFF

Clarity ON / OFF(Level adjustable)

D&N ICR(COLOR / Black&White / AUTO)

Stabilize ON / OFF

Digital Zoom ON(x16) / OFF

DPC 256 point(Even 128 point, ODD 128 point)

Power Supply Regulated 12V DC or 24V AC

Current Consumption 150mA(LED OFF), 700mA(LED ON)

Operation Temp.

-20

℉

to 122

℉

Dimension

3.1”W X 3”H X 6.8”L

Weight

3.3Ibs.

※The specification is subject to change without any

prior notice to improve the quality.

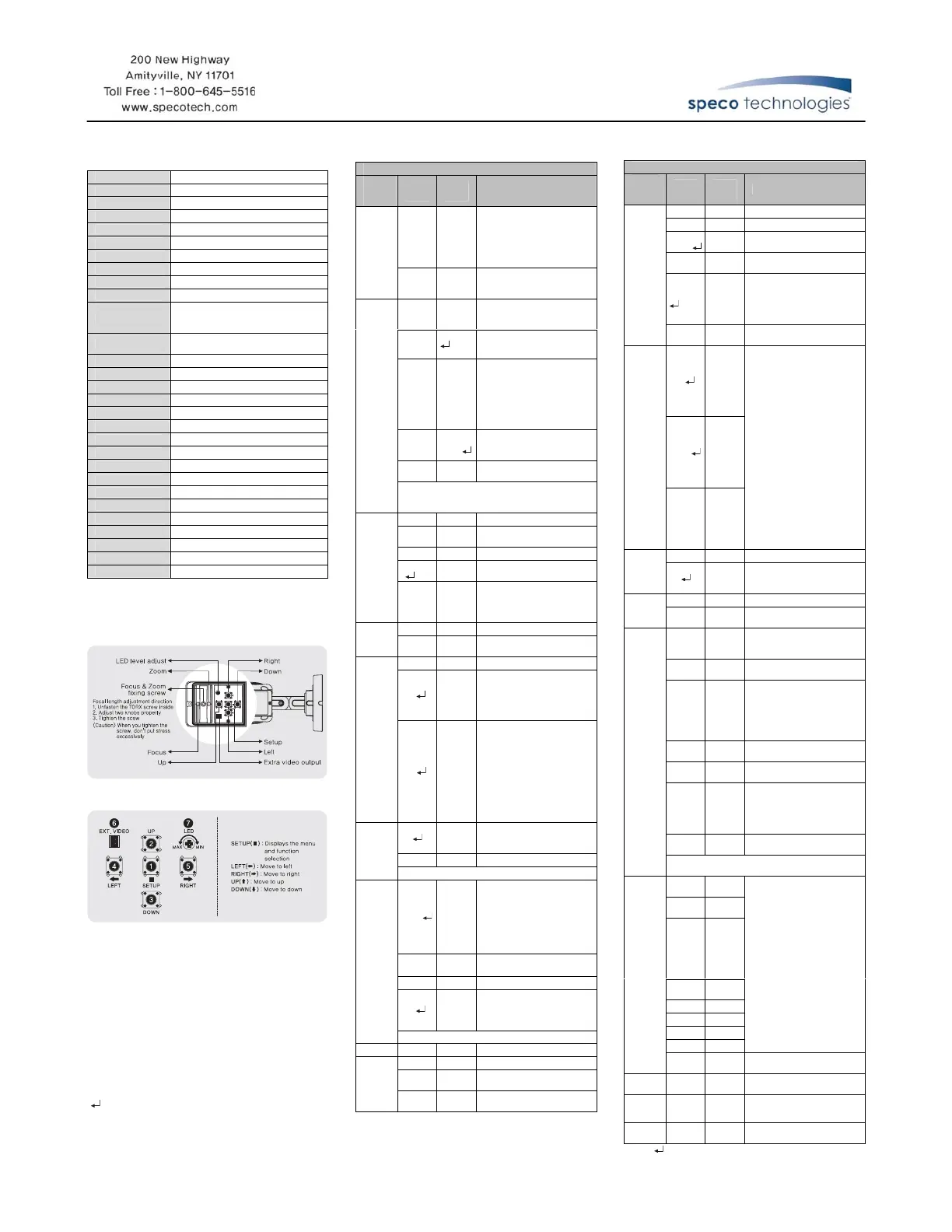

◈FUNCTIONS

1. Setup for camera functions

①SETUP :

Press "SETUP" button to go to the menu.

②Up, ③Down :

Use "UP" or "DOWN" button to navigate.

④Left, ⑤Right :

Use "RIGHT" or "LEFT" button to navigate

⑥EXT-VIDEO :

Test monitor connection.

⑦LED :

LED level adjust. (Factory default is Max.)

"sign means that you can go to a sub menu when

pressing the "SETUP" button.

" --- " means that a function is not available.

2. Camera function setting

Page 1

Function

setting

Select

Sub

Summary

DC IRIS

BRIGHT

NESS,

IRIS

SPEED,

FOCUS

ADD.

Adjust the brightness of the screen

(Range : 1~70, Default : 25)

Adjust the Iris speed of the DC lens

(Range : 1~50, Default : 3)

Focus addition : To adjust the lens

focus correctly

ADJUST

LENS

MANUAL

BRIGHT

NESS

Manual mode is not recommended

using built-in the DC Lens(Default :

25)

BRIGHT-

NESS

Brightness ADJ. : Adjust the bright-

ness of the screen when using the

DC lens(Range : 1~70, Default : 25)

E -

SHUTTER

MANUAL

FLK, - - -

Auto setting is not selectable

when selected DC Lens

AUTO

GAIN

OFF,

LOW,

HIGH

OFF : Deactivates function

LOW : Auto selection between

5.3dB and 32dB

HIGH : Auto selection between

5.3dB and 37dB(You cannot

use the DIS, Day&Night when

AGC is off)

SENS-

OFF,

AUTO

OFF : Deactivates function

AUTO : Using sense up when it is

low luminance(x2~x512 selectable)

RETURN

Save the value then move back

to previous menu

EX-

POSURE

*Notes : If the AGC is off, the sense-up function is not

available. As the sense-up level increases, an after-

image will appear.

ATW Color temperature 1,700~11,000°K

OUT-

DOOR

Color temperature 1,700~11,000°K

INDOOR Color temperature 4,500~8,500°K

MANUA

Adjust the Red or Blue values to

shift the color of the screen

COLOR

TEMP

AWC

→

SET

Find the optimal white balance for

current luminance environment

(The camera focus must towards

to white paper)

OFF Deactivates function

WDR

SET

Wide dynamic range function(1

~15 level selectable, Default : 8)

OFF Deactivates function

SLC

LEVEL,

TOP,

BOTTOM,

LEFT,

RIGHT

User programmable SLC zone

and compensation level

SLC SET

HLC

LEVEL,

LIMIT,

MASK

COLOR,

MASK

TONE,

TOP,

BOTTO

M, LEFT,

RIGHT

Removed HIGH LIGHT, It enable

us to watch license plate clearly

ON Level

Reduce noise in low illumination

(Reduction level is selectable,

Default : 20)

OFF Deactivates function

SPECO

DNR

*Notes : If the AGC is off, the DNR function is not available

AUTO

BURST

MODE

COLOR

→

B/W,

B/W

→

COLOR,

RETURN

Day : Color

↔

Night : B/W

(Switching time & speed adjust-

able)

EXT

Change the color

↔

B/W by ex-

ternal signal (Not available)

COLOR Fixed at color(LED OFF)

B/W

BURST

MODE

(OFF/ON),

RETURN

Fixed at B/W(LED ON)

DAY &

NIGHT

*Notes : If the AGC is off, this function is unavailable

Page 2 Please refer to "Page 2"

SAVE Save the value and exit menu

NOT

SAVE

Exit the main menu without save

EXIT

DE-

FAULTS

Reset the camera setup value

to the factory default

Page 2

Special

setting

Select

Sub

Summary

V-REV Set a vertical image inversion

H-REV Set a horizontal image inversion

DIGI-

ZOOM

Max 16x digital zoom available

(Default : X1.0)

FONT

COLOR

Change the color of OSD

(Default : Blue, 5 color is available)

CLARITY

The image outline will be strong

and clear according to sharpness

level increasing(Default : 13)

If this function is Off, it may looks

like un-focused

ADJUST

RETURN

Save the value then move back

to previous menu

LCD

GAMMA,

PED

LEVEL,

COLOR

GAIN,

DEFAULT

SET

USER

GAMMA,

PED

LEVEL,

COLOR

GAIN,

DEFAULT

SET

MONI-

TOR

CRT

PED

LEVEL,

COLOR

GAIN,

DEFAULT

SET

You can change the settings value of

video appropriate to your monitor

OFF No title displays on the screen

CAM

TITLE

Display the camera's title on the

screen(Max. 15character, position

adjustable)

INT Internal Sync with 12V DC power

SYNC

TYPE

Setting the phase is selectable when

used 24V AC(Dual power only)

SENSITI

VITY

AREA1~

AREA8

When sensitivity number is high,

also motion detection sensitivity

will increase

AREA

MODE

OFF, ON

Determines whether to use the MD

area selected in SENSITIVITY

SEL

POS

L_TOP,

R_TOP,

L_BOT-

TOM,

R_BOT-

TOM

Determines which of the 4 vertices

of each MD area is to be used

XPOS

Determines the coordinate of the

horizontal axis for SEL POS

YPOS

Determines the coordinate of the

vertical axis for SEL POS

FILL

→

SET

Fill the color in selected area(The

color of filling is sequentially se-

lected as brown, orange, blue,

cyan, yellowish green, yellow, ma-

genta and red.)

RETURN

Save the value then move back

to previous menu

MOTION

*Notes : If the camera detected motion, "MOTION

DETECTED" will appear on the screen

AREA

SEL

AREA1~

AREA12

AREA

MODE

ON, OFF

MASK

COLOR

GREEN,

RED,

BLUE,

BLACK,

WHITE,

GRAY

MASK

TONE

1~10

TOP

BOTTOM

LEFT

RIGHT

Make a zone for your privacy

You can select privacy zone up

to 12 area

PRIVACY

RETURN

Save the value then move back

to previous menu

LAN-

GUAGE

Select language

STABI

-LIZE

ON,

OFF

This function can be mitigates image

movement from external factors

PAGE 1

Select this to save the special menu

settings and return to the main menu

ㆍThe " " icon appeared with desired function, press the set

button to move sub menu.

ㆍThe "---" icon appeared with function that is unavailable

according to function setting.

3B05753D

HTINTB4

Produkt Specifikationer

Mærke:	Speco Technologies
Kategori:	Overvågningskamera
Model:	Intensifier HTINTB4

Har du brug for hjælp?

Hvis du har brug for hjælp til Speco Technologies Intensifier HTINTB4 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Overvågningskamera Speco Technologies Manualer

Speco Technologies D16WVTM2TB Manual

6 Oktober 2025

Speco Technologies CVC5715DNV Manual

6 Oktober 2025

Speco Technologies Intensifier HTINTB4 Manual

6 Oktober 2025

Speco Technologies D16HU Manual

6 Oktober 2025

Speco Technologies Intensifier SIPT5 Manual

6 Oktober 2025

Speco Technologies D8HT Manual

6 Oktober 2025

Speco Technologies D16VS Manual

6 Oktober 2025

Speco Technologies O4P3X Manual

28 September 2025

Speco Technologies O5LB1 Manual

12 Januar 2025

Speco Technologies O8B7M Manual

11 Januar 2025

Overvågningskamera Manualer

Nyeste Overvågningskamera Manualer

Ernitec Corona IP-452 Manual

6 Oktober 2025

Hanwha QNO-7080R Manual

6 Oktober 2025

Conceptronic C4CCTVKITD2TB Manual

6 Oktober 2025

Conceptronic CCAM720TVI Manual

6 Oktober 2025

Conceptronic C8CHCCTVKITD Manual

6 Oktober 2025

Hanwha SHR-4160 Manual

6 Oktober 2025

Hanwha SDS-P3042 Manual

5 Oktober 2025

IDIS DC-D3233WRX Manual

5 Oktober 2025

Hanwha QNV-6082R Manual

5 Oktober 2025

Hanwha SND-5061 Manual

5 Oktober 2025
