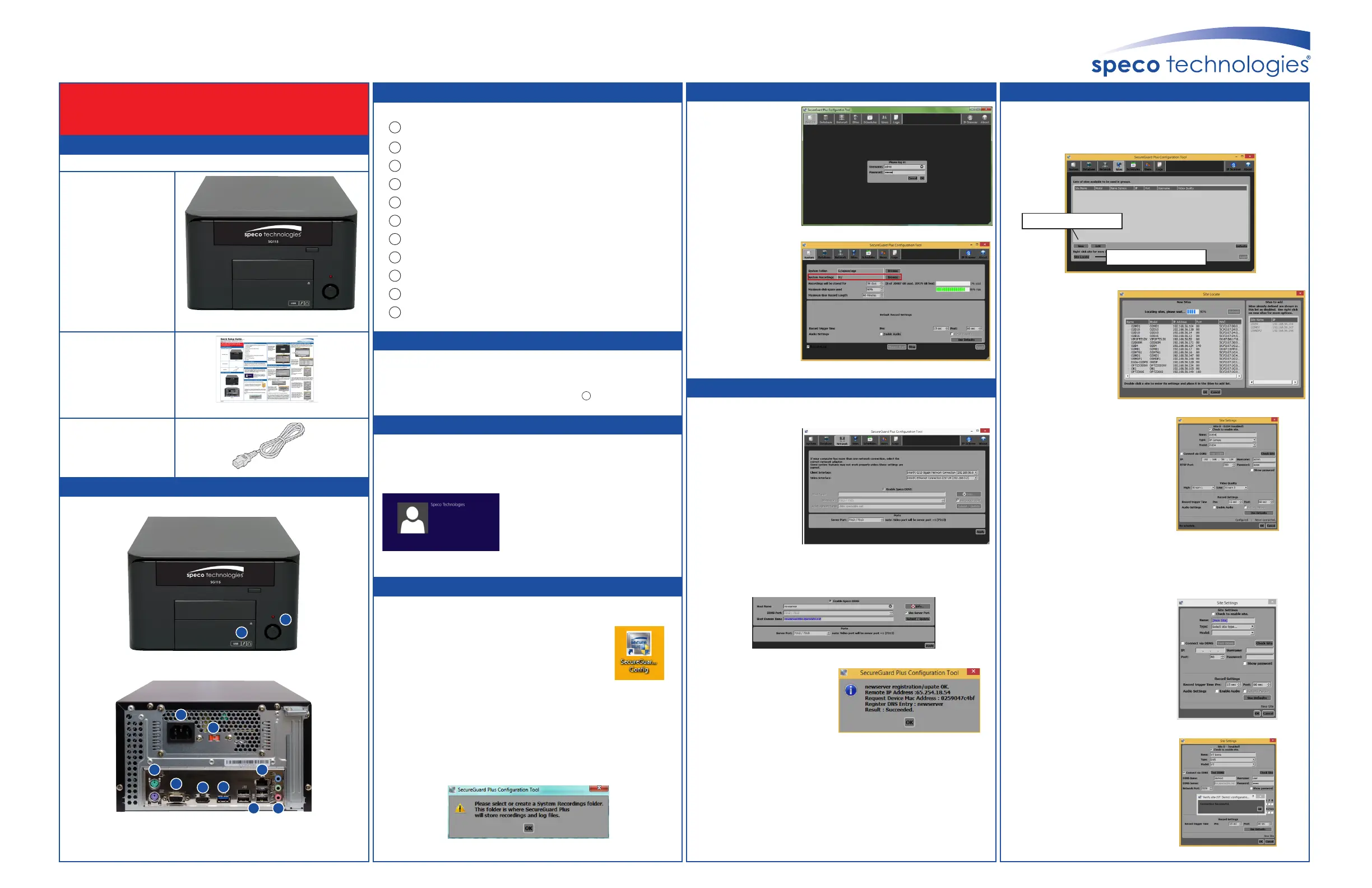

SecureGuard® Server

About this Quick Setup Guide

Before operating the unit, plesae read this user’s guide thoroughly and

retain it for future reference.

Product Components

Internal Connections continued

Quick Setup Guide (Ver.1.0)

Speco Technologies SecureGuard® Server

Model: SG115

1510-042

The following components are included:

QT: 1

Power Cable

QT: 1

Internal Connections

Front View

USB 2.0 x2; Microphone Input (Pink); Line Output (Green) (Not shown

in front view image)

Power on the Server

• Please follow the proper power ON procedures to avoid damaging the server.

• Connect all necessary components, e.g. power cable(s), network cable(s), monitor

and cameras, before powering the server.

• Power ON the server by depressing the Power Switch ( ) to boot up the server.

• After boot up, at the Windows login screen, you will see that the default user

account is “Speco Technologies”. There is no password associated with the

default account. It is highly advisable to set a password after logging into the

Windows home screen for the rst time. See Image 1.

Note: The server comes pre-loaded with SecureGuard® Server software.

• At the Windows Desktop home screen, run the SecureGuard®

Conguration Tool to setup the server by double clicking on

the SecureGuard® Conguration Tool icon. See Image 2.

Image 2

• If prompted to select or create a System Recordings folder, point to the storage

drive where the recordings will be stored. Otherwise, move on to the next step.

See Image 3.

Note: DO NOT store recordings on the hard drive dedicated for the operating

system.

Run SecureGuard® Conguration Tool

Rear View

Power Switch

PS/2 Ports: Mouse (Green); Keyboard (Purple)

VGA Output

HDMI Output

USB 3.0

USB 2.0 x4

Microphone Input (Pink); Line Output (Green); Line Input (Blue)

Gigabit Ethernet LAN port

115 or 230 VAC Input Switch

AC Input

Image 3

Quick Setup Guide

Image 1

WARNING: Please store your password

in a safe location. Speco Technologies will

not be able to assist you in recovering a

lost password.

Note: The default timezone on the servers is set

to (UTC-05:00) Eastern Time (US & Canada).

Rev. 10/19/15

Run SecureGuard® Conguration Tool continued

• When prompted, enter the

default username admin

and default password

admin to access the

SecureGuard® Conguration

Tool. See Image 4.

• At the “System” tab, ensure

“System Recordings” le

path is pointing to the

storage drives. See Image 5.

Image 4

Image 5

Setting up Network

Note: For servers with Dual Network Interface Cards, it is HIGHLY ADVISABLE

that the camera and the client connection network trafc be kept seperate.

• In the “Network” tab, for

“Client Interface” select the

network adapter that remote

client(s) will connect to.

For “Video Interface” select

the network adapter that the

camera(s) will connect to.

See Image 6.

Adding Sites (IP cameras, DVRs, NVRs)

Image 6

• To register the server with Speco’s Free DDNS, ensure the “Enable Speco DDNS”

checkbox is selected, and enter a name for the server in the “Host Name” eld

then click on “Submit/Update”. See Image 7.

Image 7

• If the server name isn’t currently

registered with Speco’s DDNS

server, then the registration will be

successful. If it fails, use a different

name for the “Host Name”. See

Image 8.

Image 8

• By default, the server uses ports 7312 & 7313 for network communication.

Note: To avoid network conicts with devices that also use the server default ports

7312 and 7313, the option of changing the port numbers is available through the

Conguration Tool. The servers come shipped with an inbound rule for Window’s

rewall that allows for communication on the server’s default ports. If the server’s

default ports are changed, please ensure the existing inbound rule is updated, or

create a new inbound rule permitting communication on the new port values.

• The “Sites” tab is where sites (IP cameras, DVRs, and NVRs) can be added,

deleted or updated. There are two methods of adding sites to the server. The rst

method uses “Site Locate” which automatically scans the Local Area Network

for only IP cameras. See Image 9.

Method 1: Auto Detect

Method 2: Manual

→

Image 9

• Clicking on “Site Locate”,

will open the “Site Locate”

window and start scanning

the local area network for

IP cameras. You can rescan

the network by clicking on

“Refresh”. See Image 10.

Image 10

• To add an IP camera to the server, double

click on the IP camera to bring up the “Site

Settings” windows for the IP camera.

Ensure the values for all the elds are

accurate and then click “OK”. See

Image 11.

• The IP cameras will now be listed under

“Sites to add” list.

Image 11

• Continue to repeat this process for the remaining IP cameras that must be added

to the server. Once complete, click on “OK” to exit the “Site Locate” window. The

cameras that were added to the “Sites to add” list will now be made available in

the “Sites” tab. Click on “Apply” to complete adding the sites to the server. See

Image 14.

Image 12

• The second method of adding sites to

the server is by manually entering the site

information. This method must be used

when adding DVRs and NVRs. To enter

site information manually, click on “New”

in the “Sites” tab to bring up the “Site

Settings” window. See Image 12.

• Fill in the values for all the elds, and

verify the accuracy of the information by

clicking on “Check Site”. The server will

run a quick test to conrm if the

connection to the site is successful. If

successful, click on “OK” to exit the “Site

Settings” window. See Image 13.

Image 13
