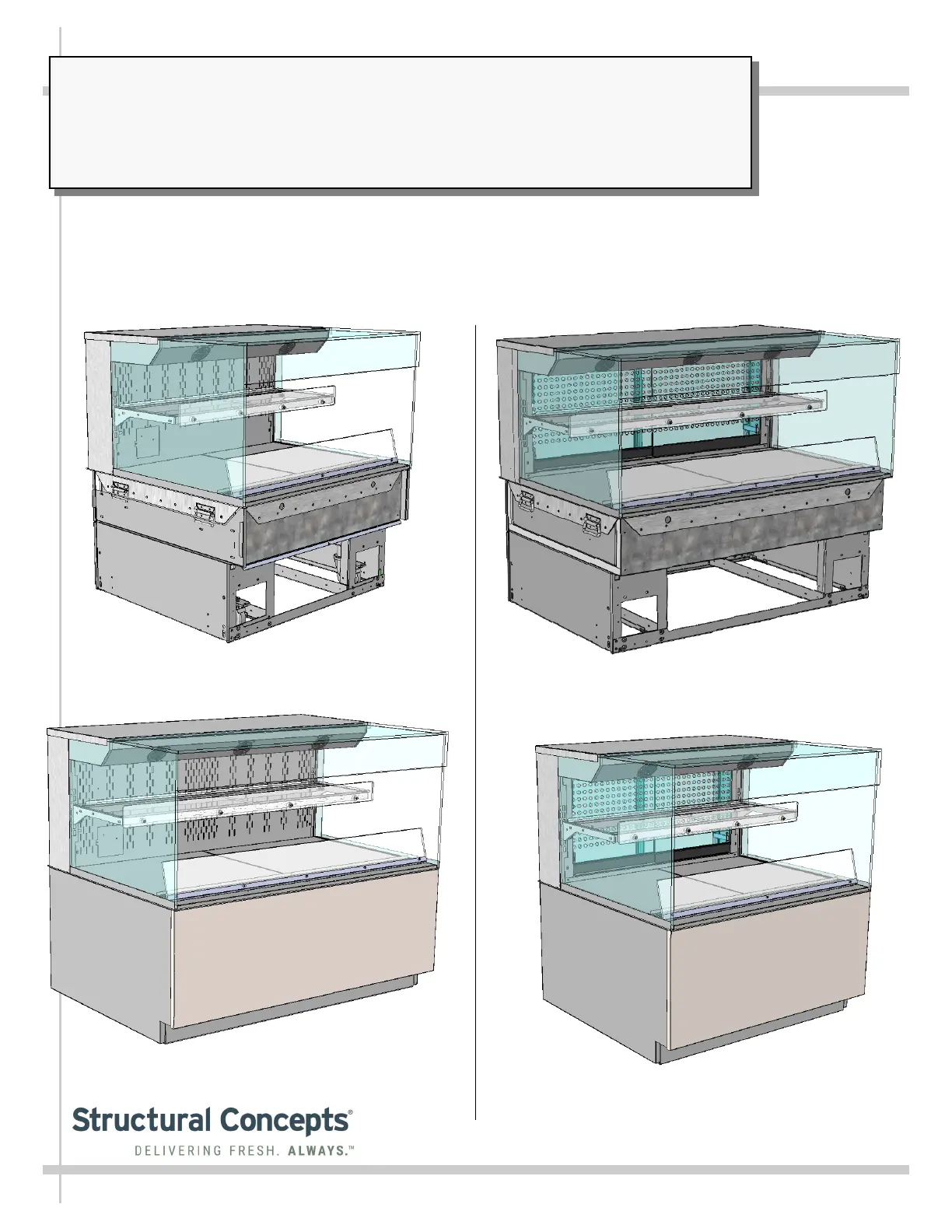

REV F DATE: 06/23/2023 USER MANUALS\21-26055_REVEAL_USER MANUAL_NR(L)(H)HSSV_HTD_SELF-SVC_FREE-STDG_CASE
SCC P/N
21-26055
REVEAL® FREE-STANDING SELF-SERVICE HEATED MERCHANDISERS
> REAR SLIDING DOOR UNITS WITH PERFORATED PLENUMS THAT SLIDE IN TANDEM WITH DOORS
> SOLID BACK UNITS WITH FIXED METAL PERFORATED PLENUM
> CAUTION! DO NOT PUSH OR PULL ON UPPER GLASS ENCLOSURE!
> ONLY USE HANDLES (AT EACH END OF CASE) TO PUSH OR PULL CASE INTO POSITION!
> SEE PAGES 10-11 FOR FRONT/SIDE PANEL/REAR PANELS & TOE-KICK ATTACHMENT INSTRUCTIONS
REVEAL
®
READ AND SAVE THESE INSTRUCTIONS
Model NR3640HSSV Free Standing Unit With Rear
Sliding Doors Shown WITH Front/Side/Rear
Cladding and Toe-Kick Attached
Model NR4840HSSV Free Standing Unit With Rear
Sliding Doors Shown WITHOUT Front/Side/Rear
Cladding And Toe-Kick Attached
Model NR4840HSSV Free Standing Unit With
Solid Back Shown WITH Front/Side/Rear
Model NR3640HSSV Free Standing Unit With
Solid Back Shown WITHOUT Front/Side/Rear
Cladding and Toe-Kick Attached
USER
MANUAL
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
2
TABLE OF CONTENTS
TABLE OF CONTENTS …………………………………………………………………………………...…...
REVEAL® FREE STANDING HEATED SELF-SERVICE MODEL APPLICABILITY &
DIMENSIONS ....………………………………………………………………………………………..
OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS ……………...
INSTALLATION: TOE-KICK REMOVAL / DISCONNECTING CASE FROM SKID ...……..…………...
INSTALLATION, CONT’D.: CASTER ADJUSTMENT / LOCK / UNLOCK / CASE REMOVAL
FROM SKID .………………………………………………………………………………...………….
INSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTS ...………………………………...
INSTALLATION, CONT’D: PLUG IN UNIT / TURN ON MAIN POWER SWITCH AND LED LIGHTS
SWITCH …………………………………………………………….....……………………………..….
INSTALLATION, CONT’D: ATTACHING FRONT PANEL COMPONENTS …………………....……….
INSTALLATION, CONT’D: ATTACHING SIDE PANELS AND REAR UPPER/LOWER PANELS …..
CASE DESIGN & FIELD SERVICE PARTS LIST: CASE FRONT VIEW ………………..………………
CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: CASE REAR VIEW ……………..……….
CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: ELECTRICAL BOX COMPONENTS .…
CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: HEATER / DECKS / BAFFLE / AIR
DEFLECTOR ……………………………………………………………………………………………..
CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: SHELVING ASSEMBLY COMPONENTS
CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: LED LIGHT / PLUG / THERMOMETER ..
CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: REAR PIKE DOORS / PERFORATED
PLENUM DOORS ……………………………………………………………………………………...
CASE STARTUP / HEATER SETTINGS / LIGHTS SWITCH / SHUTTING DOWN CASE ..…………..
PRODUCT PLACEMENT / AIRFLOW CONSIDERATION / LOAD LINES ………………………….…..
CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) ..…....…...…………...….
PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) ……....
TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL ONLY) ...………………......
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) ……….
SERIAL LABEL INFORMATION & LOCATION ..…………………………….……...…....……………..…
PROGRAMMABLE CONTROLLER INFORMATION .………………………………………..…………….
TECHNICAL SERVICE CONTACT INFORMATION / WARRANTY INFORMATION ...…...…...….....
2
3
4-5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23-24
25-26
27
28
29
