Side 1/123
USER’S MANUAL
Revision 1.0
A+ Server
AS -2114S-WN24RT
The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:
For the most up-to-date version of this manual, please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.
IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in industrial environment for Class A device or in residential
environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See ”.www.dtsc.ca.gov/hazardouswaste/perchlorate
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical
systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic
property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Manual Revision 1.0
Release Date: September 23, 2021
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this
document. Information in this document is subject to change without notice. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2021 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
8
AS -2114S-WN24RT User's Manual
Chapter 1
Introduction
1.1 Overview
This chapter provides a brief outline of the functions and features of the AS -2114S-WN24RT.
The AS -2114S-WN24RT is based on the H12SSW-NTR motherboard and the
CSE-216BTS-R1K23WBP chassis.
In addition to the motherboard and chassis, several important parts that are included with
the system are listed below.
1.2 Unpacking the System
Inspect the box the SuperServer AS -2114S-WN24RT was shipped in and note if it was
damaged in any way. If any equipment appears damaged, please le a damage claim with
the carrier who delivered it.
Decide on a suitable location for the rack unit that will hold the server. It should be situated
in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and
electromagnetic elds are generated. It will also require a grounded AC power outlet nearby.
Be sure to read the precautions and considerations noted in Appendix A.
Main Parts List
Description QuantityPart Number
Passive Heatsink for 2U System SNK-P0063P 1
8-cm System Fans FAN-0203L4 3
Backplane BPN-NVME4-216N-S24 1
Hot-swap Hard Drive Trays MCP-220-00167-0B 24
Air Shroud MCP-310-21605-0B 1
Riser Card (right side WIO riser) RSC-W2R-88G4 1
Riser Card (left side riser with two PCIe x16 slots) RSC-W2-66G4 1
Rack Rail Mounting Kit MCP-290-00053-0N 1
Notes: A Quick Reference Guide can be found on the product page of the Supermicro website.
The following safety models associated with the AS -2114S-WN24RT have been certied as
compliant with UL or CSA: 216-R12H12 and A216B-H12.
14
AS -2114S-WN24RT User's Manual

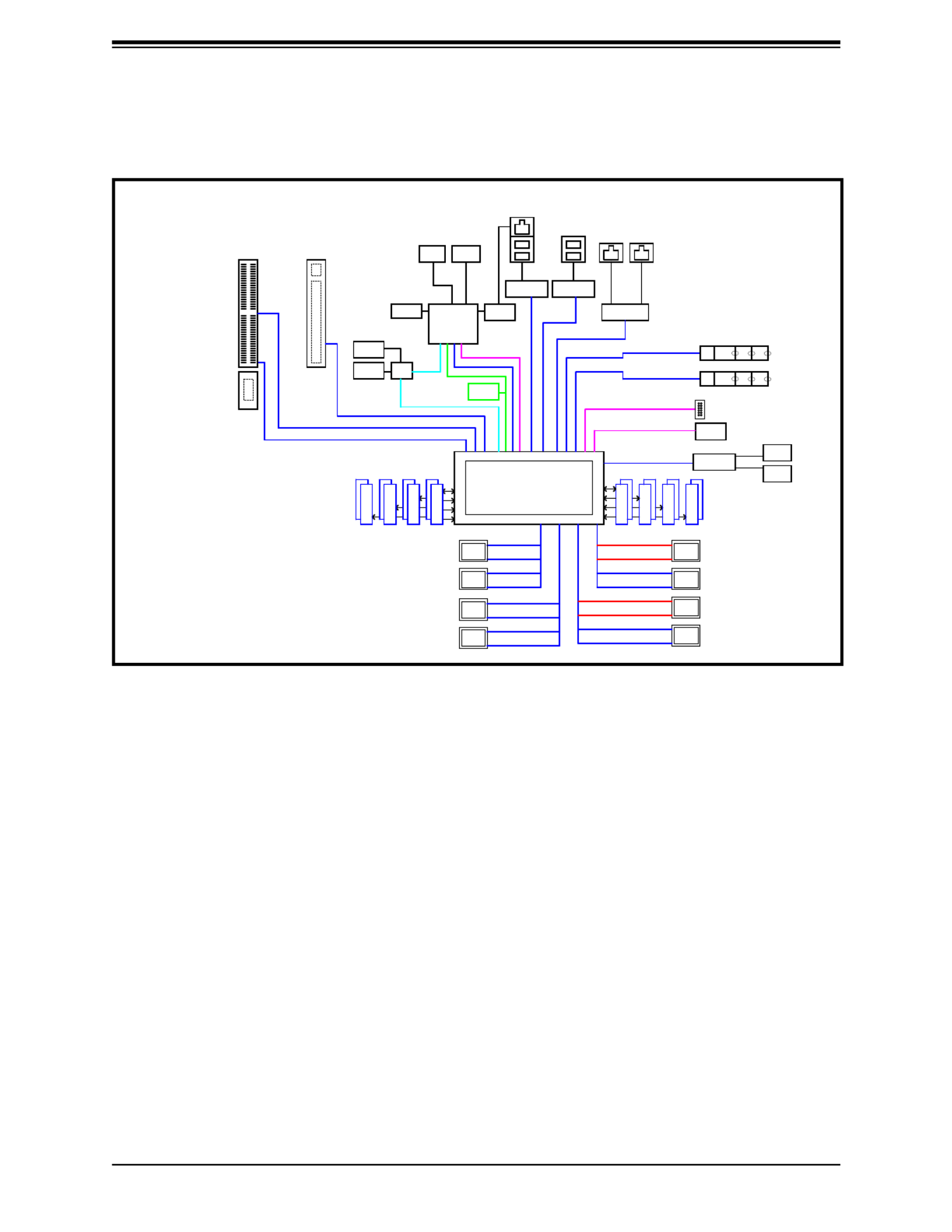

Figure 1-5. System on Chip Chipset: System Block Diagram
Note: This is a general block diagram and may not exactly represent the features on your
motherboard. See the System Specications appendix for the actual specications of your
motherboard.
Slim SAS
x8
Slim SAS
x8
Slim SAS
x8
Slim SAS
x8
JSLIM5
Slim SAS
x8
JSLIM6
Slim SAS
x8
JSLIM7
Slim SAS
x8
JSLIM8
ASM1042
USB controller
ASM1042
USB controller
CPU P3 [10]
J9 J11 J13 J15J1J3J5J7
H12SSW-NTR
AMD SP3 Rev. 1.01
SXB2
BMC
AST2500
CPU P3 [11]
USB_1_HSD3
Rear
USB 3.0
X 2
VGA COM1
PHY
RTL8211F
DDR4
LPC
BMC ROM
TPM
BIOS ROM CPLD
SPI
SPI
CPU
E
DDR4 DIMM
#0
A
DDR4 DIMM
#0
DDR4 DIMM
#0
DDR4 DIMM
#0
DDR4 DIMM
#0
DDR4 DIMM
#0
DDR4 DIMM
#0
USB3.0
Type A
DDR4 DIMM
#0
F
G
H
B
C
D
CPU G0 [3:0]
CPU G2 PCIe[3:0] / SATA[23:20]
CPU G2 PCIe[7:4] / SATA[27:24]
CPU G3 PCIe[3:0] / SATA[33:30]
CPU G3 PCIe[7:4] / SATA[37:34]
CPU P3 [15:14]
M.2 Conn
M key
CPU P3 [13:12]
BCM57416
(co-lay BCM5720L)
CPU P3 [0:7]
CPU P3 [9]
EPYC Processor (AMD Socket SP3)
USB_0_SS_0TX / USB_0_HSD0
USB 3.0
front panel
CPU P2 [15:0]
J17
J18
CPU P0 [15:0]
IPMI LAN
RJ45
SXB1
Rear
USB 3.0
X 2
10Gb LAN
RJ45
10Gb LAN
RJ45
M.2 Conn
M key
RX 0-7 RX 15-8
TX 0-7 TX 15-8
RX 0-15 TX 0-15
TX 0-15 RX 0-15
Slim SAS
x8
CPU G0 [7:4]
CPU G0 [11:8]
CPU G0 [15:12]
CPU G1 [3:0]
CPU G1 [7:4]
CPU G2 [11:8]
CPU G1 [11:8]
CPU G1 [15:12]
CPU G2 [15:12]
CPU G3 [11:8]
CPU G3 [15:12]
USB_0_SS_2TX / USB_1_HSD2
USB_0_SS_1TX / USB_0_HSD1
JSLIM1
JSLIM2
JSLIM3
JSLIM4
CPU P3 [8]
ASM1061
SATA controller
SATA0
SATA1
CPU P1 PCIe[15:0] / CPU P1 PCIe[15:8] & SATA[7:0]
