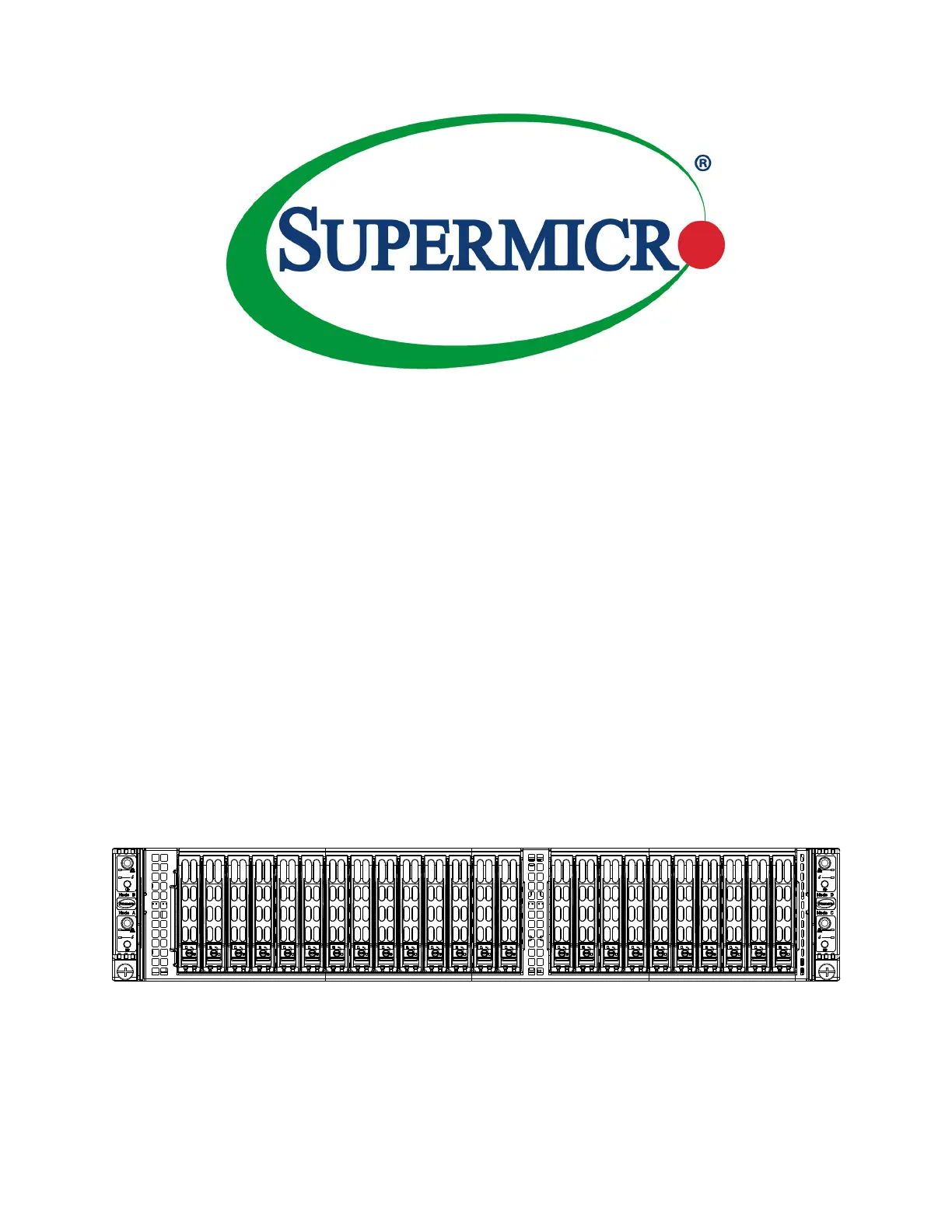

SuperServer 2029BT-HTR/-HNR/-HNC0R/-HNC1R/-HNTR Quick Reference Guide
Memory Support
http://www.supermicro.com MNL-1948-QRG Rev 1.0d
Air Shroud installation
P2-DIMMA2
P2-DIMMA1
P2-DIMMB2
P2-DIMMB1
P2-DIMMC2
P2-DIMMC1
P2-DIMMD1
P2-DIMMD2
P2-DIMME2
P2-DIMME1
P2-DIMMF2
P2-DIMMF1
P1-DIMMD1
P1-DIMMD2
P1-DIMME2
P1-DIMME1
P1-DIMMF2
P1-DIMMF1
P1-DIMMA2
P1-DIMMA1
P1-DIMMB2
P1-DIMMB1
P1-DIMMC2
P1-DIMMC1
DESIGNED IN USA
BAR CODE
BIOS LICENSE
IPMI CODE
1
+
X11DPT-B
REV:1.02
SXB1
SXB2
FAN3
FAN4
BMC_HB_LED1
UID_LED1
HDD_LED1
JPME1 SXB3_1
JSIOM1
SXB4
JSDCARD1
I-S A6AT
JTAG1
JCPLD1
JRK1
BT1
JBT1
JF1
JF2
1C2IVNJ
JTPM1
JSD1
CPU1 PC E 3.0 X4 CPU2 PCI-E 3.0 X24I-SATA0~ 5
P2-DIMMF2
P2-DIMMF1
P2-DIMMD1
P2-DIMME1
P2-DIMME2
P2-DIMMD2
P2-DIMMC2
P2-DIMMC1
P2-DIMMA1
P2-DIMMA2
P2-DIMMB1
P2-DIMMB2
P1-DIMMF2
P1-DIMMF1
P1-DIMMC1
P1-DIMMC2
SIOM:CPU1 PCI-E 3.0 X16
CPU1 PCI-E 3.0 X4
S-SATA0~ 5
TPM/PORT80
CPU1 SLOT1 PCI-E 3.0 X16
COM1
IPMI_LAN
CPU2
PCH
USB0/1(3.0)
BIOS
FLASH
BMC
UID SW
VGA
CPU2 SLOT2PCI-E 3.0 X 16
JSD1: S ATA DOM POWER
CPU1
P1-DIMMD1
P1-DIMMD2
P1-DIMME1
P1-DIMME2
P1-DIMMA1
P1-DIMMA2
P1-DIMMB1
P1-DIMMB2
JVRM1
JPB1
JPG1
J M1TP
COM1
JTAG1
JSD1
VGA
JBT1
FAN4
FAN3
JF2
IPMI LAN
US /1B0
JRK1
JS 1DCARD
JF1
SXB4
SXB1
JV 1RM
JPME1
HDD_LED1
JCPLD1
SXB2
BMC_HB_LED1
I-S A6AT
JN 2CVI 1
UI D1D_LE
UID SW
BT1
Jumper t n t S gDescrip io Defaul ettin
JBT pen (Normal1 OS OClear CM )
JP in 1-2 (NormalME1 ME v y PReco er s )
JVRM RM Cloc MC or CH in 1-2 MC, Normal1 V SMB k (to B P ) P s (B )
C or t nonnect Descrip io
Ba y ( 1) O S ytter BT nboard CMO batter
COM 1 F t P COM P t 1ron anel or
FAN 3/4 c f sSystem ooling an header
IP _LMI AN cat MI LAN tDedi ed IP por
JF ron on rol panel heade1 F t c t r
JF x4 lo (C U12 PCI-E 3.0 S t P )
JNVI2C1 NV IMe 2
C sheader
JRK1 R D Key f NV v sAI or onboard Me de ice
JSD1 S A DOM P orAT ower Connect
JSDC RDA 1 c SD s tMi ro Card lo
JTPM1 T P ( t c torrusted latform Module TPM)/Por 80 onnec
SIOM CP PCI-E 3.0 x s f t useU1 16 lot or proprie ary add-on module
SXB 4) slo uppor ed by U1 and onnec ions S-SATA0~51 PCI-E 3.0 (x4 + x t s t CP S A cAT t (I-S A0~5 & AT )
SXB 24 lo uppor ed by2 PCI-E 3.0 X s t s t CPU2
SXB x16 Left Hand Riser slo suppor ed by3 PCI-E 3.0 t t CPU1
SXB4 PCI-E 3.0 t s t s t CPU2x16 Righ Hand Ri er slo uppor ed by
I-SATA6 S A DOM th c orAT wi power-pin onnect
UI SW UID S h D- witc
U 0/1 Back U 3.0 ts SB panel SB por
VG panel VGA Back A tpor
LE ip ioD Descr t n S e S ustat tat
B B ED1 B t t LED G : B k g B lMC_H _L MC Hear bea reen lin in MC Norma
HDD_L HDD ty HDD NormaED1 Activi LED G : B k g reen lin in l
Unit IdentifiedUI ED1 UID LED B : OnD_L Rear lue
Board Layout
Drives Controled by Nodes
Rear View
BIOS Error Beep (POST) Codes
Beep Code Error Message Description
1 short Refresh Circuits have been reset (Ready
to power up)
System overheat condition
5 short, 1 long Memory Error
5 long, 2 short Display memory read/
write error
Beep Codes
Front view & Interface
No memory detected in the
system
Description
No.
1
2
3
4
5
6
2 PCI-E p1-x16 Slots
VGA Connector
IPMI_dedicated LAN
USB Ports
SIOM Slot
Power Supply Module
1 long continuous System OH
Video adapter missing or with
faulty memory
Heatsinks
CPU Installation
Caution
SAFETY INFORMATION
IMPORTANT: See installation instructions and safety warning before
connecting system to power supply.
http://www.supermicro.com/about/policies/safety_information.cfm
WARNING:
To reduce risk of electric shock/damage to equipment, disconnect power
from server by disconnecting all power cords from electrical outlets.
If any CPU socket empty, install protective plastic CPU cap
WARNING:
Always be sure all power supplies for this system have the same power
output. If mixed power supplies are installed, the system will not operate.
For more information go to : http://www.supermicro.com/support
!
!
!
Heatsink SNK-P0067PSM
(for CPU2)
Heatsink SNK-P0067PS
(for CPU1)
DescriptionNo.
1
2
3
4
Power
NIC
Information LED
UID
MB: A
MB: B
MB: C
MB: D
Nodes and Corresponding Hard Drives
Processor Carrier Assembly (with CPU mounted
on the Processor Clip)
CPU (Upside Down)
w/CPU LGA Lands up
On Locations of (C, D), the notches
snap onto the heat sink’s
mounting holes
On Locations (A, B), the notches
snap onto the heatsink’s sides
Heatsink
(Upside Down)
CPU and Processor Clip
Attaching the Processor Carrier Assembly to the Heatsink to Form the Processor
Heatsink Module (PHM)
Removing the Dust Cover from
the CPU Socket
Installing the Processor Heatsink Module (PHM)
Dust Cover
CPU Socket
Remove the dust cover from the CPU socket, exposing the
socket and socket pins as shown on the illustration below.
No : te
Do not touch the socket pins to avoid damaging
them, causing the CPU to malfunction.
Note: Do not use excessive force when tightening the screws to avoid
damaging the LGA lands and the processor.
Mounting the Processor Heatsink Module into
the CPU socket (on the motherboard)
Align Notch C of the
CPU and Notch C of
the Processor Clip
CPU/Heatsink Package
(Upside Down)
Align Notch B of the
CPU and Notch B of
the Processor Clip A
B
C
Allow carrier to
latch onto CPU
Allow carrier to
latch onto CPU
Processor Carrier Assembly
B
C
B
C
Pin 1
A
A
Align CPU Pin 1
Socket Pins
Remove the plastic protective
cover from the CPU socket.
Do not touch or bend
the socket pins.
Triangle on the CPU
Triangle on the
Processor Carrier
a
b
A
B
d
c
D
C
Make sure Mounting
Notches snap into place
A
B
D
C
Small Guiding Post
Oval C (Large Guiding Post)
Printed Triangle
12
3
4
T30 Torx Driver
Use a torque of 12lbf-in
Oval D
POWER
UID
Node A Node B Node C Node D
POWER
UID
POWER
UID
SUPERMICRO
Node A
Node B
POWER
UID
POWER
UID
SUPERMICRO
Node C
Node D
Motherboard B controls HDDs
B0, B1, B2, B3, B4, and B5
Motherboard A controls HDDs
A0, A1, A2, A3, A4, and A5
Motherboard D controls HDDs
D0, D1, D2, D3, D4, and D5
Motherboard C controls HDDs
C0, C1, C2, C3, C4, and C5
1 6 24 35
A
B
C
D
1
2
3
4
Tighten the screws in the
sequence of 1, 2, 3, 4 (top 3 quarter view)
Memory Population Table
When 2 CPUs are used
Memory Population Sequence
CPU1: P1-DIMMA1/P1-DIMMD1
CPU2: P2-DIMMA1/P2-DIMMD1
CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1
CPU2: P2-DIMMC1/P2-DIMMB1/P2-DIMMA1
CPU1: P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1
CPU2: P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1
CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1
CPU2: P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1
CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1
CPU2: P2-DIMMC1/P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1/P2-DIMMF1
CPU1: P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/P1-DIMMD2/P1-DIMMD1/
P1-DIMME2/P1-DIMME1
CPU2: P2-DIMMC1/P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1/P2-DIMMF1
CPU1: P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/P1-DIMMD2/P1-DIMMD1/
P1-DIMME2/P1-DIMME1
CPU2: P2-DIMMB1/P2-DIMMB2/P2-DIMMA1/P2-DIMMA2/P2-DIMMD2/P2-DIMMD1/
P2-DIMME2/P2-DIMME1
CPU1: P1-DIMMC1/P1-DIMMC2/P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/
P1-DIMMD2/P1-DIMMD1/P1-DIMME2/P1-DIMME1/P1-DIMMF2/P1-DIMMF1
CPU2: P2-DIMMB1/P2-DIMMB2/P2-DIMMA1/P2-DIMMA2/P2-DIMMD2/P2-DIMMD1/
P2-DIMME2/P2-DIMME1
CPU1: P1-DIMMC1/P1-DIMMC2/P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/
P1-DIMMD2/P1-DIMMD1/P1-DIMME2/P1-DIMME1/P1-DIMMF2/P1-DIMMF1
CPU2: P2-DIMMC1/P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1/P2-DIMMF1
CPU1: P1-DIMMC1/P1-DIMMC2/P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/
P1-DIMMD2/P1-DIMMD1/P1-DIMME2/P1-DIMME1/P1-DIMMF1
CPU2: P2-DIMMC1/P2-DIMMC2/P2-DIMMB1/P2-DIMMB2/P2-DIMMA1/P2-DIMMA2/
P2-DIMMD2/P2-DIMMD1/P2-DIMME2/P2-DIMME1/P2-DIMMF1
CPU1: P1-DIMMC1/P1-DIMMC2/P1-DIMMB1/P1-DIMMB2/P1-DIMMA1/P1-DIMMA2/
P1-DIMMD2/P1-DIMMD1/P1-DIMME2/P1-DIMME1/P1-DIMMF2/P1-DIMMF1
CPU2: P2-DIMMC1/P2-DIMMC2/P2-DIMMB1/P2-DIMMB2/P2-DIMMA1/P2-DIMMA2/
P2-DIMMD2/P2-DIMMD1/P2-DIMME2/P2-DIMME1/P2-DIMMF2/P2-DIMMF1
CPU1: P1-DIMMA1
CPU2: P2-DIMMA1
2 CPUs & 2 DIMMs
2 CPUs & 4 DIMMs
2 CPUs & 6 DIMMs
2 CPUs & 8 DIMMs
2 CPUs &10 DIMMs
2 CPUs & 12 DIMMs
2 CPUs & 14 DIMMs
2 CPUs & 16 DIMMs
2 CPUs & 18 DIMMs
2 CPUs & 20 DIMMs
2 CPUs & 24 DIMMs
2 CPUs & 22 DIMMs
(Unbalanced: not
recommended)
