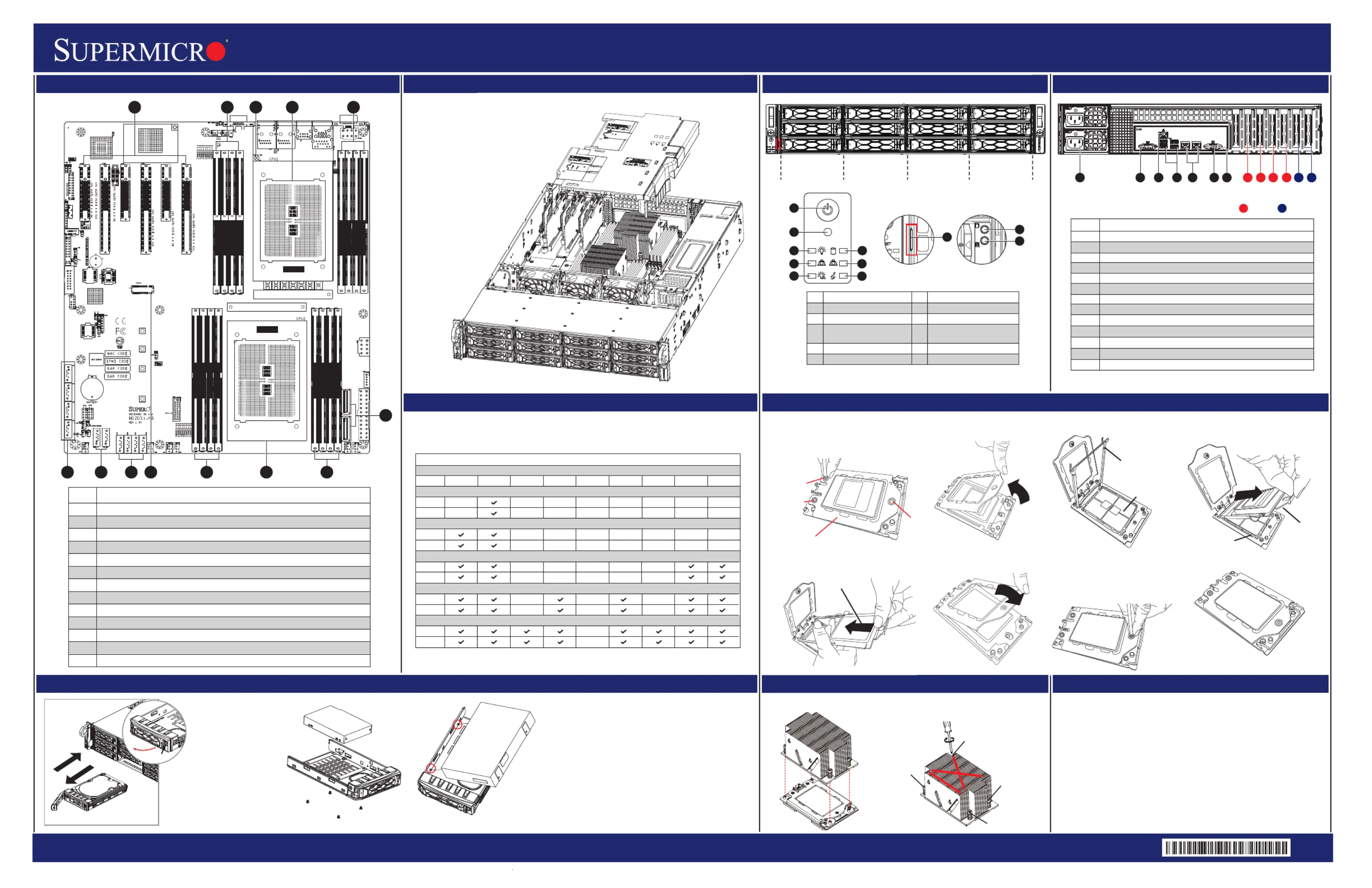

A+ Server AS -2024S-TR Quick Reference Guide

Front View & Interface

Rear View

Hard Drive Installation

Board Layout

No. Description

Slot1- Slot6: PCIe Expansion Card Slots

P0-DIMMA1~P0-DIMMD1 Slots (P0 slots: CPU1)

CPU1

JBT1: CMOS Clear

P0-DIMME1~P0-DIMMH1 Slots (P0 slots: CPU1)

P1-DIMMA1~P1-DIMMD1 Slots (P1 slots: CPU2)

CPU2

P1-DIMME1~P1-DIMMH1 Slots (P1 slots: CPU2)

SATA4-7: Onboard SATA3 Ports

PCIe M.2: M.2 Connector

SUPERDOM1/2: SATA3 DOM Ports (6Gb/s)

SATA0-3: Onboard SATA3 Ports

CN1~2: NVMe Ports

Removing a Hot-Swap

Drive Carrier from

the Chassis

1. Press the release button on

the drive carrier, which

will extend the drive

carrier handle.

2. Use the drive carrier handle

to pull the drive out of the

chassis.

Installing a 3.5" Drive

1. Position the drive above the carrier with the PCB side facing down and the connector end

toward the rear of the carrier.

2. Tilt the drive to insert it onto the two posts on the left inside of the carrier.

3. Push the right side of the drive fully into the carrier and allow the two spring locking clasps to

secure the drive.

4. Insert the drive carrier into its bay, keeping the release button on the right. When the carrier

reaches the rear of the bay, the release handle will retract.

5. Push the handle in until it clicks into its locked position

Installing a 2.5" Drive

1.Install the drive directly into the tray with four screws underneath.

2. Insert the drive carrier into its bay, keeping the release button on the right. When the carrier

reaches the rear of the bay, the release handle will retract.

3. Push the handle in until it clicks into its locked position

CPU Installation

Caution

1. Removing the Processor Force Frame

Use a Torx T20 driver to loosen the screws holding

down Force Frame in the sequence of 3-2-1. The

screws are numbered on the Force Frame next to each

screw hole.

2. Raising the Force Frame 3. Lifting the Rail Frame

5. Inserting the Carrier Frame/CPU Package 6. Lowering the Force Frame 7. Securing the Force Frame

Secure the screws in the order 1-2-3, tightening to

16.1 kgf-cm (14 lbf-in) of torque. The Force Frame

secures both the Rail Frame and CPU Package.

Caution: Tightening must be executed in proper

1-2-3 sequence to avoid causing catastrophic

damage to the socket or CPU Package.

8. The Force Frame Secured

1. Mounting the Heatsink

Screw #1

Screw #2

Screw #3

Force Frame

Rail Frame

PnP Cover Cap

Carrier Frame/

CPU Package

Processor Installation

4. Removing the External Cap and PnP

Cover Cap

External Cap

PnP Cover Cap

Heatsink Installation

SAFETY INFORMATION

IMPORTANT: See installation instructions and safety warning before

connecting system to power supply.

http://www.supermicro.com/about/policies/safety_information.cfm

WARNING:

To reduce risk of electric shock/damage to equipment, disconnect power

from server by disconnecting all power cords from electrical outlets.

If any CPU socket empty, install protective plastic CPU cap

WARNING:

Always be sure all power supplies for this system have the same power

output. If mixed power supplies are installed, the system will not operate.

For more information go to : http://www.supermicro.com/support



2.5" Drive 3.5" Drive

CPU1 CPU2

#1 Screw (hidden)

#3 Screw

#4 Screw

#2 Screw

2. Securing the Heatsink

Using a diagonal pattern and a Torx T20 driver, tighten the four

heatsink screws evenly to 16.1 kgf-cm (14.0 lbf-in) torque.

Air Shroud Installation

1. Power down the system.

2. Extend the server from the rack (or remove it and

place it on a bench), then remove the cover

as described previously.

3. Place the air shroud over the DIMM slots

and CPUs as illustrated below.

The small tabs on the air shroud fit

into corresponding reception points

in the horizontal frames behind the

fans and at the rear of the

chassis.

4. Once installed, replace the

cover and push the system

back into the rack before

restoring power.

* Twelve 3.5"/2.5" hot-swap drive bays: default configuration supports up to eight

SATA (slot 4-11) and four NVMe drives (slot 0-3)

** SAS support requires optional add-on card and cables

Power Button

Reset Button

Power LED

LAN1 and LAN2 LED

Power Failure LED

No. Description

HDD Activity LED

Universal Information LED

Service/Asset Tag with

System Serial Number and

BMC Unique Password

Drive Device Status LED

Drive Device Activity LED

No. Description

HDD2

HDD1

HDD0

(NVMe /SATA(slot 0-3) *

/SAS3 )**

HDD5

HDD4

HDD3

(NVMe /SATA(slot 0-3) *

/SAS3 )**

HDD8

HDD7

HDD6

(SATA /SAS3 )* **

HDD11

HDD10

HDD9

(SATA /SAS3 )* **

RESET

Description

No.

PCI-E 4.0 p1-x8 Slot (LP)

PCI-E 4.0 p1-x16 Slot (LP)

PCI-E 4.0 p1-x8 Slot (LP)

PCI-E 4.0 p1-x16 Slot (LP)

PCI-E 4.0 p1-x8 Slot (LP)

PCI-E 4.0 p1-x16 Slot (LP)

UID LED (Unit Identifier Button)

VGA Port

2x LAN Ports

USB 0/1/2/3 Ports

Dedicated LAN for IPMI

COM Port

Redundant Power Supply Modules

813 7910 2 112 11 35 46

Memory

The AS -2024S-TR supports up to 4TB of registered ECC DDR4-3200 SDRAM in 16 DIMM slots.

Refer to the table below for additional memory information.

NOTE: To achieve optimal memory performance, the minimum recommended is at least one

DIMM for each channel pair in the system (e g., A, C, E, G).

Memory Support

Processors and their Corresponding Memory Modules

Channel

CPU# D1 C1 B1 A1

2 DIMMs (Not Recommended)

CPU1

16 DIMMs

CPU2

4 DIMMs (Not Recommended)

8 DIMMs

CPU1

12 DIMMs (for 7003 CPU only)

CPU1

CPU2

CPU1

CPU2

CPU

E1 F1 G1 H1

CPU2 CPU

Handle

Re ease ttl Bu on

Post

Insert this

side first

P0 A1-DIMM

P0 H1-DIMM

S t 3lo

S t 1lo

S t 2lo

S t 4lo

S t 5lo

S t 6lo

P0-DIMMB1

P0-DIMMG1

P0-DIMMC1

P0-DIMMF1

P0-DIMMD1

P0-DIMME1

CPU1

CPU2

P1-DIMME1

P1-DIMMD1

P1-DIMMF1

P1-DIMMC1

P1-DIMMG1

P1-DIMMB1

P1-DIMMH1

P1-DIMMA1

7810 9111213

1 2 3 4 5
