FCC Veriﬁ cation

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

WARNING: Modiﬁ cations not approved by the party responsible for compliance could void user’s authority to

operate the equipment. 1

ADS-180

English

222

Congratulations on your purchase of this ADS-180 from ! You’ve chosen a Swann

great little self contained, easy to install entry-level CCTV camera. This manual will

walk you through positioning, installing, connecting and using your camera, and

offer some tips to help you get the most out of your security monitoring system.

What will it see?

The ADS-180 has a built-in which allows it to focus its attention 6mm, 37° lens

onto one speciﬁ c area. What does this mean for you when placing it?

• The camera will focus on the one particular area in

front of the lens, but won’t see much happening to the

sides of it. You’ll need to aim the camera speciﬁ cally at

what you want to see.

• Objects and people will look like they are slightly closer

to the camera than they really are. You’ll be able to

monitor a space which is as long (or longer) than it is

wide.

The ADS-180 is great for monitoring long, narrow spaces

such as hallways or corridors. It’s also great for monitoring a

speciﬁ c space, such as a doorway, smaller room or staircase.

It’s best mounted high-up in a corner looking down into the space being

monitored, so that it can look over intervening obstacles. Also, the higher the

camera is mounted, the harder it’ll be for an intruder to access the camera or

interfere with it.

Rules is Rules

Regardless of all the tweaking of the lens and image processing you do, there are

a few immutable things that are true for all cameras, CCTV or otherwise.

• The closer the camera is to what you want to see, the more detail

you’re going to get. Really, there’s no substitute for proximity.

• Areas with varied lighting conditions are hard to view completely,

with any camera. If the bright bits are exposed correctly, then the shadows

will “black out”. If the shadowy areas are exposed correctly, then the bright

bits will overexpose and “white out”. Aiming the camera at an evenly lit

area will always give the best results.

• That “image enhancement” stuff that they do on or is all lies.CSI 24 You

can’t zoom in indeﬁ nitely on a video image. Licence plates are only readable

from a few meters (a dozen or so feet) away. If someone’s head is represented

by three pixels, that’s it. Sorry. This is technology, not magic. This is a great

entry-level CCTV camera, but it’s still an entry-level CCTV camera - it can’t see

much better than you can! Still, it does make for good television.

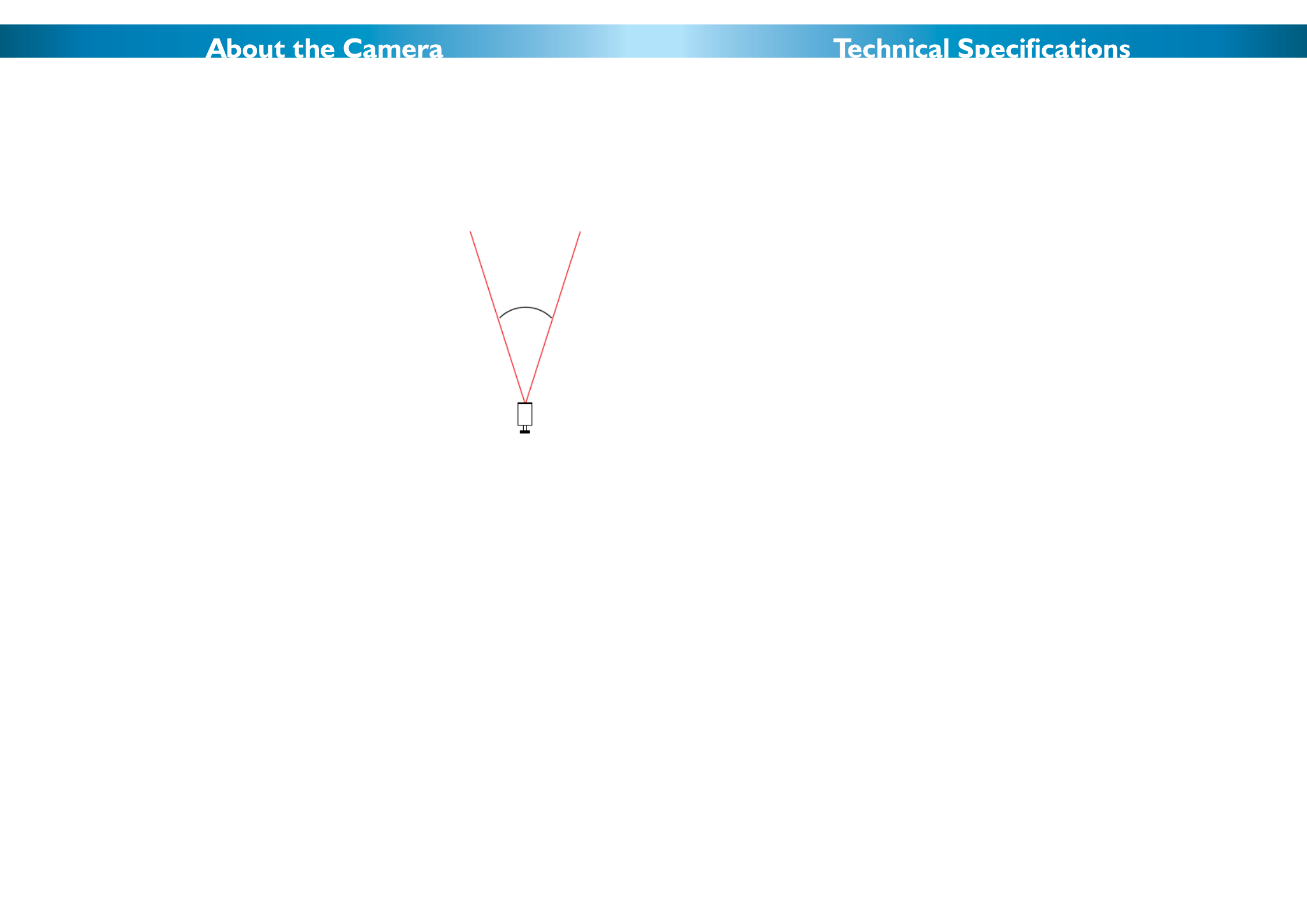

37°

Technical Speciﬁ cations

Video

Image Sensor 1/4” CMOS

Video Quality 400 TV Lines

Effective Pixels NTSC: 656 x 492

Min. Illumination 0 Lux (IR on)

White Balance Automatic

Electronic Shutter NTSC: 1/60 ~ 1/15 000

PAL: 1/50 ~ 1/15 000

Gain Control Automatic

Backlight Comp. Yes

Wide Dynamic Range No

Lens 6mm

Viewing Angle 37°

Night Vision

Range Up to 10m (33ft)

IR Cut Filter No

Number of IR LEDs 30

Infrared Wavelength 940nm

IR LED Life (Average) 10, 000 hours

General

Operating Power DC 12V

Operating Temp. -10°C ~ 50°C (14°F ~ 122°F)

Casing Aluminium

Dimensions (Camera) 2.5” x 2.8” x 2.5”

65mm x 70mm x 65mm

Dimensions (Stand) 2.8” x 2.3” x 2.3”

72mm x 60mm x 60mm

Weight 165g / 0.4lbs (approx)

Produkt Specifikationer

Mærke:	Swann
Kategori:	Overvågningskamera
Model:	ADS-180
Bredde:	65 mm
Dybde:	65 mm
Højde:	70 mm
Vægt:	165 g
Produktfarve:	Sort
Pakkevægt:	260 g
Wi-Fi:	Ingen
Ethernet LAN:	Ingen
Driftstemperatur (T-T):	10 - 50 °C
Maksimal opløsning:	- pixel
Husmateriale:	Aluminium,Plastic
Kabler inkluderet:	BNC
Forbindelsesteknologi:	Ledningsført
Kabellængde:	18 m
Indbygget HDD:	Ingen
Understøttet placering:	Indendørs & udendørs
Hvidbalance:	Automatisk
Sensortype:	CMOS
Optisk zoom:	- x
Strøm over Ethernet (PoE):	Ingen
Bredt dynamikområde (WDR):	Ingen
Dag/nat funktion:	Ja
Minimumsbelysning:	0 Lux
Optisk sensorstørrelse:	1/4 "
Nattesyn:	Ja
DC udgangsspænding:	+12V
Infrarød bølgelængde:	940 nm
Signal/støjforhold:	50 dB
Linse, diameter:	6 mm
Antal lysende LED:	10
PTZ-kontrol:	Ingen
Nattesyn, afstand:	10 m
Antal TV-linier:	400
NTSC opløsninger:	656 x 492 pixel
PAL opløsninger:	628 x 582 pixel
Objektivets synsvinkel, vandret:	37 °
Objektivets synsvinkel, lodret:	37 °
Infra-rød LED holdbarhed:	10000 t
