Side 1/14

LP211, LP311

LOW-POWER DIFFERENTIAL COMPARATORS

WITH STROBES

SLCS003D − JUNE 1987 − REVISED SEPTEMBER 2003

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

DLow Power Drain . . . 900 μW Typical With

5-V Supply

D Operates From 15 V or From a Single±

Supply as Low as 3 V

D Output Drive Capability of 25 mA

D Emitter Output Can Swing Below Negative

Supply

DResponse Time . . . 1.2 μs Typ

D Low Input Currents:

Offset Current . . . 2 nA Typ

Bias Current . . . 15 nA Typ

D Wide Common-Mode Input Range:

−14.5 V to 13.5 V Using ±15-V Supply

D Offset Balancing and Strobe Capability

D Same Pinout as LM211, LM311

D Designed To Be Interchangeable With

Industry-Standard LP311

description/ordering information

The LP211 and LP311 devices are low-power versions of the industry-standard LM211 and LM311 devices.

They take advantage of stable, high-value, ion-implanted resistors to perform the same function as the LM311

series, with a 30:1 reduction in power consumption, but only a 6:1 slowdown in response time. They are well

suited for battery-powered applications and all other applications where fast response times are not needed.

They operate over a wide range of supply voltages, from ±18 V down to a single 3-V supply with less than 300-μA

current drain, but are still capable of driving a 25-mA load. The LP211 and LP311 are quite easy to apply free

of oscillation if ordinary precautions are taken to minimize stray coupling from the output to either input or to the

trim pins. In addition, offset balancing is available to minimize input offset voltage. Strobe capability also is

provided to turn off the output (regardless of the inputs) by pulling the strobe pin low.

The LP211 is characterized for operation from −25°C to 85°C. The LP311 is characterized for operation from

0 C.°C to 70°

ORDERING INFORMATION

VIO max

AT 25°CPACKAGE†ORDERABLE

PART NUMBER

TOP-SIDE

MARKING

PDIP (P) Tube of 50 LP311P LP311P

7 5 mV

SOIC (D)

Tube of 75 LP311D

LP311

−0° °C to 70 C 7.5 mV SOIC (D) Reel of 2500 LP311DR LP311

SOP (PS) Reel of 2000 LP311PSR L311

25°C to 85°C

7 5 mV

SOIC (D)

Tube of 75 LP211D

LP211

−25° °C to 85 C 7.5 mV SOIC (D) Reel of 2500 LP211DR LP211

†Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines

are available at www.ti.com/sc/package.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

EMIT OUT

IN+

IN−

VCC−

VCC+

COL OUT

BAL/STRB

BALANCE

LP211 . . . D PACKAGE

LP311 . . . D, P, OR PS PACKAGE

(TOP VIEW)

LP211, LP311

LOW-POWER DIFFERENTIAL COMPARATORS

WITH STROBES

SLCS003D − JUNE 1987 − REVISED SEPTEMBER 2003

2POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

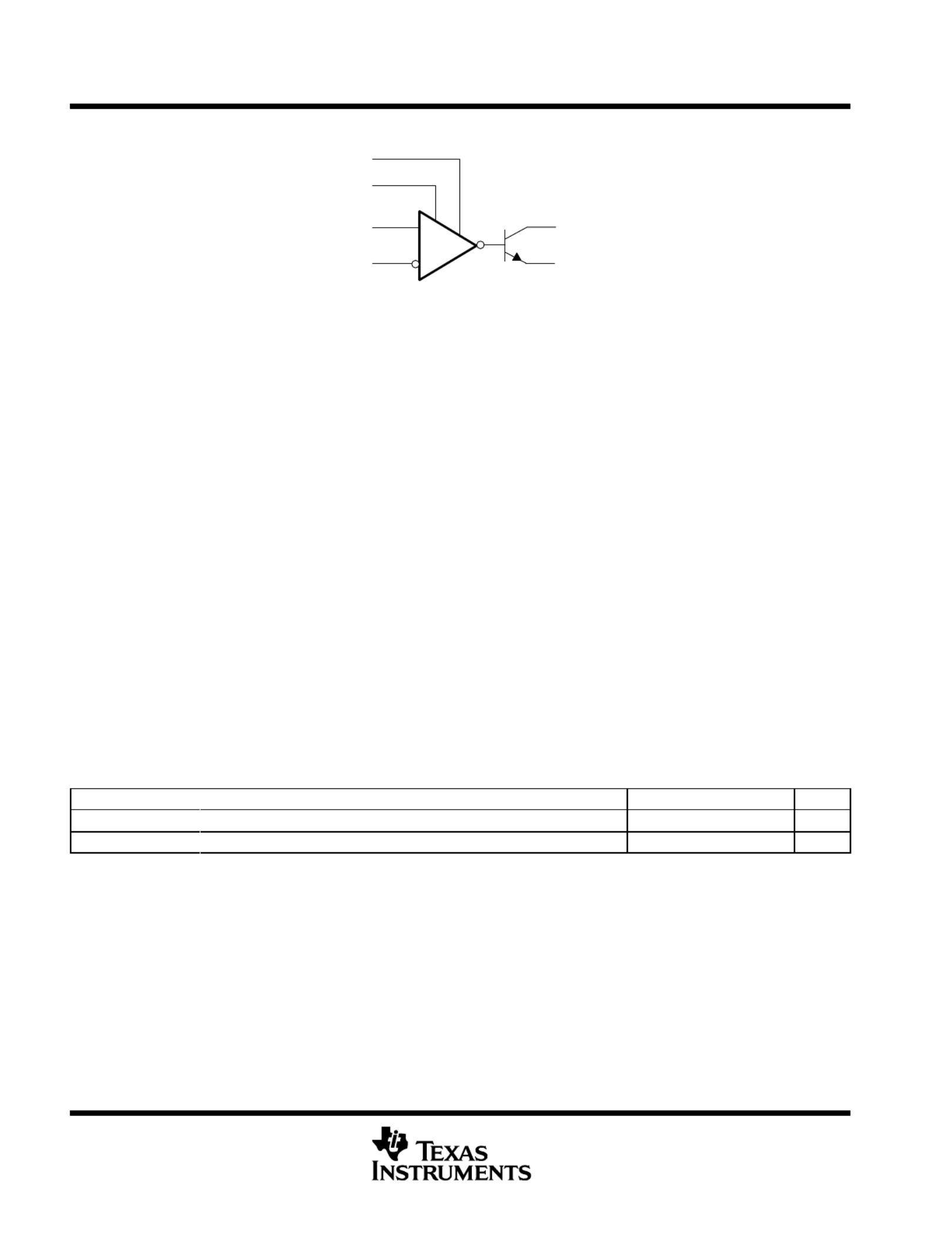

functional block diagram

EMIT OUT

COL OUT

IN+

IN−

BAL/STRB

BALANCE

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†

Supply voltage (see Note 1): VCC+ 18 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

VCC− −18 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Differential input voltage, VID (see Note 2) ±30 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input voltage, VI (either input, see Notes 1 and 3) ±15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage from emitter output to VCC− 30 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage from collector output to VCC− 40 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage from collector output to emitter output 40 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Duration of output short circuit (see Note 4) 40 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Package thermal impedance, θJA (see Notes 5 and 6): D package 97°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . .

P package 85°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . .

PS package 95°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating virtual junction temperature, TJ 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, Tstg −65° °C to 150 C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and

functional operation of the device at these or any other conditions beyond those indicated in the recommended operating conditions section of this

specification is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. All voltage values, unless otherwise noted, are with respect to the midpoint between VCC+ and VCC−.

2. Differential input voltages are at IN+ with respect to IN−.

3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage of ±15 V, whichever is less.

4. The output may be shorted to ground or to either power supply.

5. Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable

ambient temperature is PD = (TJ(max) − TA)/θJA. Operating at the absolute maximum TJ of 150°C can affect reliability.

6. The package thermal impedance is calculated in accordance with JESD 51-7.

recommended operating conditions

MIN MAX UNIT

(|VCC± | ≤ 15 V) Input voltage VCC− + 0.5 VCC+ − 1.5 V

VCC+ − V

CC− Supply voltage 3.5 30 V

Produkt Specifikationer

Mærke:	Texas Instruments
Kategori:	Ikke kategoriseret
Model:	LP211D
Type:	Komparator
Bredde:	5 mm
Dybde:	3.98 mm
Højde:	1.5 mm
Antal pr. pakke:	85 stk
Pakkedybde:	507 mm
Pakkebredde:	8 mm
Pakkehøjde:	3.94 mm
Opbevaringstemperatur (T-T):	-65 - 150 °C
Driftstemperatur (T-T):	-25 - 85 °C
Pakketype:	SOIC
Antal kanaler:	1 kanaler
Antal stifter:	8
Bredde (med stifter):	5 mm
Højde (med stifter):	1.75 mm
Dybde (med stifter):	6.19 mm
