This product is intended for installation only by expert users. Please consult with a qualified technician for installation.
Improper installation may result in damage to your equipment.
1. Please carefully read the manual before beginning the installation process !
2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.
3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either
Installation Guide
Parts List
To install the DP-D5 in your chassis,
placing a screw and washer that comes
with the DP-D5 on every screw hole that
matches the circles in below picture.
1 2 3
Distro Plate
Ax 1
LED Y Cable -
B x 1
Washer
C x 8
Screw
D x 8
G1/4 Stop Plug
E x 3
Wrench
F x 1
Controller
G x 1
Power Cable
H x 1
Controller Cable
I x 1
Bridge Cable
J x 1
MB SYNC Cable
K x 1
Velcro
L x 1
Circle 1 is designed for liquid outlet,
you may choose one of the ports to use.
Circle 2 is designed for liquid inlet,
you may choose one of the ports to use.
Circle 3 is designed for liquid fill,
you may choose one of the ports to use.
Circle 4 is the drain port.
Assembly example can refer to
the following figure.
4
To avoid air bubble
during liquid cooling
system working, please
fill the reservoir with
coolant to the line
(Normal coolant level)
5
Connect the LED Y-Cable onto
the Distro Plate.
Patented
16.8 Million Color
BA
Pacific Core P5 DP-D5 Plus
1
1
4
1
2
2
3
Installation Guide
68
7
I

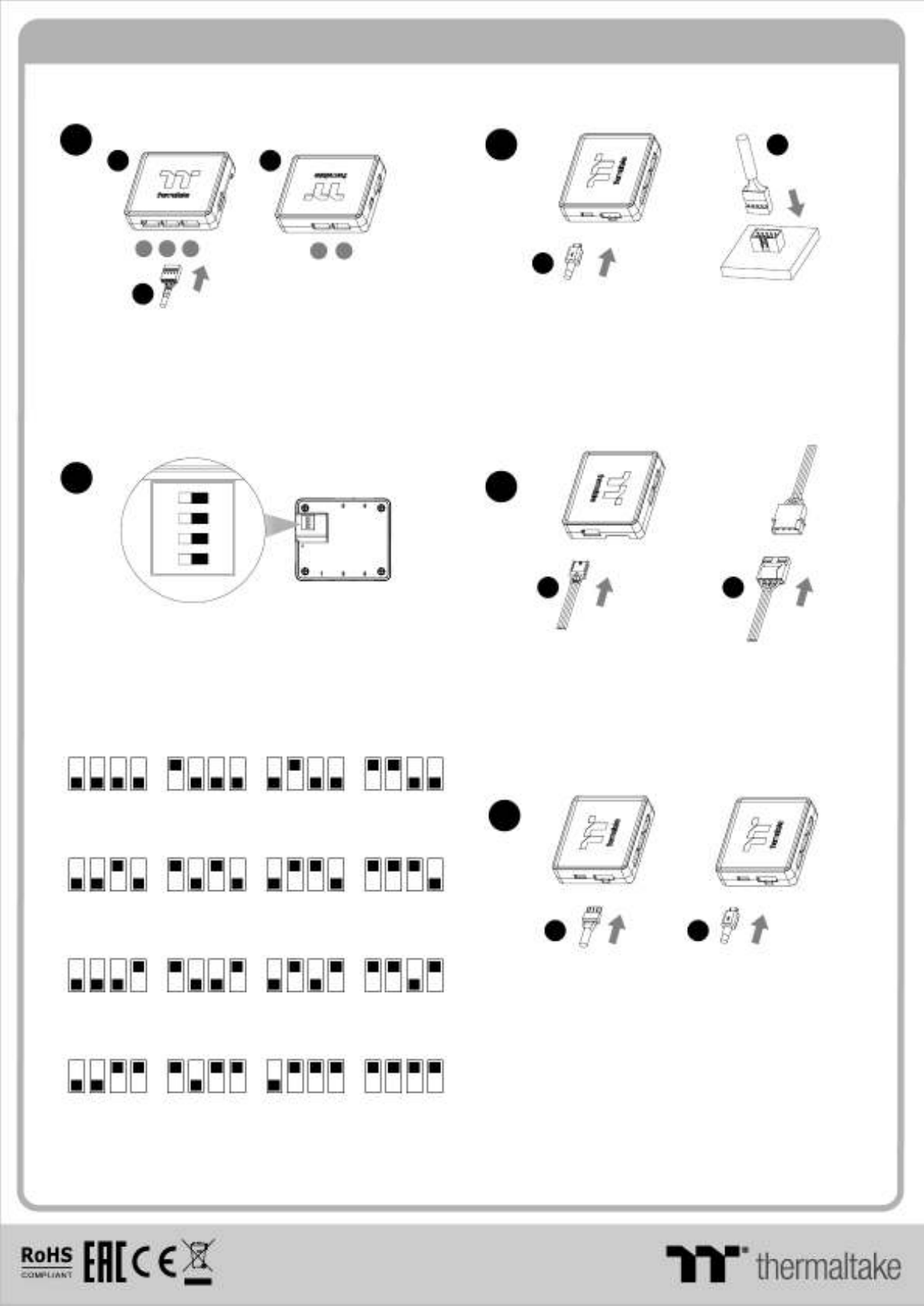

Connect the reservoir cable onto the controller.
Set the DIP switch on the back side of the controller
to assign the number of the controller
NO .1
ON
1 2 3 4
NO .3
ON
1 2 3 4
NO .2
ON
1 2 3 4
NO .4
ON
1 2 3 4
NO .9
ON
1 2 3 4
NO .1 1
ON
1 2 3 4
NO .1 0
ON
1 2 3 4
NO .1 2
ON
1 2 3 4
NO .5
ON
1 2 3 4
NO .7
ON
1 2 3 4
NO .6
ON
1 2 3 4
NO .8
ON
1 2 3 4
9
NO .1 3
ON
1 2 3 4
NO .1 5
ON
1 2 3 4
NO .1 4
ON
1 2 3 4
NO .1 6
ON
1 2 3 4
Connect the controller cable onto the mainboard
(USB 2.0 9 pin) and controller.
10
If you want to connect two or more connectors,
you can use the bridge cable to connect the
controllers.
Connect the power cable to the 4pin Molex
connecter and controller.
H
J
© 2019 Thermaltake Technology Co., Ltd. All Rights Reserved.
www.thermaltake.com
123 45
G G
O N
1 2 3 4
I
H
J
B
