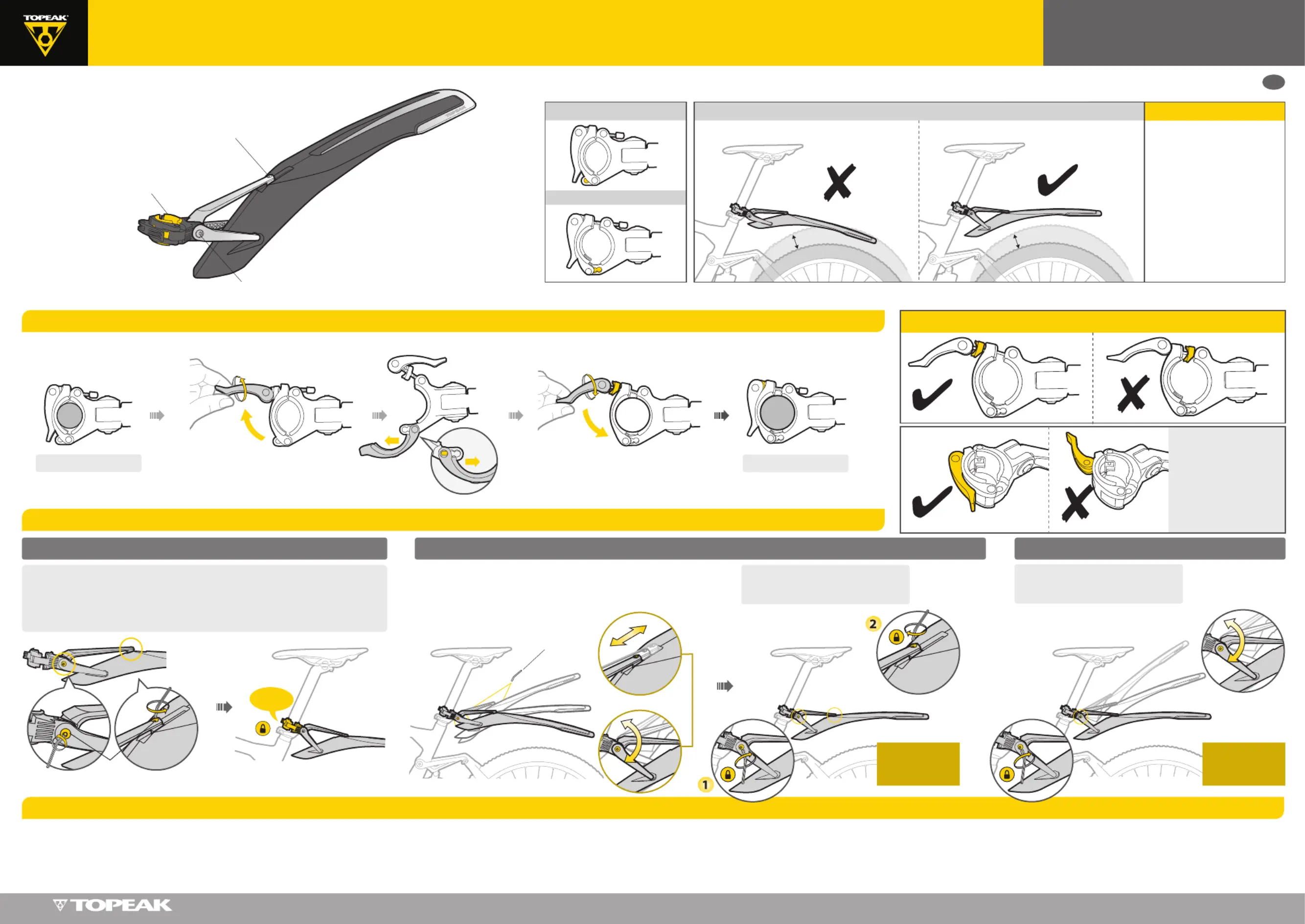

DeFender

™

Prepare to Ride

SLIP JOINT CLAMP FITS ø25.4 - ø31.2 mm and ø30.8 - ø34.9 mm

Tool required: 3mm Allen key

Angle Adjusting Bolt

Seatpost Clamp

(ts ø25.4 - ø34.9 mm)

Fits ø25.4 - ø31.2 mm

Fits ø30.8 - ø34.9 mm

Back view

WARNING

When adjusting the angle

of DeFender

™

XC11, make

sure the clearance between

DeFender

™

XC11 and the tire

is larger than wheel

suspension travel of the

bike. Incorrect clearance

may cause damage to

DeFender

™

XC11, your bike,

or potentially cause

bodily harm.

For Rear Suspension Bike

Fits ø30.8 - ø34.9 mm

Fits ø25.4 - ø31.2 mm

M-TC9626-GB 1/12

Please contact your Topeak dealer with any questions.

For USA customer service call : 1-800-250-3068

www.topeak.com

2-year Warranty: All mechanical components against manufacturer defects only.

Warranty Claim Requirements

To obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the warranty begins on the date of manufacture. All warranties will

be void if the product is damaged due to user crash, abuse, system alteration, modication, or used in any way not intended as described in this operating manual.

* The specications and design are subject to change without notice.

WARRANTY

INSTALLATION & ANGLE ADJUSTMENT

NOTES :

Loosen angle adjusting bolts first for installation and angle adjustment. Do

not loosen them more than 4 counterclockwise rotations or the adjusting

bolt assembly will be disassembled and may be damaged.

IMPORTANT NOTE

Always keep the

quick release lever

in the proper

closed position

when DeFender

™

XC11 is mounted

on bike.

LOCK

Angle

Adjusting

Bolt

INSTALLATION

B. ONE PIVOT ANGLE ADJUSTMENT

3mm Allen key

A. DUAL PIVOTS ANGLE ADJUSTMENT

Retighten the adjusting bolts once

the correct angle is achieved.

Recommended

Torque:

2-4 Nm

Retighten the adjusting bolt once

the correct angle is achieved.

Recommended

Torque:

2-4 Nm

User's Guide

Produkt Specifikationer

Mærke:	Topeak
Kategori:	Ikke kategoriseret
Model:	DeFender XC11
Type:	Bagskærm
Bredde:	620 mm
Dybde:	102 mm
Højde:	70 mm
Vægt:	215 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort, sølv
Materiale:	Plast
Overfladefarvning:	Monokromatisk
Kompatibel hjulstørrelse (maks):	27.5 "
