Owner's Manual

4POSTRAILKIT1U

Adjustable Rackmount Shelf Kit

Important Safety Instructions

Español / Français : 3

Installation

1111 W. 35th St., Chicago, IL 60609 USA

www.tripplite.com/support

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual.

Failure to comply may invalidate the warranty and cause property damage or personal injury.

• Use the included shelves and mounting hardware to mount your rackmount equipment in a 4-post rack or rack enclosure. If you need to install your

equipment in a 2-post rack, order Tripp Lite’s 2-Post Rackmount Kit (model: 2POSTRMKITWM).

• The instructions in this manual are for common rack and rack enclosure types and may not be appropriate for all mounting applications. You must

determine the fitness of hardware and procedures before mounting. If hardware or procedures are not suitable for your application, contact the

manufacturer of your rack or rack enclosure for a solution.

• Rackmount equipment may be extremely heavy—be careful when moving or lifting equipment. Use one or more assistants if necessary.

Square-Hole Rack Installation

Secure the shelves B to the mounting rails permanently using the

included screws and cup washers C as shown.

Tighten all screws before proceeding.

Warning: Do not attempt to install your equipment until you

have inserted and tightened the required screws.

WARRANTY

REGISTRATION

chance to win a FREE Tripp Lite

product www.tripplite.com/warranty

With the aid of an assistant (if necessary), lift your equipment and slide

it into the shelves. Attach the equipment mounting brackets to the

forward mounting rails with user-supplied screws and washers. Tighten

all screws securely.

201204261 93-3215.indb 1 6/6/2012 10:48:08 AM

Warranty Registration

1111 W. 35th St., Chicago, IL 60609 USA

www.tripplite.com/support

Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a

FREE Tripp Lite product!

No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Installation (continued)

201204261 93-3215-EN

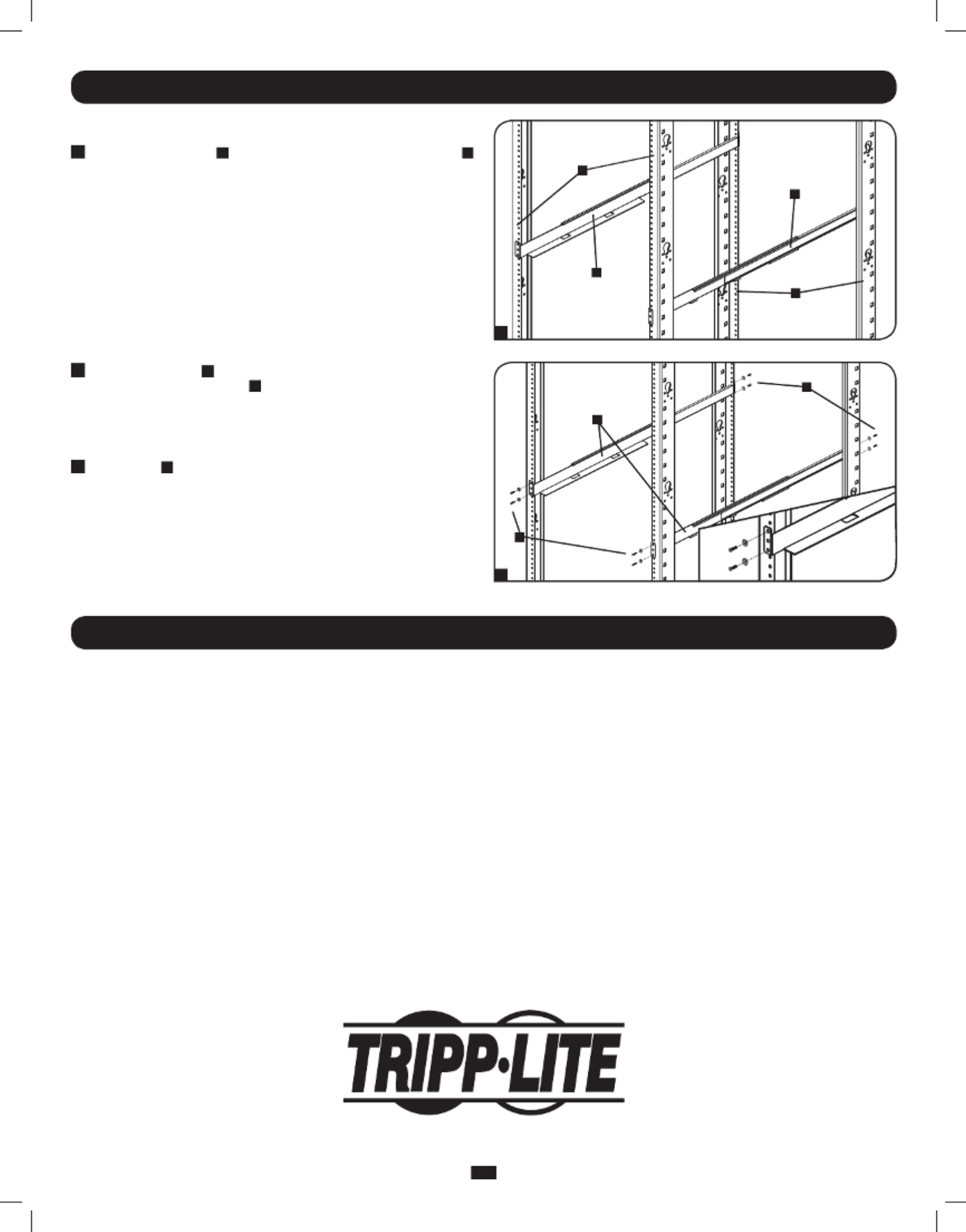

Threaded-Hole Rack Installation

1 Align the mounting rail A along the inside surface of the rack posts B

so that the flanges on the ends of the rail wrap around to the front and

rear surfaces of the posts and the rail holes meet the threaded holes on

the rack post.

2 Secure the shelves A to the mounting rails permanently using user-

supplied screws and washers C for your rack as shown.

Tighten all screws before proceeding.

Warning: Do not attempt to install your equipment until you

have inserted and tightened the required screws.

3 Follow step 2 of the Square-Hole Rack Installation instructions to

securely mount your 1U equipment.

201204261 93-3215.indb 2 6/6/2012 10:48:12 AM

Produkt Specifikationer

Mærke:	Tripp Lite
Kategori:	Ikke kategoriseret
Model:	4POSTRAILKIT1U
Bredde:	37.8 mm
Dybde:	520.7 mm
Højde:	43.7 mm
Vægt:	1320 g
Produktfarve:	Sølv
Pakkevægt:	1320 g
Pakkedybde:	538.5 mm
Pakkebredde:	55.9 mm
Pakkehøjde:	50.8 mm
Harmoniseret systemkode (HS):	7326.90.8688
Hovedkassen højde (udvendigt):	137.2 mm
Hovedkassens længde (udvendigt):	546.1 mm
Hovedkassens bruttovægt (udvendigt):	13790 g
Hovedkassens bredde (udvendigt):	284.5 mm
Oprindelsesland:	Kina
Produkter pr. hovedkasse (udvendigt):	10 stk
Hovedkasse (udvendig) GTIN (EAN/UPC):	10037332173314
Stativ-montering:	Ja
Maksimal vægtkapacitet:	68 kg
Justerbar:	Ja
Rackkapacitet:	1U
