Owner’s Manual

1U Rackmount Console

(for KVM Switch or Server)

Model:

B021-000-19-HD

Series No:

AGCB6533

1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Package Contents

Features

• Rackmount console (LCD monitor, keyboard, touch pad) in an integrated 1U rackmountable housing

• Sleep mode when the monitor cover is closed

• Rackmountable in standard 19-inch rack (1U)

• Includes rackmount brackets

• Supports resolutions up to 1366 x 768 pixels

• Includes a USB 2.0 Pass-Through port which can be used to provide easy access to a USB port on a connected device

(KVM switch or computer)

• Includes a DVI-I port for connecting to a DVI or VGA* server or KVM switch

*VGA server connection using the included DVI-to-VGA adapter

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation and operation of the rackmount console

described in this manual. Read all instructions thoroughly before attempting to install or operate the rackmount console. Failure to comply

will void the warranty and could damage the rackmount console or connected equipment.

WARNING:

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the

life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence

of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Español p. 5 Français p. 9

• 1U Rackmount Console

• KVM Cable Kit (DVI-I, USB)

• DVI (Female) to VGA (Male) Adapter

• AC Power Cord

• Owner’s Manual

• Mounting Brackets

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $50 value!

www.tripplite.com/warranty

Introduction

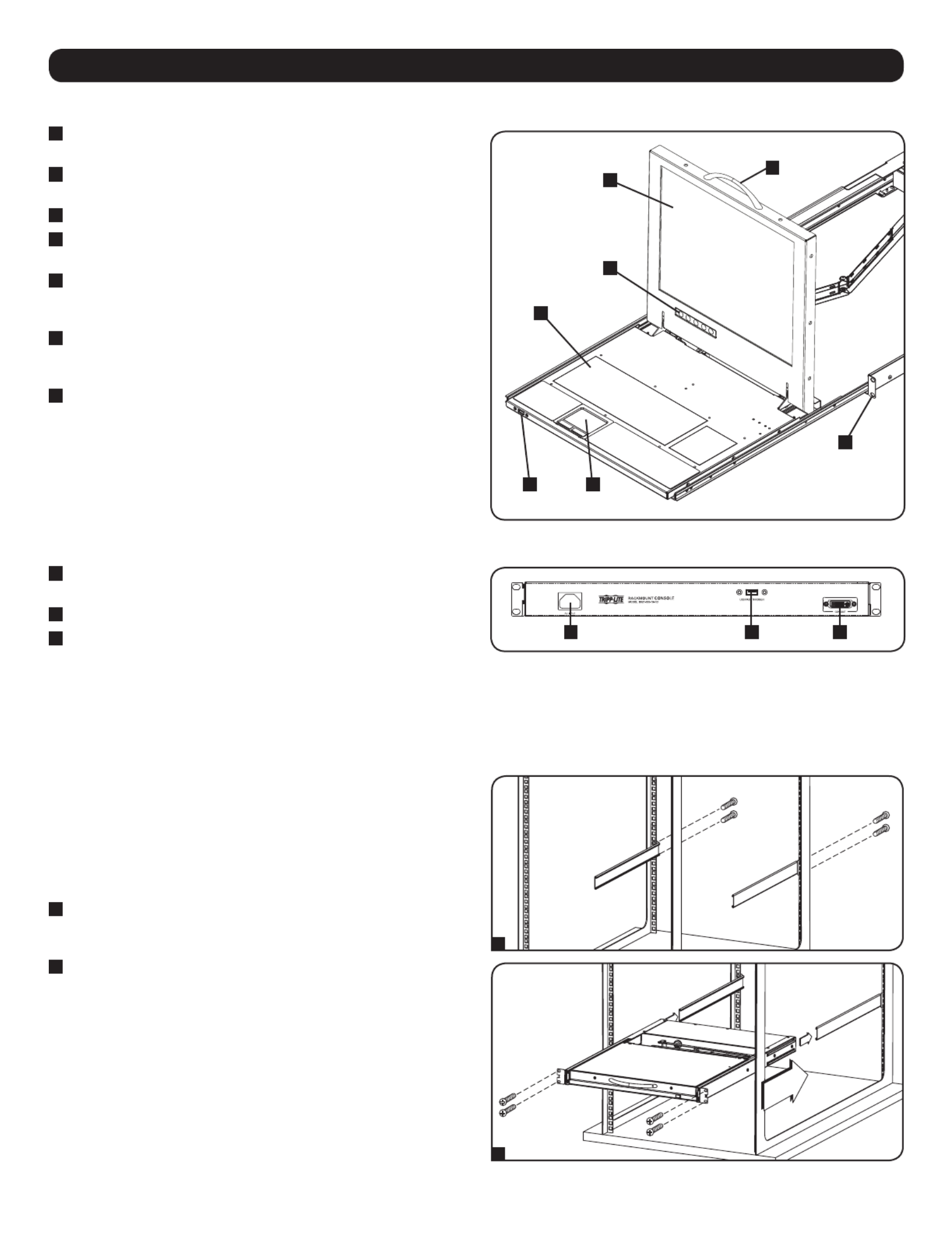

Front View

1 Handle: Pull to slide the module out; push to slide the

module in.

2 LCD Monitor: After sliding the module out, flip up the cover to

access the LCD monitor, keyboard and touch pad.

3 Keyboard

4 Rackmounting Brackets: The brackets secure the chassis to

a standard 19-inch rack or rack enclosure.

5 2-Button Touchpad: Press the left button to left-click, press

the right button to right-click. Scroll up and down the screen by

running finger up or down the far right side of the touchpad.

6 Console and LCD Controls: The controls located here include

the console power On/Off button, and the buttons used to

control the position and picture setting of the LCD display.

7 Pass-Through USB Port: This port is inactive until a USB A

Male/Male cable (Tripp Lite model UR020-Series) is used to

connect the Pass-Through port on the back of the console to a

USB port on a computer or KVM switch. When active, a USB

device connected to the front of the console will then be

available for use with the connected computer or KVM switch.

Rear View

1 Console Port Section: Connects the console to your server or

KVM switch with the included KVM cable kit.

2 Power Socket: The AC power cord plugs in here.

3 Pass-Through USB Port: This port is connected to the Pass-

Through USB port on the front of the console. The front Pass-

Through port is active when a USB A Male/Male cable (Tripp Lite

model UR020-Series) is connected between the Pass-Through

port on the back and a USB port on a KVM or server.

Rackmounting

Tripp Lite's 1U Rackmount Console is designed for mounting in a 1U

rack system. The various mounting options are explained in the

sections that follow.

Standard 4-Post Rackmounting

The standard rackmounting brackets that come attached to the unit

allow it to be installed in standard 1U racks by a single individual.

1 Slide out the rear mounting brackets from the console and

mount both brackets (separate from the console) to the inside

rear of a standard 1U rack system using user-supplied screws.

2 Take the console and gently slide it into the two rear-mounted

brackets in the rack and secure the console in place by inserting

user-supplied screws.

2-Post Rackmounting

The console can also be mounted in a 2-post rack using the

optional 2-Post Rackmount Kit (Tripp Lite model B019-000). The

mounting hardware allows for the console to be opened with the

drawer in any position. The kit provides added stability and prevents

the console frame from twisting. See the B019-000 Owner's Manual

for detailed mounting instructions.

12 3

Produkt Specifikationer

Mærke:	Tripp Lite
Kategori:	Ikke kategoriseret
Model:	B021-000-19-HD
Bredde:	477 mm
Dybde:	692.4 mm
Højde:	43.2 mm
Vægt:	12600 g
Brugervejledning:	Ja
Produktfarve:	Sort
Skærmtype:	LCD
Pakkevægt:	18010 g
Pakkedybde:	828 mm
Pakkebredde:	596.9 mm
Pakkehøjde:	160 mm
Skærm diagonal:	19 "
Opbevaringstemperatur (T-T):	-25 - 60 °C
Strømforbrug (standby):	5 W
Strømforbrug (typisk):	30 W
Driftstemperatur (T-T):	0 - 40 °C
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Frekvens for vekselstrømsadapter:	50/60 Hz
Kabler inkluderet:	AC,KVM
Certificering:	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	160 mm
Hovedkassens længde (udvendigt):	828 mm
Hovedkassens bruttovægt (udvendigt):	18010 g
Hovedkassens bredde (udvendigt):	596.9 mm
Oprindelsesland:	Taiwan
Indgangsstrøm:	0.7 - 1.2 A
Produkter pr. hovedkasse (udvendigt):	1 stk
Monteringsbeslag inkluderet:	Ja
Port til konsol:	VGA
Relativ luftfugtighed:	20 - 90 %
Rackkapacitet:	1U
