Side 1/4

Owner’s Manual

DVI over Cat5 Extender Kit

Model: B140-101X-U

• Extends a DVI-D signal up to 125 ft. at 1920 x 1200 @ 60Hz, including 1080p

• Receiver unit features built-in Equalization control for video adjustment

• USB Micro-B port supplies power to the receiver unit; no external power supply

required

• Compatible with all operating systems

• Plug and play; no software or drivers required

• HDCP compatible

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Package Includes

• B140-101X-U Transmitter Unit

• B140-101X-U Receiver Unit

• USB Micro-B Cable – 3 ft.

• Screwdriver

• Owner’s Manual

15-08-270-9334A4.indd 1 10/1/2015 11:55:29 AM

Optional Accessories

System Requirements

Installation

• N202-Series Cat6 24 AWG Solid Wire

Patch Cables

• UR05C-Series USB Micro-B Charge-

Only Cables

• U280-002-W12 2-Port USB Wall

Charger

• UAC-1B 1-Port USB Wall Charger

• Computer with a DVI output port • Display with a DVI input port

1. Connect the transmitter unit’s built-in DVI cable to the computer’s DVI output port.

2. Connect the RJ45 port on the transmitter to the RJ45 port on the receiver using

Cat5e/6 cable.

Note: See the installation diagram for maximum extension distance and video resolutions.

3. Connect the receiver unit’s built-in DVI cable to a DVI monitor input port.

4. Connect the included USB Micro-B cable to the receiver unit and a USB port on

the display or a USB wall outlet.

5. Power on the DVI source and DVI display. The green LEDs on the transmitter’s

and receiver’s RJ45 ports will illuminate to indicate they are receiving power. The

orange LEDs on the receiver’s RJ45 ports will illuminate to indicate it is receiving a

signal from the source.

The orange LED on the transmitter’s RJ45 port does not illuminate.Note:

6. If necessary, adjust the Equalization control on the remote unit to improve the

video image.

Note: An improper Equalization setting can cause the monitor to not display a picture. Try

each Equalization setting until an acceptable image is displayed.

Notes:

1. Test to make sure the entire installation works properly before pulling cables through ceilings/

walls.

2. To achieve maximum distance and performance, 24 AWG solid wire Cat5e/6 cable must be

used. The use of stranded wire Cat5e/6 cable or cable with a gauge size higher than 24 AWG

will result in a shorter extension distance. All Tripp Lite N202-Series Cat6 cables are made with

24 AWG solid-wire cabling.

3. Make sure the power to all connected devices is turned off prior to installation.

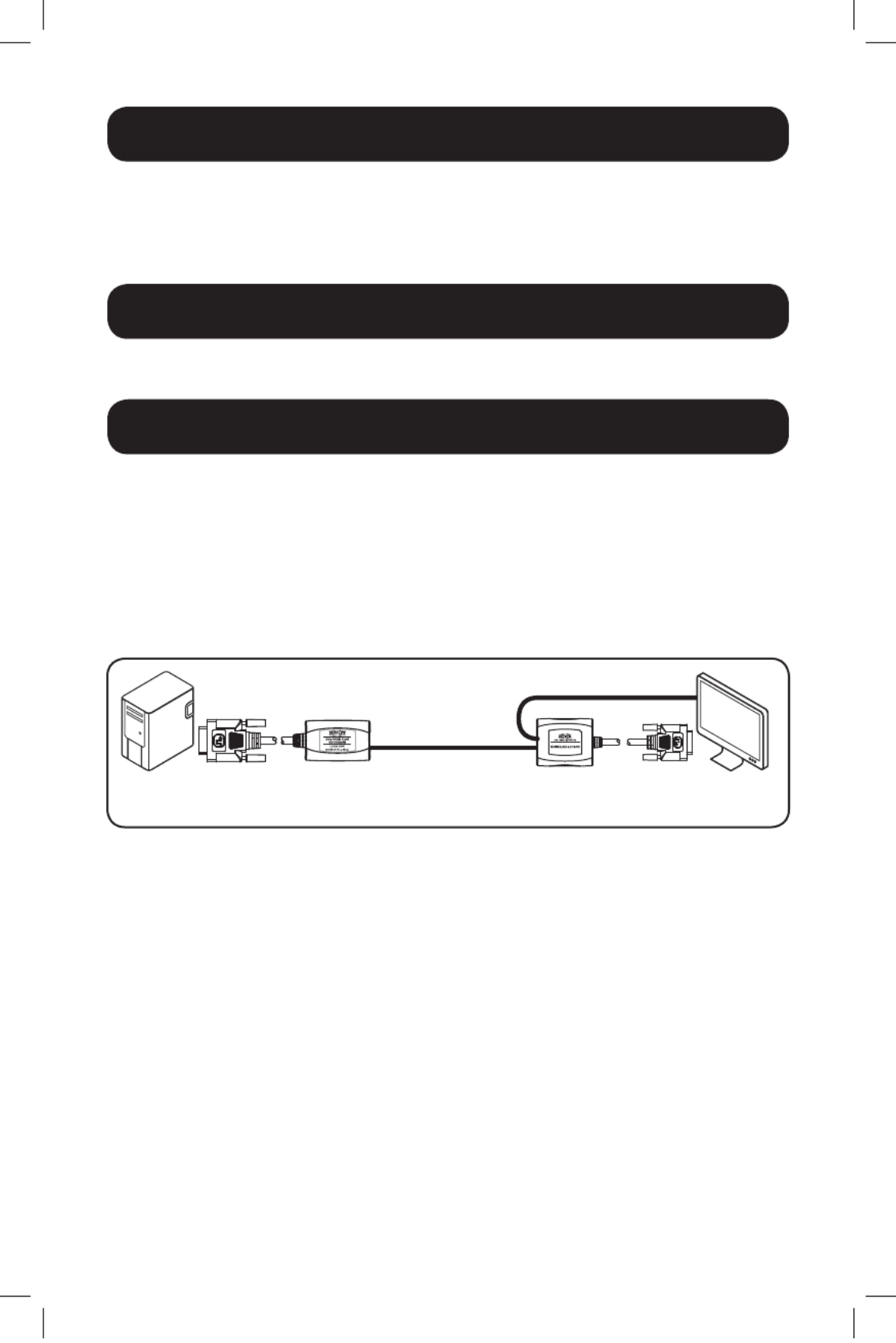

24 AWG SOLID-WIRE

CAT5/6 CABLE

DVI

COMPUTER

DVI DISPLAY

Up to 125 ft. at 1080p,

1920 x 1200

15-08-270-9334A4.indd 2 10/1/2015 11:55:29 AM

Produkt Specifikationer

Mærke:	Tripp Lite
Kategori:	Ikke kategoriseret
Model:	B140-101X-U
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	200 g
Pakkedybde:	43.9 mm
Pakkebredde:	142 mm
Pakkehøjde:	199.9 mm
Understøttede videotilstande:	480i,480p,720p,1080i,1080p
HDCP:	Ja
Ethernet LAN-porte (RJ-45):	2
Ethernet LAN:	Ja
Maksimal opløsning:	1920 x 1200 pixel
Understøttede grafikopløsninger:	640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900 (WXGA+),1600 x 1200 (UXGA)
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	8525.50.3035
Hovedkassen højde (udvendigt):	455.9 mm
Hovedkassens længde (udvendigt):	152.9 mm
Hovedkassens bruttovægt (udvendigt):	2250 g
Hovedkassens bredde (udvendigt):	213.1 mm
Oprindelsesland:	Taiwan
Plug and play:	Ja
Stik:	DVI-D
Produkter pr. hovedkasse (udvendigt):	10 stk
Maksimal driftstilstand:	38 m
Hovedkasse (udvendig) GTIN (EAN/UPC):	10037332190236
Video porttype:	DVI
Understøttede kabeltyper:	Cat5e,Cat6
Antal videoporte:	2
