Quick Start Guide

High Density Copper/Fiber Cassette Solutions

Modular Cassette Enclosures*

Models: N484-00U (1-Cassette Capacity), N484-01U (4-Cassette Capacity),

N484-01U-MINI (4-Cassette Capacity; No Front Door; No Wire Management)

Cassettes*

Models: N484-1M24-LC12, N484-2M12-LC12, N484-3M8-LC12, N484-3M8L12S, N484-2M24-6M12, N484-12LC,

N484-12M12, N484-12M24, N484-12RJ

* This Quick Start Guide covers installation of all N484-Series enclosures and cassettes.

Any new models, even if not listed above, will include this Quick Start Guide and can be installed by following its instructions.

Español 3 • Français 5 • Русский 7

Installing the Cable Management Bracket:

The panel rails on the back of the N484-01U enclosure contain mounting notches that allow the cable management bracket to be installed on

the top or bottom of the rails. Choose the top or bottom notches, insert the bracket into the notches, and slide the bracket inward to secure it

into place.

Installing the Panel Shield Bracket:

The N484-01U contains a shield bracket that attaches to the front of the enclosure. Mounting holes are located on the right and left front panel

rails for bracket attachment. To attach the bracket, pull on the pull tabs found on each side of the bracket to move the connected pins outward.

Then insert the bracket into the enclosure. Once the pins are lined up with the mounting holes on the panel rail sides, release the pull tabs to

lock the bracket into place. The bracket slides up and down to allow access to the enclosure or to shield it from contact.

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

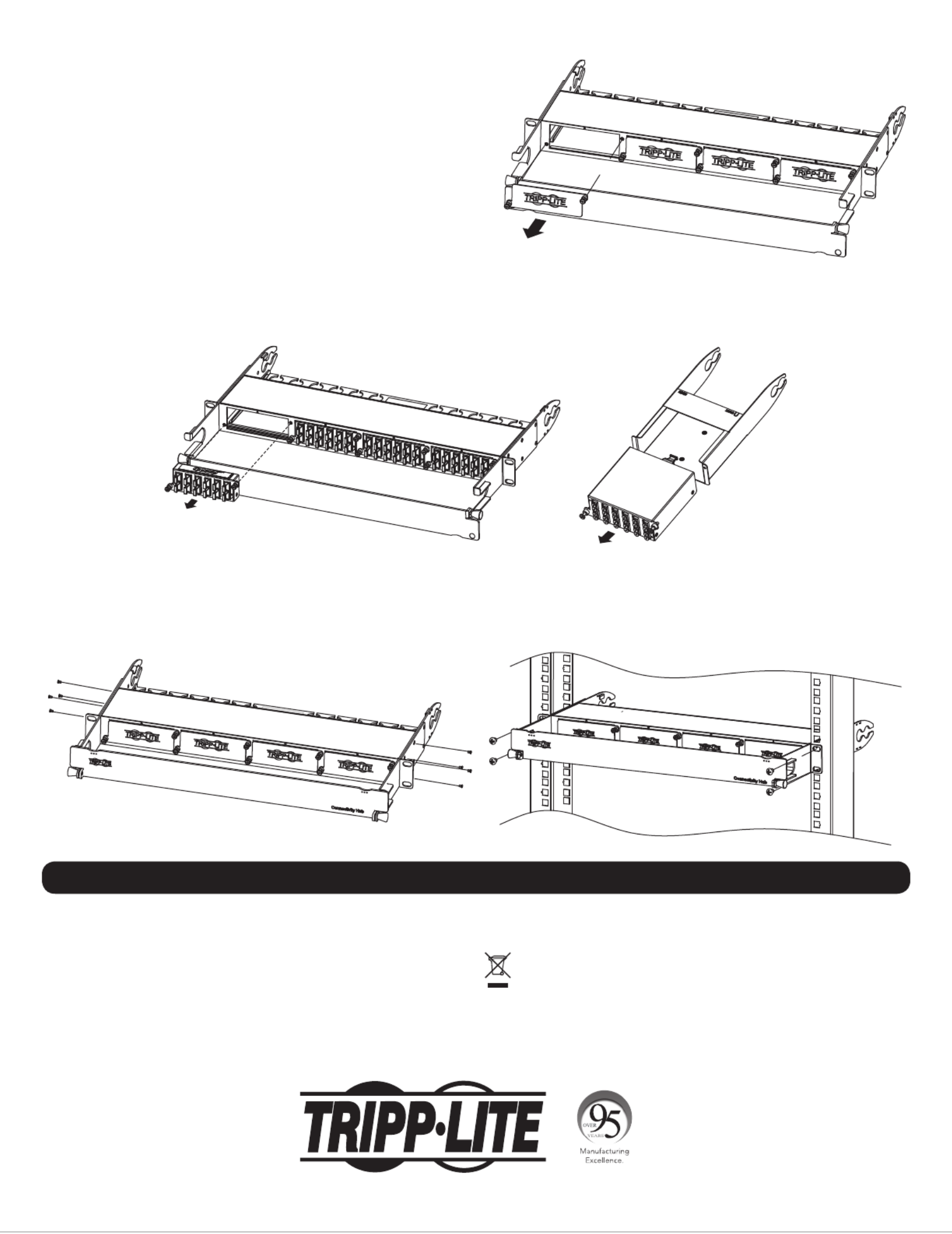

Inserting/Removing Blanking Panels:

The N482-01U comes with pre-installed blanking panels attached to the

enclosure’s cassette slots. When a slot is needed, remove the blanking

panel by unscrewing the thumbscrews located on the opposite side of

the blanking panel. To attach a blanking panel to an empty cassette slot,

line up the blanking panel with the corresponding holes on the enclosure.

Then tighten the thumbscrews to secure the blanking panel into place.

Inserting/Removing Cassettes:

After creating an open slot by removing a blanking panel, line up a cassette with the corresponding slot on the enclosure and insert the cassette

into the slot. Then tighten the thumbscrews to secure it into place. To remove a cassette, unscrew the thumbscrews to release it from the

enclosure.

Mounting the Enclosure:

To mount the enclosure, you must ﬁrst fasten the included mounting brackets to the sides of the enclosure with the supplied screws. Once

attached, secure the enclosure to the rack with appropriate user-supplied mounting hardware.

Note: The N484-00U’s magnets are designed for mounting onto the metal surface of a rack enclosure, cable manager or other similar structure. Ideal placement

should be away from direct contact with any active equipment (e.g., UPS, server, switch).

Warranty and Product Registration

Limited Lifetime Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material

and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller

will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by Buyer delivering

or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609.

Seller will pay return shipping charges. Visit tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE

OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF

MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; THIS WARRANTY

EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an

implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitations or exclusions may not apply to you. This Warranty gives you speciﬁc legal rights, and you may have other rights

which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for

the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or

warranty as to the suitability or ﬁtness of these devices for any speciﬁc application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a

chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers

buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the

failure of the life support equipment or to signiﬁcantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Speciﬁcations are subject to change without notice. Photos and illustrations

may differ slightly from actual products.

19-09-356 93-341E_revE
