Warranty

Registration:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

Owner’s Manual

3-Phase 0U Power

Distribution Units

Switched PDU3VSR-Series & PDU3XVSR-Series

Monitored PDU3VN-Series & PDU3XVN-Series

Important Safety Insructions 2

Installation 2

Digital Load Meter 7

Features 9

Conﬁguration and Operation 11

Service 11

Warranty and Warranty Registration 12

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Español 13

Français 25

201104185 93-2906.indb 1 5/18/2011 1:35:57 PM

1-1

1-4

1-2 1-3

Important Safety Instructions

Installation

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during

the installation, operation, and storage of this product. Failure to heed these

instructions and warnings may affect the product warranty.

• The PDU provides convenient multiple outlets, but it DOES NOT provide surge or line noise

protection for connected equipment.

• The PDU is designed for indoor use only in a controlled environment away from excess

moisture, temperature extremes, conductive contaminants, dust or direct sunlight.

• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that

eliminate the connection to ground.

• The power requirement for each piece of equipment connected to the PDU must not exceed

the individual outlet’s load rating.

• The total power requirement for equipment connected to the PDU must not exceed the

maximum load rating for the PDU.

• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable

parts inside.

• Do not attempt to modify the PDU, including the input plugs and power cables.

• Do not attempt to use the PDU if any part of it becomes damaged.

• Do not attempt to mount the PDU to an insecure or unstable surface.

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signicantly

affect its safety or effectiveness is not recommended. Do not use this equipment in the

presence of a ammable anesthetic mixture with air, oxygen or nitrous oxide.

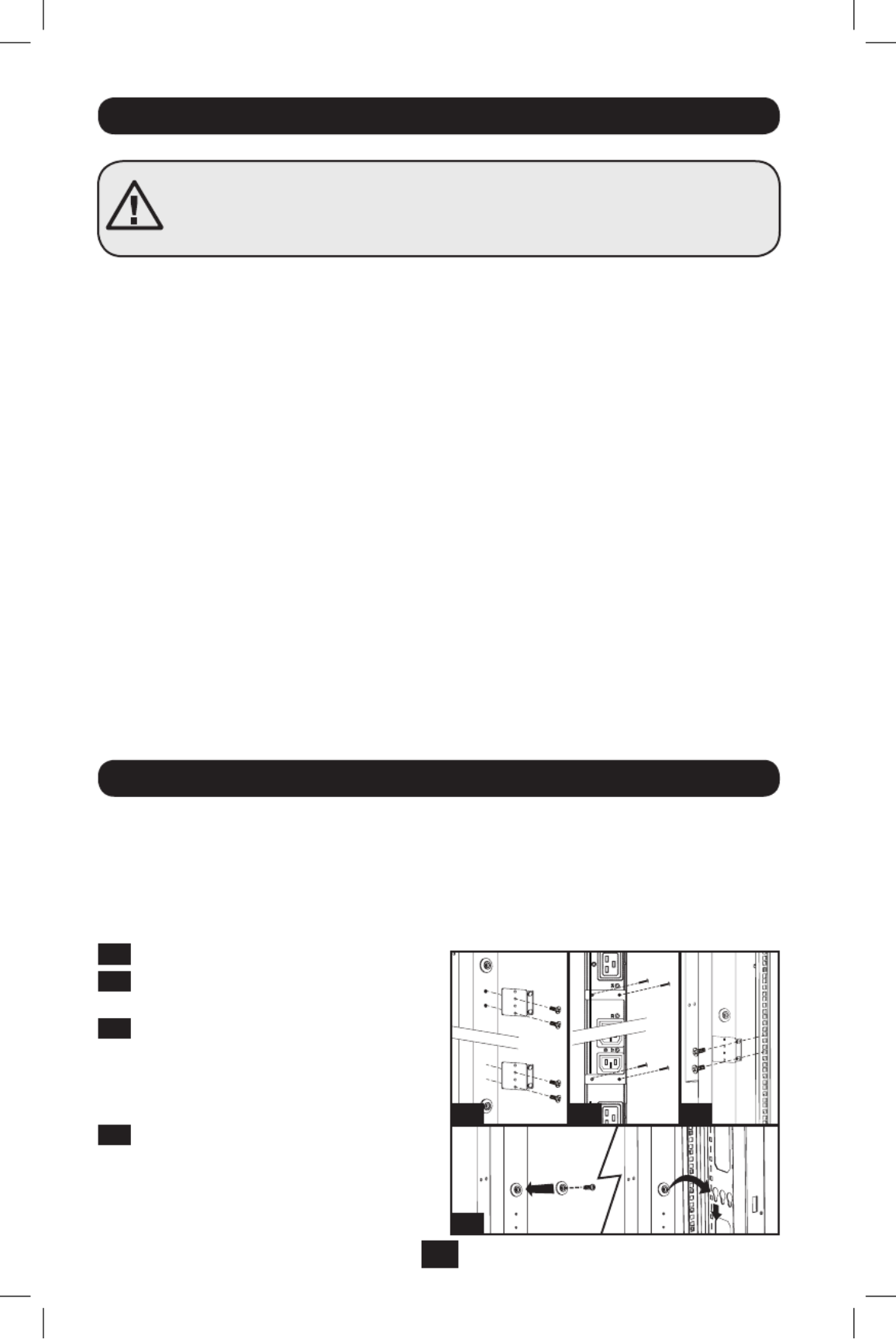

Mounting the PDU

Note: The illustrations may differ somewhat from your PDU model. Regardless of conﬁguration, the user must

determine the ﬁtness of hardware and procedures before mounting. The PDU and included hardware are designed

for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting

conﬁgurations may vary. Screws for attaching the mounting brackets and cord retention shelf to the PDU are

included. Use only the screws supplied by the manufacturer, or their exact equivalent (#6-32, ¼” ﬂat head).

1-1 Attach the mounting brackets to the PDU.

1-2 (Optional) Attach the cord retention

bracket(s) to the PDU.

1-3 Attach the PDU to a vertical rail in your

rack or rack enclosure. (Use the mounting

hardware that came with your rack or rack

enclosure to attach the mounting brackets

to the rail.)

1-4 For toolless mounting, attach the included

mounting buttons to the PDU. Position the

PDU as desired in the rack enclosure, align

the buttons with the rack mounting slots,

and slide the PDU into position.

201104185 93-2906.indb 2 5/18/2011 1:35:59 PM

Produkt Specifikationer

Mærke:	Tripp Lite
Kategori:	Ikke kategoriseret
Model:	PDU3XVN10G16
Bredde:	55.9 mm
Dybde:	90.9 mm
Højde:	1778 mm
Vægt:	5710 g
Produktfarve:	Sort
Pakkevægt:	7760 g
Pakkedybde:	1905 mm
Pakkebredde:	248.9 mm
Pakkehøjde:	157.5 mm
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Skærm:	LED
Husmateriale:	Stål
Dimensioner (BxDxH):	56 x 91 x 1778 mm
Certificering:	TAA, CE
LED-indikatorer:	Ja
Kabellængde:	3.05 m
Pakkens dimensioner (BxDxH):	245 x 1928 x 183 mm
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	355.6 mm
Hovedkassens længde (udvendigt):	1943.1 mm
Hovedkassens bruttovægt (udvendigt):	31890 g
Hovedkassens bredde (udvendigt):	508 mm
Oprindelsesland:	Kina
Produkter pr. hovedkasse (udvendigt):	4 stk
Montering:	Lodret
Input forbindertype:	IEC-309
Nominel udgangsspænding:	220-240 V
Nominel indgangsspænding:	380-400 V
Load-kapacitet:	11500 VA
Maksimal input strøm pr. fase:	16 A
Output-forbindere:	30 x C13, 6 x C19
Administrationsplatform:	Web / SMTP / SNMP v2/v3 / Telnet, SSH, FTP, DHCP, BOOTP, NTP
AC udgange, antal:	36 AC stikkontakt(er)
AC stikkontakt typer:	C13 coupler, C19 coupler
Rackkapacitet:	0U
Strøm (maks.):	16 A
PDU-typer:	Overvåget
