SmartRack® Enclosures

(Series Numbers: AG-039A, AGAC7006, AGAC7761,

AG-0324, AG-00BE, AG-0325, AGAC7454, AG-0534, AG-0535, AG-0536)

Owner’s Manual

Important Safety Instructions 2

Overview 2

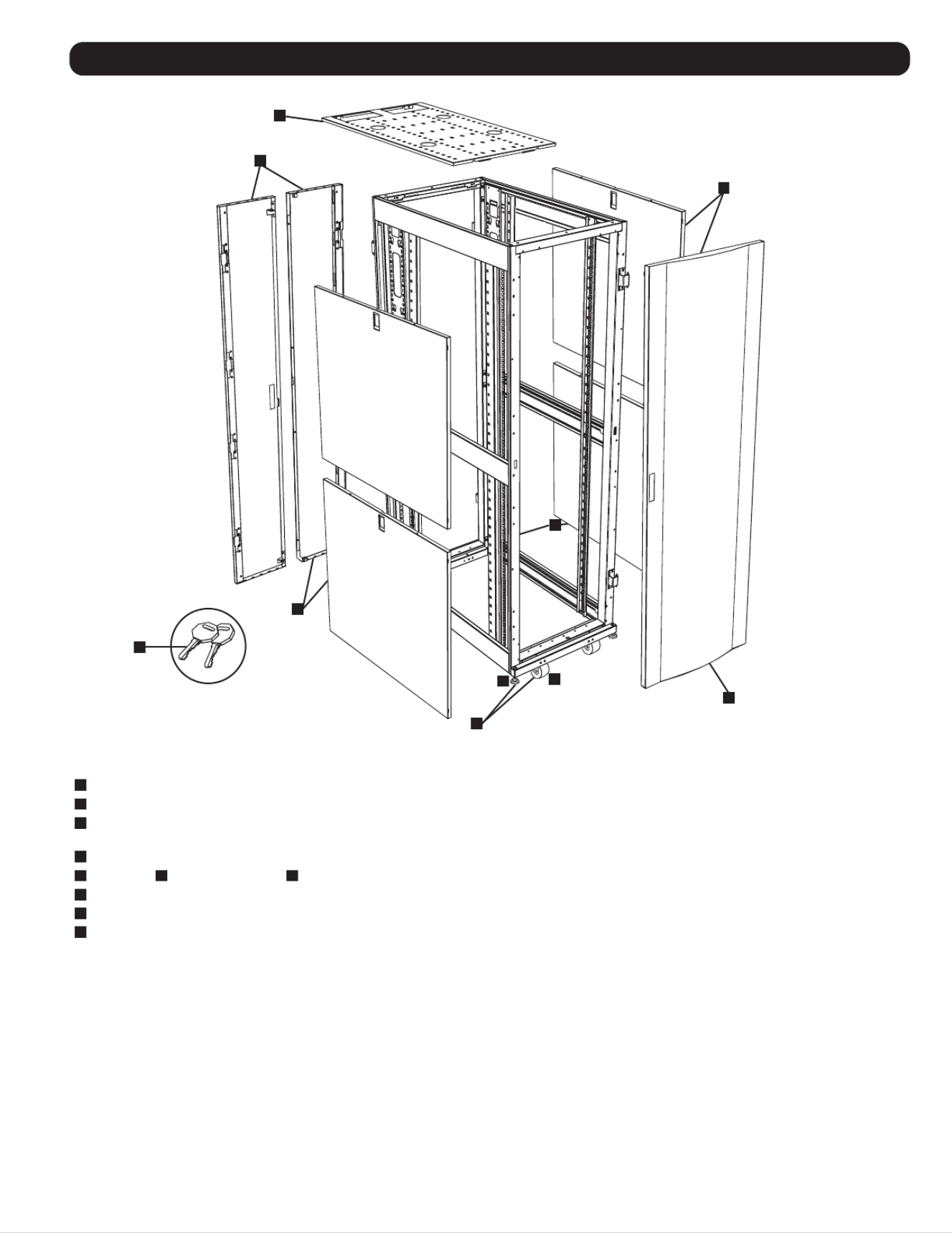

Feature Identification 3

Enclosure Installation 4

Preparation 4

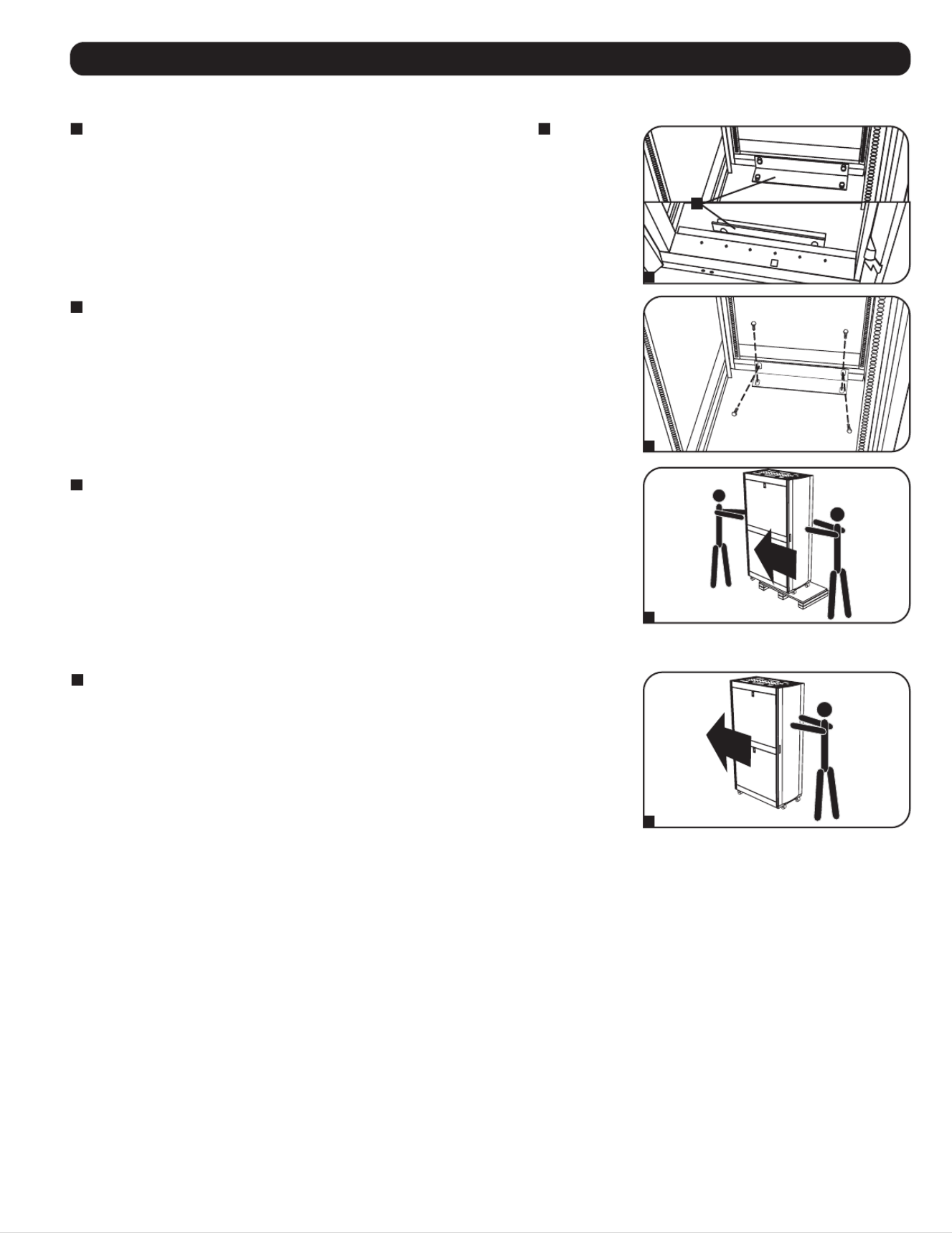

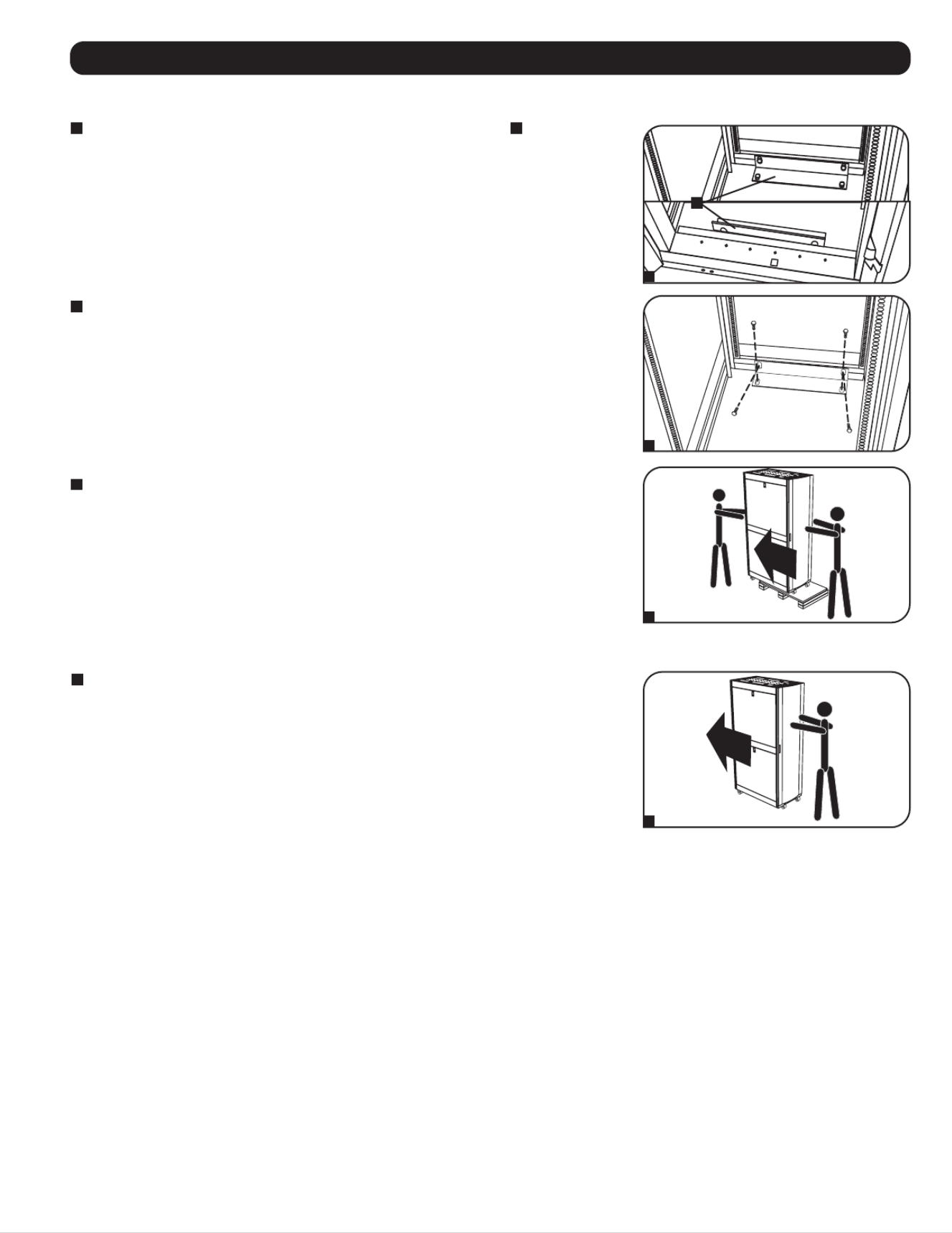

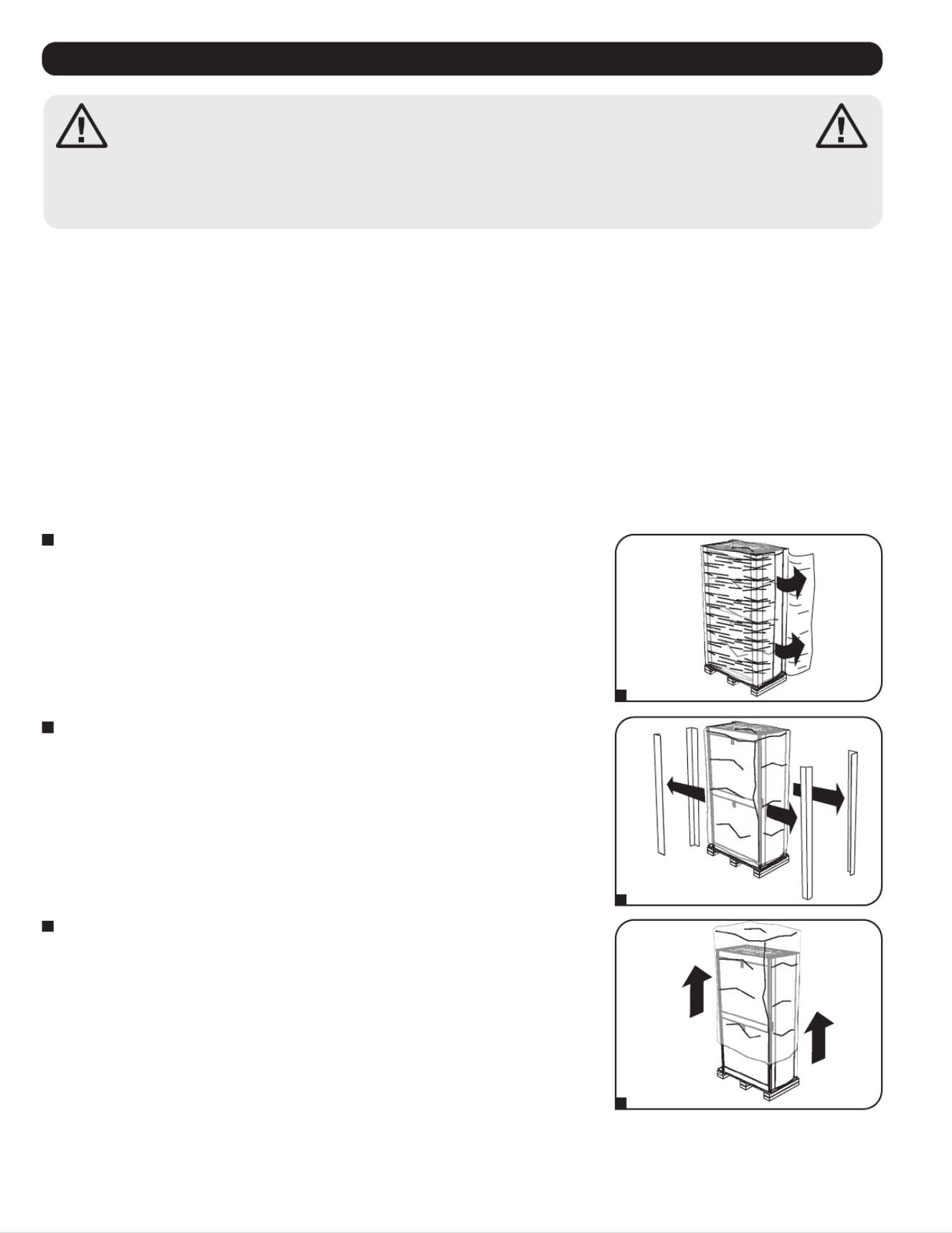

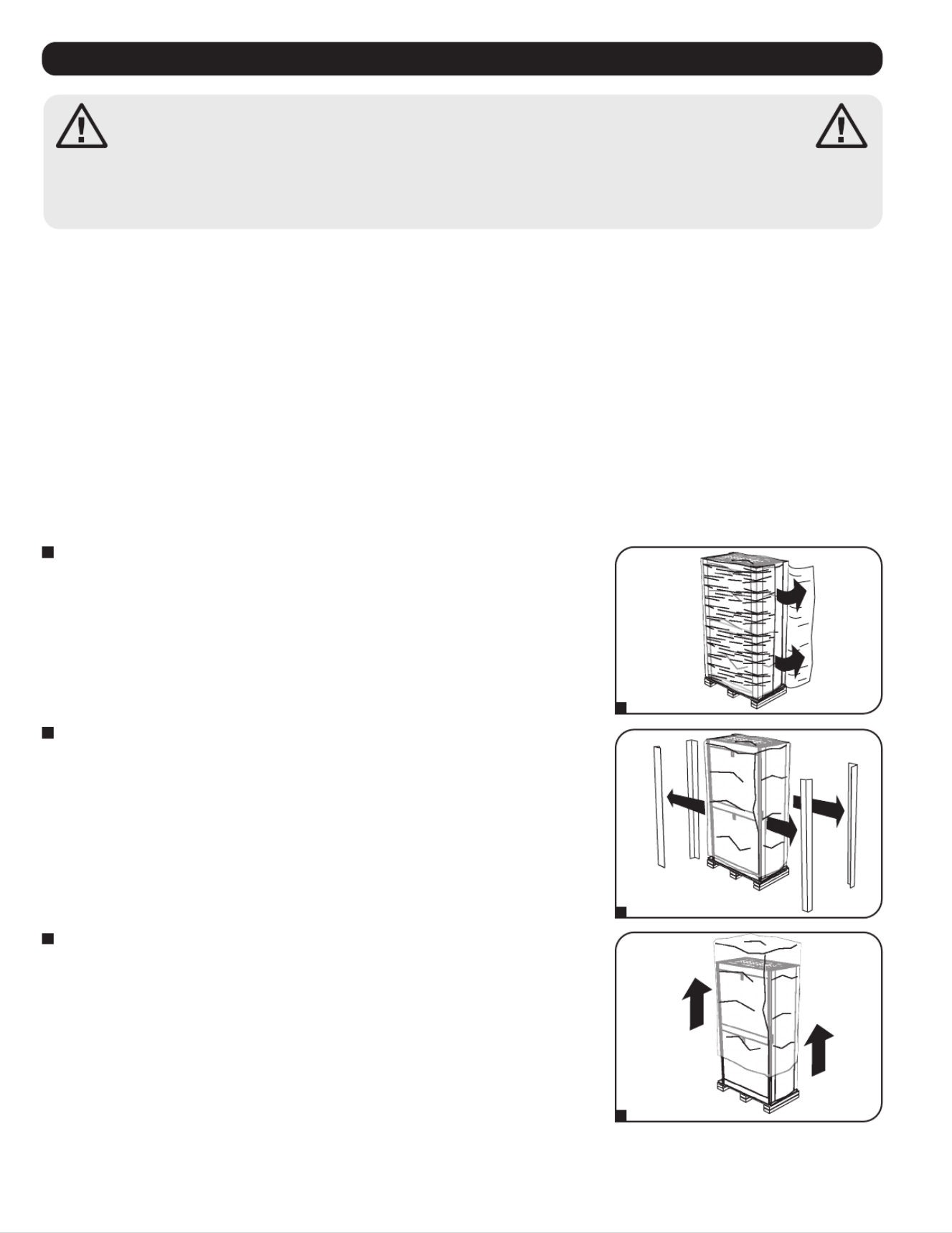

Unpacking 4

Placement 5

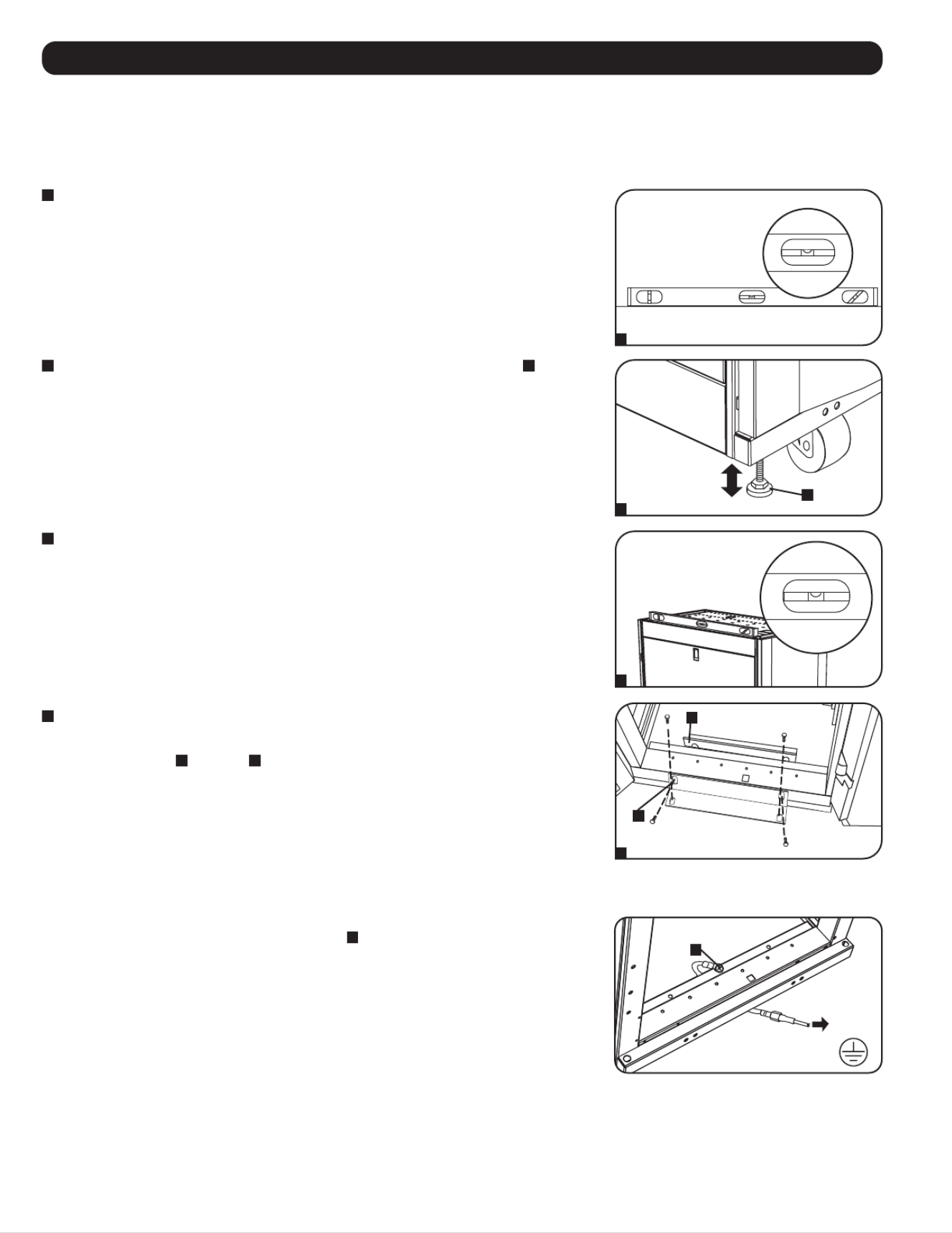

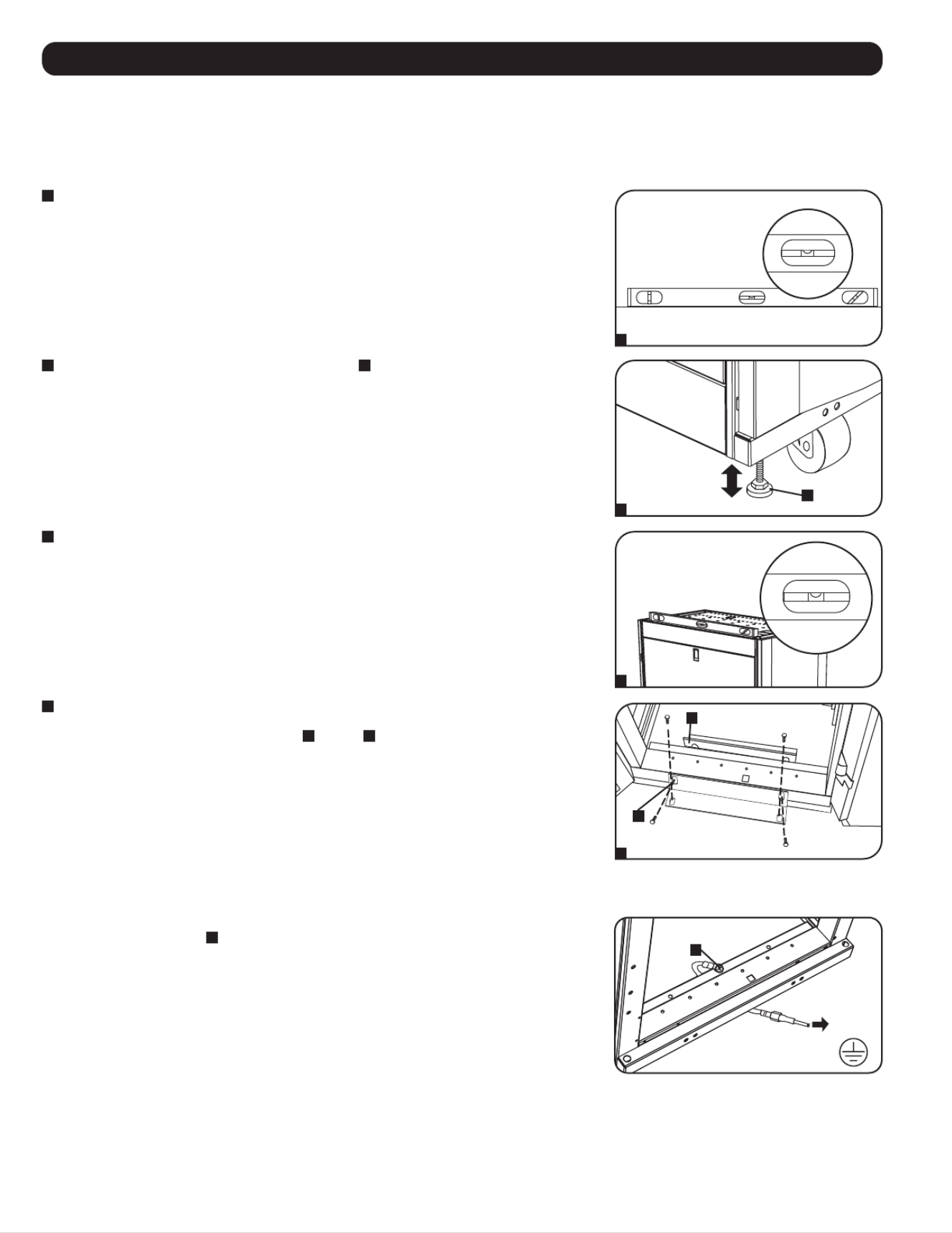

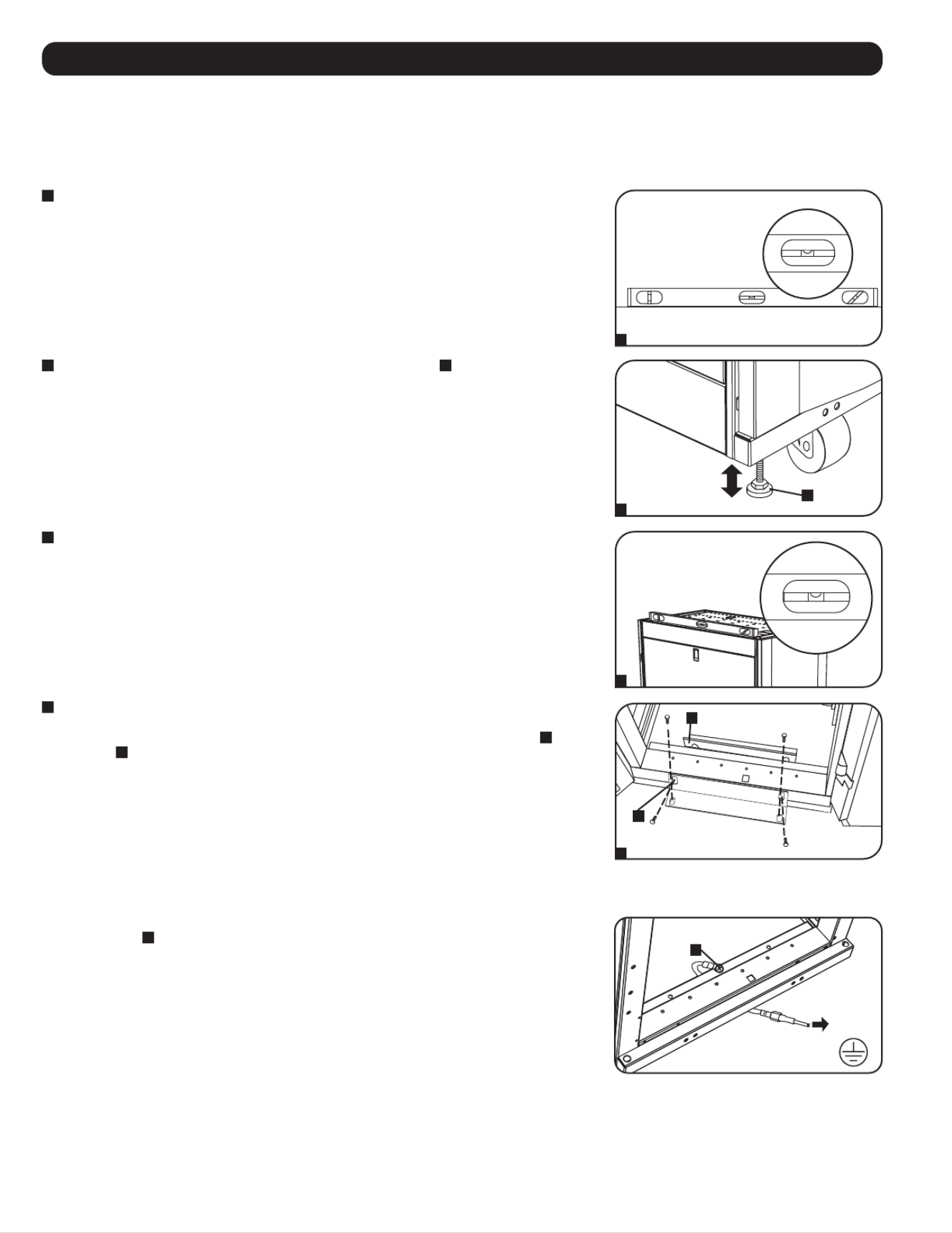

Leveling 6

Ground Connection 6

Enclosure Configuration 7

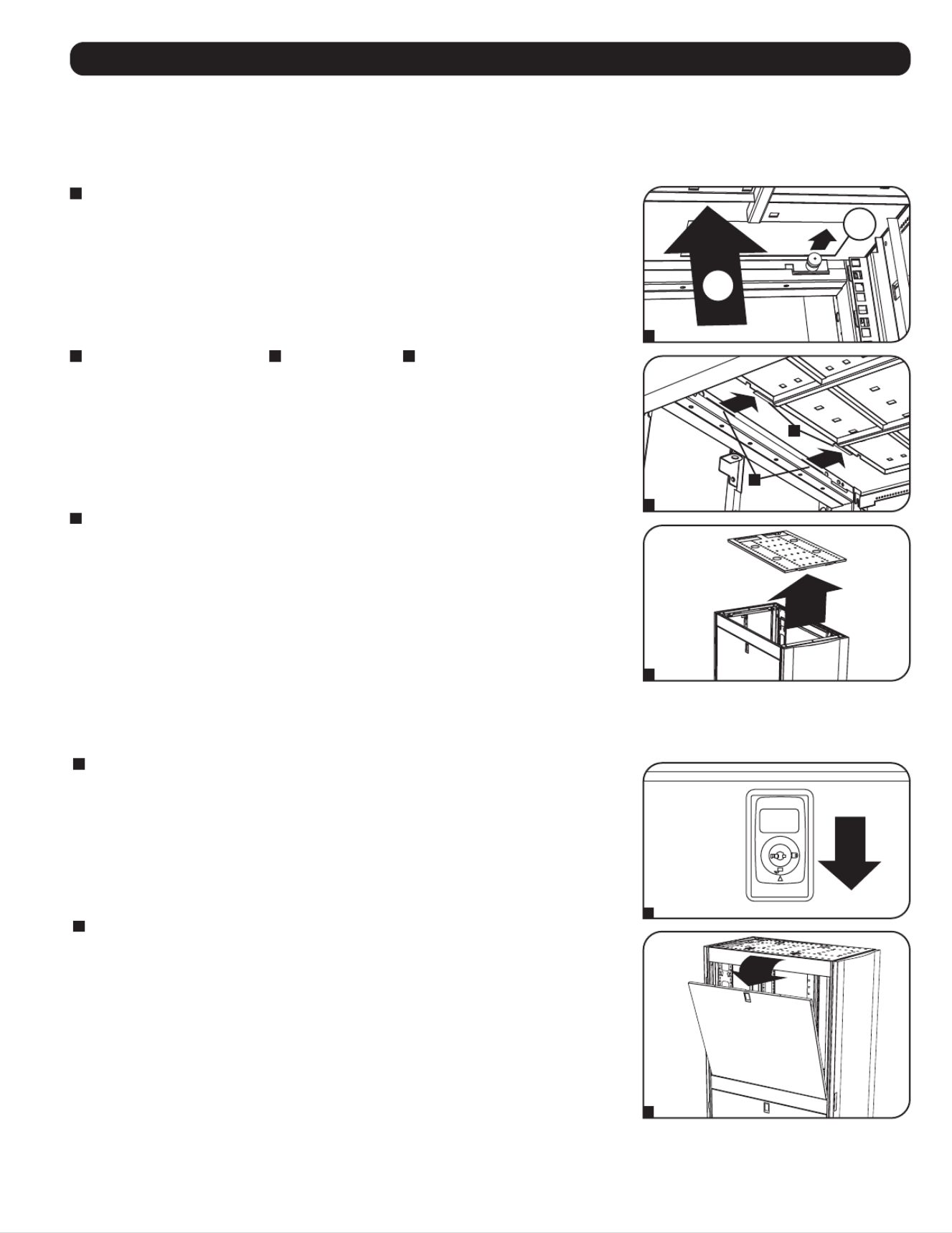

Adding or Removing Front and Rear Doors 7

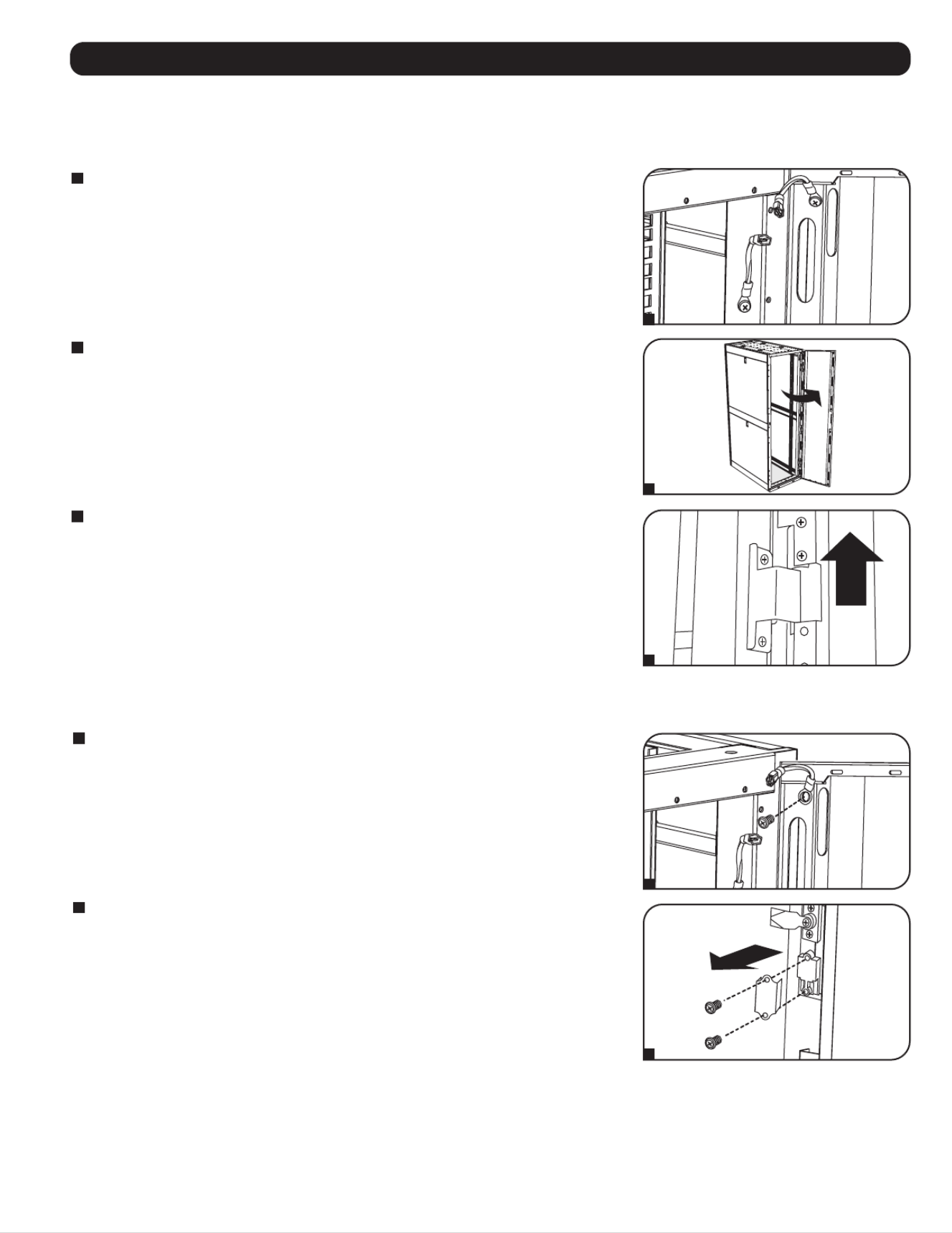

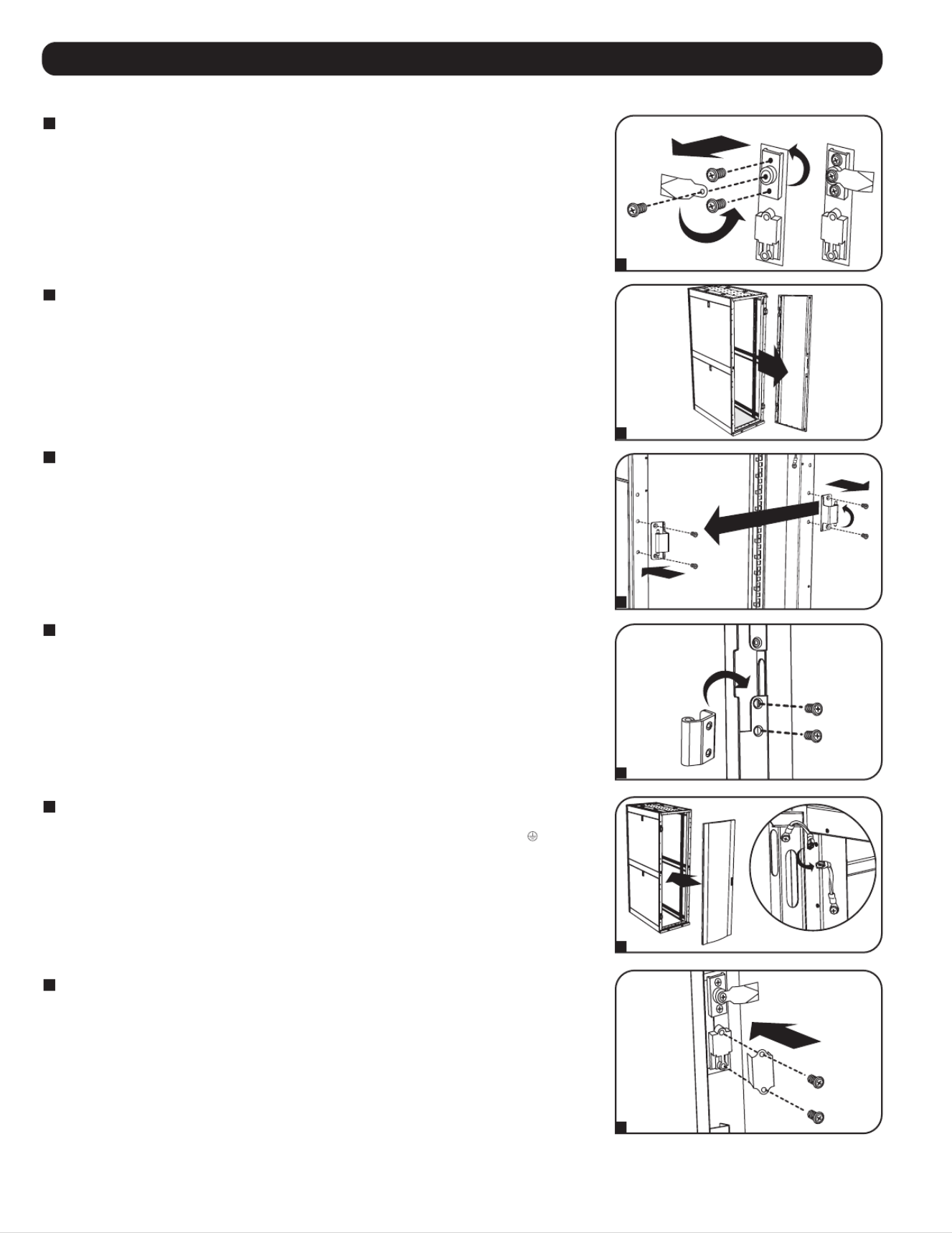

Reversing Front Door 7

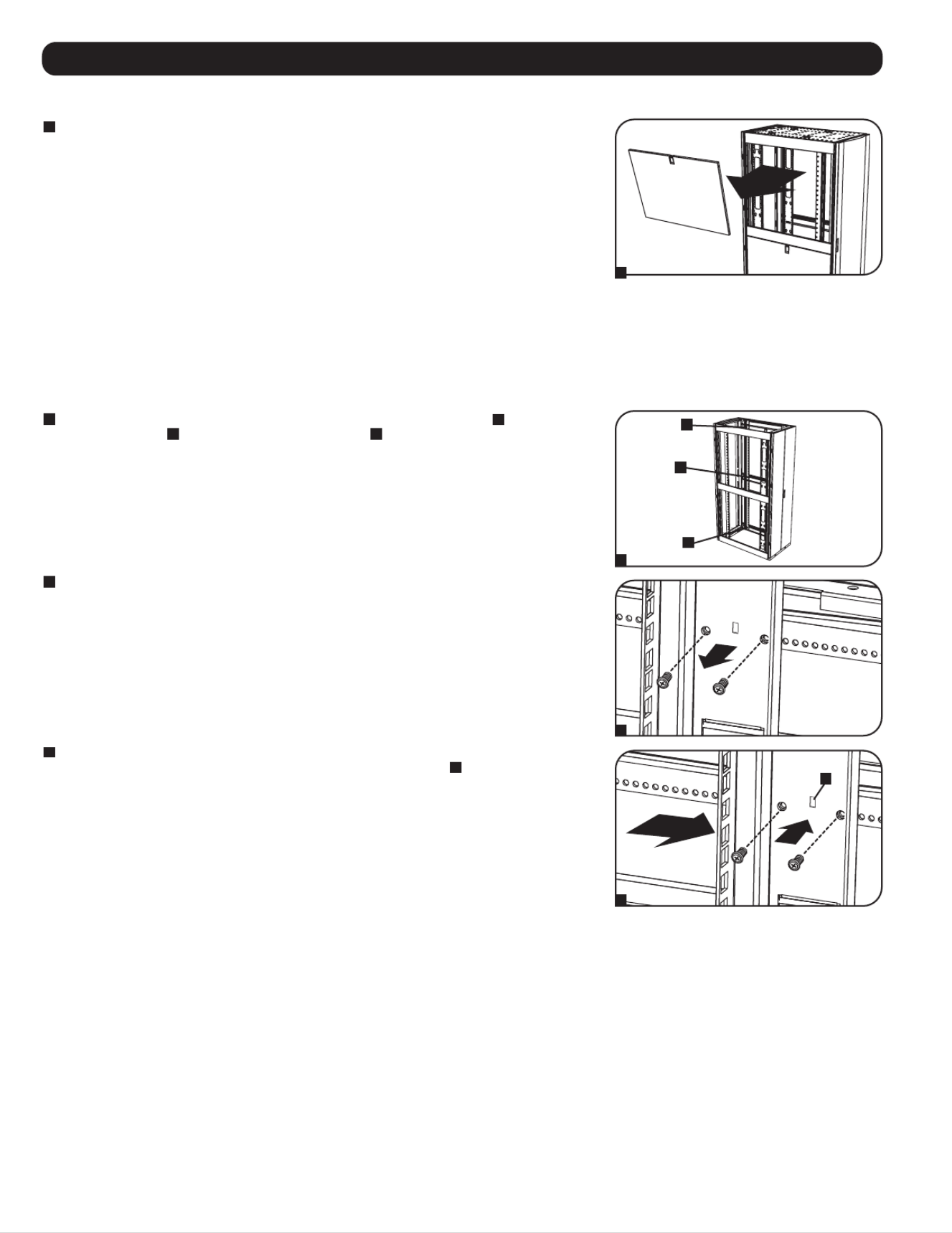

Adding or Removing Roof Panel 9

Adding or Removing Side Panels 9

Adjusting Mounting Rails and Cable Management Rails 10

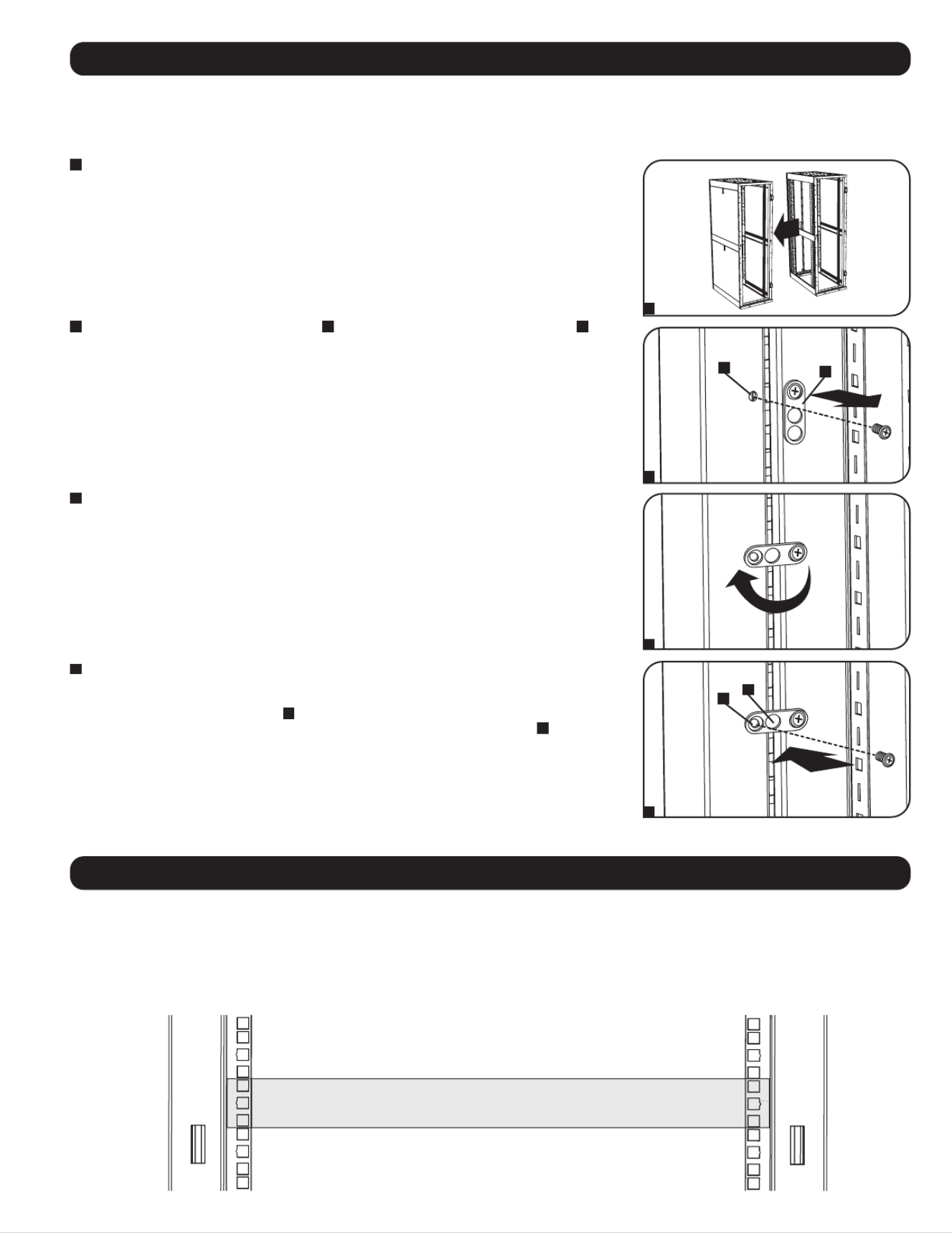

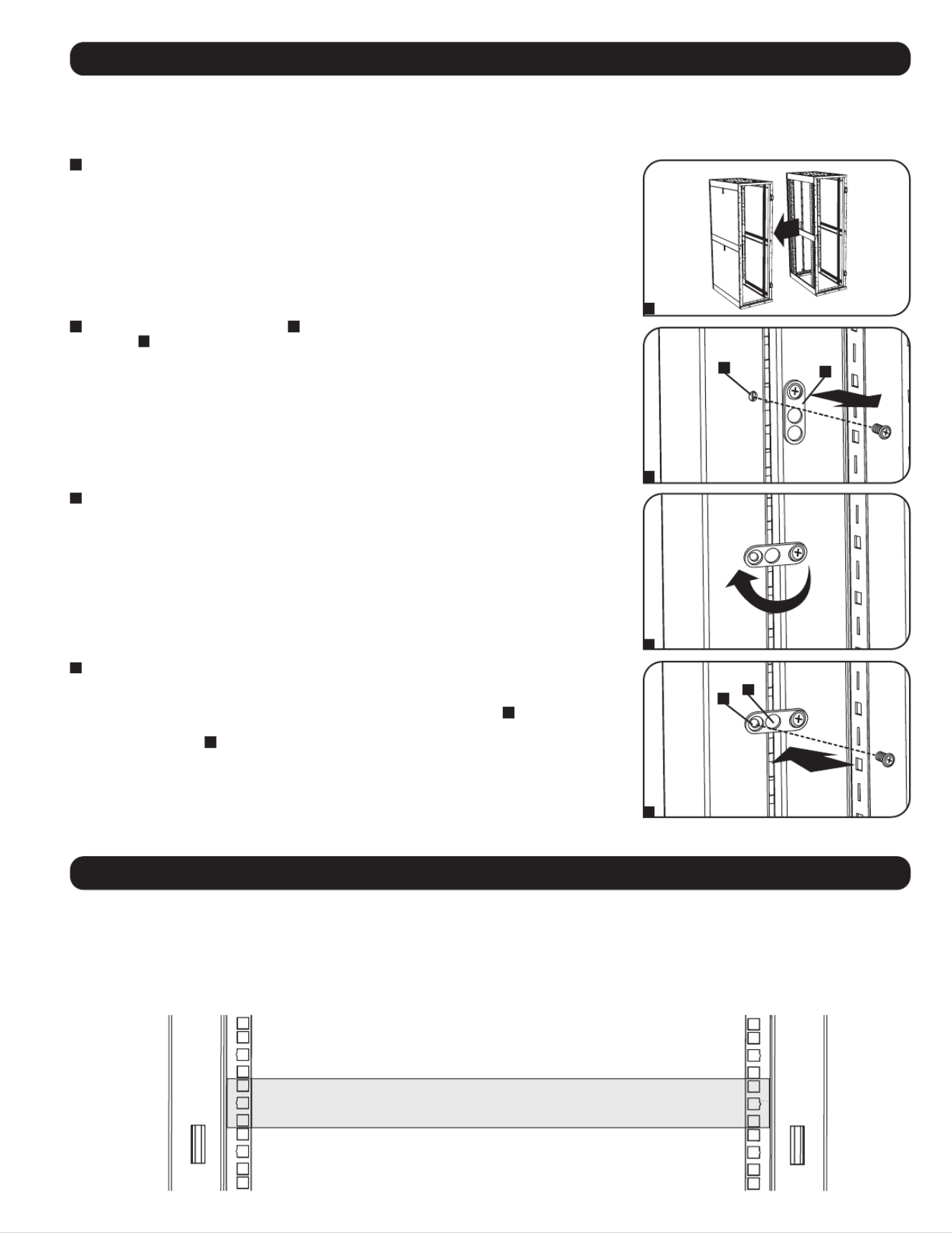

Combining (Baying) Enclosures 11

Equipment Installation 11

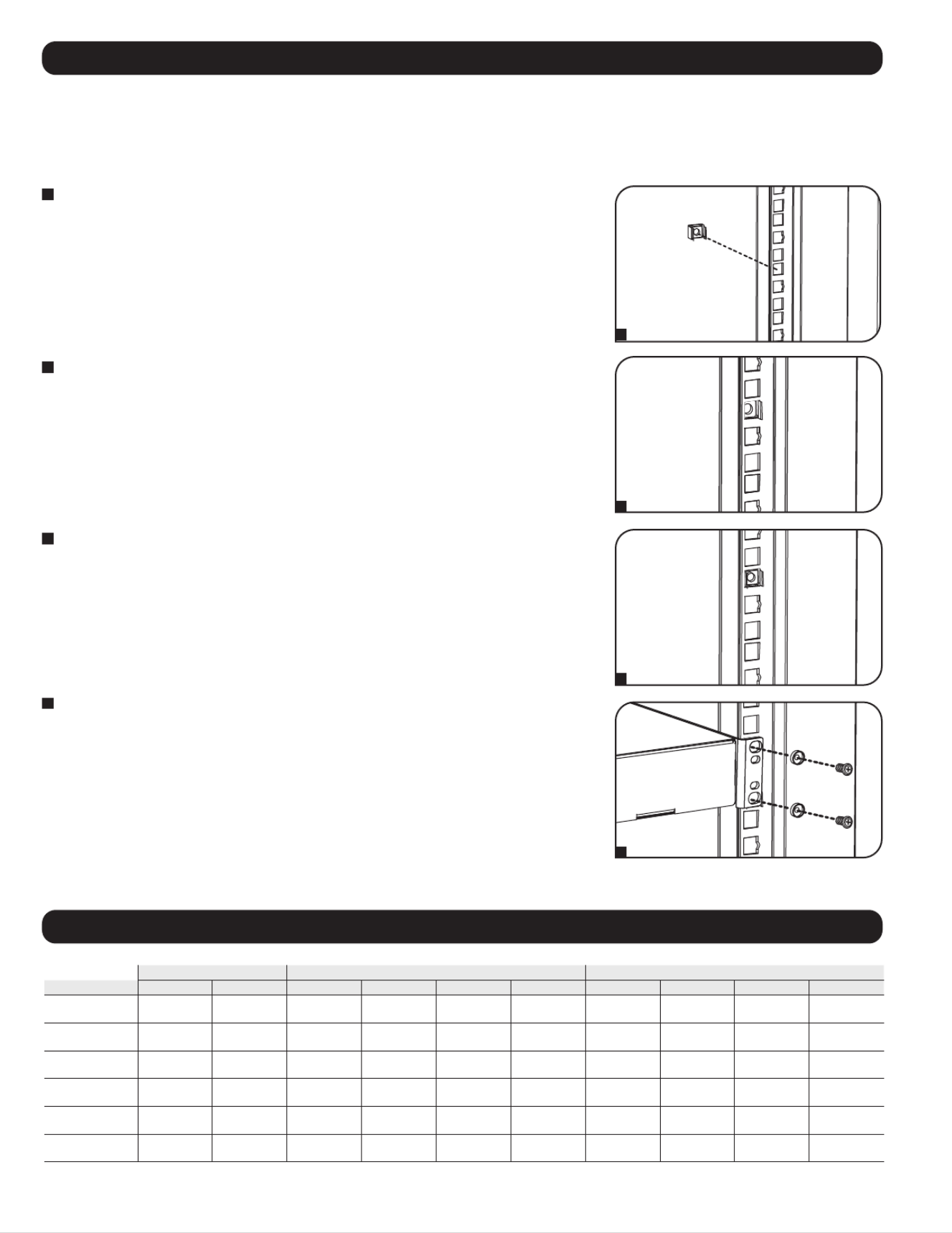

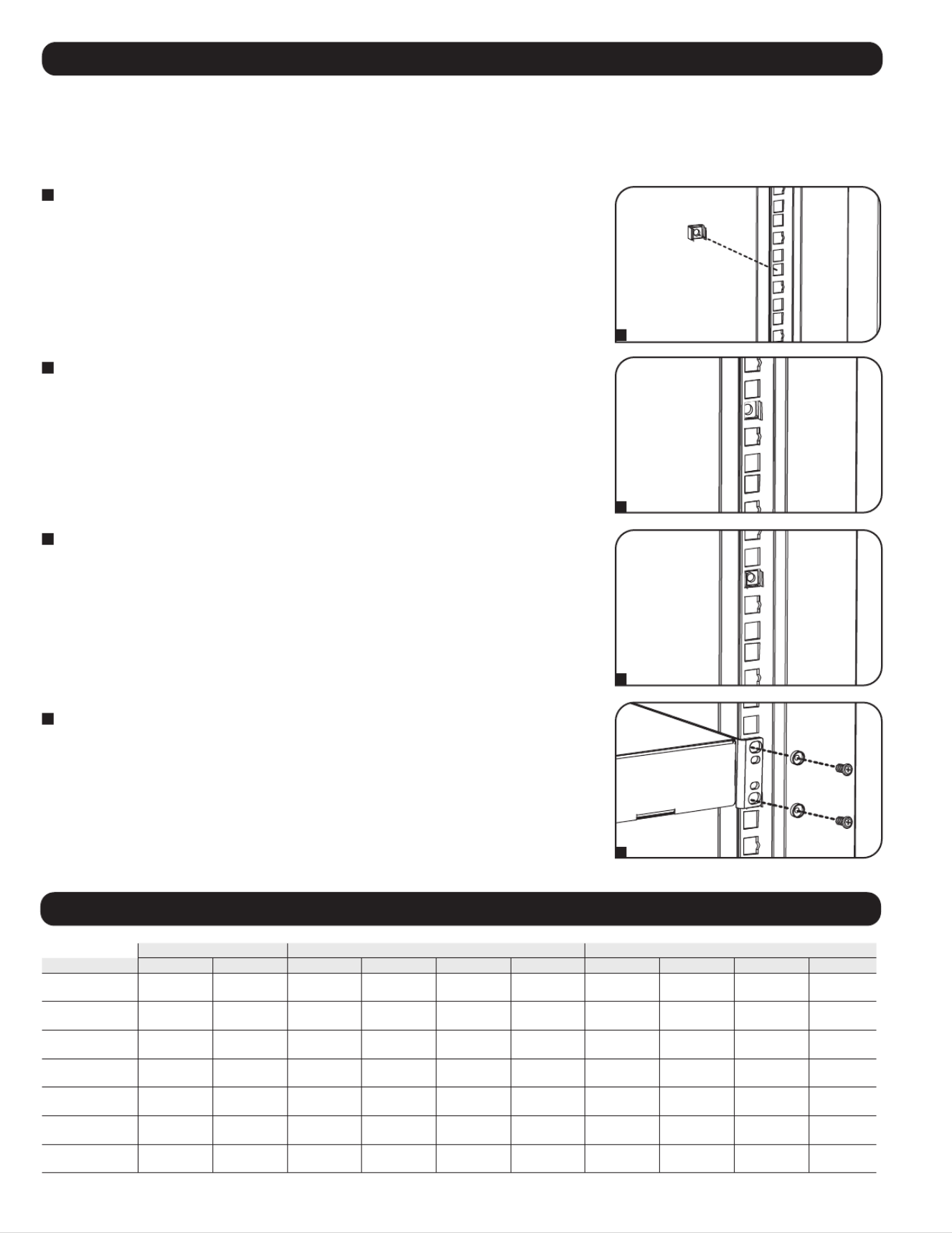

Installing or Removing Cage Nuts 12

Specifications 12

Storage and Service 14

Warranty and Product Registration 14

Español 15

Français 29

Русский

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Important Safety Instructions

Overview

SAVE THESE INSTRUCTIONS

All sections of this manual contain instructions and warnings that should be followed during the installation and use of the SmartRack Enclosures

described in this manual. Read all instructions and warnings thoroughly before attempting to move, install or use the SmartRack Enclosures described

in this manual. Failure to comply will create a risk of personal injury and property damage and may invalidate the warranty.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive

contaminants, dust and direct sunlight.

• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation

openings of the enclosure.

• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a mechanical

device such as a forklift or pallet jack to move the enclosure in the shipping container.

• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.

• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.

• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible. The casters are designed for

minor position adjustments within the final installation area only. The casters are not designed for moving the enclosure over longer distances.

• The casters are not designed to provide long-term support for the enclosure after final installation. Use the levelers to provide long-term support.

• Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in

the enclosure and any other enclosures and/or equipment that will be installed nearby.

• Install the cabinet securely to the building structure, using the shipping brackets as illustrated in the section of this manual.Enclosure Installation

• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.

• When rolling the enclosure on its casters, always push it from behind, never pull it toward you.

• A rolling enclosure can cause personal injury and property damage if not properly supervised. If rolling the enclosure down a ramp is required, use

extreme caution. Do not attempt to use ramps that have a slope steeper than 1:12.

• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage that will

void the warranty.

• Do not re-ship the enclosure with additional equipment unless the enclosure was shipped with a special shock pallet (“SP1” models only). The combined weight of

the enclosure and installed equipment must not exceed the load capacity of the pallet. Tripp Lite is not responsible for any damage that occurs during re-shipment.

• DANGER: STABILITY HAZARD, RACKS ARE TO BE INSTALLED BY QUALIFIED SERVICE PERSONNEL ONLY.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support

equipment or to significantly affect its safety or effectiveness is not recommended.

SmartRack Enclosures accommodate all standard 19-inch rackmount equipment, regardless of vendor, and ship fully assembled for quick and easy

deployment. They feature adaptable, heavy-duty cabinets in 24U, 42U, 45U, 47U and 48U heights, with or without side panels. Several models are

available with an integrated shock pallet that allows resellers, integrators and enterprise customers to pre-configure equipment and re-ship the enclosures

to the final installation site.

SmartRack Enclosures have variable mounting depths, ideal for servers. Integrated baying hardware enables cost-effective, orderly and efficient expansion.
