Table of Contents

1. Important Safety Instructions 2

2. Overview 2

3. Feature Identification 2

4. Enclosure Installation 3

4.1 Preparation 3

4.2 Unpacking 3

4.3 Ground Connection 3

5. Enclosure Configuration 4

5.1 Door Locks 4

5.2 Cable Access and Management 4

5.3 Reversing the Enclosure 4

5.4 Mounting Rails 5

5.5 Adjusting Mounting Rail Depth 5

6. Wall Mounting the Enclosure 5

6.1 Mounting 5

7. Equipment Installation 6

7.1 Installing or Removing Cage Nuts 6

7.2 Alternate Mounting: 7

Tapped Hole Mounting Rail

8. Storage and Service 8

9. Warranty and Product Registration 8

Español 9

Francais 17

Русский 25

Swinging Wall-Mounted

SmartRack® Enclosures

Applies to Model Series: SRWxxUS, SRWxxUSG

(Agency Series Number: AG-00EA)

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1. Important Safety Instructions

3. Feature Identification

2. Overview

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to

comply may invalidate the warranty and cause property damage or personal injury.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive

contaminants, dust and direct sunlight.

• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation

openings of the enclosure.

• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a

mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.

• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.

• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.

• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible.

• Install the enclosure in a structurally sound area capable of handling the load, or on a level floor that is able to bear the weight of the enclosure, all

equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.

• For permanent wall mounting, be sure to securely fasten the enclosure to the building structure before operation.

• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage

that will void the warranty.

• Do not reship the enclosure with additional equipment unless the enclosure was shipped with a special shock pallet (“SP1” models only). The

combined weight of the enclosure and installed equipment must not exceed the load capacity of the pallet. Tripp Lite is not responsible for any

damage that occurs during reshipment.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support

equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable

anesthetic mixture with air, oxygen or nitrous oxide.

Swinging wall-mounted SmartRack enclosures accommodate all standard 19-inch rackmount equipment, regardless of vendor, and ship fully

assembled for quick and easy deployment. They feature adaptable, heavy-duty cabinets in various heights. All models have a hinged design that lets

the cabinet swing away from the wall bracket for easy equipment access.

Swinging wall-mounted SmartRack enclosures have variable mounting depths, ideal for servers. The cabinets include quick-release doors and side

panels for convenient maintenance. Front access doors are reversible for installation flexibility. Front door and side panels are lockable. An optional

rolling caster kit (SRCASTER) is available for easy maneuvering of enclosures.

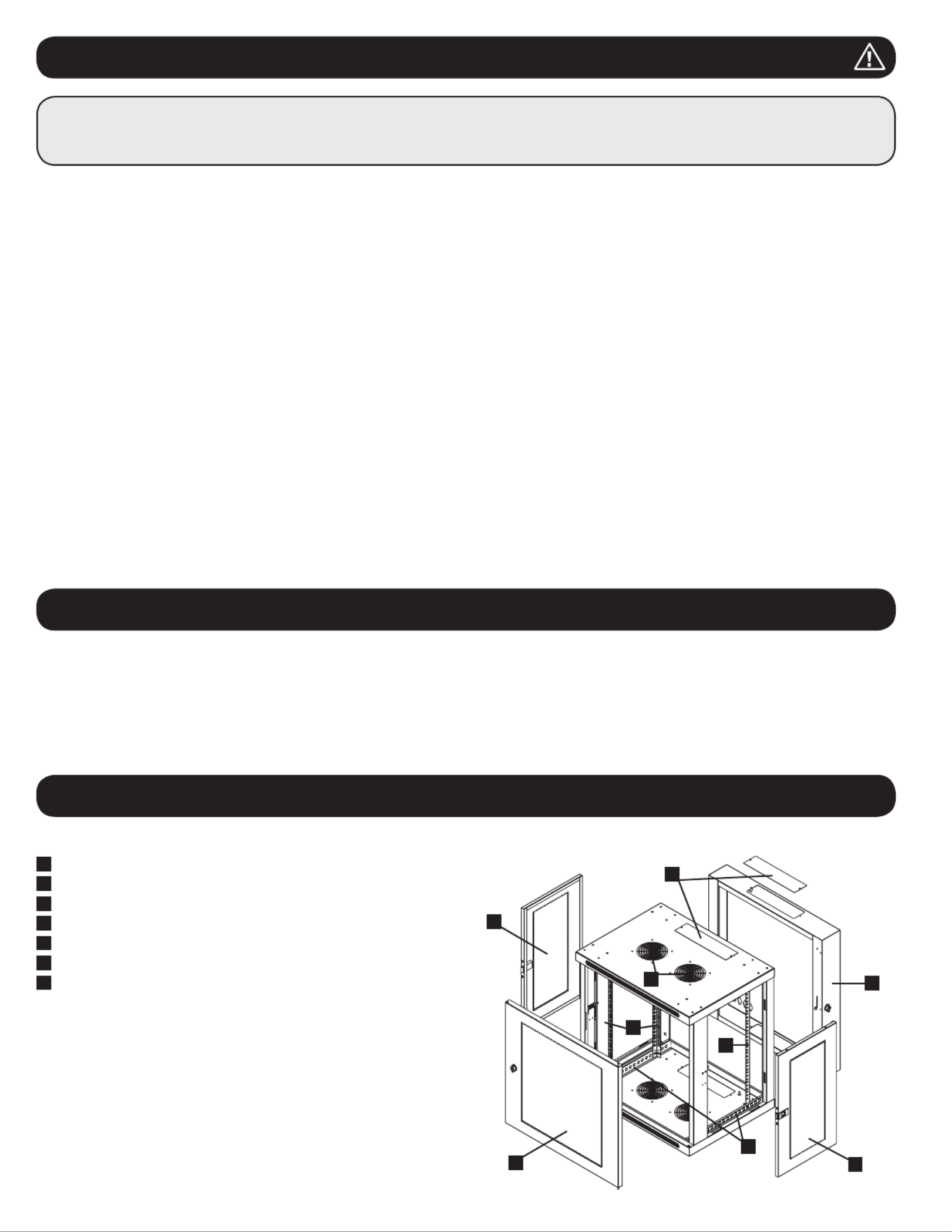

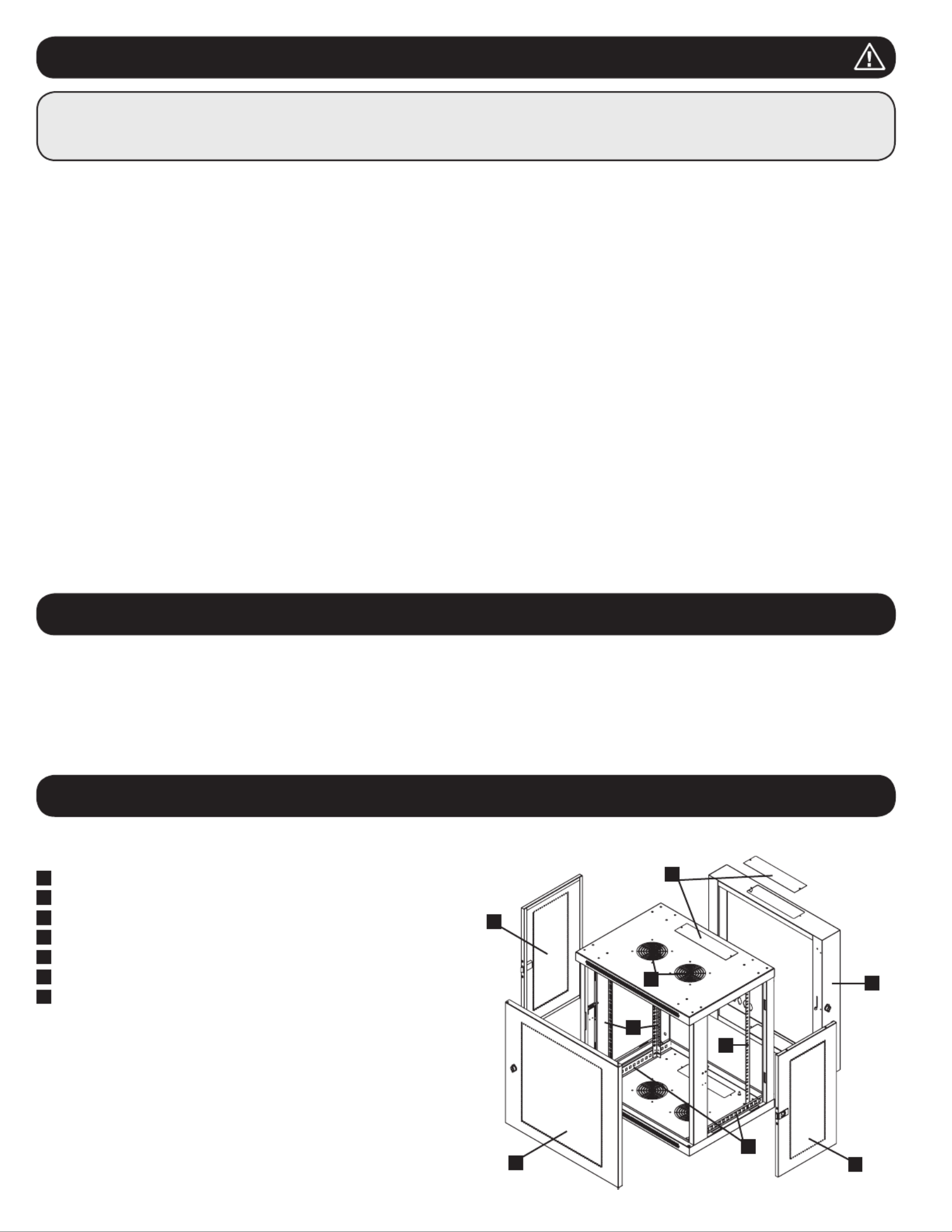

1 Rear Door

2 Front Door

3 Horizontal Rails

4 Vertical Mounting Rails

5 Removable Cable Access Hole Covers

6 Vents

7 Locking/Removable Side Panels
