Installation Guide

Extension Pipe Kit for

SRCOOLDXRW In-Row

Cooling Units

Model: SRCOOLLONGPKIT

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Español 5 • Français 9

When the equivalent length of the one-way pipeline on the refrigerant side exceeds 98 ft. (30 m), an extension pipe kit

is required. This extension pipe kit prevents a large amount of liquid refrigerant from entering the compressor when the

compressor is stopped, while also avoiding compressor liquid shock during the next startup.

The extension pipe kit includes a solenoid valve, valve coil and check valve.

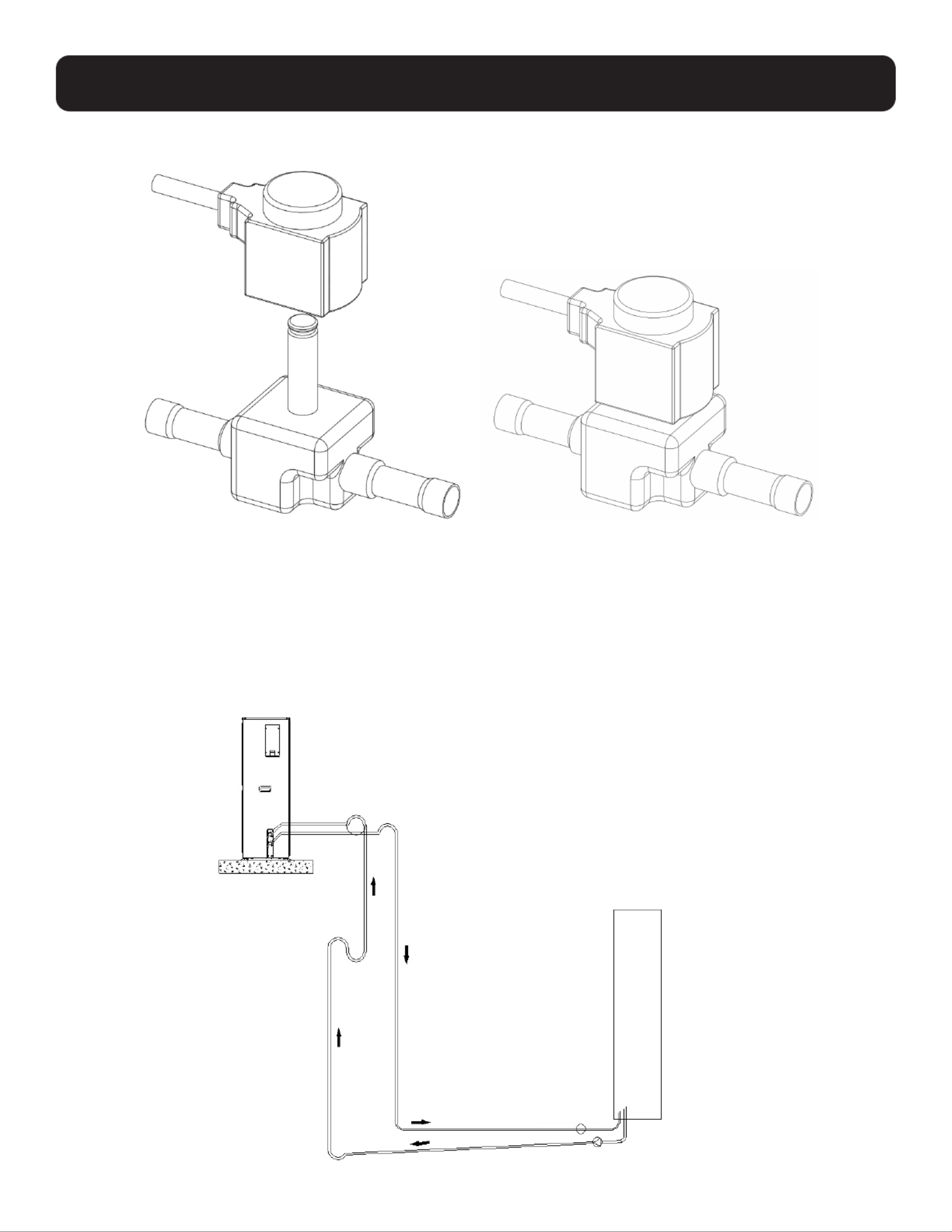

Coil and Valve Before and After Assembly

• Install the solenoid valve with the coil to the liquid pipe between the indoor unit and outdoor unit. The distance to the

indoor unit should be as short as possible, no more than 16 ft. (5 m).

• Install the check valve at the gas pipe between indoor unit and outdoor unit (nearest to the outdoor unit).

• The coil cable connects to indoor unit.

1. Install Valve

Outdoor

unit

Indoor

unit

Gas pipe

Liquid pipe

Check valve

Solenoid valve
