Owner’s Manual

SmartOnline

Series 6kVA

Isolation/Step-Down

Transformer Module

(Series Number: AGAC7579)

Not suitable for mobile applications.

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Important Safety Warnings 2

Mounting 2

Features 4

Service 5

Warranty and Product Registration 5

Español 6

Français 11

SAVE THESE INSTRUCTIONS.

This manual contains important instructions and warnings that should be followed during the installation and maintenance of

Tripp Lite SmartOnline transformer modules. Failure to heed these warnings may affect your warranty.

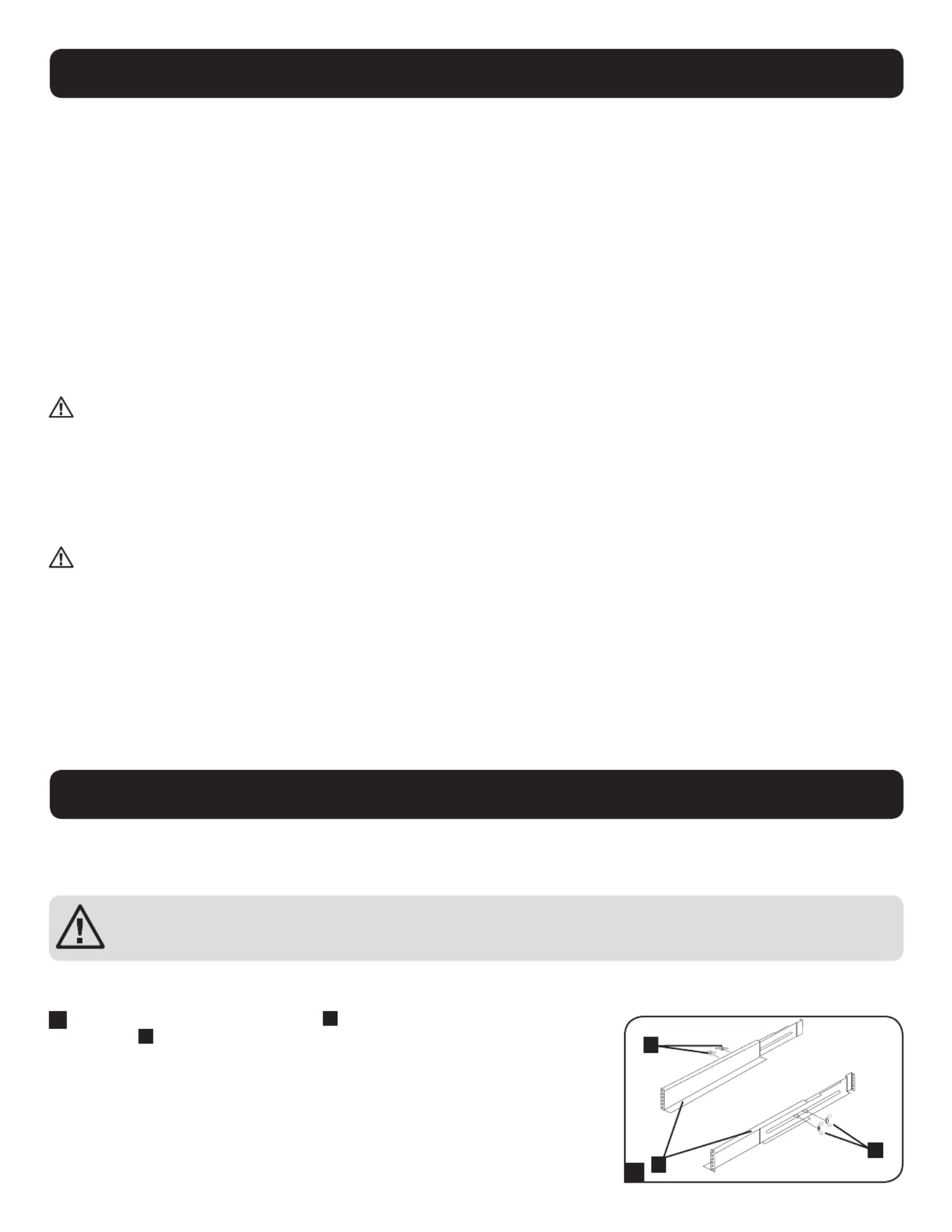

Transformer Location Warnings

• Install your transformer module indoors, away from excess moisture or heat, direct sunlight, dust or conductive contaminants.

• Install your transformer module in a structurally sound area. Your transformer is heavy; exercise care when moving or lifting the unit.

• Only operate your transformer module at indoor temperatures between 32° F and 104° F (0° C and 40° C). For best results, maintain

indoor temperatures between 62° F and 84° F (17° C and 29° C).

• For proper ventilation, leave adequate space around all sides of the transformer module.

• Do not install the transformer module near magnetic storage media, as this may cause data corruption.

Equipment Connection Warnings

• Installation should only be performed by qualified service personnel.

CAUTION: To reduce the risk of fire, connect only to a circuit provided with a 30A branch circuit overcurrent protection in accordance with

the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1. Short circuit backup protection overcurrent

protection is provided by the building installation. Be sure to use the proper overcurrent protection for the installation in accordance with

the plug/equipment rating.

• Be sure to provide a local disconnect device on any models that are permanently installed without a plug that is easily accessible.

• Connect your transformer module's grounding terminal to a grounding electrode conductor.

• Branch circuit protection must be provided by building installation per your National/Local Electrical Code. Only connect a circuit provided

with 30 amperes maximum over current protection.

Warning! Input voltage selector switch must be set to match the source voltage before applying power. The selector switch is

located behind the front bezel and is preset to 208V~.

Maintenance Warnings

• Your transformer module does not require routine maintenance. Do not open it for routine maintenance. There are no user-serviceable

parts inside.

Medical Applications and Life Support Warning

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the

life support equipment or to significantly affect its safety or effectiveness is not recommended.

Important Safety Warnings

Mounting (Rack)

Mount your equipment in either a 4-post or 2-post rack or rack enclosure.The user must determine the fitness of hardware and procedures

before mounting. If hardware and procedures are not suitable for your application, contact the manufacturer of your rack or rack enclosure.

The procedures described in this manual are for common rack and rack enclosure types and may not be appropriate for all applications.

WARNING!

Transformer modules are extremely heavy! Use caution while lifting and mounting! User must properly stabilize

the module while lifting and mounting!

4-Post Mounting

Connect the two segments of each shelf

using the included attached screws and

wing nuts

. Leave the screws slightly loose so that the shelves can be adjusted in

the next step.

Produkt Specifikationer

Mærke:	Tripp Lite
Kategori:	Ikke kategoriseret
Model:	SU6000XFMR2UTAA
Vekselstrømsindgangsspænding:	208 V
Vekselstrømsindgangsfrekvens:	60 Hz
Bredde:	431.8 mm
Dybde:	533.4 mm
Højde:	76.2 mm
Vægt:	32658 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	37194 g
Pakkedybde:	685.8 mm
Pakkebredde:	558.8 mm
Pakkehøjde:	203.2 mm
Formfaktor:	Reolbeslag/tårn
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Husmateriale:	Stål
Udgangseffekt:	6000 W
Certificering:	TAA Compliant
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	223.5 mm
Hovedkassens længde (udvendigt):	685.8 mm
Hovedkassens bruttovægt (udvendigt):	37470 g
Hovedkassens bredde (udvendigt):	558.8 mm
Oprindelsesland:	Taiwan
Produkter pr. hovedkasse (udvendigt):	1 stk
Indgangsfrekvens:	60 Hz
Husets farve:	Sort
Stativ-montering:	Ja
Strømstik:	Terminal
Rack monteringskit:	Ja
Load-kapacitet:	6000 VA
AC udgange, antal:	240 AC stikkontakt(er)
AC stikkontakt typer:	Terminal
Indgående driftsspænding (maks.):	240 V
Output strømkapacitet (VA):	6 kVA
Indgående driftsspænding (min.):	208 V
Udgangs driftsspænding (min.):	208 V
Udgangs driftsspænding (maks.):	240 V
UPS topologi:	Standby (offline)
Indgående strøm (maks.):	30 A
