Owner’s Manual

Manual del propietario / Manuel du propriétaire

Series Number / Número de serie / Numéro de série :

AGAC5553 (SUPDMB710), AGAC5591 (SUPDMB710HW), AGPD7040 (SUPDMB710IEC)

Español 4 • Français 6

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

Detachable Power Distribution Modules

SUPDM Series

For use with SmartOnline

Rack/Tower UPS Systems requiring a detachable PDM.

Módulos de distribución de potencia desmontables

Serie SUPDM

Para uso con UPS SmartOnline

de montaje en bastidor/torre que requiera un PDM desmontable.

Modules de distribution d’alimentation détachables

Série SUPDM

Pour utilisation avec les systèmes UPS SmartOnline

en bâti ou en tour, exigeant un PDM (module de distribution d’alimentation) détachable.

Important Safety Warnings! SAVE THESE INSTRUCTIONS.

Connecting the SUPDM to the UPS Power Module

If the the Power Module contacts

and/or SUPDM contacts

are protected by a box or cover, unscrew and remove it to expose the contacts. Consult your

UPS Owner’s Manual for the exact location of the contacts on your Power Module and SUPDM.

Align the SUPDM and Power Module contacts

Secure the SUPDM to the Power Module with screws

(included). Consult your UPS Owner’s Manual for detailed installation instructions.

Connect the SUPDM to utility power, either by plugging it into an AC wall outlet or by hardwiring it to an appropriate AC power source, as applicable.

Connect your equipment to the UPS either by plugging it in or hardwiring it to the SUPDM.

CAUTION: Hardwiring should only be performed by a qualiﬁed electrician.

Consult your UPS Owner’s Manual for speciﬁc connection/hardwiring instructions, or call Tripp Lite for assistance at 773.869.1234.

This manual contains important instructions and warnings that should

be followed during the installation and operation of all SUPDM Power

Distribution Modules. Use this manual in conjunction with the owner’s

manual for your SmartOnline Rackmount/Tower UPS System. Follow all safety

warnings, including the following:

• SUPDM connection must be performed by qualiﬁed service personnel.

• The UPS system must be powered down and completely disconnected

from utility power, external battery module(s) and connected equipment

prior to connecting the SUPDM.

• There are no user serviceable parts. Do not modify or drill holes into

enclosure. Installation, maintenance is by Qualiﬁed Service personnel

only.

• This unit is intended for installation in a temperature-regulated, indoor

area that is relatively free of conductive contaminants.

• Use of this equipment in life support applications where failure of this

equipment can reasonably be expected to cause the failure of the life

support equipment or to signiﬁcantly affect its safety or effectiveness is

not recommended. Do not use this equipment within oxygen-enriched

atmospheres, or within 0.3 m (1 ft.) of a point at which an oxygen-

enriched atmosphere is intentionally vented.

AC Mains Installation

• Install in accordance with National Electrical Code standards.

• Be sure to use the proper wire size: 6AWG / 6 mm

rated a minimum of

60C and overcurrent protection for the installation, in accordance with the

plug/equipment rating.

• Over-current protection shall be provided in the end use application,

installed in accordance with local and national electrical wiring regulations.

• In the US/Canada, the plug rating is required to be 125% of the

equipment current rating. Note if the equipment is rated 50A, then 50 x

125% = 62.5A plug is required.

• CAUTION: To reduce the risk of ﬁre, connect only to a circuit provided

with a 50A branch circuit overcurrent protection in accordance with the

National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code,

Part I, C22.1.

• Short circuit back-up protection to be provided by building installation

• Be sure to provide a local disconnect device on any models that are

permanently installed without a plug that is easily accessible.

• For pluggable equipment the mains socket outlet that supplies the

equipment shall be installed near the equipment and shall be easily

accessible.

• Be sure to use conduit for permanently installed wiring to meet National/

local codes as required.

• The total load connected to the PDU must not exceed the maximum load

rating for the PDU.

• Use a properly sized Gland Fitting for ﬂexible cables to provide strain relief.

• Use conduit/gland ﬁttings for permanent connections, according to local/

national regulations.

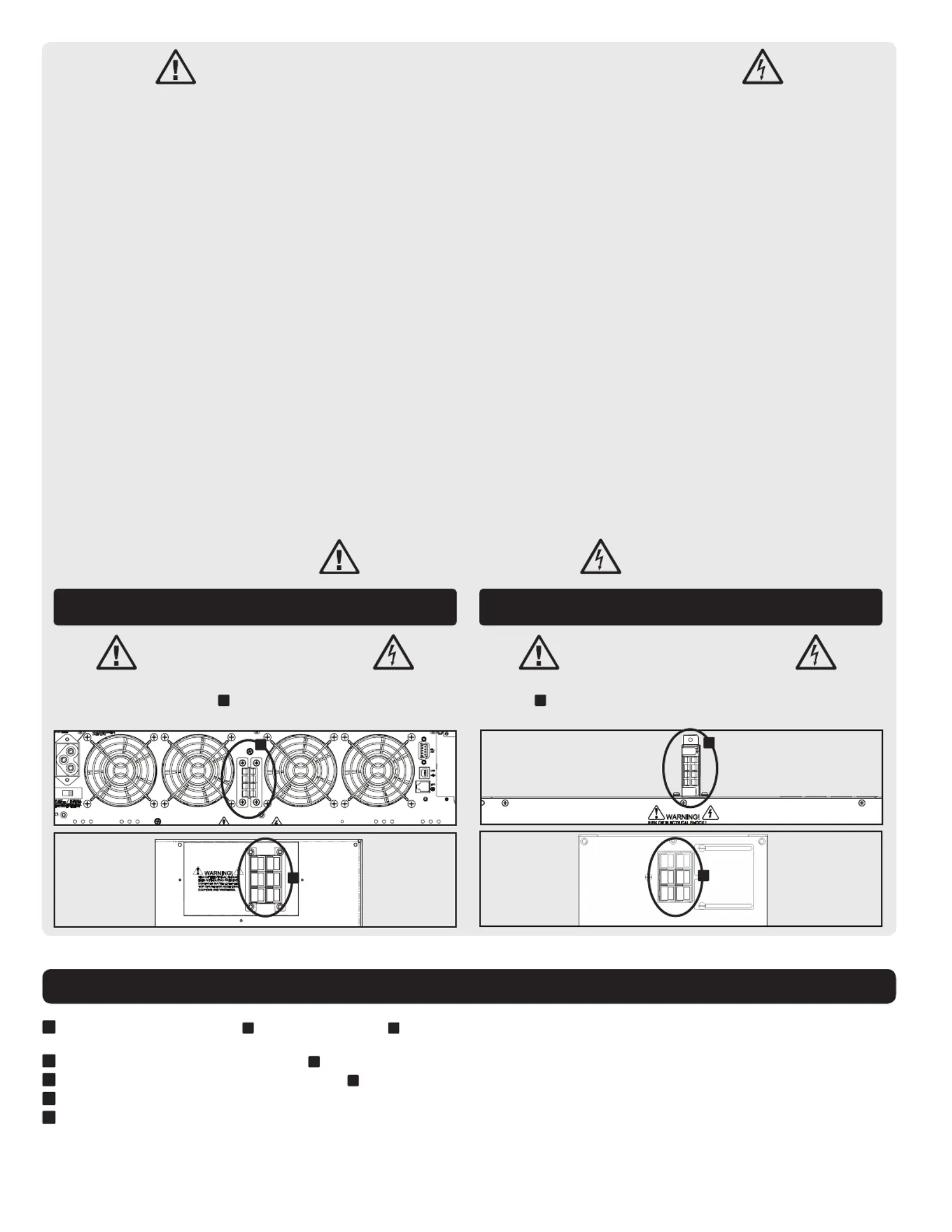

High Voltage Warnings

Contacts on Power/Battery Module

(your model may differ)

Contacts on Detachable PDM

(your model may differ)

WARNING! High Voltage!

Risk of electrical shock!

Due to the presence of high voltage batteries, even without AC

present, these contacts

are live! Do not let these contacts

touch any surface!

WARNING! High Voltage!

Risk of electrical shock!

If AC is present and Bypass Switch is set to “Bypass”, these

contacts

are live! Do not let these contacts touch any surface!

SUPDMB56

SUPDM56HW

SUPDMB568HW

SUPDMB710

SUPDM710HW

SUPDMB710HW

SUPDMB710IEC
