Mounting Instructions

Collapsible

Wallmount Bracket

Model: UPSWM

Not suitable for mobile applications.

Español 3 • Français 4

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

17-02-281-932696.indd 1 3/8/2017 8:58:13 AM

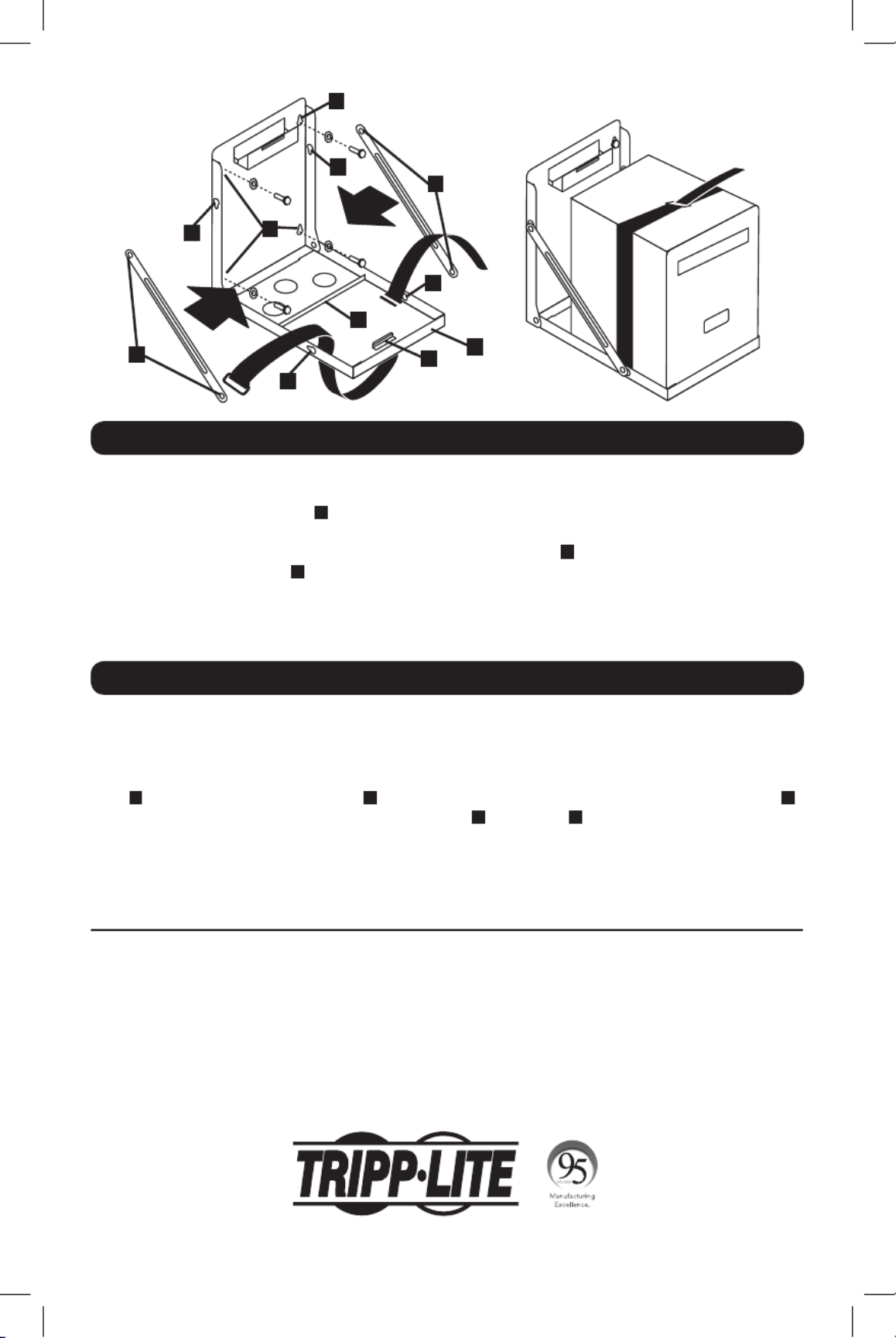

Wallmount Instructions

Mounting a UPS System or Battery Pack

The UPSWM is shipped in its collapsible position and includes two mounting braces. Open the

mounting bracket, hold the bracket level against the intended mounting surface and mark the

locations of the mounting holes A. Drill 1/8” guide holes in these locations. Place the included

washers around the included screws, then drive the screws through the mounting holes and into the

guide holes. Install the mounting braces by putting the two buttons

B on each brace through the

holes on the side of the unit C.

CAUTION: The hardware (screws and washers) included with the bracket is only intended for

use with plywood surfaces. To mount your bracket on a different surface, you must determine

a safe mounting procedure and obtain proper hardware.

CAUTION: Before mounting a UPS, make sure the UPS is OFF and unplugged. Before mounting

a BP36V27 battery pack, make sure the battery pack is disconnected from your UPS system.

The UPS or battery pack is extremely heavy. Take care to avoid injury while lifting.

Place the UPS or battery pack in the mounting tray. The feet of a UPS should press against the rear

ridge D and ﬁt around the center ridge E while the front of the UPS presses against the front ridge F.

The base of a battery pack should ﬁt between the rear

D and center E ridges, with its cords facing the

wall.

Next, pass the safety strap around the UPS or battery pack and through the mounting tray as shown.

The safety strap should pass through the tray’s outer strap holes for a UPS or through the tray’s inner

strap holes for a battery pack. Fully tighten the safety strap and fasten the hook-and-loop end.

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected

to cause the failure of the life support equipment or to signiﬁcantly affect its safety or effectiveness is not

recommended.

Tripp Lite has a policy of continuous improvement. Speciﬁcations are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
