Quickstart Guide
NuQ series

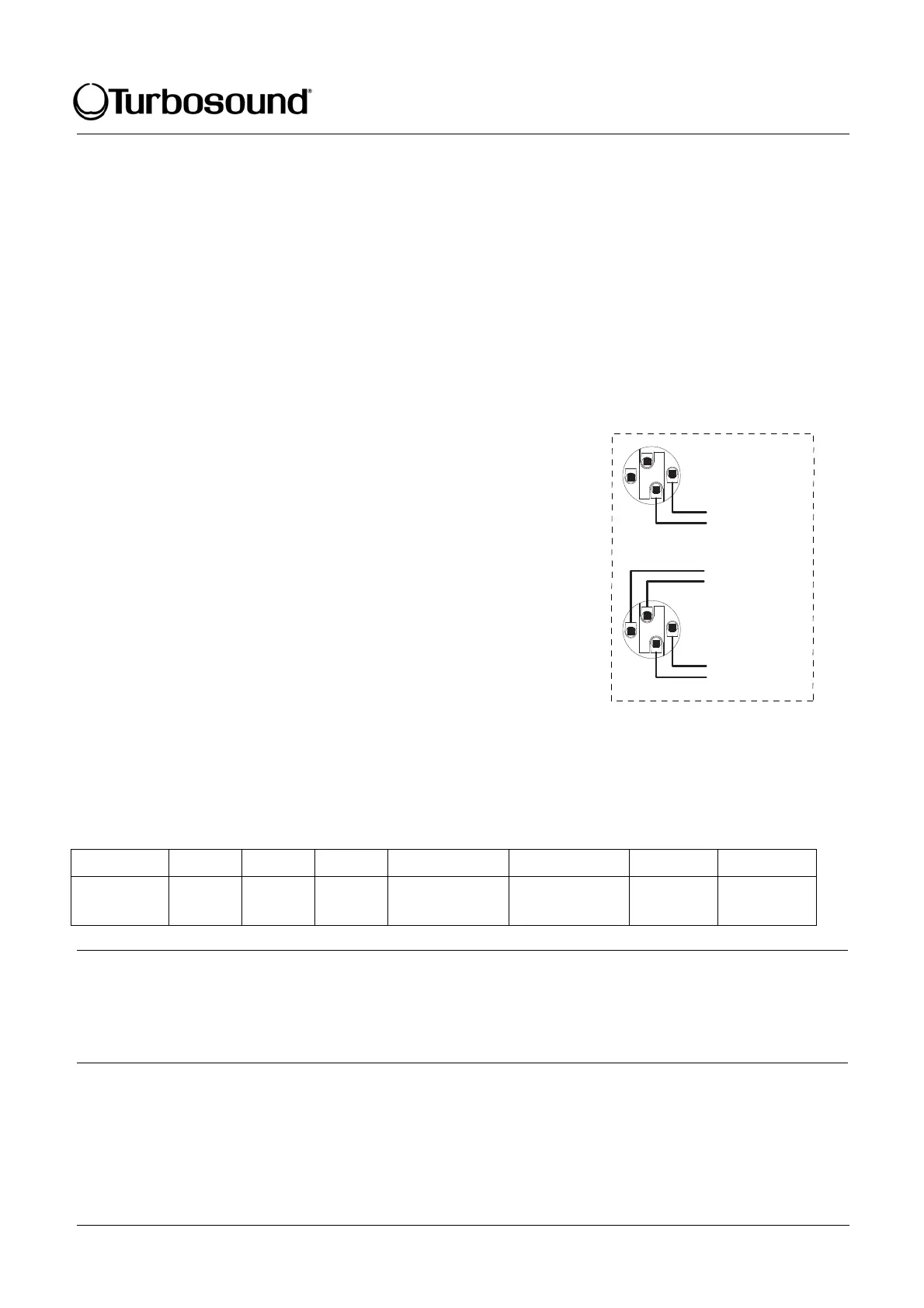

NuQ Series Quickstart Guide v1.2 - Page - 1
Models covered by this Quickstart Guide
NuQ-6, NuQ-8/DP, NuQ-10/DP, NuQ-12/DP, NuQ-15/DP, B-12DP, B-15/DP, B-18/DP.
Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information
about this or any other TURBOSOUND product, please contact us on +44 (0)1403 711447. A detailed user manual on this
product range is available on our website at http://www.turbosound.com
http://www.turbosound.com
http://www.turbosound.com
http://www.turbosound.comhttp://www.turbosound.com
Unpacking the Loudspeaker
After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You,
the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.
System Requirements – Passive and Bi-amped Loudspeakers
The NuQ-6, NuQ-8, and NuQ-10 two-way loudspeakers are passive systems and
require only one amplifier channel for correct operation, the frequency splitting
between the LF driver and the HF driver being accomplished by the internal
passive crossover network built into each enclosure. They are equipped with
two Neutrik Speakon NL4MP connectors wired in parallel, serving as both input
and loop-out connections to additional speakers. The Speakon wiring details are
shown at the right. The NuQ-12 and NuQ-15 two-way loudspeakers are
switchable passive/bi-amped systems and require two amplifier channels when
used in bi-amped mode. To avoid wasting amplifier power you should use
heavy-duty speaker cable with a minimum wire size of 12 gauge (1.5mm²), and
preferably 10 gauge (2.5mm²) for longer runs. Always observe the correct
polarity as shown.
Amplifier considerations
NuQ series speaker enclosures should be driven by high quality power amplifiers designed for true professional use.
Amplifiers should be capable of delivering long term broadband power equal to the loudspeaker’s program power rating
equal to the loudspeaker’s program power rating
equal to the loudspeaker’s program power rating
equal to the loudspeaker’s program power rating equal to the loudspeaker’s program power rating
at its stated nominal impedance
at its stated nominal impedance
at its stated nominal impedance
at its stated nominal impedanceat its stated nominal impedance. The use of under-powered amplifiers must be avoided as heavily clipped signals can
cause permanent loudspeaker damage.
Model
Model
Model
Model Model NuQ-6 NuQ-8 NuQ-10 NuQ-12 NuQ-15 B-15 B-18
Impedance
Impedance
Impedance
Impedance Impedance 8 8 8 Passive: 8
LF: 8 , HF: 6
Passive: 8
LF: 8 , HF: 6
8 8
RECOMMENDED AMPLIFIER
RECOMMENDED AMPLIFIER
RECOMMENDED AMPLIFIER
RECOMMENDED AMPLIFIER RECOMMENDED AMPLIFIER POWER RATING
POWER RATING
POWER RATING
POWER RATINGPOWER RATING
The amplifier’s rated r.m.s. continuous power output (20Hz – 20kHz, each channel)
should be equal to the loudspeaker’s program power handling at its nominal impedance.
System Controllers and Bi-amplified systems
NuQ systems must be used with Turbosound LMS-D24 or LMS-D26 controllers, since these provide vital operating and
system security features. If you do not have a controller, DO NO
DO NO
DO NO
DO NODO NOT USE
T USE
T USE
T USET USE the loudspeaker without one; please contact your
Turbosound dealer for further details.
(Pins 2+ and 2- not connected)
Passive Speakon
connections
Negative (-ve)
Positive (+ve)
1-
1+
2+
2-
Bi-amped Speakon
connections
LF Negative (-ve)
LF Positive (+ve)
HF Negative (-ve)
HF Positive (+ve)
1-
1+
2+
2-
Quickstart Guide
NuQ series
NuQ Quickstart Guide v1.2 - Page - 2
Turbosound LMS-D2X controllers provide factory presets for all NuQ systems, downloadable from the Turbosound
website, as well as additional user program slots.
1. Power up the controller(s) and associated power amplifiers.
2. Press RECALL
RECALL
RECALL
RECALLRECALL to select the appropriate program from the preset menu using the ‘A’ ROTARY EN
A’ ROTARY EN
A’ ROTARY EN
A’ ROTARY ENA’ ROTARY ENCODER
CODER
CODER
CODERCODER.
3. Press RECALL
RECALL
RECALL
RECALLRECALL again to accept the preset. The controller will un-mute and is then ready for use.
Use as Monitor Wedges
NuQ 2-way systems double effectively as wedge monitors. The NuQ-6 provides both 33° and 45° wedge angles while all
other models feature a symmetrical 45° side angle.
Self-powered Loudspeakers
Powered NuQ loudspeakers feature very efficient integrated Class D amplifiers and control electronics modules, providing
a completely self-contained professional sound system. The XLR inputs are electronically balanced and are wired pin 2
hot, pin 3 cold, and pin 1 ground. Amplifiers will operate over a range of mains input voltages from 100V to 240V AC
without adjustment.
Connect the mains power
Connect the mains power
Connect the mains power
Connect the mains powerConnect the mains power using the supplied Powercon mains lead. Check that the mains lead is suitable for use
in your area before connecting.
Connect the signal input
Connect the signal input
Connect the signal input
Connect the signal input Connect the signal input from a professional mixing console to the signal in XLR, and link out to additional
powered loudspeakers if required
Power up the loudspeaker.
Power up the loudspeaker.
Power up the loudspeaker.
Power up the loudspeaker. Power up the loudspeaker. It will un-mute after a short self-test routine; the loudspeaker is now ready for use
The B-12DP features an on-board amplifier configured to drive NuQ-6 or other satellite loudspeakers, as well as its own
internal 12” LF driver. The amplifier is also equipped with four factory presets with differing band gains which allow for
different configurations of satellite speakers. These are selectable via a push switch that toggles around the four available
presets, and these are listed below. Presets 2 to 4 are user editable using TurboDrive software.
Preset number
Preset number
Preset number
Preset number Preset number Function
Function
Function
Function Function User editable?
User editable?
User editable?
User editable? User editable?
Preset #1 B-12DP plus 2 x NuQ-6 satellite loudspeakers No – factory default
Preset #2 B-12DP plus up to 6 x NuQ-8 satellite loudspeakers Yes
Preset #3 B-12DP plus 2 x NuQ-8 satellite loudspeakers Yes
Preset #4 B-12DP plus 2 x any passive satellite loudspeakers Yes
Networking Capability
NuQ systems are designed to offer control and monitoring of system parameters over a BvNet network in real time using
a PC and TurboDrive™ software. LMS-D2X controllers are equipped with network cards and are pre-configured with
factory programs for all NuQ series models. Self-powered NuQ loudspeakers have built-in network functionality.
Download the TurboDrive™ software
Download the TurboDrive™ software
Download the TurboDrive™ software
Download the TurboDrive™ softwareDownload the TurboDrive™ software from the supplied CD or from www.turbosound.com
and follow the
installation instructions
Install the drivers
Install the drivers
Install the drivers
Install the driversInstall the drivers. If connecting via RS232 there is no need to install drivers. If connecting via USB install the USB
drivers which can be found on the CD that came with your Linea Research USB interface
Networking multiple devices to a PC: BvNet is the method of connecting multiple devices – these can be controllers
and/or powered NuQ loudspeakers – and this is done with the Linea Research USB & RS232 Interface (available from
Turbosound). The interface enables devices to be connected to a PC either using RS232 or using USB. RS485 is the
