P/N:110401109689X

Preface

Thank you for purchasing this brand new product. In order to use this product

safely and correctly, please read this manual thoroughly, especially the safety

notes.

After reading this manual, it is recommended to keep the manual at an easily

accessible place, preferably close to the device, for future reference.

Limited Warranty and Liability

Uni-Trend guarantees that the product is free from any defect in material and

workmanship within one year from the purchase date. This warranty does

not apply to damage caused by accident, negligence, misuse, modification,

contamination or mishandling. The dealer shall not be entitled to give any

other warranty on behalf of Uni-Trend. If you need warranty service within

the warranty period, please contact your seller directly.

Uni-Trend will not be responsible for any special, indirect, incidental or

subsequent damage or loss caused by using this device.

I. Safety Information

This manual includes precautions and safety regulations for safe use of the

device. Please read and understand the content carefully before use.

1. Do not use or store this device in dusty, hot or wet environments.

2. Both the transmitter and receiver of this device are charged with a DC 5V

power adapter, and the charging time is about 2 hours.

3. Do not use this device on live circuits exceeding AC 60V or DC 70V.

4. Do not use this device during thunderstorms.

The meaning of the symbol associated with this device:

Complies with European Union standards

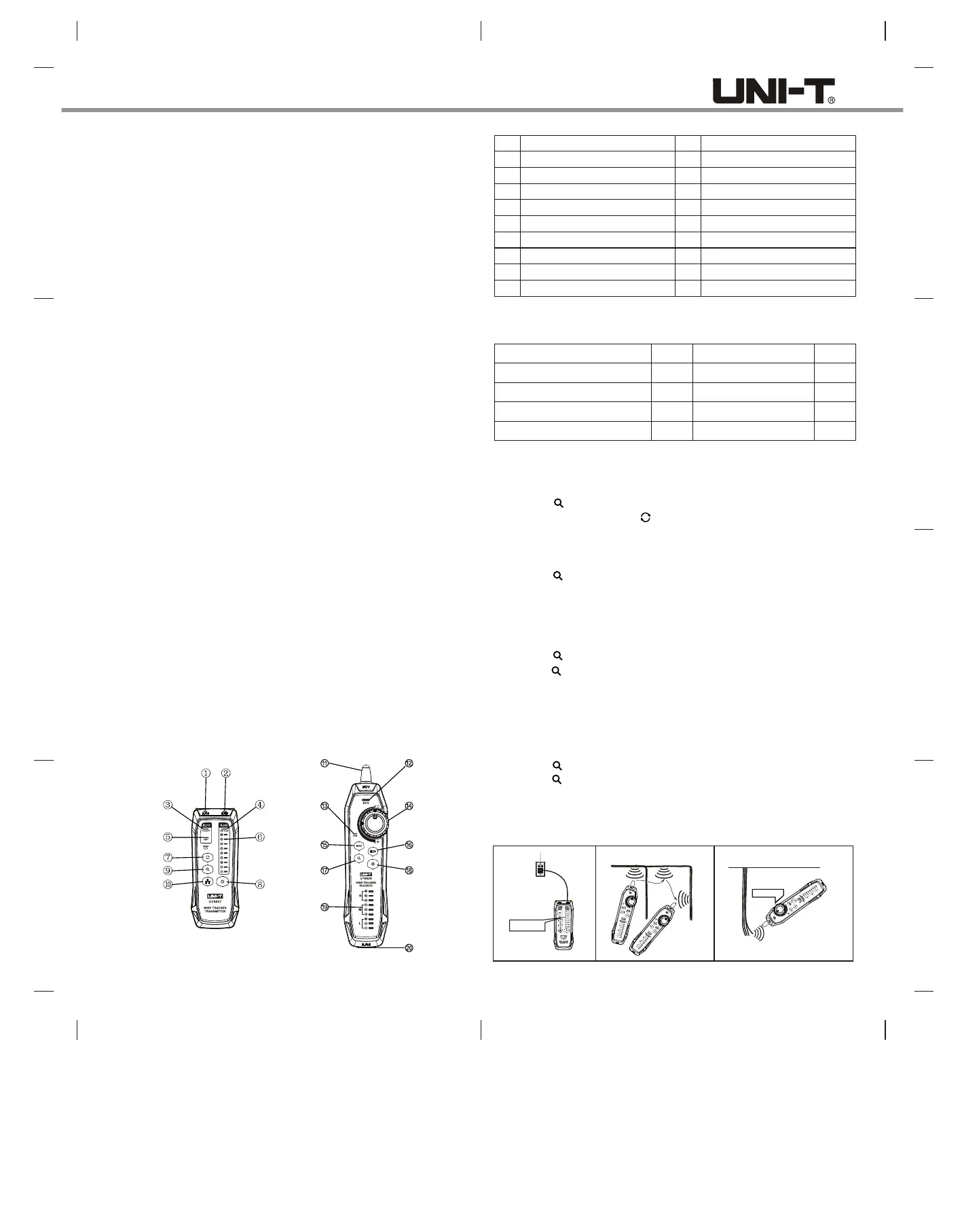

II. Structure

The UT683KIT is an intelligent wire tracker for noiseless wire tracking. The

RJ45 jack of the transmitter can enable tracking and flashing functions

simultaneously to help you quickly and accurately locate the target cable.

The RJ11 jack can automatically identify open circuit, short circuit, polarity,

ringing signal, and other states to help you quickly distinguish cable faults.

It is an ideal tool for integrated wiring and installation and maintenance of

weak electricity systems.

RJ 11 jack

POLARITY indicator

CONT indicator

Switch button

Tracking button

Antenna

Charging state indicator

NCV button

Tracking button

Line sequence indicators

RJ 45 jack

PORT FLASH light

Line sequence indicators

Power button

Validating indicator

NCV indicator

Sensitivity knob

Flashlight button

Power button

RJ45 jack

IV. Network Line Tracking

1. Insert the RJ45 plug of the network line into the RJ45 jack of the transmitter.

2. Press the button on the transmitter to enable the tracking function. In

tracking mode, press the button to enable the flashing function

simultaneously. If the target network line is connected to an active switch,

router or network card, the PORT FLASH light of the transmitter will flash

synchronously with the network port indicator.

3. Press the button on the receiver to start tracking. When beeps are heard,

the target network line is found.

V. Telephone Line Tracking

1. Insert the RJ11 plug of the telephone line into the RJ11 jack of the transmitter.

2. Press the button on the transmitter to enable the tracking function.

4. Press the button on the receiver to start tracking. When beeps are heard,

the target telephone line is found.

VI. Power Cable Tracking

1. Use the RJ11 alligator clip adapter cable to connect the transmitter and

metal cable being tracked.

2. Press the button on the transmitter to enable the tracking function.

3. Press the button on the receiver to start tracking. When beeps are heard,

the target cable is found.

VII. Demonstration of Tracking Operation

III. Packing List

Item Qty Item Qty

Transmitter 1Receiver 1

Micro USB charging cable 1RJ11 adapter cable 1

RJ11 alligator clip adapter cable 1RJ45 adapter cable 1

User manual 1 Pouch 1

Wall socket

(RJ11/RJ45 socket)

Test indicators

Locating cables Isolating cables

Volume control

IX. RJ11 Cable Validating

1. Insert the RJ11 plug of the cable under test into the RJ11 jack of the

transmitter, or use the RJ11 alligator clip adapter cable to connect the

transmitter and metal cable under test.

2. Press the button, the button flashes, and the validating function is

enabled.

3. The CONT indicator lights up green to indicate open circuit of the cable,

and red to indicate short circuit of the cable. The POLARITY indicator lights

up green to indicate that the cable has a positive polarity voltage, red to

indicate that the cable has a reverse polarity voltage, and green and red

flash alternately to indicate a ringing signal or AC power on the cable.

X. Other Functions

1. NCV Function

Press the NCV button to enable the NCV function. When the target cable

or socket has an AC voltage over 40V, the receiver will beep and the NCV

indicator will flash synchronously.

If the target cable are intermixed with massive cables, turn the sensitivity

knob to adjust the sensitivity. Louder sound means stronger signal and closer

to the target cable.

VIII. RJ45 Cable Validating

1. Insert the RJ45 plugs of the cable under test into the RJ45 jacks of the

transmitter and receiver.

2. Press the button, the button flashes, and the validating function is

enabled.

3. Judge the state of the cable (good wiring, short circuit, open circuit, miswire)

according to the line sequence indicators on the transmitter and receiver.

4. During test, press the button to switch between fast and slow mode.

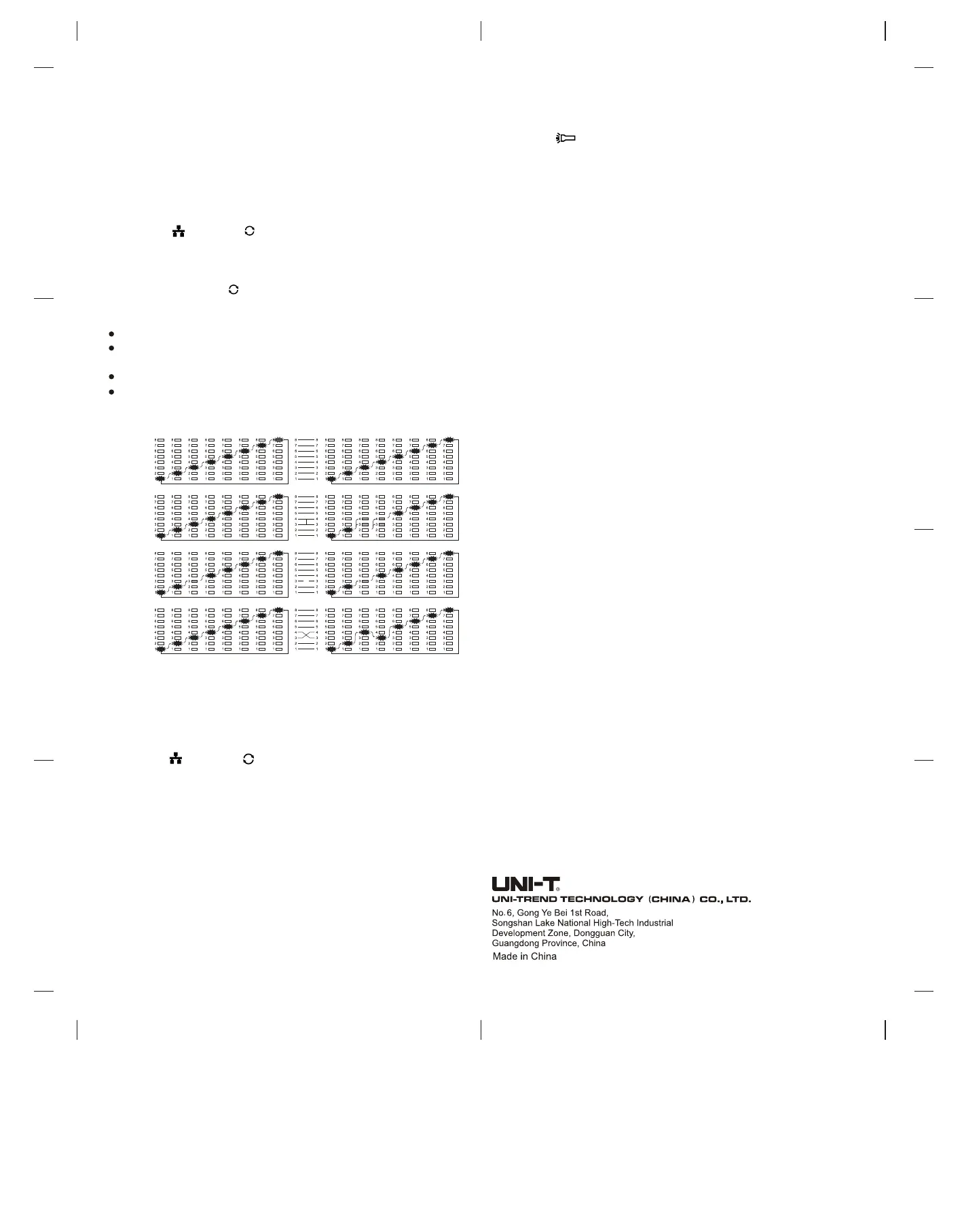

5. The diagram below shows the wiring of different states (good wiring, short

circuit, open circuit, miswire) for unshielded cables.

• Good wiring: LEDs (1~8) on the transmitter and receiver light up in turn.

• Short circuit: No.3 and No.4 LEDs on the receiver light up simultaneously

with dim brightness.

• Open circuit: No.3 LED of the transmitter and receiver do not light up.

• Miswire: LEDs of the transmitter and receiver do not light up correspondingly.

2. Flashlight

Press the button to turn on/off the flashlight of the receiver.

3. Low Battery Indication

1) When the battery voltage 3.4V, the power button will flash.≤

2) When the battery voltage 3.0V, the device will automatically shut

down and need to be charged.

4. Earphones

In noisy environments, users can wear earphones during operation

(earphones need to be prepared by users). Volume can be adjusted by

turning the sensitivity knob.

XI. Specifications

1. Power supply: 3.7V rechargeable batteries

2. Signal mode: modulation signal (125kHz carrier wave)

3. Tracking distance: 3000m (disconnected mode)≥

4. Tracking distance of switch: 100m (connected mode)≥

5. Operating temperature: -10°C~50°C

6. Storage temperature: -20°C~60°C

7. Operating humidity: 20~75% RH (N.C)

8. Storage humidity: 10%~90% RH (N.C)

9. Operating altitude: 2000m≤

10.Dimensions

Transmitter: 130mm×51mm×28mm

Receiver: 197mm×48mm×34mm

11.Weight

Transmitter: about 95g

Receiver: about 127g

12.Applicable standards

EN61326-1:2013 EN61326-2-2:2013

EN61000-3-2:2014 EN61000-3-3:2013

XII. Maintenance and Repair

1. Maintenance

Clean the casing with a dry cloth. Do not use abrasives or solvents!

2. Repair

Please contact your seller directly if the following anomalies occur.

1) Damage of casing or parts

2) Abnormal LED indication

3) Button failure

≤

UT683T Transmitter Lamp Signal UT683R Receiver Lamp Signal

1-8

Good

wiring

3,4

Short

circuit

Open

circuit

3,4

Miswire
