Side 1/20

Contents

I. Overview ---------------------------------------------------------------------------------------- 3

II. Accessories ----------------------------------------------------------------------------------- 3

III. Safety Information -------------------------------------------------------------------------- 4

IV. Features --------------------------------------------------------------------------------------- 4

V. Display Features (UT685B) --------------------------------------------------------------- 5

VI.Testing Mode --------------------------------------------------------------------------------- 6

6.1 Testing Twisted-Pair Cabling --------------------------------------------------------- 6

6.2 Testing Coaxial Cabling --------------------------------------------------------------- 12

VII.POE Mode ---------------------------------------------------------------------------------- 14

VIII.Tone Mode --------------------------------------------------------------------------------- 15

8.1 Tone Mode Display ------------------------------------------------------------------- 15

8.2 UT683R Receiver (For UT685B KIT only) -------------------------------------- 16

IX. Calibrating Length Measurements (Only for test mode) ------------------------- 18

9.1 Setting the NVP to a Specified Value -------------------------------------------- 18

9.2 Determining a Cable’s Actual NVP ----------------------------------------------- 19

X. Backlight ------------------------------------------------------------------------------------ 19

XI. Unit of Length ------------------------------------------------------------------------------ 19

XII. Auto Power Off --------------------------------------------------------------------------- 19

XIII. Other functions -------------------------------------------------------------------------- 20

13.1 Low battery indication ------------------------------------------------------------- 20

13.2 Troubleshooting -------------------------------------------------------------------- 20

13.3 Specifications ----------------------------------------------------------------------- 20

XIV. Maintenance ----------------------------------------------------------------------------- 20

UT685B/UT685B KIT

3 4

I. Overview

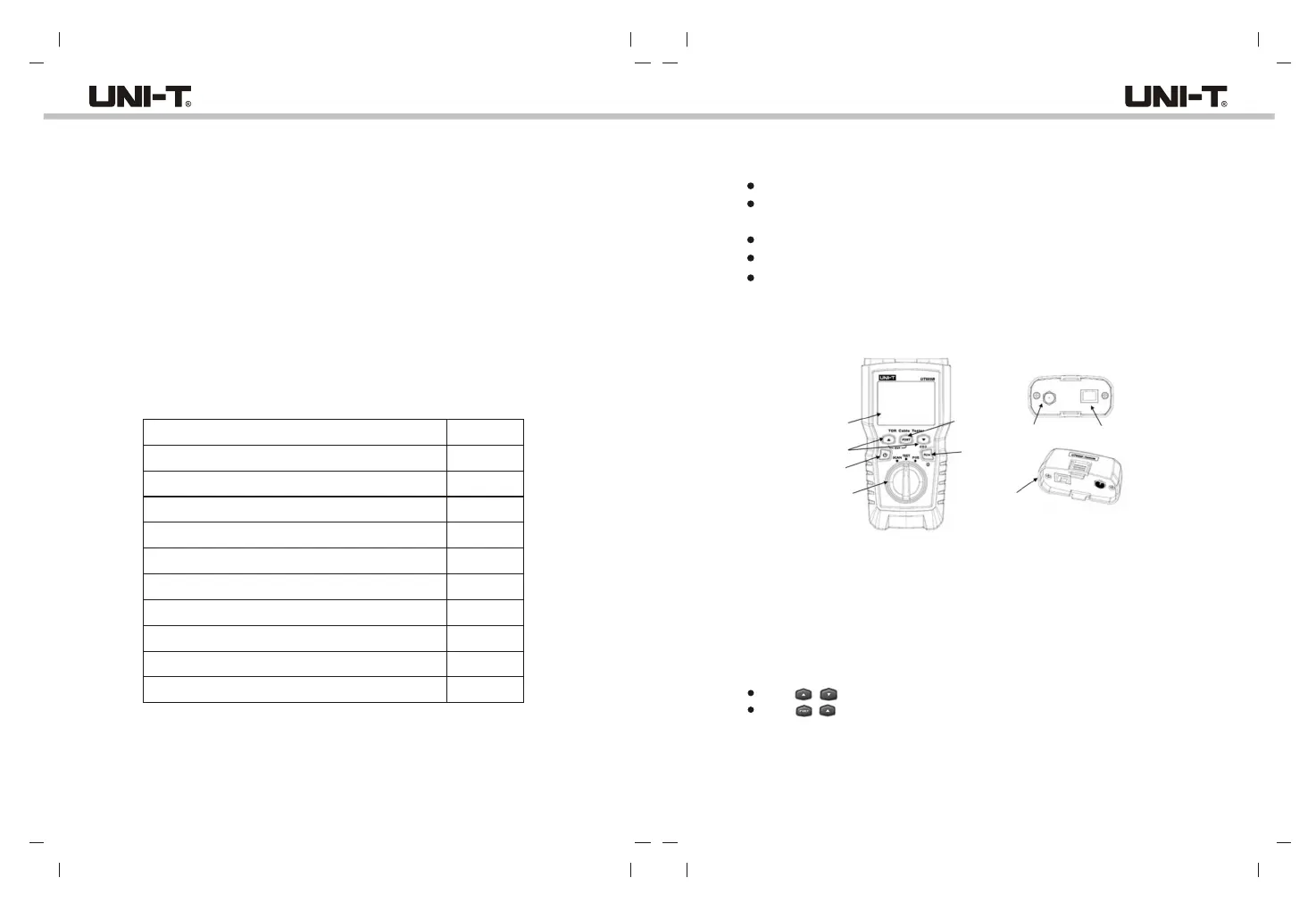

II. Accessories

If any accessories listed below is missing or damaged, please contact with your supplier

immediately.

Items

UT685B TDR cable tester

1.5V AA alkaline battery

RJ45 adapting cable

RJ11 adapting cable

RJ11 adapting cable (adapted to alligator clip)

Plug, F-connector to F-connector

User manual

Carrying bag

UT683R receiver (For UT685B KIT only)

Micro USB charging cable (For UT685B KIT only)

Quantity

1 pc

3 pcs

1 pc

III. Safety Information

To avoid fire, electric shock or personal injury, please follows:

Do not open the casing, there is no any user-serviceable part inside.

Please operate the tester by following the user manual, otherwise the tester can be

damaged.

Check before use. Do not use damaged tester. Do not alter the tester.

Please stop use in case that the tester does not work normally.

Please replace the battery immediately if low battery symbol appears, so as to ensure

test accuracy.

IV. Features

1. Mode knob: Wire tracking mode, testing mode, POE mode

2. Power button: Long press for 2 seconds to power on, short press for 1 second to

power off

3. The buttons (multiplexed) are used to view test result.

4. LCD display with backlight

5. Select RJ45 or coaxial cable connector

6. Short press this button to switch unit, long press about one second to turn on/of f the

backlight

Press , and power button at the same time to display the software version.

Press , and power button at the same time to calibrate measured length (Only

for test mode).

7. F-Connector for connecting coaxial cable

8. Modular jack for connecting to telephone and twisted-pair network cable. The jack

accepts 8-pin modular (RJ45) and 6-pin modular (RJ11) connectors.

9. Wiremap adapter with 8-pin modular jack and coaxial F connector.

UT685B KIT is a handheld TDR cable tester, suitable for copper cables (CAT 5E、CAT 6、

CAT 6A or CAT 8), used to detect and diagnose wiring condition of twisted pair and coaxial

cable, detect network service, short/open circuit in network cabling, split pair, miswire,

etc. It can also be applied to detect if there is PoE supply (POE module) in network cabling

and PoE standard (802.3AF, 802.3AT, 802.3BT). Wiremap, cable length, open-circuit

location and other information can be displayed on the screen simultaneously. The cable

tester is characterized by accurate, easy to operate, visibly-displayed, making it an ideal

tool for network communication maintenance, network engineering, wiring engineering,

etc.

UT685B/UT685B KITUT685B/UT685B KIT
