V-9830

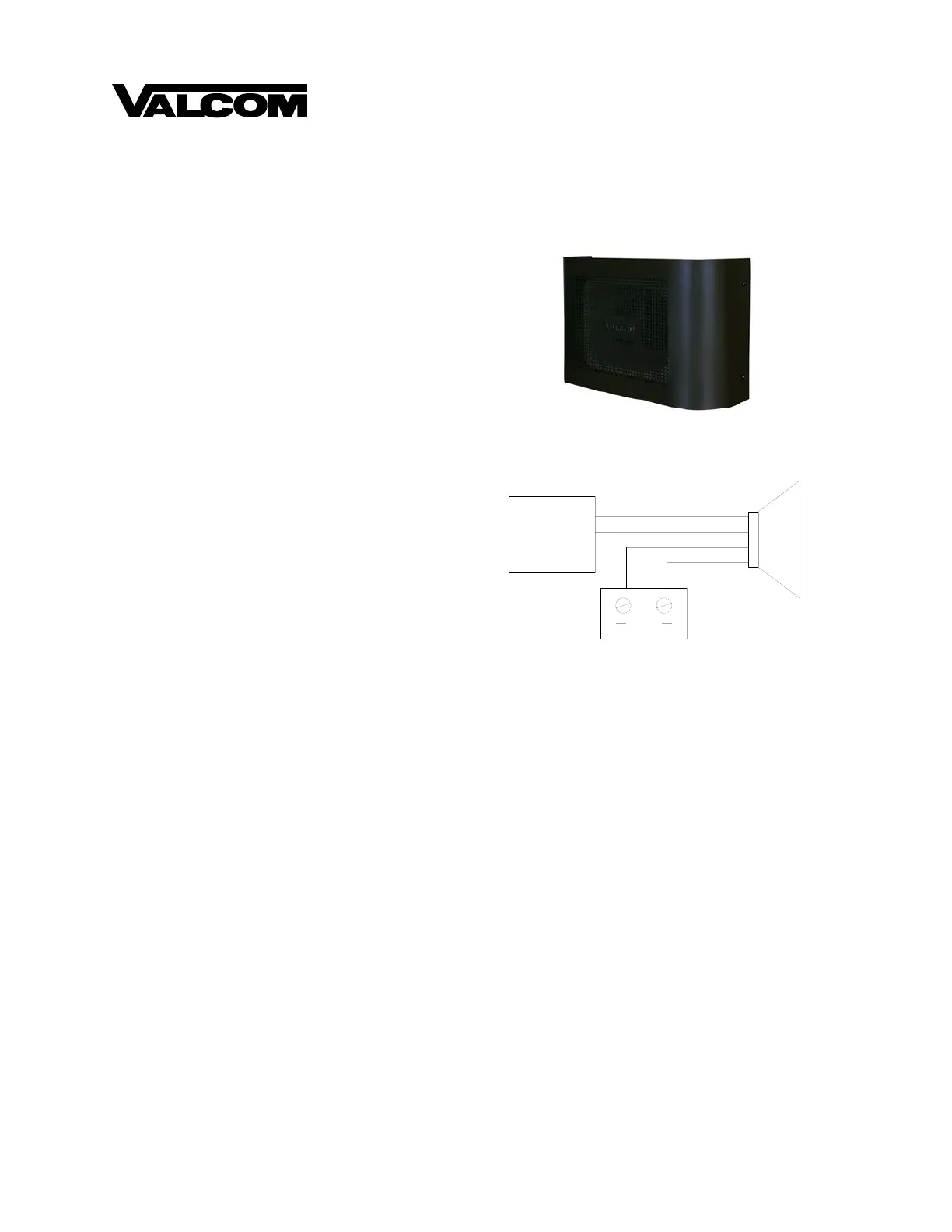

One-Way Stealth Flexhorn

INTRODUCTION

The Valcom V-9830 Stealth Flexhorn is a one-way

self-amplified paging horn designed to provide

voice paging as well as background music. The

stylish enclosure provides an unobtrusive,

contemporary appearance. A volume control is

accessible on the front of the horn.

SPECIFICATIONS

Applications

Used with Valcom Page Controllers

Dimensions & Weight

 9.3 "H x 15.0 "W x 5.0 "D

(23.6 cm x 38.1 cm x 12.7 cm)

 Weight: 7.6 lbs (3.45 kg)

Power Requirement

 -24VDC, 150mA (3 Valcom Power Units)

INSTALLATION

(Refer to Figure 1)

 Using a Phillips screwdriver, remove 4

screws attaching grille to enclosure base.

 Remove horn mounting bracket and horn

from enclosure base.

 Mount enclosure base to wall using

appropriate hardware.

 Reattach horn and bracket to enclosure

base.

 Make signal and power connections to

Flexhorn (see Connections diagram).

 Test Flexhorn volume levels making

adjustments before installing grille.

 Install grille onto enclosure base.

Power and Signal Connections

NOTE: Do not connect this speaker directly

to a 25/70/100 Volt amplifier as damage to

both the amplifier and speaker may occur.

A V-1095 can be used to provide an interface

between a centrally amplified speaker line

and Valcom self-amplified horns.

TECHNICAL ASSISTANCE

Assistance is available from the factory. Call

(540) 563-2000 and press 1 for Technical

Support or visit our website at

http://www.valcom.com.

Valcom equipment is not field repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating company

name, address, phone number, contact person

and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

(Tip/A) Green

(Ring/B) Red

(-24VDC) White

(GND) Black

One-Way

Amplified

Speaker

Page

Out

Valcom Page

Control

Valcom -24VDC

Power Supply
