Table of Contents Rev. 5/23/2025 FHSN, MANUAL.doc
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 1 of 17
FHSN-Series Knockdown Steel Fixed Height Gantry Cranes
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to
determine whether it sustained damage during transport. If damage is discovered, record a
complete description of
it on your bill of lading. If the product is undamaged, discard the
packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and
maintenance comply with laws, regulations, codes, and mandatory standards applied where the
product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts,
labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The
department
can also be contacted online at https://www.vestil.com/page-parts-request.php.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-manuals.php.
Vestil Manufacturing Co.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestil.com e-Mail: info@vestil.com
Table of Contents
Page
Table of Figures
Page
Specifications……...………………....….
2
FHSN Exploded Views………………………………………..
4 - 8
Signal Words….……………………..……
2
Fig. A: FHSN-2-10, FHSN-2-15, & FHSN-2-20……………….
4
Safety Instructions……………………..
3
Fig. B: FHSN-4-10, FHSN-4-15, & FHSN-4-20……………….
5
National Standards………………….…
3
Fig. C: FHSN-6-10, FHSN-6-15, & FHSN-6-20…………….….
6
Assembling the Crane……….…….....
9 - 12
Fig. D: FHSN-8-10, FHSN-8-15, & FHSN-8-20……………….
7
Using the Crane……………………..…
13
Fig. E: FHSN-10-10 & FHSN-10-15………………………...…
8
Loading the Crane………………...….
13
Installing the Optional Festoon Kit……………………….
15
Record of Satisfactory Condition….
13
Inspections & Maintenance…………..
14
Labeling Diagram…………………….
16
Limited Warranty………………...……
17
Table of Contents Rev. 5/23/2025 FHSN MANUAL
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 2 of 17
SPECIFICATIONS
Specifications documents for FHSN-series cranes are provided on Vestil’s website. To access the
appropriate specifications document, navigate to the relevant webpage:
https://www.vestil.com/product.php?FID=520. Click the “Product Specifications Table” drop-down
menu bar partway down the page. Scroll down to the entry for the model you purchased and click the
button in the column titled “PDF’s” that looks like a pencil inside a blue box. A PDF file will open. This file
is the specifications document. Print a copy of the document and keep it with your copy of this manual.

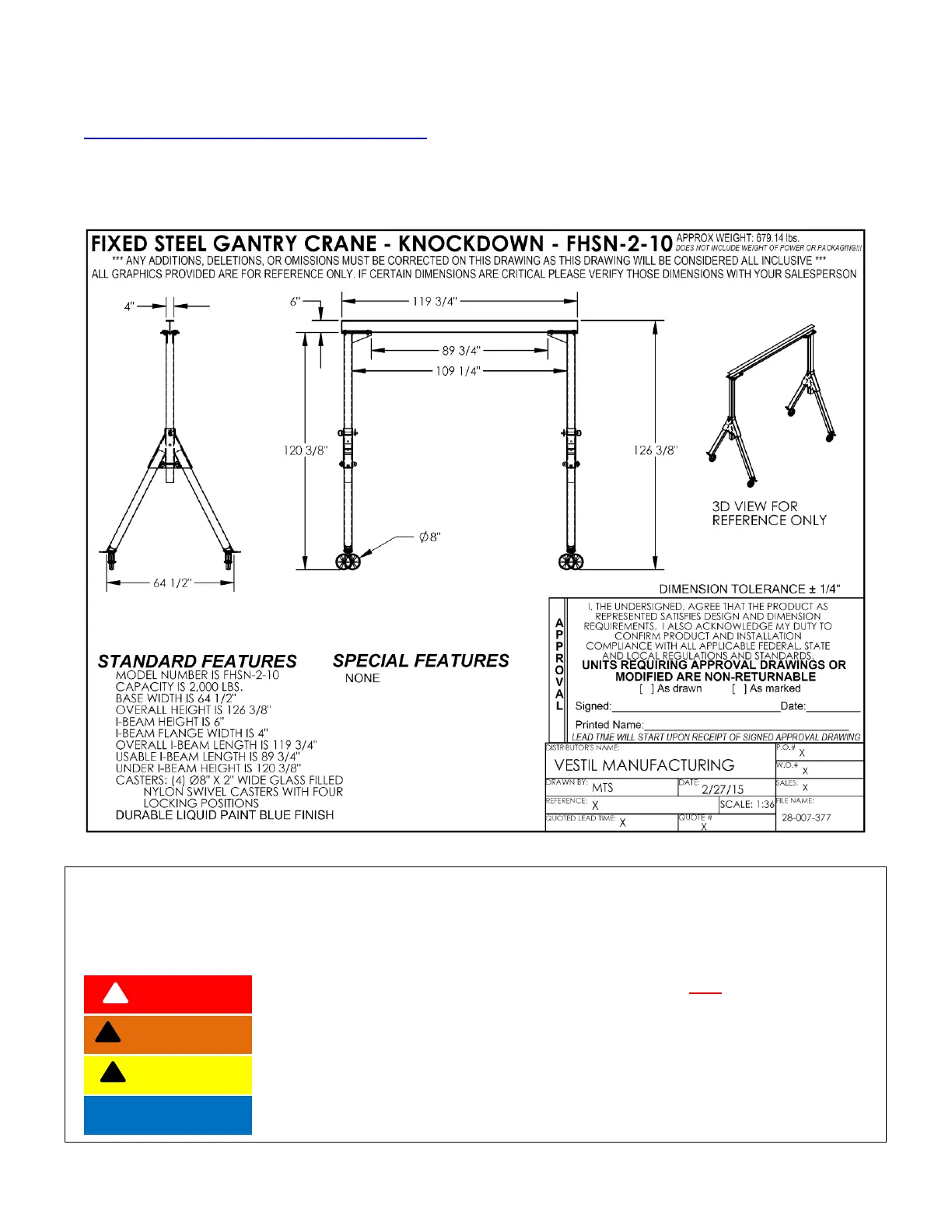

The following is an exemplar specifications document for model FHSN-2-10.
SIGNAL WORDS
This manual uses SIGNAL WORDS to indicate the likelihood of personal injuries, as well as the probable
seriousness of those injuries, if the product is misused in the ways described. Other signal words call
attention to uses of the product likely cause property damage. The signal words used appear below
along with the meaning of each word.
DANGER
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
WARNING
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
NOTICE
Identifies practices likely to result in product/property damage, such as
operation that might damage the crane.
!
!
!
